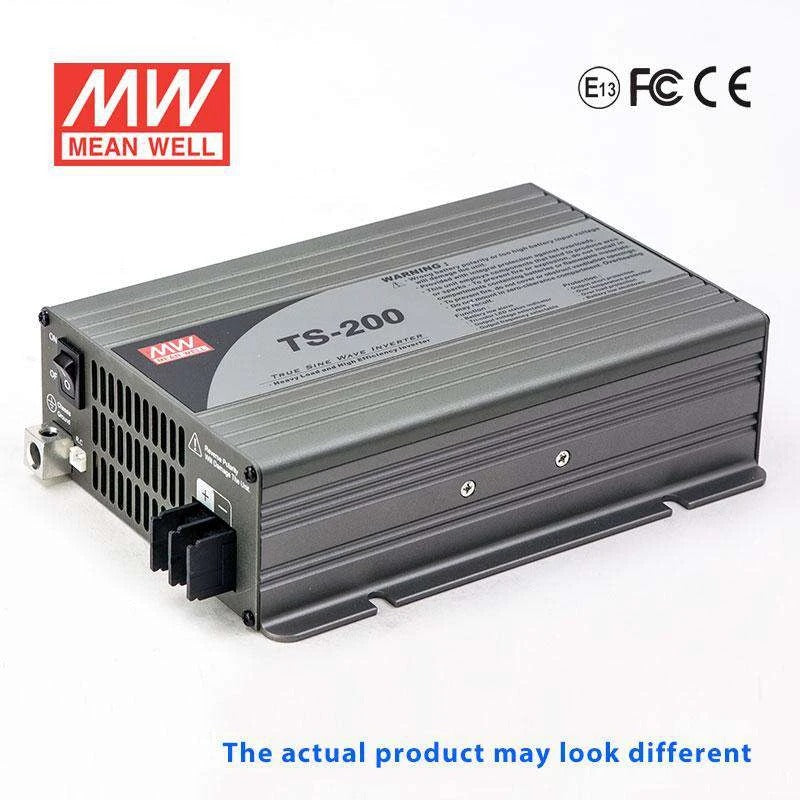

Mean Well TS-200-124C True Sine Wave 200W 24VDC to 230VAC 870mA - DC-AC Power Inverter

SKU TS-200-124C

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NTS-300-124AU

In stock

Overview

TS-200-124C is the model of this series: rated power 200W, typical efficiency 87.5%.

Features

True sine wave output (THD<3%)
High surge power up to 400W
High efficiency up to 88%
Fanless design, cooling by free air convention
Built-in remote ON-OFF control
Front panel indicator for operation status
Power ON-OFF switch
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
3 years warranty

Specifications

TS-200-124CSpecifications from the official datasheet (2022-09-20 edition)

MODEL NO.

MODEL NO.: □ = A, E, F

OUTPUT

RATED POWER: 200W
MAXIMUM OUTPUT POWER: 230W for 180 sec. / 300W for 10 sec. / surge power 400W for 30 cycles(typ.)
AC VOLTAGE: Factory setting set at 110VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W
FREQUENCY^Note.5: 60±0.1Hz 50/60Hz selectable by setting button
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION^Note.1: ±3.0% at rated input voltage
FRONT PANEL INDICATOR: Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal

INPUT

BAT. VOLTAGE: 24V
VOLTAGE RANGE (Typ.)^Note.3: 21 ~ 30VDC
DC CURRENT (Typ.): 10A
NO LOAD CURRENT DRAW (Typ.): 0.63A
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 87.5%
BATTERY TYPES: Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE: 30A*1
BAT. LOW ALARM: 22.5±4%
BAT. LOW SHUTDOWN: 21±4%
BAT. POLARITY: By internal fuse open

OUTPUT PROTECTION

OVER TEMPERATURE: 80℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTION: Optional (Only type F)

FUNCTION

REMOTE CONTROL: Open : Normal work ; Short : Remote off

ENVIRONMENT

WORKING TEMP.: -10 ~ +35℃ @ 100% load ; +60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004 approved, Design refer to UL458, BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat. I/P-AC O/P, Bat. I/P-FG, AC O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC class A, EAC TP TC 020
EMC IMMUNITY: Compliance to EAC TP TC 020

OTHERS

MTBF: 930.6K hrs min. Telcordia SR-332 (Bellcore) ; 87.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 205*158*59mm (L*W*H)
PACKING: 1.63Kg; 6pcs/10.8Kg/1.44CUFT

Certifications & ratings

Marked features: E13
Certification marks: E13

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 200W, linear load at 13V/26V/52V input voltage.
2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
3.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V.
4.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5.Type F for 60Hz only.

Technical drawings

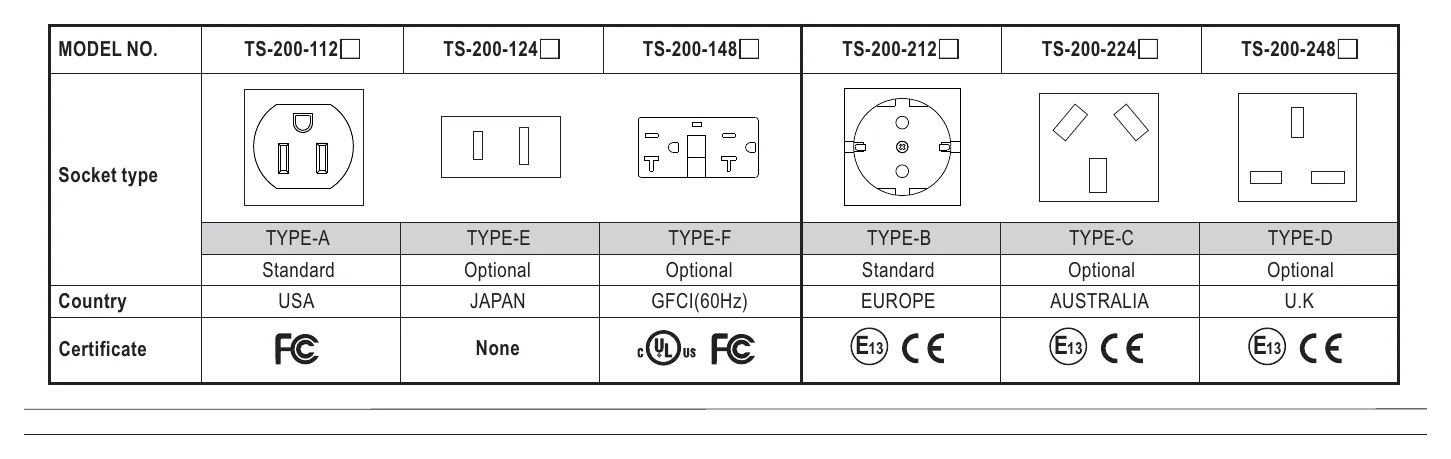

TS-200-124C AC Output Socket (optional) — AC Output Socket (optional)

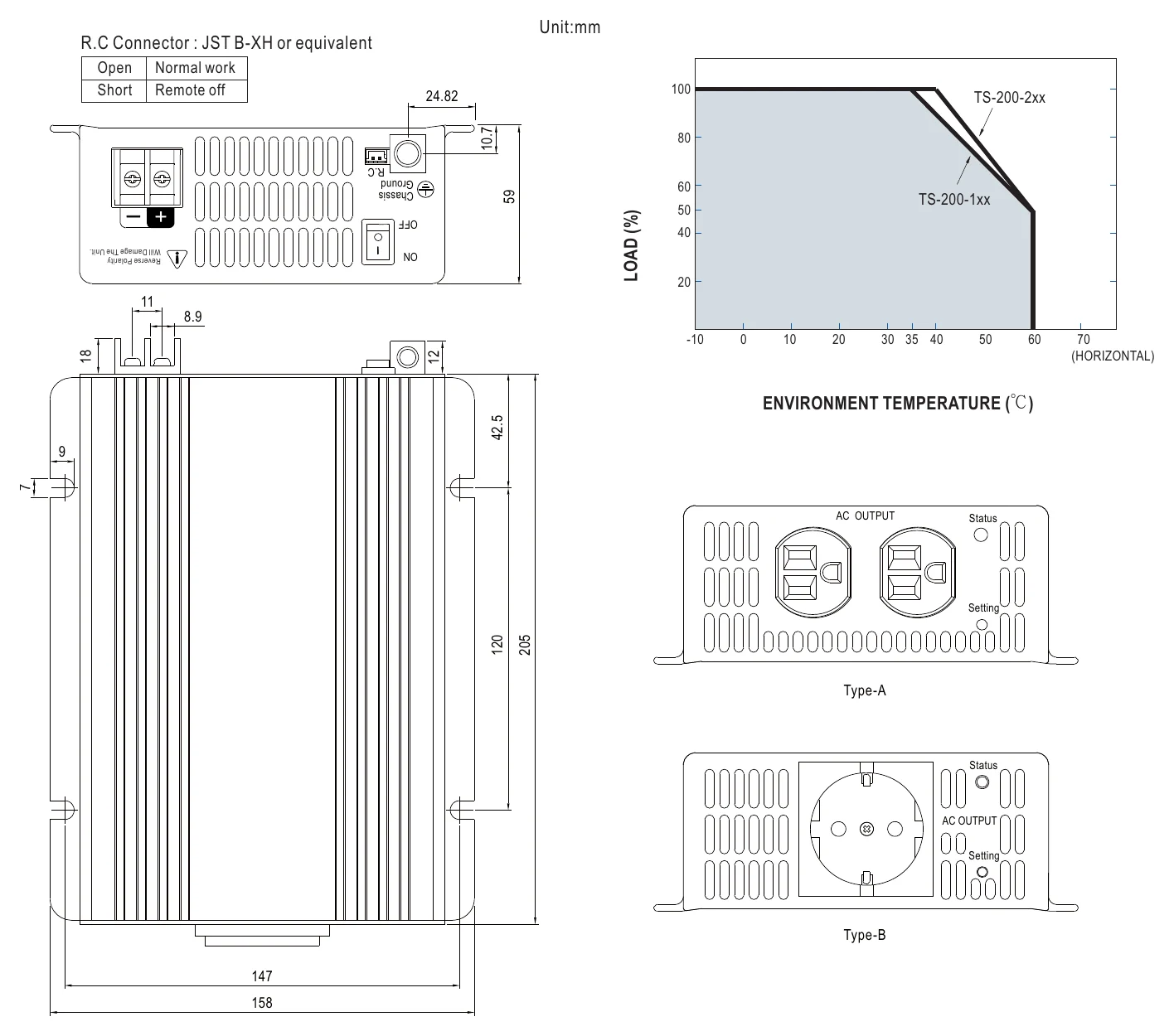

TS-200-124C Mechanical Specification — Mechanical Specification

Typical applications

Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.

Downloads

Certificates2

FCC Certificate (TS-200)(EN) PDF Download

EMC Certificate (TS-200)(EN) PDF Download

Test reports1

Test Report(TS-200-124)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What is the Mean Well TS-200-124A designed for?

This model is a 200W DC-AC power inverter that provides a true sine wave AC output. It is suited to business and industrial applications where sensitive AC-powered equipment benefits from cleaner waveform quality than modified sine wave alternatives.

Why would a buyer choose this model over a modified sine wave inverter?

The TS-200-124A produces a true sine wave output with THD below 3%, which is a key differentiator for loads that are sensitive to output waveform quality. For buyers comparing inverter types, that makes this model a better fit where stable, cleaner AC output is important.

What are the main electrical specifications of this inverter?

This inverter is rated for 200W continuous output power and supports surge power up to 400W. The AC output is adjustable across 200/220/230/240VAC settings using the front-panel setting button.

Is the TS-200-124A fan-cooled?

No. This model uses a fanless design and is cooled by free air convection, which can be useful in applications where reduced moving parts and lower operating noise are preferred.

What operating environment is this inverter rated for?

The stated operating temperature range is -10°C to 35°C. Buyers should make sure their installation environment stays within that range for normal operation.

Does this inverter include protection features and remote control support?

Yes. The TS-200-124C includes short circuit, overload, and over temperature protection, and it also has built-in remote ON-OFF control. It also includes a front-panel status indicator and a power ON-OFF switch.

What warranty and physical considerations should buyers know about?

This model includes a 3-year warranty from the manufacturer. Its listed weight is 1.63 kg, which can be useful when comparing compact inverter options for enclosure or panel planning.
