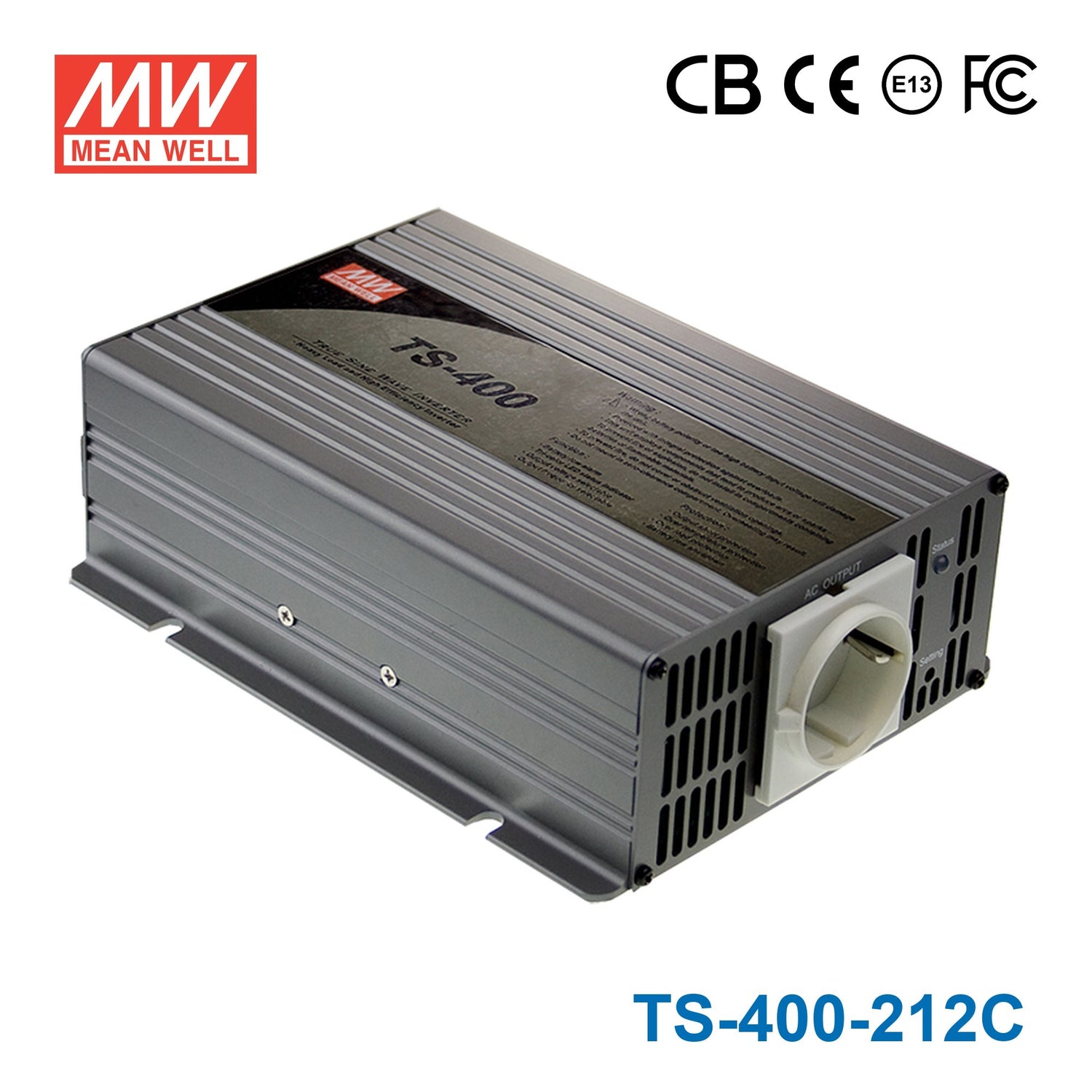

Mean Well TS-400-212C True Sine Wave 400W 12VDC to 230VAC 1.7A - DC...
Log in to see priceOverview
TS-400-212C is the model of this series: rated power 400W, typical efficiency 86%.
Features
- True sine wave output (THD<3%)
- High surge power up to 800W
- High efficiency up to 88.5%
- Thermostatically controlled cooling fan
- Built-in remote ON-OFF control
- Front panel indicator for operation status
- Power ON-OFF switch
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
- 3 years warranty
Specifications
OUTPUT
- RATED POWER
- 400W
- MAXIMUM OUTPUT POWER
- 460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles(typ.)
- AC VOLTAGE
- Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
- FREQUENCYNote.6
- 50±0.1Hz 50/60Hz selectable by setting button
- WAVEFORMNote.2
- True sine wave (THD<3%)
- AC REGULATIONNote.2
- ±3.0% at rated input voltage
- FRONT PANEL INDICATOR
- Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal
INPUT
- BAT. VOLTAGE
- 12V
- VOLTAGE RANGE (Typ.)Note.3
- 10.5 ~ 15VDC
- DC CURRENT (Typ.)
- 40A
- NO LOAD CURRENT DRAW (Typ.)
- 1.25A
- OFF MODE CURRENT DRAW
- ≦1mA
- EFFICIENCY (Typ.)Note.1
- 86%
- BATTERY TYPES
- Open & sealed Lead Acid
BATTERY INPUT PROTECTION
- FUSE
- 40A*2
- BAT. LOW ALARM
- 11.3±4%
- BAT. LOW SHUTDOWN
- 10.5±4%
- BAT. POLARITY
- By internal fuse open
OUTPUT PROTECTION
- OVER TEMPERATURE
- 85℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor
- OUTPUT SHORT
- Protection type : Shut down o/p voltage, re-power on to recover
- OVER LOAD (Typ.)
- 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
- GFCI PROCTECTION
- None
FUNCTION
- REMOTE CONTROL
- Open : Normal work ; Short : Remote off
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +40℃ @ 100% load ; +60℃ @ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1 CB, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
- ISOLATION RESISTANCE
- Bat. I/P-AC O/P, Bat. I/P-FG, AC O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020
OTHERS
- MTBF
- 865.3K hrs min. Telcordia SR-332 (Bellcore) ; 80.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 205*158*67mm (L*W*H)
- PACKING
- 1.73Kg; 6pcs/11.4Kg/1.55CUFT
Test conditions and notes6
- 1.Efficiency is tested by 300W, linear load at 13V/26V/52V input voltage.
- 2.AC regulation and THD are tested by 400W, linear load at 13V/26V/52V input voltage.
- 3.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V.
- 4.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

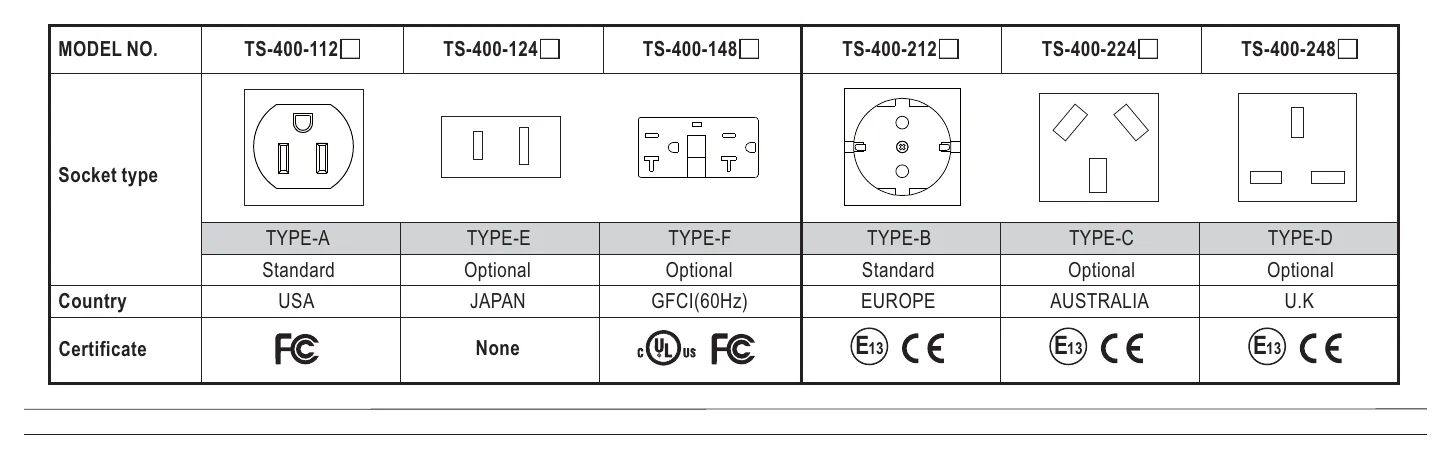

- 6.Type F for 60Hz only.

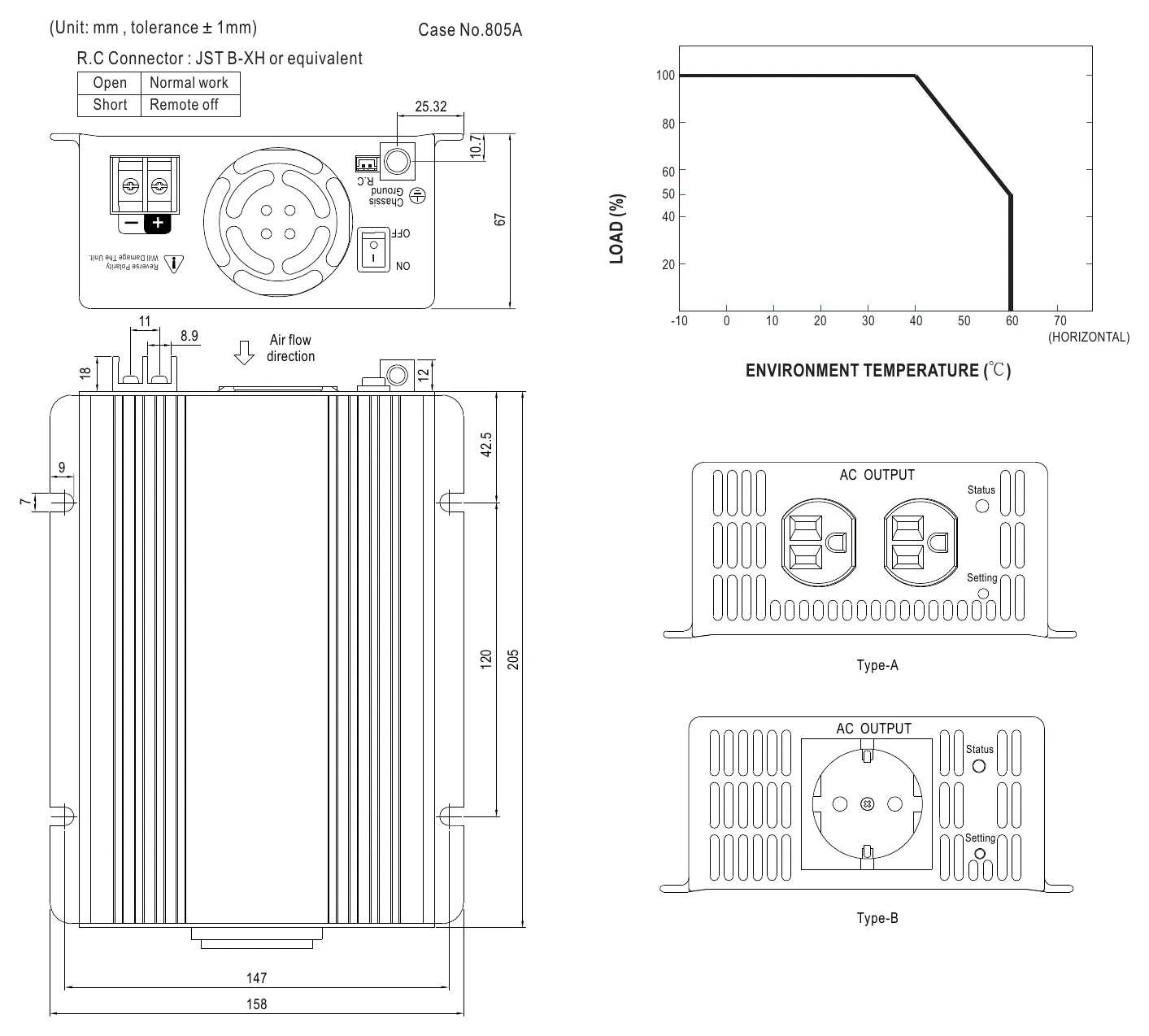

Technical drawings
Typical applications
- Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
Downloads
FAQ
What are the main electrical specifications of the Mean Well TS-400-212C?
The TS-400-212C is a 400W DC-AC power inverter with a nominal 230V AC output. It produces a true sine wave output with THD below 3%, and it can deliver surge power up to 800W for short peak demand.
What kind of equipment is this inverter best suited for?
This model is designed for applications that need a 230V AC true sine wave supply from a DC source. Its low-distortion output makes it a strong fit for business and industrial loads that are more sensitive to waveform quality than they would be with a modified sine wave inverter.
How does the TS-400-212C compare with a modified sine wave inverter?
The TS-400-212C provides a true sine wave output with THD below 3%, which is a key differentiator from modified sine wave models. That cleaner waveform is generally preferred when output quality and stable operation matter more than choosing the lowest-cost inverter option.
Can the AC output voltage be adjusted on this model?
Yes. The front-panel setting button allows adjustment across 200/220/230/240VAC, and the specification also lists 100/110/115/120VAC settings. For this product listing, the nominal output voltage is 230V.
What operating environment is the TS-400-212C designed for?
The specified operating temperature range is -10°C to +40°C at 100% load, extending to +60°C at 50% load. It includes a thermostatically controlled cooling fan, which helps manage heat during operation within its rated environment.
What protection and support features does the TS-400-212C include?
This inverter includes protection for short circuit, overload, over temperature, battery low alarm, battery low shutdown, and input reverse polarity. It also has front-panel status indication, a power ON-OFF switch, built-in remote ON-OFF control, and a 3-year warranty.
