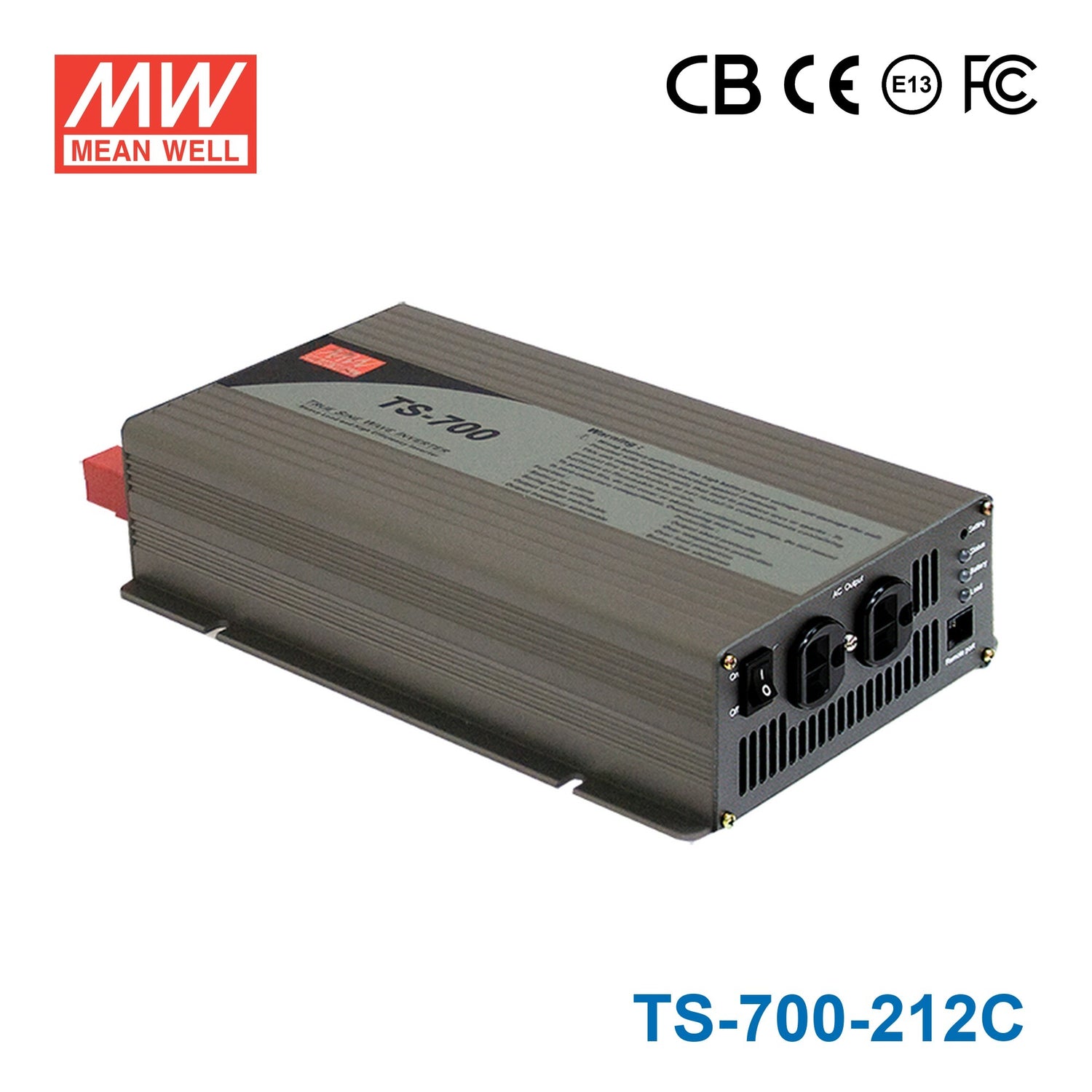

Mean Well TS-700-212C True Sine Wave 700W 12VDC to 230VAC 3A - DC-AC Power Inverter

SKU TS-700-212C

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NTS-750-212AU

In stock

Overview

TS-700-212C is the model of this series: typical efficiency 89%.

Features

True sine wave output (THD<3%)
High surge power up to 1400W
High efficiency up to 91%
Power ON-OFF switch
Standby saving mode can be selectable
Front panel indicator for operation status
Built-in fan ON-OFF control function
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Reverse polarity / Overload
3 years warranty

Specifications

TS-700-212CSpecifications from the official datasheet (2024-11-22 edition)

OUTPUT

RATED POWER (Typ.): 700W
MAXIMUM OUTPUT POWER (Typ.): 800W for 180 sec. / 1050W for 10 sec. / surge power 1400W for 30 cycles
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
FREQUENCY^Note.8: 50±0.1Hz 50/60Hz selectable by setting button S.W
WAVEFORM^Note.6: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3.0%
SAVING MODE (Typ.): Default disabled. Load≦5W will be changed to standby mode
FRONT PANEL INDICATOR: Battery voltage level, output load level, saving mode, fault and operation status

INPUT

BAT. VOLTAGE: 12V
VOLTAGE RANGE (Typ.)^Note.3,5: 10.5 ~ 15VDC
DC CURRENT (Typ.): 75A
NO LOAD DISSIPATION (Typ.): ≦6W @ standby saving mode
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 89%
BATTERY TYPES: Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE: 40A*3
BAT. LOW ALARM: 11.3±4%
BAT. LOW SHUTDOWN: 10.5±4%
BAT. POLARITY: By internal fuse open

OUTPUT PROTECTION

OVER TEMPERATURE: 75℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTION: None

ENVIRONMENT

WORKING TEMP.^Note.4: 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,8, EAC TP TC 020

OTHERS

MTBF: 74.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 295*184*70mm (L*W*H)
PACKING: 3.8Kg; 2pcs/8.6Kg/1.27CUFT

Test conditions and notes8

1.Efficiency is tested by 530W, linear load at 13V, 26V, 52V input voltage.
2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
3.Input derating capacity referenced by curve 2.
4.Output derating capacity referenced by curve 1.
5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V.
6.THD is tested by 700W, linear load at 13,26,52V input voltage.
7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8.Type F for 60Hz only.

Technical drawings

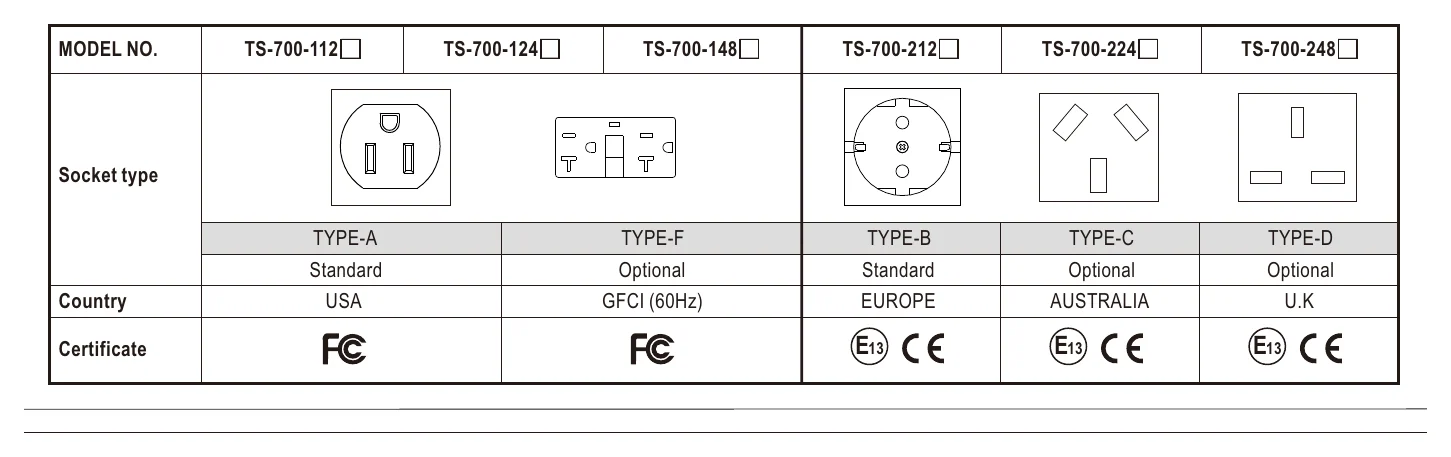

TS-700-212C AC Output Socket (optional) — AC Output Socket (optional)

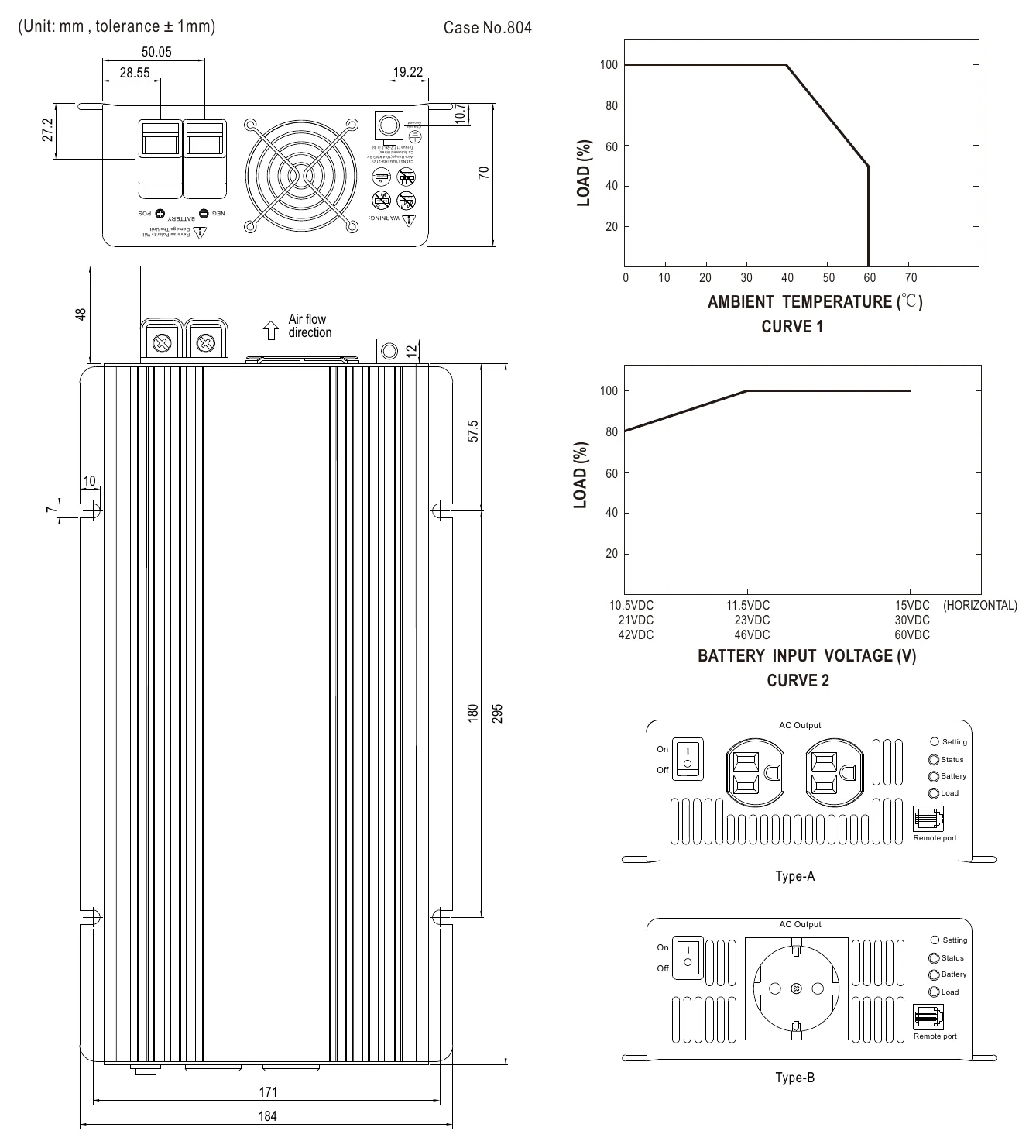

TS-700-212C Mechanical Specification — Mechanical Specification

Typical applications

Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.

Downloads

Certificates2

FCC Certificate (TS-700)(EN) PDF Download

EMC Certificate (TS-700)(EN) PDF Download

Test reports1

Test Report(TS-700-212)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What type of output does the Mean Well TS-700-212C provide?

The TS-700-212C provides a true sine wave AC output, which is specified with THD below 3%. It is designed as a 700W DC-AC inverter with adjustable AC output settings that include 230V operation. For buyers comparing waveform quality, this model is positioned for applications that need cleaner AC output than modified sine wave alternatives.

Is the TS-700-212C suitable for 230V equipment?

Yes, this model is intended for 230V AC output and the front panel settings include adjustable AC output options up to 230/240VAC. That makes it relevant for equipment or systems that require a 230V-class inverter output. Buyers should still confirm the connected load matches the inverter's 700W rating.

What power capacity does the Mean Well TS-700-212C support?

This inverter is rated for 700W continuous power and is specified with surge power up to 800W. That gives some headroom for loads with a brief startup demand above their normal running level. For ongoing operation, the main sizing figure to use is the 700W power rating.

What protections are built into the TS-700-212C?

The TS-700-212C includes protection for short circuit, overload, and over temperature. These built-in protections are important in B2B and industrial environments where uptime and equipment protection matter. The unit also includes front-panel status indication for operating condition monitoring.

Can the TS-700-212C be used in enclosed equipment or warmer operating areas?

The stated operating temperature range is 0°C to 40°C at 100% load, so it is intended for controlled operating environments within that band. It also uses a built-in fan with ON-OFF control, which helps manage heat under load. For warmer cabinets or harsh environments, buyers should check that the actual ambient temperature stays within the specified range.

What makes the TS-700-212C different from a lower-grade inverter?

Its key differentiators are true sine wave output, efficiency up to 89%, and built-in remote ON-OFF control. Compared with simpler inverter options, this model is aimed at applications where output quality, operational status visibility, and branded industrial protections are important. It also carries a 3-year warranty from Mean Well.
