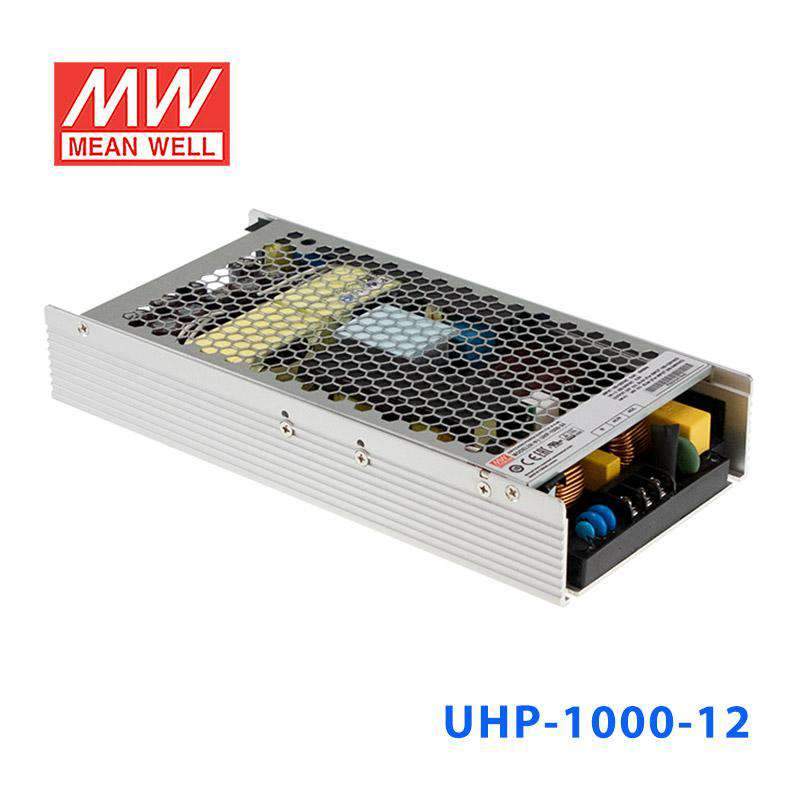

Mean Well UHP-1000-12 Power Supply 960W 12V

slim and low profile, fanless design

|

Description

Features

Slim and Low profile (41mm)
Fanless and conduction-cooled design
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30~+70℃ working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 5000 meter
LED indicator for power on
5 years warranty

General Specification

AC input voltage range 90~264VAC 250~370VDC
AC inrush current Cold start :20A/115VAC 40A/230VAC
Overload protection 105~120% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
Short circuit protection Protection type :Constant current limiting with delay shutdown after 3 seconds, re-power on to recover
Over voltage protection 12V:14.5~16V, 24V:29~33V, 36V:43.5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover
Over temperature protection Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC,230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -30~+70℃ (Refer to “Derating Curve)
Safety standards UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards EN55032 (CISPR32) Class B ;EN61000-3-2, 3;EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2
Dimension (LxWxH) 240×115×41mm
Packing 1.74Kg;8pcs/14.9Kg

Specifications

  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    960 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    80 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    24 cm
  • Width
    11.5 cm
  • Height
    4.1 cm
  • Weight
    1.74 kg

File Downloads
