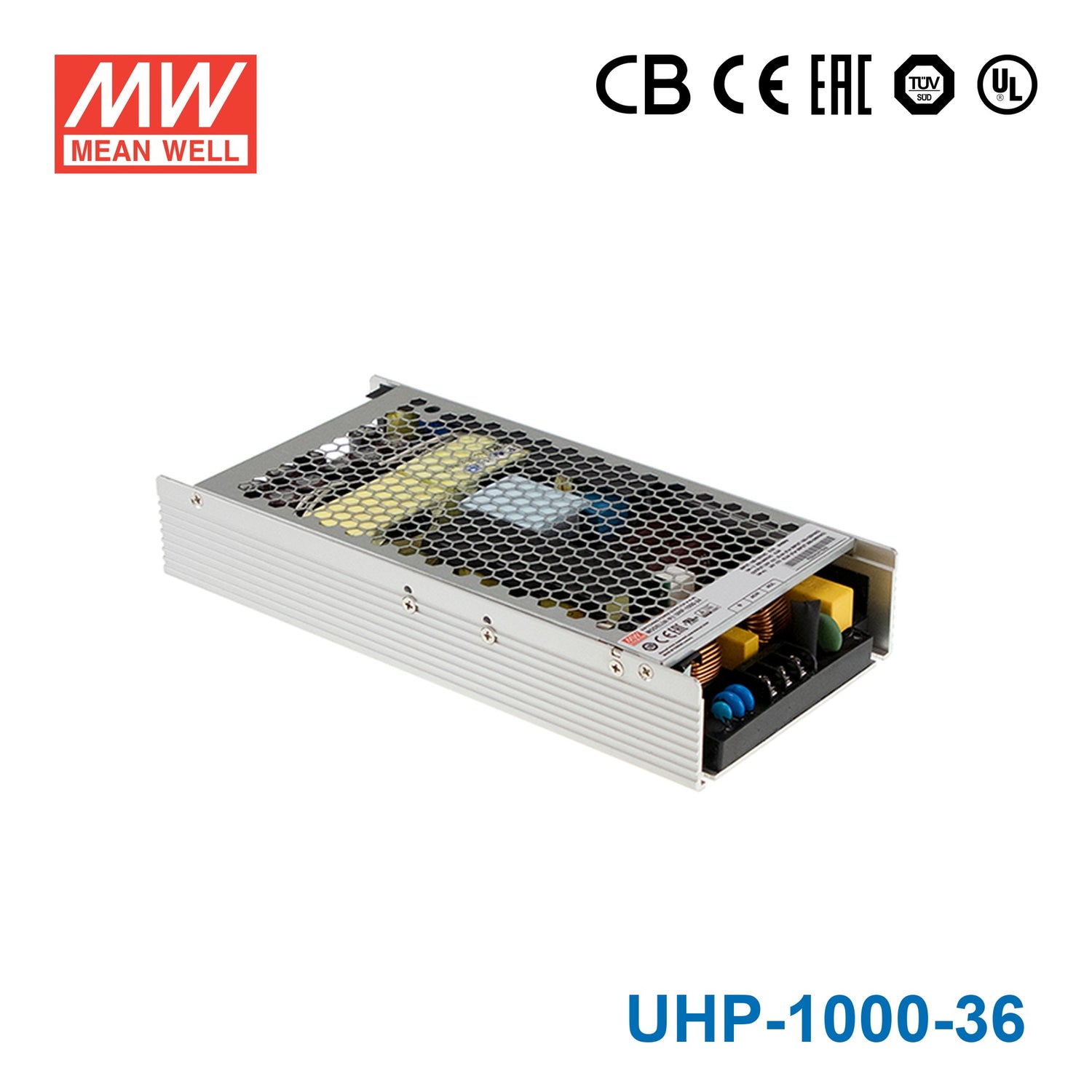

Description
Description
Features
Slim and Low profile (41mm) |
Fanless and conduction-cooled design |
Withstand 300VAC surge input for 5 seconds |
Built-in active PFC function |
-30~+70℃ working temperature |
Output voltage and constant current level programmable |
Protections: Short circuit / Overload / Over voltage / Over temperature |
Built-in remote ON-OFF control |
DC OK active signal |
Operating altitude up to 5000 meter |
LED indicator for power on |
5 years warranty |
General Specification
AC input voltage range | 90~264VAC 250~370VDC |
AC inrush current | Cold start :20A/115VAC 40A/230VAC |
Overload protection | 105~120% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds, re-power on to recover |
Short circuit protection | Protection type :Constant current limiting with delay shutdown after 3 seconds, re-power on to recover |
Over voltage protection | 12V:14.5~16V, 24V:29~33V, 36V:43.5~49V, 48V:59~66V Protection type :Shut down O/P voltage, re-power on to recover |
Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
Setup, rise, hold up time | 1000ms, 50ms/230VAC/115VAC at full load; 12ms/115VAC,230VAC |
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
Working temperature | -30~+70℃ (Refer to “Derating Curve) |
Safety standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2, 3;EN61000-4-2, 3, 4, 6, 8, 11, EN61000-6-2 |
Dimension (LxWxH) | 240×115×41mm |
Packing | 1.74Kg;8pcs/14.9Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1008 Watt
-
Output Voltage36 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length24 cm
-
Width11.5 cm
-
Height4.1 cm
-
Weight1.74 kg
