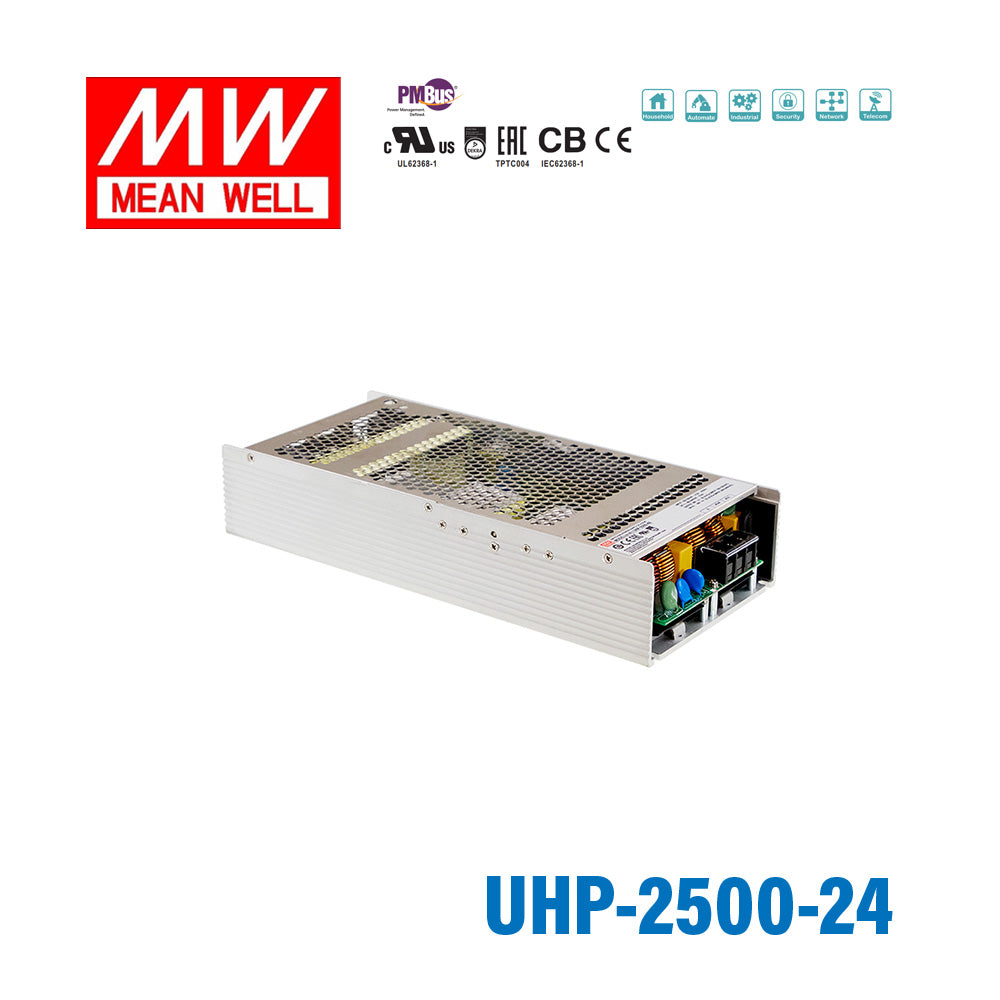

Mean Well UHP-2500-24 Power Supply 2500.8W 24V
Please Login for Pricing
Description
Description
Features
| Slim and Low profile (60mm) |
| Fanless and conduction-cooled design |
| Optional PMBus or CANBus protocol |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Output voltage and constant current level programmable |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in remote ON-OFF control |
| DC OK active signal |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC 250~370VDC |
| AC inrush current | Cold start :30A/115VAC 60A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Short circuit protection | Protection type :Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Over voltage protection | 24V:29~33V, 48V:59~66V Protection type :Shut down O/P voltage,re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC，230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃(Refer to “Derating Curve) |
| Safety standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11 |
| Dimension (LxWxH) | 310×140×60mm |
| Packing | 3.5Kg; 4pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating2500.8 Watt
-
Output Voltage24 Volt
-
Rated Current104.2 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length31 cm
-
Width14 cm
-
Height6 cm
-
Weight3.5 kg
