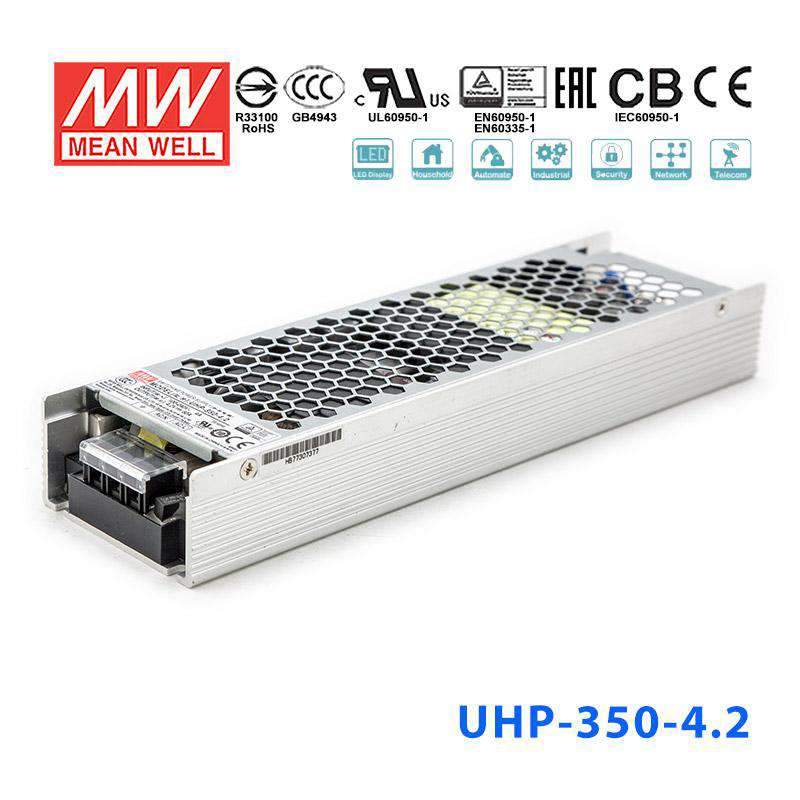

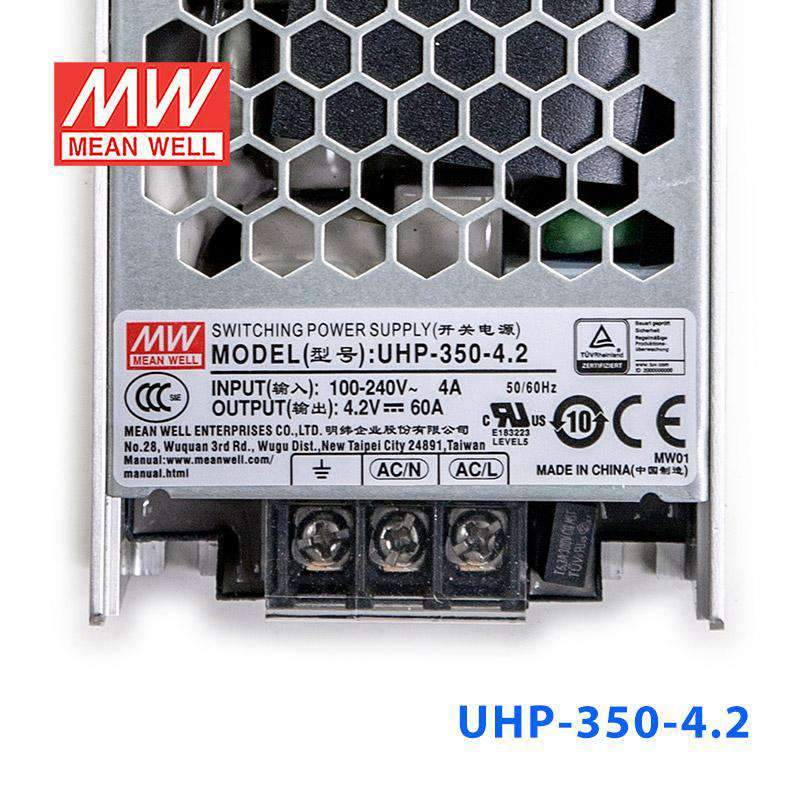

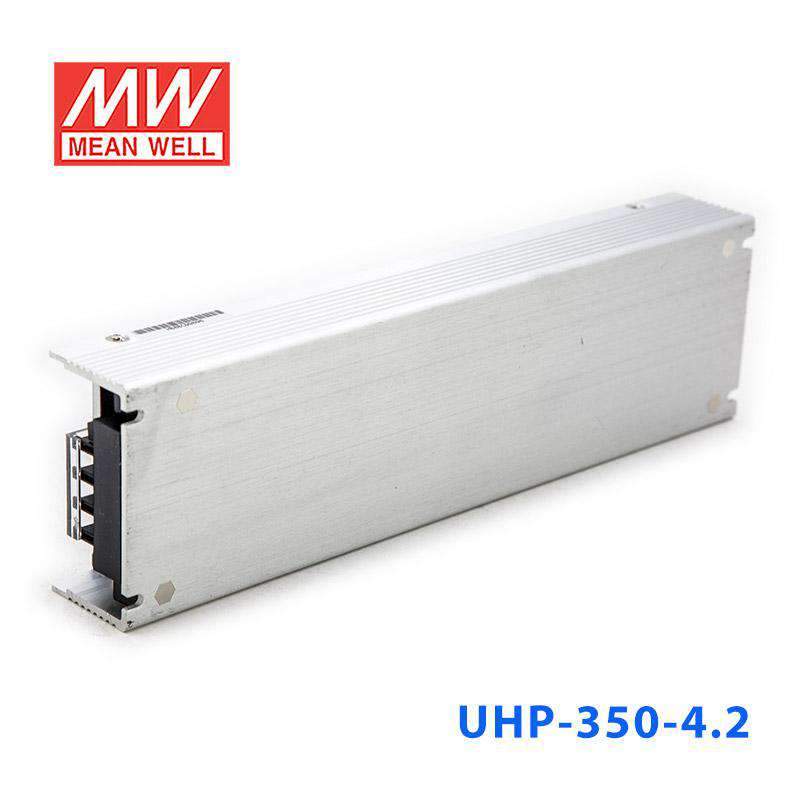

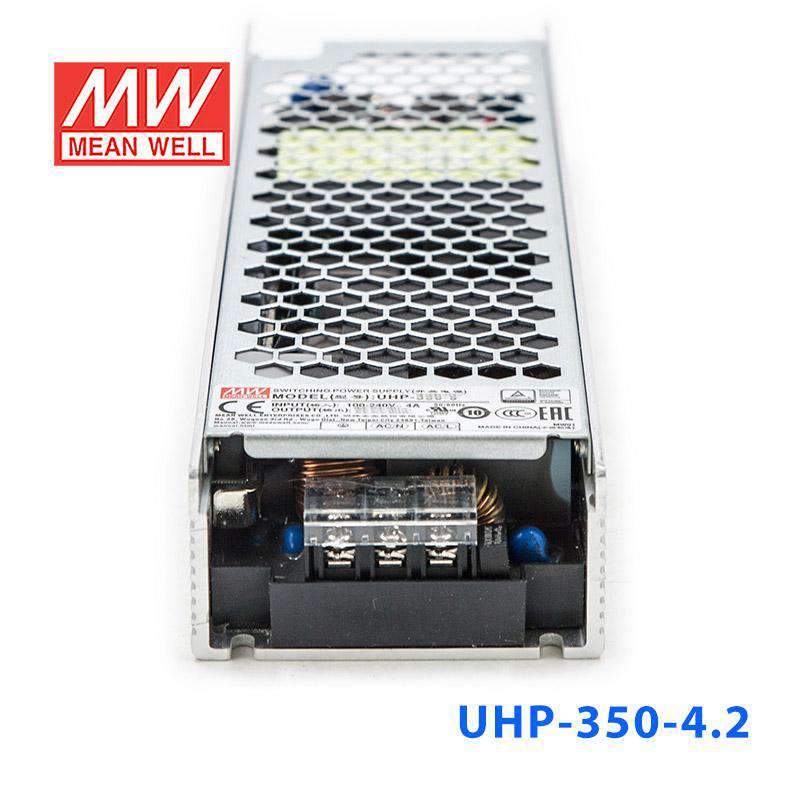

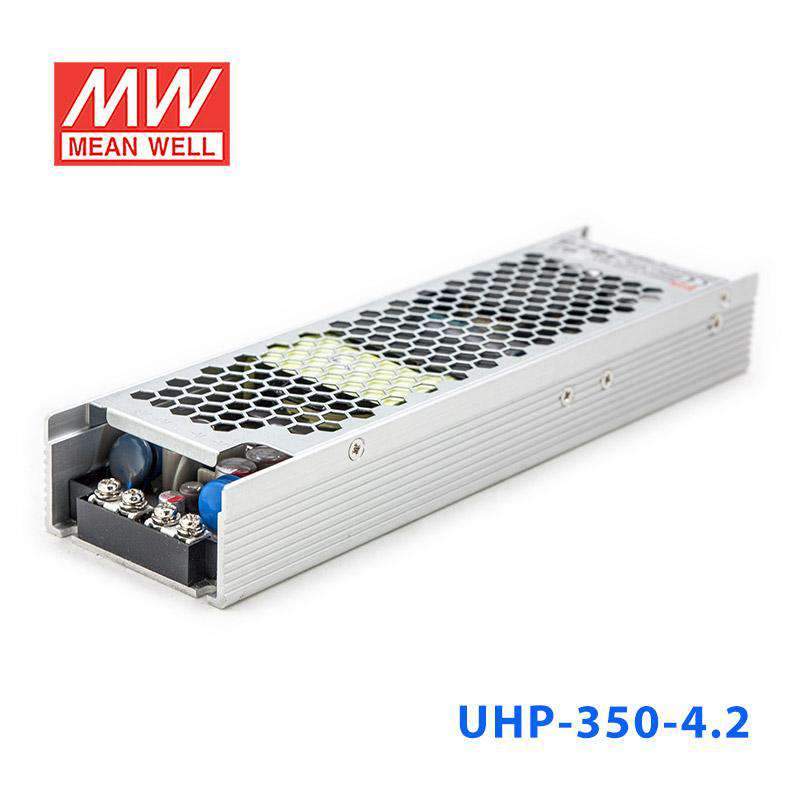

Mean Well UHP-350-4.2 Power Supply 252W 4.2V 60A

slim and low profilefanless design

SKU UHP-350-4.2

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

UHP-350-4.2

UHP-200-4.2 200W 4.2V Backorder

UHP-350-4.2 350W 4.2V Backorder

UHP-500-4.2 500W 4.2V Backorder

Product variants

Notify me when it's back in stock

The UHP-350-4.2 is a 252W Mean Well power supply (input: 90~264VAC, operating temperature: -30~+70°C).

Key Features

✓ Input voltage: 90~264VAC
✓ Output voltage (max): 4.2V
✓ Rated output current: 60A
✓ Operating temperature: -30~+70°C
✓ Safety certifications: BSMI, CB, CCC, CE, EAC, TÜV, UL
✓ 3 year warranty

Frequently Asked Questions

Can I use the UHP-350-4.2 for a high-current 4.2V embedded or industrial electronics load?

Yes, when the application specifically requires a constant 4.2V source and the total demand stays within 60A and 252W. Its rating is oriented toward low-voltage, high-current equipment rather than higher-voltage industrial buses.

Is the UHP-350-4.2 suitable for powering 4.2V test fixtures or production electronics stations?

It can be appropriate for bench, fixture, or production environments that need a regulated 4.2V output at substantial current. The key limits are the fixed 4.2V output, 60A maximum current, and 252W total power.

Can this model support a 4.2V industrial control board stack with heavy current draw?

It is a fit for 4.2V control or electronics assemblies that need more current capacity, because it provides up to 60A. As a constant-voltage unit, it should be matched only to loads designed to run from a 4.2V rail.

Is the UHP-350-4.2 suitable for outdoor enclosures or wide-temperature installations?

The published operating range is -30°C to +70°C, so the temperature spec supports broad indoor industrial conditions. No IP rating is listed in the provided specs, so the product's outdoor or washdown suitability is not confirmed here.

How does the UHP-350-4.2 compare with other UHP-350 models in the same series?

In the provided UHP-350 lineup, UHP-350-3.3 is 198W, 3.3V, 60A; UHP-350-4.2 is 252W, 4.2V, 60A; UHP-350-5 is 300W, 5V, 60A; UHP-350-12 is 350.4W, 12V, 29.2A; UHP-350-15 is 351W, 15V, 23.4A; UHP-350-24 is 350.4W, 24V, 14.6A; UHP-350-36 is 351W, 36V, 9.75A; and UHP-350-48 is 350.4W, 48V, 7.3A. The series list also mentions UHP-350-55, but no detailed output figures were supplied for it.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well UHP-350-24 Power Supply 350.4W 24V 14.6A	350.4W	24V	14.6A	View
Mean Well UHP-350-5 Power Supply 300W 5V 60A	300W	5V	60A	View
Mean Well UHP-350-48 Power Supply 350.4W 48V 7.3A	350.4W	48V	7.3A	View
Mean Well UHP-350-36 Power Supply 351W 36V 9.75A	351W	36V	9.75A	View
Mean Well UHP-350-3.3 Power Supply 198W 3.3V 60A	198W	3.3V	60A	View
Mean Well UHP-350-15 Power Supply 351W 15V 23.4A	351W	15V	23.4A	View
Mean Well UHP-350-12 Power Supply 350.4W 12V 29.2A	350.4W	12V	29.2A	View
