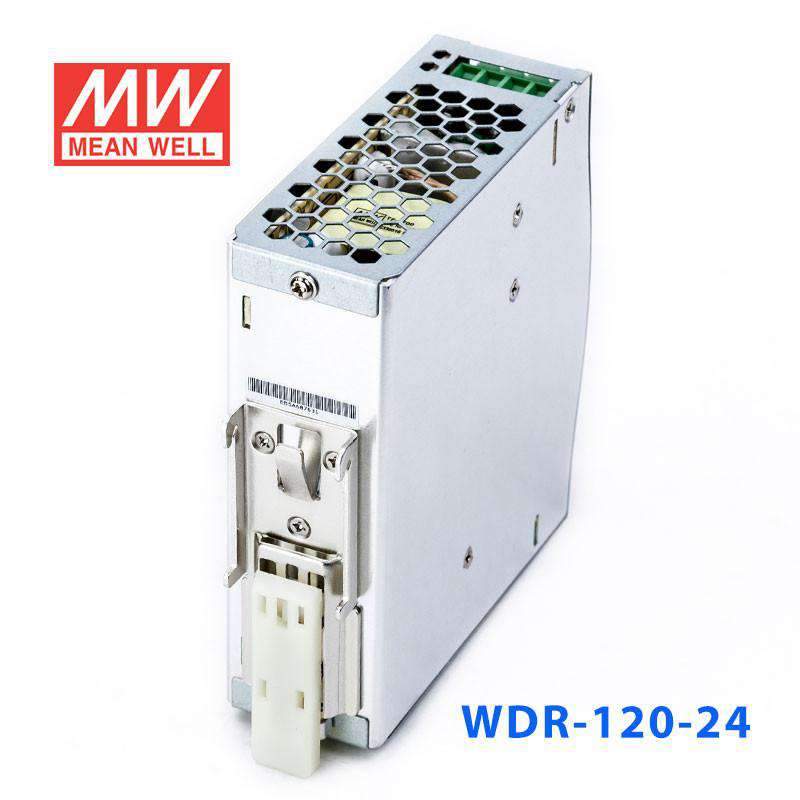

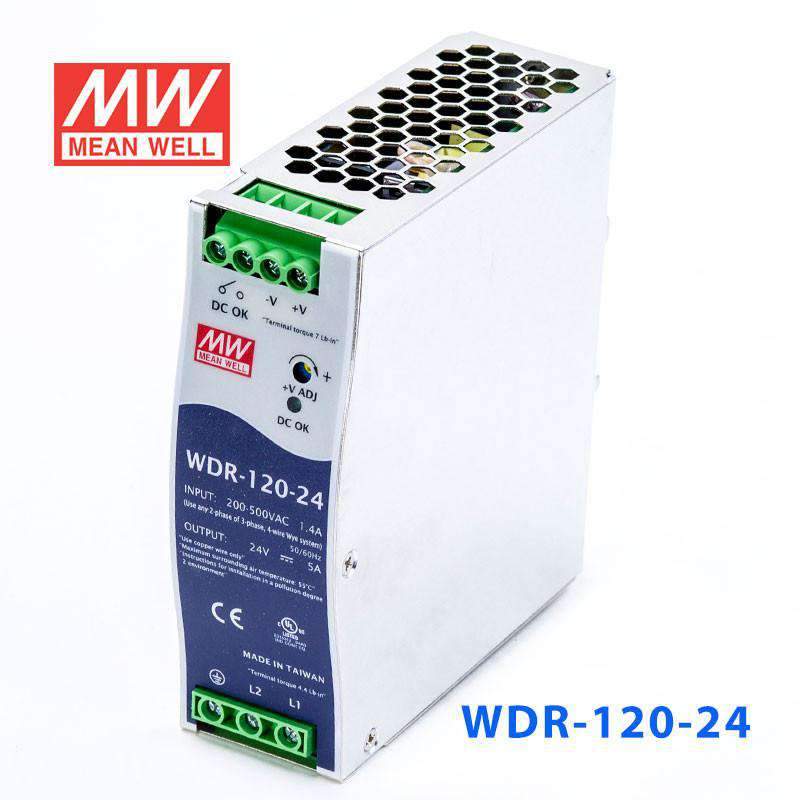

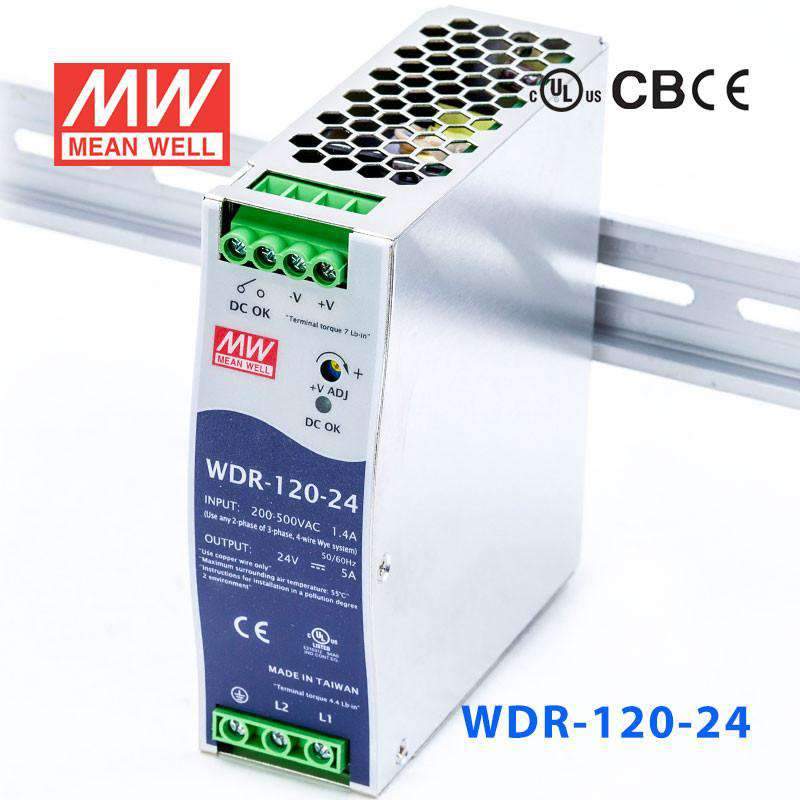

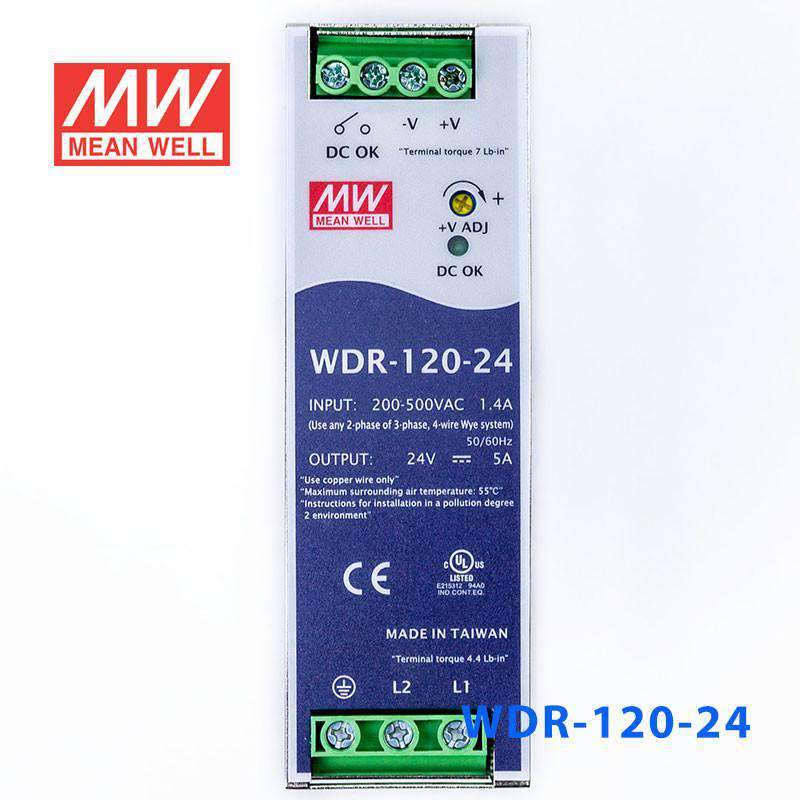

Mean Well WDR-120-24 Single Output Industrial Power Supply 120W 24V...
Please Login for Pricing
Description
Description
The WDR-120 is a 120W Mean Well power converter (input range: 180~550VAC).
Key Features
- ✓ Input voltage range: 180~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ DC OK relay contact output
- ✓ Safety approvals: IEC60068-2-6 Ul508
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage180V~550V
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width11.35 cm
-
Height4 cm
-
Weight0.65 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-120-24 for a 24V PLC or HMI cabinet?

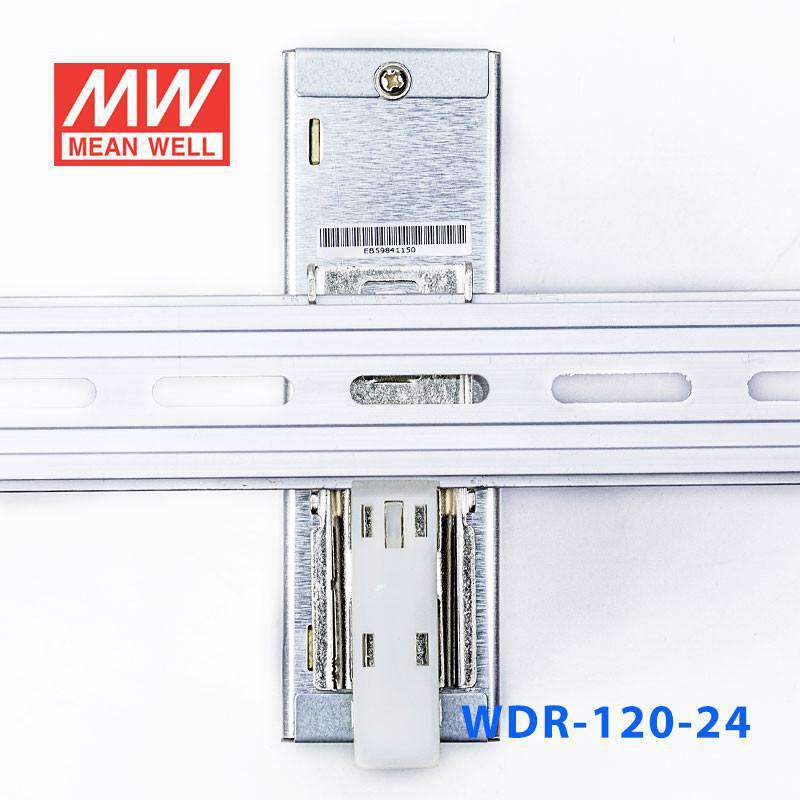

Yes, this model is suitable for 24V PLC and HMI control cabinets when the total 24V DC load does not exceed 120W or 5A. Its DIN rail mounting and 40.0 mm slim profile make it practical for narrow panel layouts.
Is the WDR-120-24 appropriate for 24V industrial automation controls?
It is a fit for 24V industrial automation panels that need a regulated 24V DC source up to 5A. The 180-550VAC input range supports use in systems with 1 phase or 2 phase input power.
Can this power a 24V building management control enclosure?
Yes, it can be used in 24V building management cabinets, relay panels, and monitoring enclosures as long as the connected load stays within 120W. The slim DIN rail package helps when cabinet space is limited.
Will this fit enclosed control cabinets that see temperature swings?
This power supply is intended for enclosed cabinet use and has an operating temperature range of -25°C to +70°C. The specs do not provide an outdoor IP rating, so it is best treated as a power supply for protected control enclosures.
What are the main differences between the WDR-120-24 and other WDR models?
For 120W models, the series includes WDR-120-12 at 12V, 10A, WDR-120-24 at 24V, 5A, and WDR-120-48 at 48V, 2.5A. Larger models are WDR-240-24 at 240W, 24V, 10A, WDR-240-48 at 240W, 48V, 5A, WDR-480-24 at 480W, 24V, 20A, and WDR-480-48 at 480W, 48V, 10A. Smaller models are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
Other WDR-120 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well WDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail | 120W | 12V | 10A | Indoor | View |
| Mean Well WDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail | 120W | 48V | 2.5A | Indoor | View |
