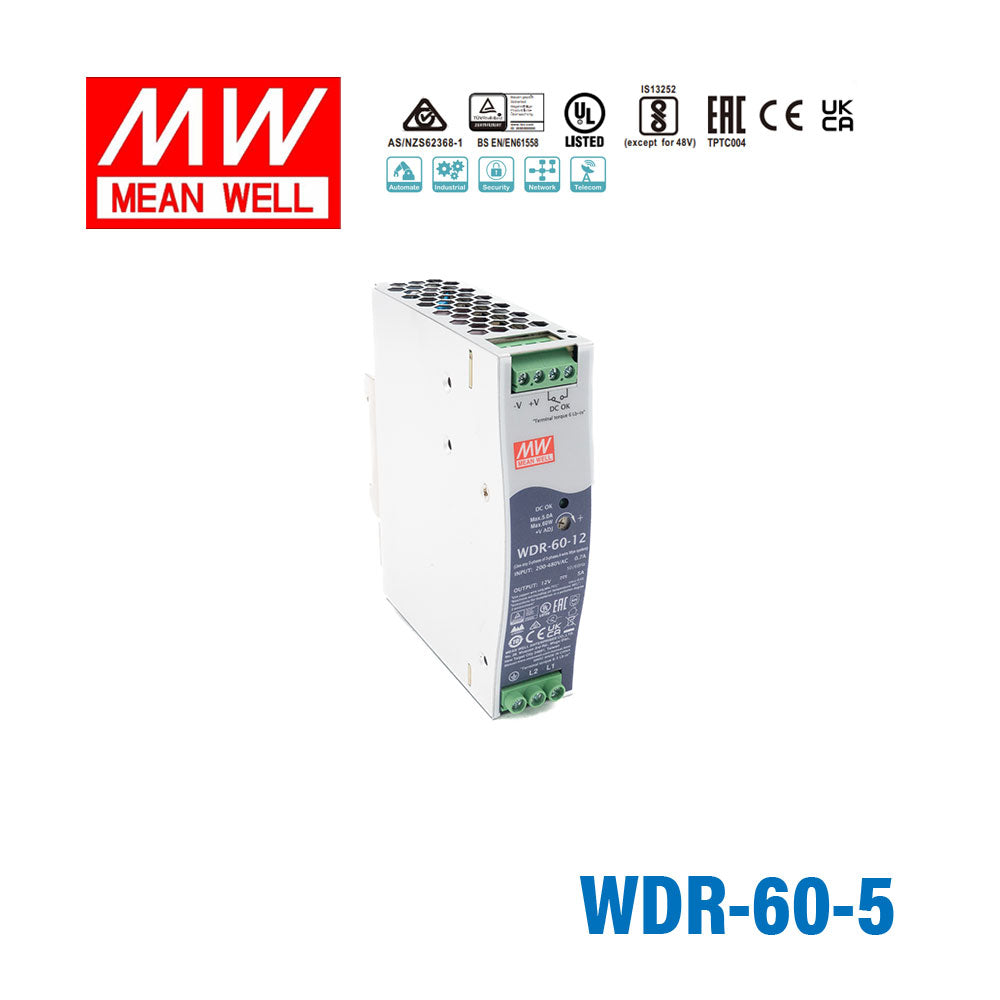

Mean Well WDR-60-5 Single Output Industrial Power Supply 60W 5V 10A - DIN Rail

metal caseslim size1&2 phase180~550VAC wide inputhigh efficiency up to 93%

SKU WDR-60-5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

WDR-60-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 83.5% / 400Vac.

WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: it can accept 180~550Vac ultra-wide input voltage range for single phase or 2-phase system, easy to install DIN rail type, narrow width (32mm) in slim design, -30~+85°C wide range operating temp, 4.7KVAC high isolation voltage, operation at 2000m altitude, adjustable output voltage (+20% max.), high efficiency, low ripple & noise, complete protections and so on. WDR-60 is compliant with EN-61000-6-2 standard regarding immunity for industrial environments. It suitable for industrial automation, surveillance, telecommunication and more applications.

Features

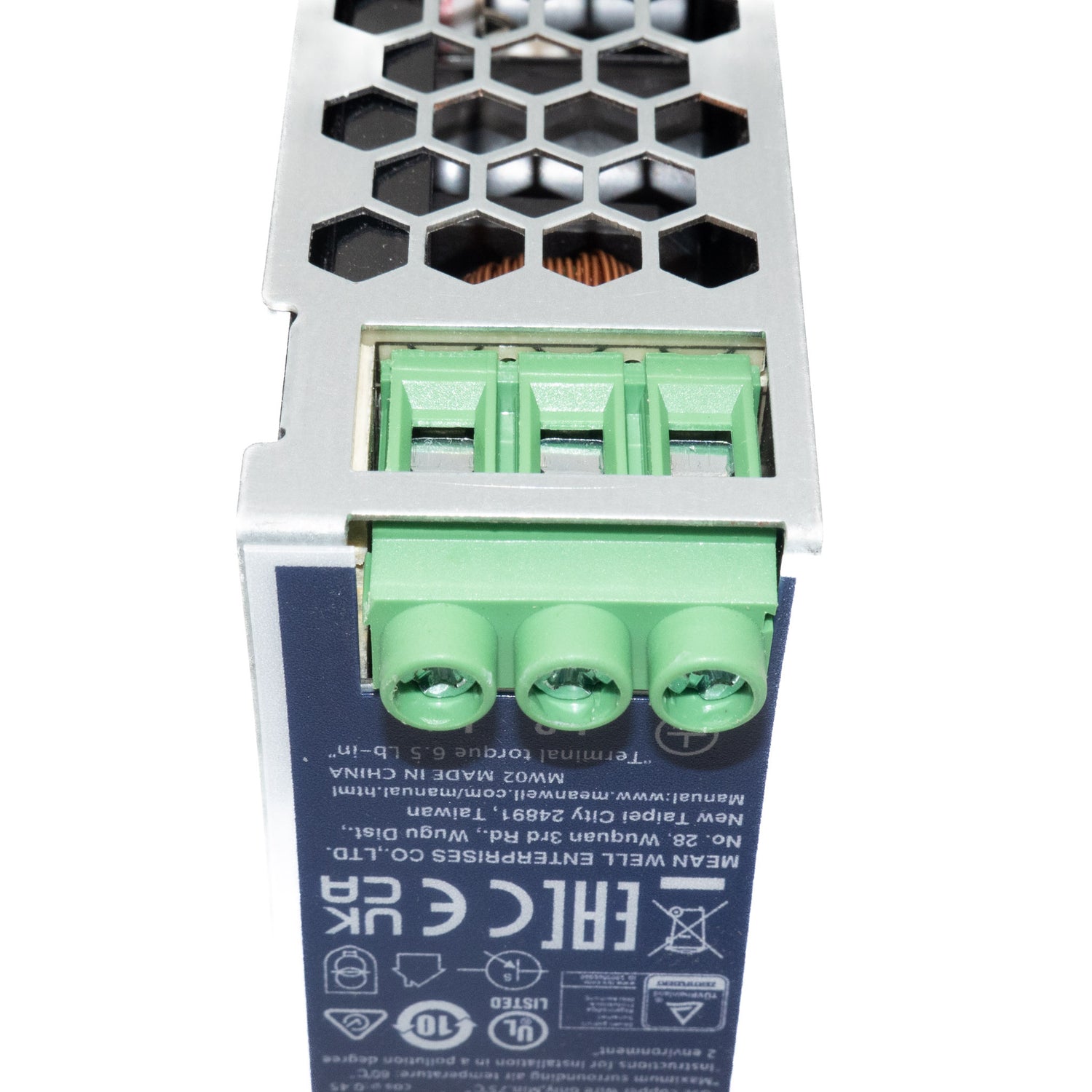

180 ~ 550Vac ultra wide input for 1-phase or 2-phase
32mm slim width
4.7KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

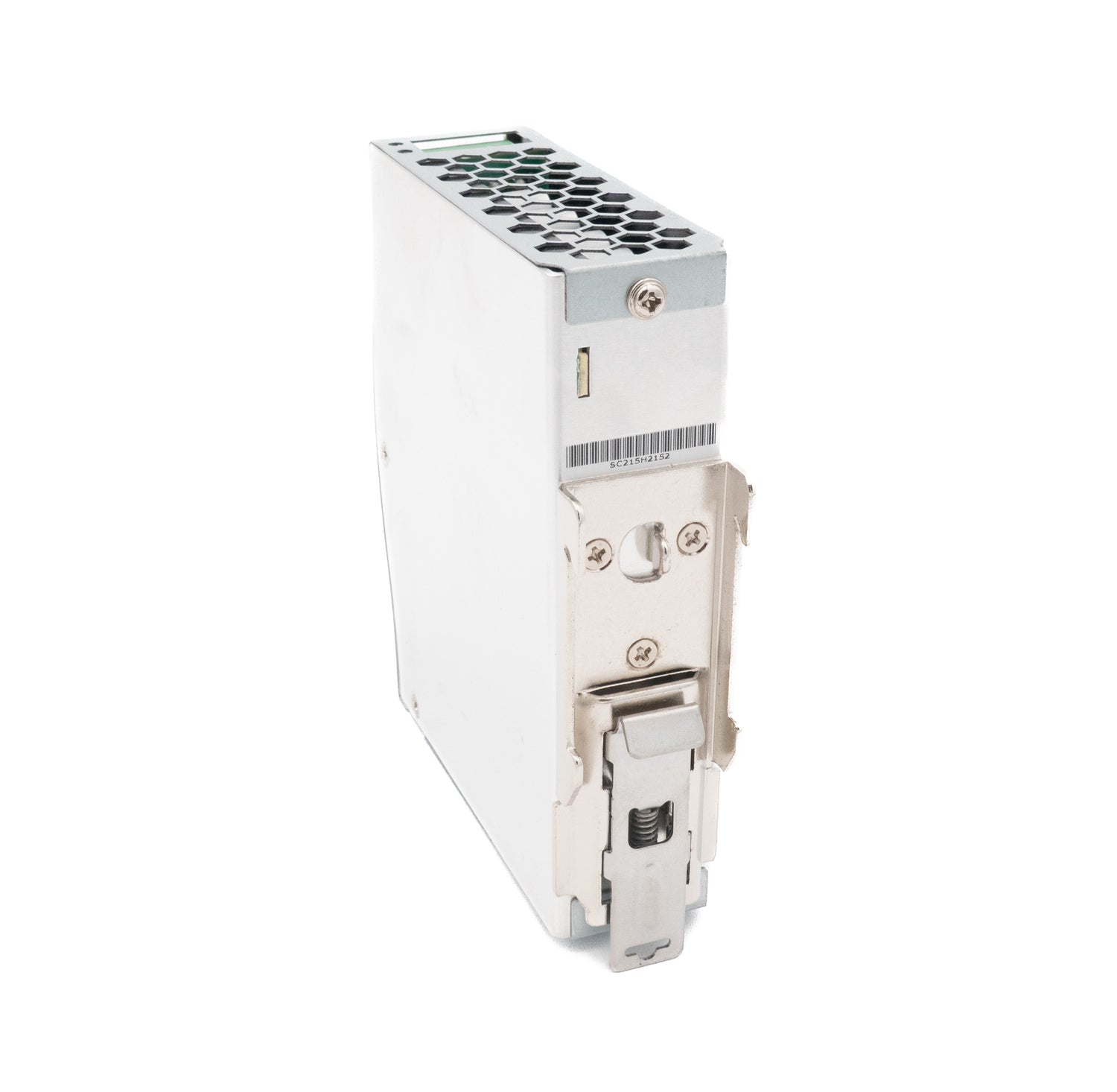

Can be installed on DIN rail TS-35/7.5 or 15
-30~+85°C ultra-wide operating temperature ( >+60°C derating)
Over voltage category Ⅲ

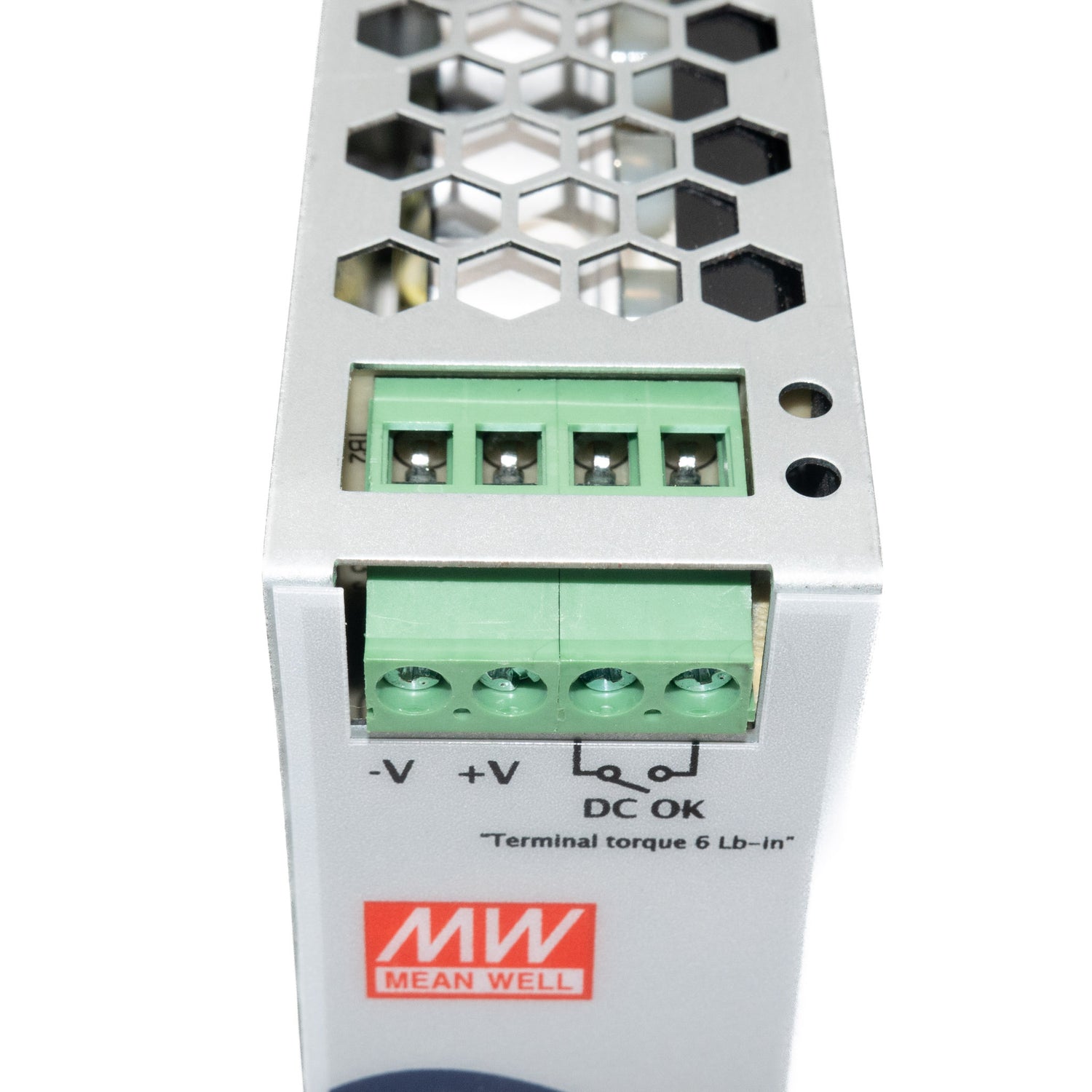

DC OK relay contact
DC output voltage adjustable(+20%)
3 years warranty

Specifications

WDR-60-5Specifications from the official datasheet (2019-10-12 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 50W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 5 ~ 6V
VOLTAGE TOLERANCE^Note.3: ±2%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE, HOLD UP TIME: 1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 180 ~ 550Vac or 254 ~ 780Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 83.5% / 400Vac
AC CURRENT: 0.4A/400Vac 0.7A/230Vac
INRUSH CURRENT (max.): COLD START 50A /400Vac 30A/230Vac
LEAKAGE CURRENT: <2mA / 530Vac

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 6.2 ~ 7.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL: Relay contact rating(max.) : 30V / 1A resistive

ENVIRONMENT

WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP.: -40 ~ +85℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃ )
VIBRATION: Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 2000 meters
OVER VOLTAGE CATEGORY: Ⅲ ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL61010, EN61558-2-16, EAC TP TC 004 approved; design refer to GL and EN60204-1(By request)
WITHSTAND VOLTAGE: I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted EN55032(CISPR32) Class B
Radiated EN55032(CISPR32) Class B
Harmonic Current EN61000-3-2 Class A
Voltage Flicker EN61000-3-3 -------
EMC IMMUNITY^{Note 7}: EN55024, EN55035, EN61000-6-2, EN61204-3

Parameter Standard Test Level

ESD EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility EN61000-4-3 Level 3, 10V/m, criteria A
EFT Bursts EN61000-4-4 Level 3, 2KV/5KHz, criteria A
Surge EN61000-4-5 Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A
Conducted EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field EN61000-4-8 Level 4, 30A/m, criteria A
Voltage Dips and interruptions EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	EN55032(CISPR32)	Class B
Radiated	EN55032(CISPR32)	Class B
Harmonic Current	EN61000-3-2	Class A
Voltage Flicker	EN61000-3-3	-------

Parameter	Standard	Test Level
ESD	EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	EN61000-4-3	Level 3, 10V/m, criteria A
EFT Bursts	EN61000-4-4	Level 3, 2KV/5KHz, criteria A
Surge	EN61000-4-5	Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A
Conducted	EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	EN61000-4-8	Level 4, 30A/m, criteria A
Voltage Dips and interruptions	EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 313.68K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32*125.2*102mm (W*H*D)
PACKING: 0.45Kg; 28pcs/13.6Kg/1.24CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

WDR-60-5 Derating Curve — Derating Curve

WDR-60-5 Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Datasheet1

WDR-60-5 datasheetwdr_60_spec.pdf · 2019-10-12 edition PDF Download

Certificates6

Mean Well WDR-60 TUV Certificate PDF Download

Mean Well WDR-60 EMC Certificate PDF Download

Mean Well WDR-60 CE-dec Certificate PDF Download

Mean Well WDR-60 UK-dec Certificate PDF Download

Mean Well E215312-UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well WDR-60-5 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the WDR-60-5 for 5V PLC support circuits or industrial control electronics?

Yes, this model is intended for industrial control applications that require a 5V DC output. It delivers 50W with up to 10A output current and mounts on DIN rail, which suits panel-based control electronics.

Is the WDR-60-5 suitable for building management panels that use 5V control devices?

Yes, it can be used in building management or control panels where the load is designed for 5V DC. The supply accepts 180-550VAC input and supports 1 and 2 phase systems, which is useful for centralized cabinet installations.

Can this power supply be used in a slim industrial enclosure with limited rail space?

Yes, the WDR-60-5 is built for DIN rail mounting and has a slim 32.0 mm width. Its 125.2 × 102.0 × 32.0 mm housing helps when fitting a 5V power source into compact control cabinets.

Is the WDR-60-5 a fit for powering 5V automation modules in a DIN rail cabinet?

Yes, it is appropriate for 5V automation modules installed in DIN rail control cabinets, as long as the system requires up to 50W and 10A. The metal case and industrial DIN rail format align with cabinet-based automation layouts.

Is this power supply meant for exposed environments or for cabinet and enclosure use?

This model is better suited to control cabinet and enclosure use than exposed locations. It has a metal case and an operating temperature range of -30°C to +85°C, which supports use in industrial electrical enclosures.

How does the WDR-60-5 compare with other WDR series power supplies?

The WDR-60-5 is the 5V option in this group and is rated at 50W with 10A output current. Related models include WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-60-48 at 60W, 48V, 1.25A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-120-48 at 120W, 48V, 2.5A; WDR-240-24 at 240W, 24V, 10A; WDR-240-48 at 240W, 48V, 5A; WDR-480-24 at 480W, 24V, 20A; and WDR-480-48 at 480W, 48V, 10A.
