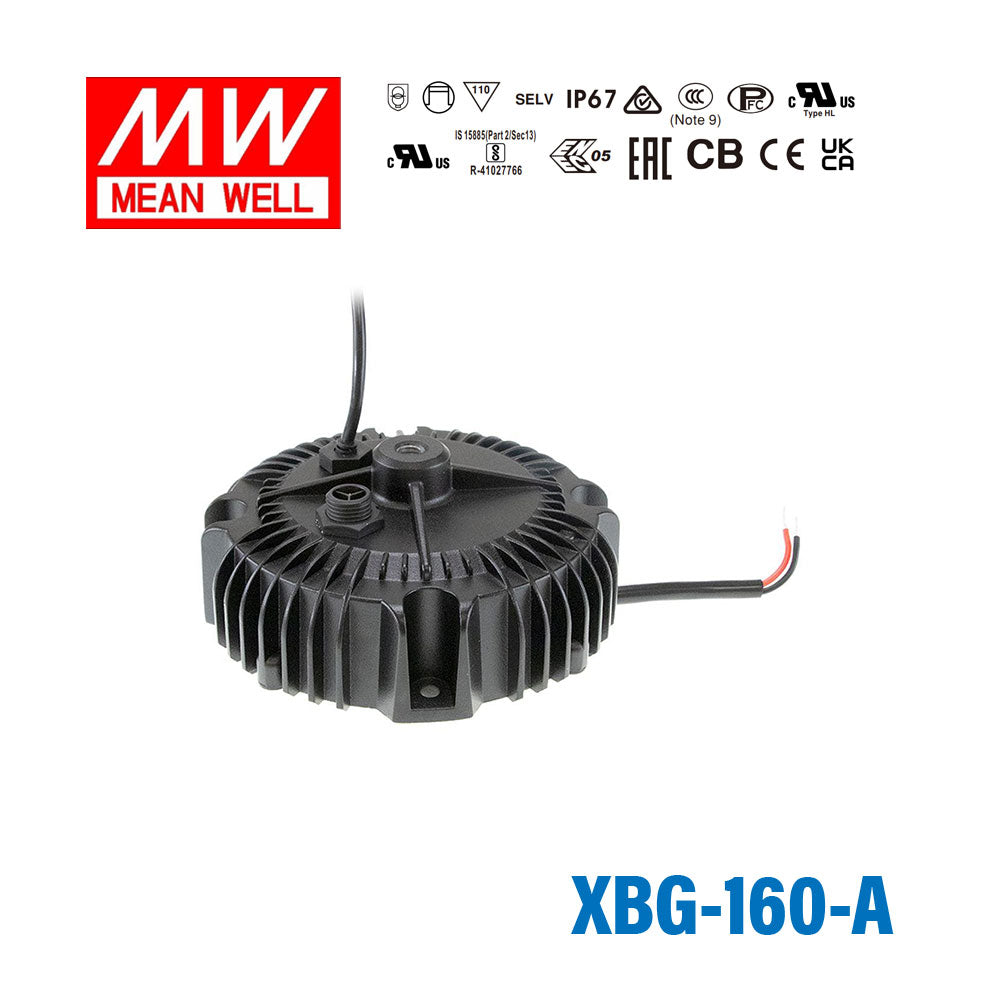

Mean Well XBG-160-A Power Supply 160W - Adjustable

100~305VAC wide range input with waterproof connector, liffe time >50,000hrs
SKU:
XBG-160-A

|

Description

Features

Full power output at 70~100% constant current range operation
Wide input range 90~305VAC with active PFC function
Metal housing design with IP67
Multiple dimming functions: 3 in 1(0-10V/PWM/Resistor)
Dimming circuit with isolated for latest safety regulation
Surge protection with 6KV/4KV
Typical lifetime>50000 hours and 5 years warranty
AC input cable with connector for flexible installatiom

General Specification

AC input voltage range 90~305VAC   127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range 83%~130% rated current
Over power protection 105%~150%
Over voltage protection upto 130% rated voltage
Short circuit protection Hiccup mode or Constant current limiting
Withstand voltage I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+85°C
Safety standards BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection SJOW 17AWG
Dimension (DxH) φ130x56
Packing 16pcs/14.8Kg

Specifications

  • Brand
    Mean Well
  • Series
    MeanWell XBG Seroes
  • Power Rating
    160 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    3.3 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    15.15 cm
  • Width
    15.15 cm
  • Height
    6 cm
  • Weight
    1.25 kg
