Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

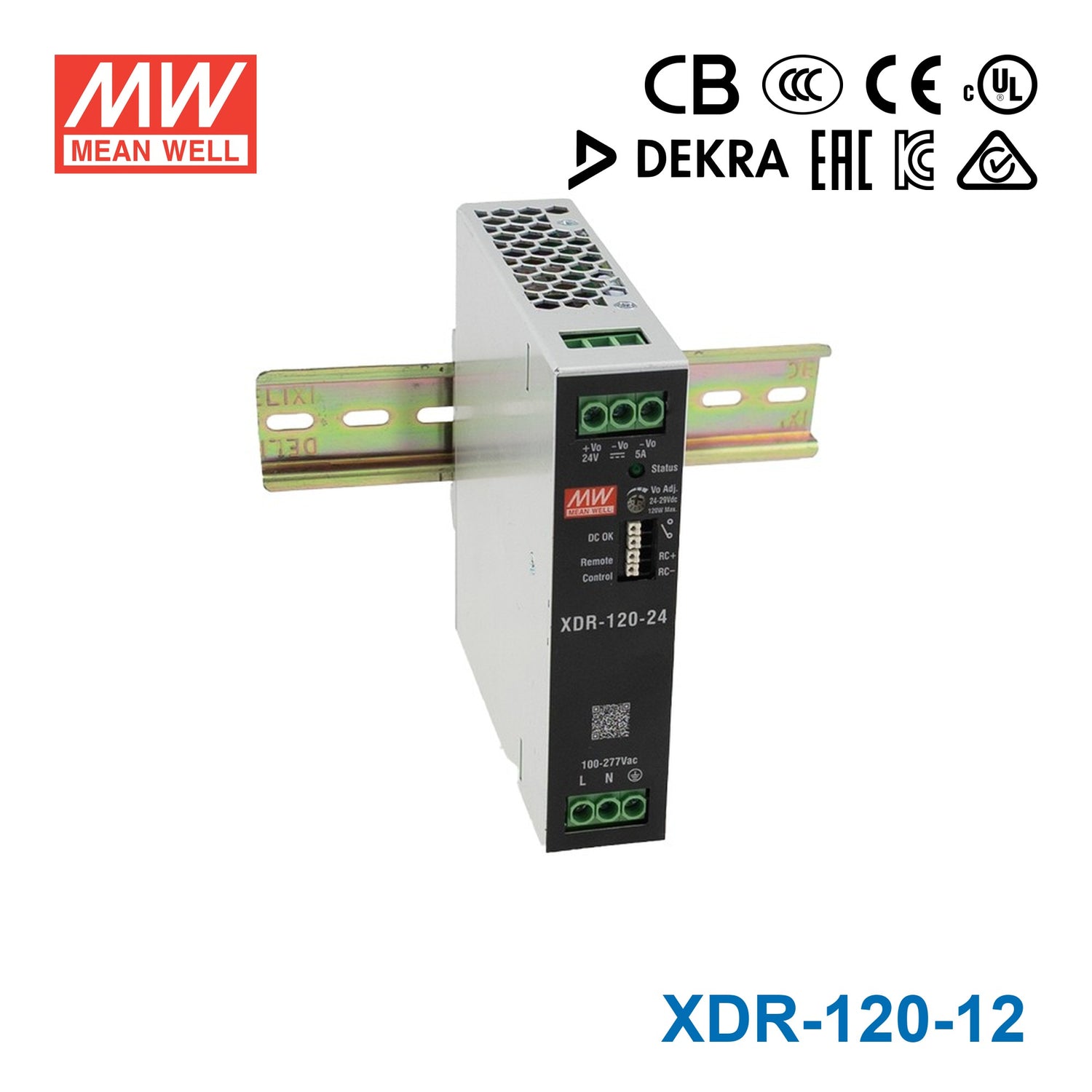

Mean Well XDR-120-12 High-End Ultra Slim Industrial Din Rail Power ...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output specifications of the Mean Well XDR-120-12?
The Mean Well XDR-120-12 is a 120W DIN rail power supply with a 12V output and 10A rated current. It is part of Mean Well's high-end ultra slim industrial DIN rail power supply range.
How slim is the XDR-120-12 compared with typical DIN rail power supplies?
The XDR-120-12 has a 30mm ultra slim width, making it suitable for control panels where space is limited. Its slim form factor is a key differentiator for buyers comparing compact DIN rail power supplies.
What operating temperature range does the XDR-120-12 support?
The XDR-120-12 is specified for operation from -40°C to 85°C. This wide temperature range makes it suitable for demanding industrial environments where ambient conditions can vary significantly.
What input voltage range does the XDR-120-12 accept?
The XDR-120-12 supports an 85-305Vac input range, with 277Vac availability noted in the product specifications. This broad input range supports use across many industrial power environments.
What types of applications is the XDR-120-12 designed for?
This model is designed for industrial DIN rail power applications that need 12V DC output at up to 120W. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc, making it relevant for buyers evaluating equipment for regulated or demanding environments.
Does the XDR-120-12 provide peak power capability?
Yes, the XDR-120-12 lists 200% peak power capability and 600% transient peak current capability. These features are useful for buyers comparing power supplies for loads that may have short-duration peak demand.
What protection features are listed for the XDR-120-12?
The XDR-120-12 includes protection for short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit according to the product description.
What warranty period does the XDR-120-12 include?
The XDR-120-12 is listed with a 5 year warranty period. This is useful for B2B buyers comparing long-term support expectations across industrial power supply models.
