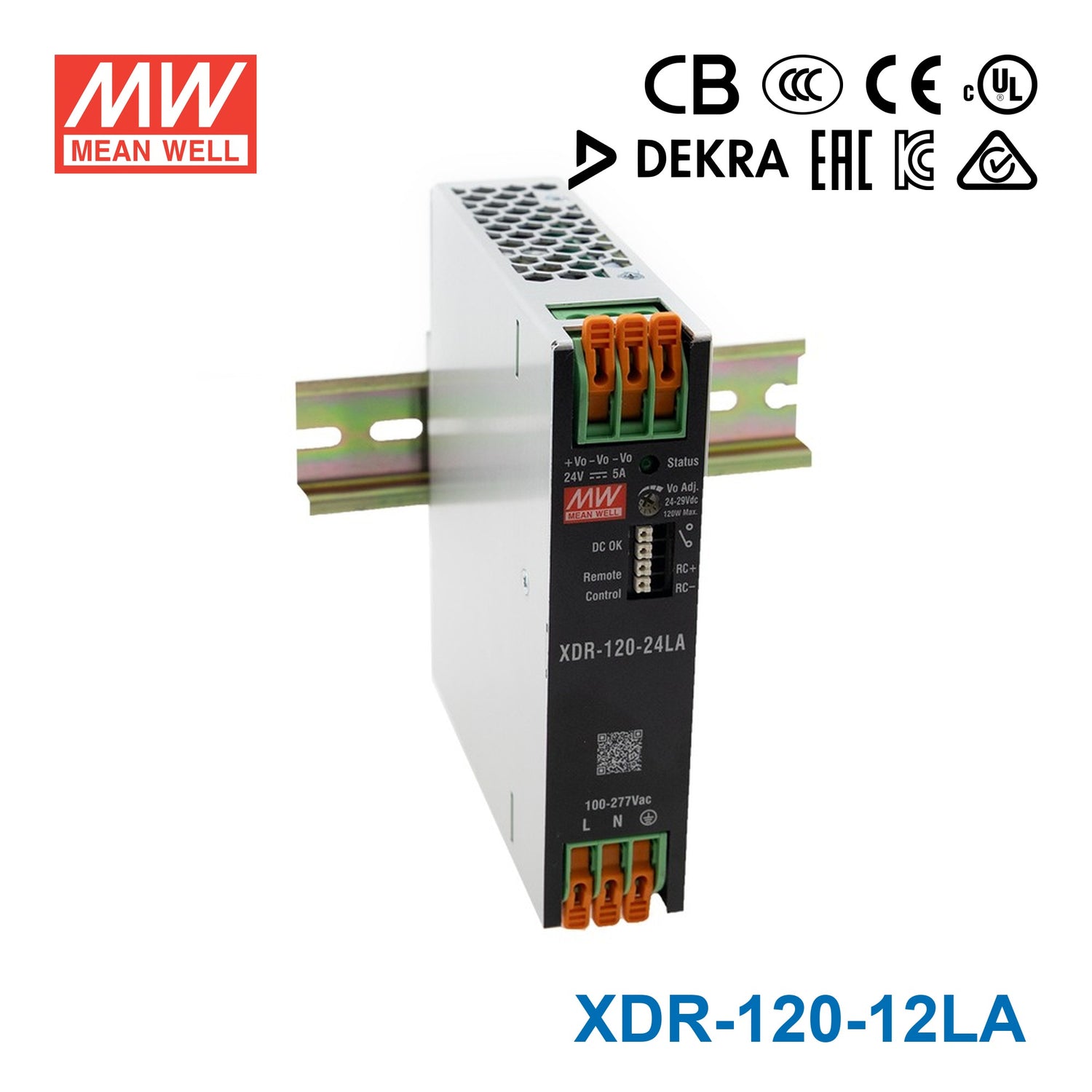

Mean Well XDR-120-12LA High-End Ultra Slim Industrial Din Rail Power Supply 120W 12V with Lever Actuated Connector 10A
Notify me when it's back in stock
Mean Well XDR-120-12LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output specifications of the Mean Well XDR-120-12LA?
The XDR-120-12LA is a 120 W DIN rail power supply with a 12 V output and 10 A rated current. It is part of Mean Well's XDR ultra slim industrial DIN rail power supply family.
What makes the XDR-120-12LA different from standard DIN rail power supplies?
This model is designed as a high-end ultra slim DIN rail power supply with a 30 mm width. It also offers up to 94% efficiency, low no-load power dissipation, and 200% peak power capability.
What types of applications is the XDR-120-12LA suitable for?
The XDR-120-12LA is suited for industrial control panels, automation systems, and compact DIN rail power systems that require 12 VDC at up to 10 A. Its slim 30 mm form factor is useful where panel space is limited.
What operating temperature range does the XDR-120-12LA support?
The listed operating temperature range for this model is -40 °C to 85 °C. That wide range makes it suitable for demanding industrial environments when used within the product's rated conditions.
Does the XDR-120-12LA support global industrial certifications?
Yes. The product description lists global certifications across ITE, industrial, marine DNV, SEMI47, and CID2 hazardous location categories.
What input voltage range is supported by the XDR-120-12LA?
The XDR-120-12LA supports an 85 to 305 VAC input range. The product description also notes that 277 VAC is available.
What protection features are included with the XDR-120-12LA?
The listed protections include short circuit, overload, over voltage, and over temperature protection. The model also includes a built-in constant current limiting circuit.
What warranty period applies to the XDR-120-12LA?
The XDR-120-12LA has a listed warranty period of 5 years. It also has a listed weight of 0.595 kg.
