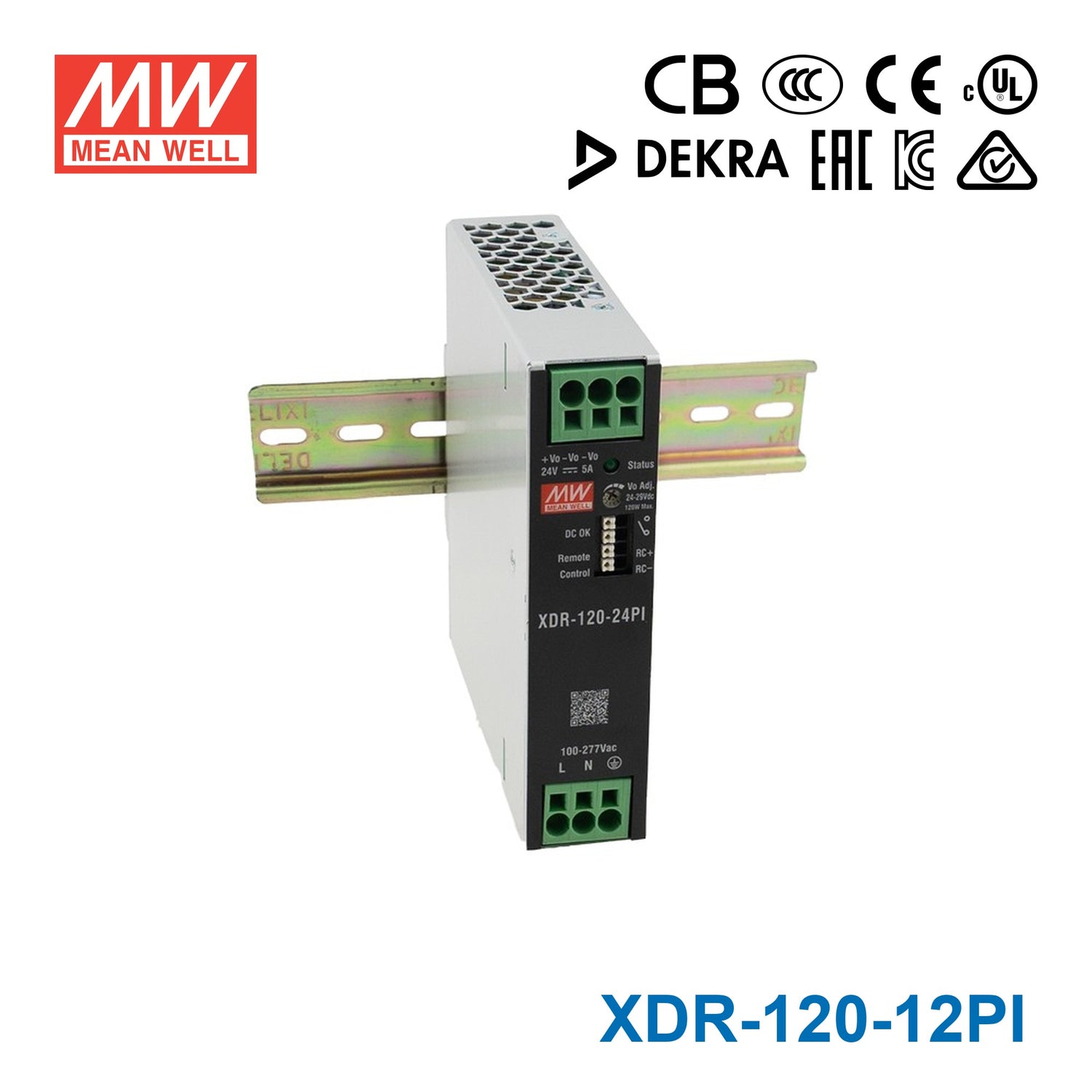

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-120-12PI High-End Ultra Slim Industrial Din Rail Power Supply 120W 12V with Push In Connector 10A

Q: What are the main output specifications of the Mean Well XDR-120-12PI?

The XDR-120-12PI is a 120 W DIN rail power supply with a 12 V output. It is rated for 10 A output current, making it suitable for industrial control and power distribution applications that require a regulated 12 V DC source.

Q: What types of applications is the XDR-120-12PI designed for?

This model is designed for industrial DIN rail power applications where a compact 12 V, 120 W supply is needed. Its approvals for industrial, ITE, marine DNV, SEMI47, and CID2 hazardous location use make it a strong fit for demanding commercial and industrial equipment environments.

Q: How slim is the XDR-120-12PI compared with typical DIN rail power supplies?

The XDR-120-12PI has an ultra slim 30 mm width. That makes it useful in control cabinets or panels where rail space is limited and a narrower power supply helps conserve layout space.

Q: What temperature range does the XDR-120-12PI support?

This model is specified for operation from -40 °C to 85 °C. That wide temperature range supports use in harsh industrial environments, subject to the product’s published derating and operating conditions.

Q: What input voltage range does the XDR-120-12PI accept?

The XDR-120-12PI supports an 85 to 305 Vac input range, including 277 Vac availability. This broad input range is useful for global industrial systems and sites with higher AC distribution voltages.

Q: What efficiency does the XDR-120-12PI offer?

The XDR-120-12PI provides high efficiency up to 94%. It also has low no-load power dissipation listed from 0.9 W to 2 W by remote control, helping reduce standby energy use in supported systems.

Q: Which approvals are listed for the XDR-120-12PI?

The listed approvals include ITE 62368-1, Industrial 61558-1/-2-16, 61010, Marine DNV, SEMI47, and CID2 hazardous location approval. These certifications make the model relevant for buyers who need a DIN rail power supply for regulated industrial or specialized environments.

Q: What protection features are included with the XDR-120-12PI?

The XDR-120-12PI includes protections for short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit for supported overload behavior.

30mm ultra slimhigh efficiency up to 94%200% peak power capability600% transient peak current capabilityultra low inrush current

SKU XDR-120-12PI

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-120-12PI is a 120W ultra-slim DIN-rail power supply delivering 12V DC at up to 10A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-120-12PI carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓30mm ultra slim width
✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What are the main output specifications of the Mean Well XDR-120-12PI?

The XDR-120-12PI is a 120 W DIN rail power supply with a 12 V output. It is rated for 10 A output current, making it suitable for industrial control and power distribution applications that require a regulated 12 V DC source.

What types of applications is the XDR-120-12PI designed for?

This model is designed for industrial DIN rail power applications where a compact 12 V, 120 W supply is needed. Its approvals for industrial, ITE, marine DNV, SEMI47, and CID2 hazardous location use make it a strong fit for demanding commercial and industrial equipment environments.

How slim is the XDR-120-12PI compared with typical DIN rail power supplies?

The XDR-120-12PI has an ultra slim 30 mm width. That makes it useful in control cabinets or panels where rail space is limited and a narrower power supply helps conserve layout space.

What temperature range does the XDR-120-12PI support?

This model is specified for operation from -40 °C to 85 °C. That wide temperature range supports use in harsh industrial environments, subject to the product’s published derating and operating conditions.

What input voltage range does the XDR-120-12PI accept?

The XDR-120-12PI supports an 85 to 305 Vac input range, including 277 Vac availability. This broad input range is useful for global industrial systems and sites with higher AC distribution voltages.

What efficiency does the XDR-120-12PI offer?

The XDR-120-12PI provides high efficiency up to 94%. It also has low no-load power dissipation listed from 0.9 W to 2 W by remote control, helping reduce standby energy use in supported systems.

Which approvals are listed for the XDR-120-12PI?

The listed approvals include ITE 62368-1, Industrial 61558-1/-2-16, 61010, Marine DNV, SEMI47, and CID2 hazardous location approval. These certifications make the model relevant for buyers who need a DIN rail power supply for regulated industrial or specialized environments.

What protection features are included with the XDR-120-12PI?

The XDR-120-12PI includes protections for short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit for supported overload behavior.
