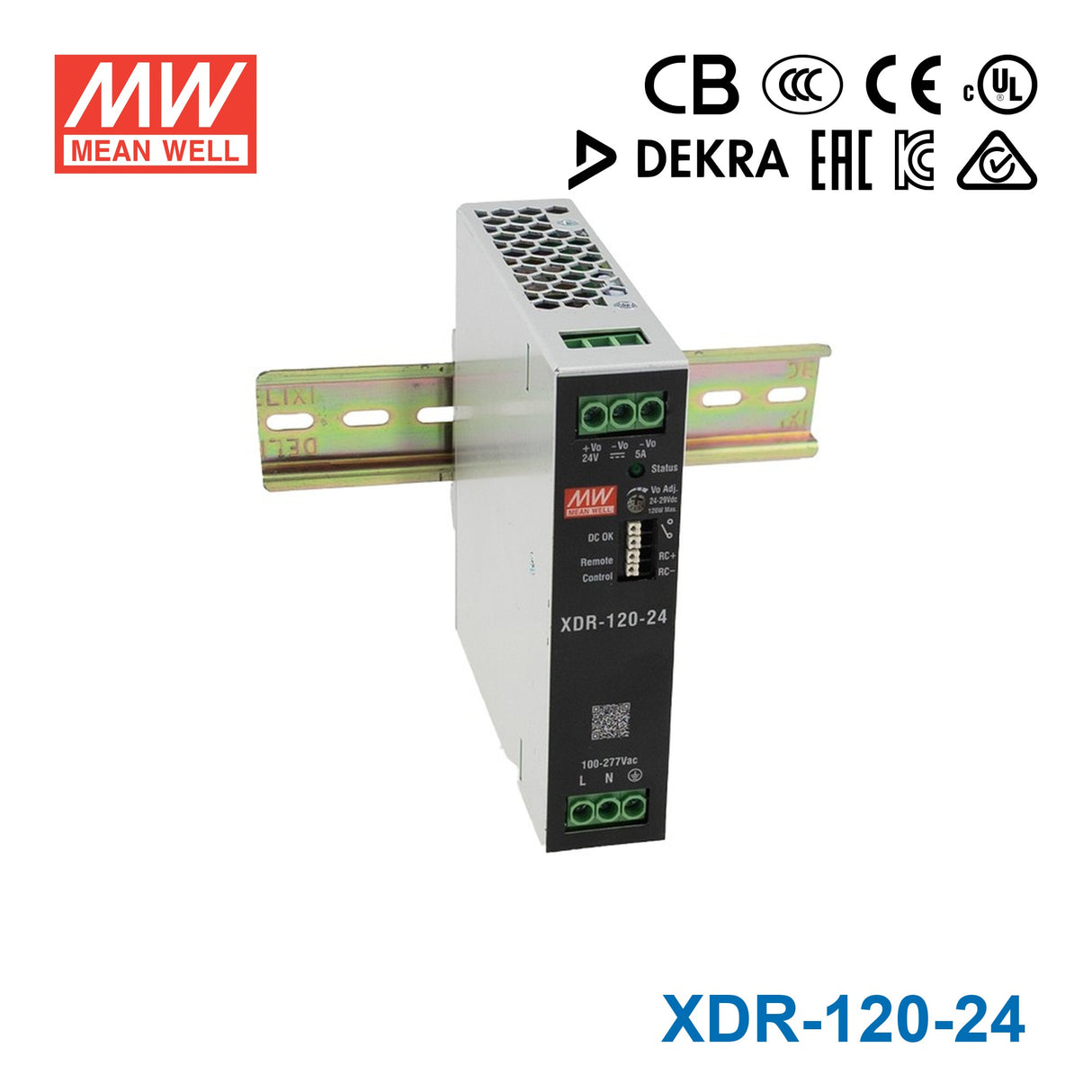

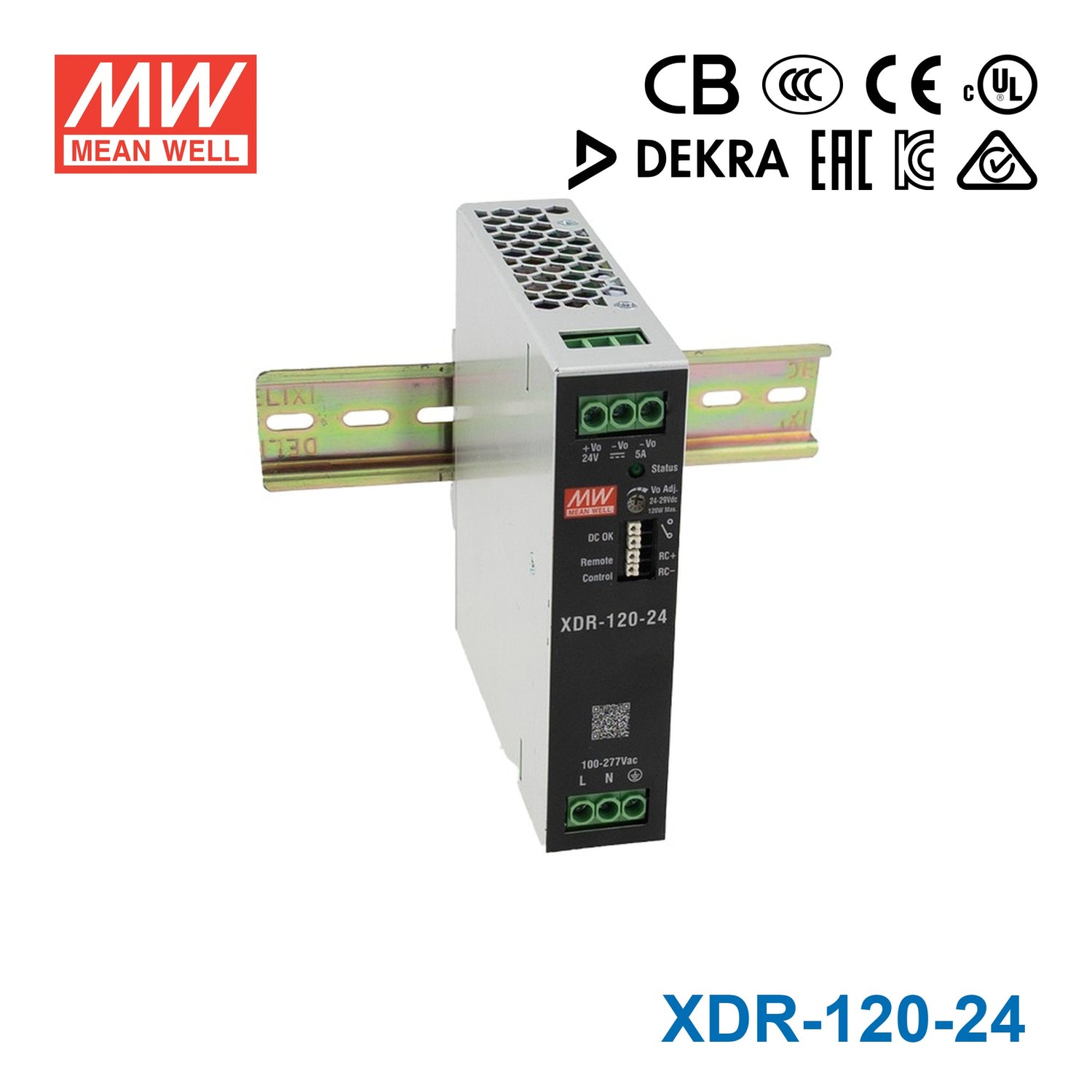

Mean Well XDR-120-24 High-End Ultra Slim Industrial Din Rail Power ...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-120-24?
The XDR-120-24 is a 120W DIN rail power supply with a 24V DC output. It is rated for 5A output current and is designed for industrial power applications where a compact rail-mounted supply is needed.
What types of applications is the XDR-120-24 suited for?
This model is suited for industrial control panels, automation equipment, and other DIN rail power systems that require 24V DC at up to 120W. Its approvals for industrial, ITE, marine DNV, SEMI47, and CID2 hazardous location use make it appropriate for demanding commercial and industrial environments.
Why choose the XDR-120-24 instead of a wider DIN rail power supply?
The XDR-120-24 has an ultra slim 30mm width, which helps save space in crowded DIN rail enclosures. It still provides 120W of rated power, 24V output, and high efficiency up to 94%.
What operating temperature range does the XDR-120-24 support?
The XDR-120-24 is specified for operation from -40°C to 85°C. This wide temperature range makes it suitable for many industrial environments where equipment may face cold starts or elevated ambient temperatures.
Can the XDR-120-24 be used in systems with high AC input voltage?
Yes. The XDR-120-24 supports an 85 to 305Vac input range, and the product data notes 277Vac availability. This broad input range helps support global industrial use cases where mains voltage can vary by region or facility.
Does the XDR-120-24 provide peak power capability?
Yes. The XDR-120-24 includes 200% peak power capability and 600% transient peak current capability according to the listed product features. These characteristics can be useful for industrial loads that require brief startup or transient demand beyond normal rated output.
What protections are listed for the XDR-120-24?
The listed protections for the XDR-120-24 include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
What warranty and weight does the XDR-120-24 have?
The XDR-120-24 is listed with a 5-year warranty period. Its listed weight is 0.595 kg, which is relevant for panel layout, shipping, and equipment documentation.
