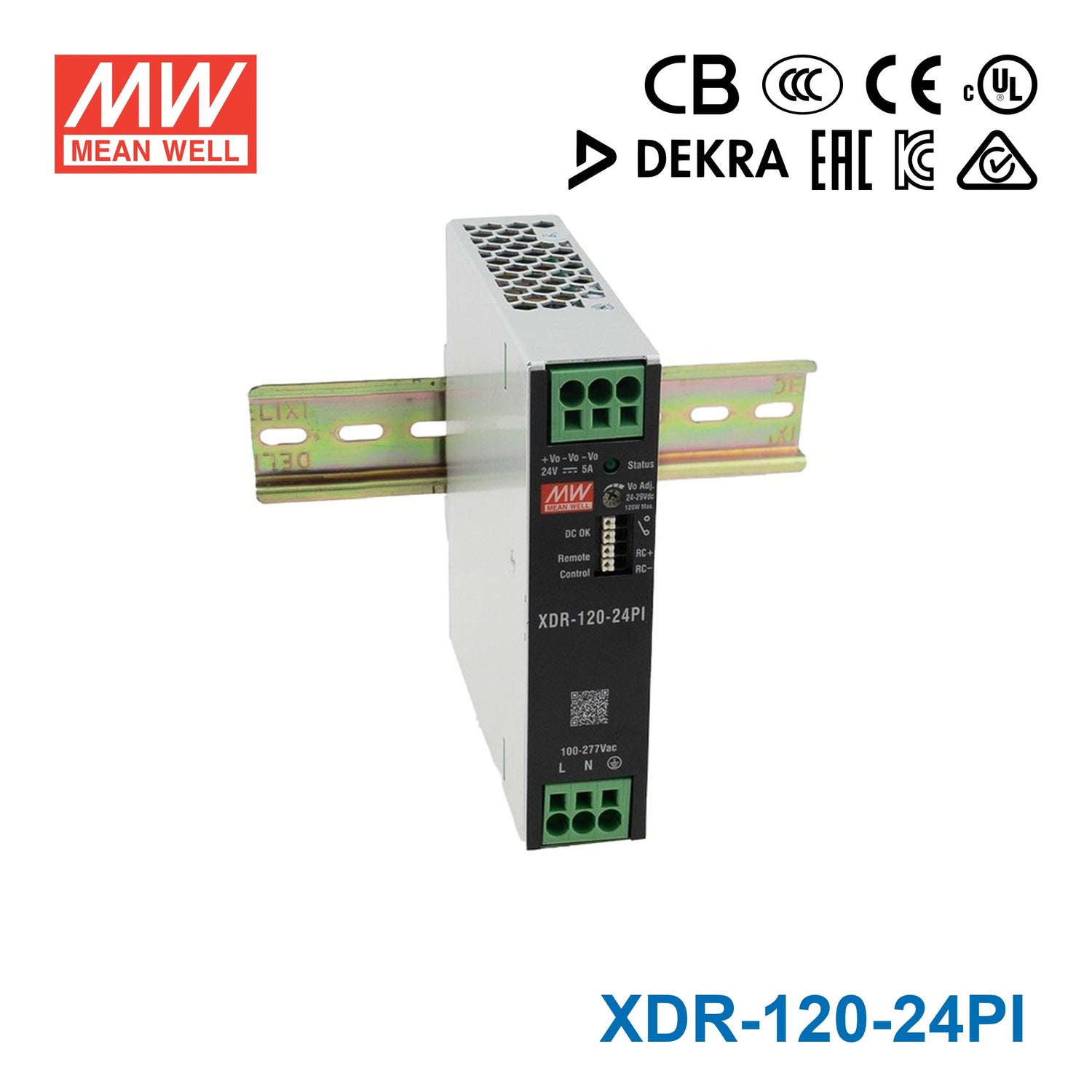

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-120-24PI High-End Ultra Slim Industrial Din Rail Power Supply 120W 24V with Push In Connector 5A

Q: What are the main output specifications of the Mean Well XDR-120-24PI?

The XDR-120-24PI is a 120W DIN rail power supply with a 24V output and 5A rated current. It is part of Mean Well's high-end ultra slim XDR series and is intended for industrial power applications.

Q: What types of applications is the XDR-120-24PI suited for?

This model is suited for industrial control panels, automation equipment, and other systems that need a compact 24V DC power source. Its approvals for ITE, industrial, marine DNV, SEMI47, and CID2 hazardous locations make it a strong fit for demanding commercial and industrial environments.

Q: How slim is the XDR-120-24PI compared with typical DIN rail power supplies?

The XDR-120-24PI has a 30mm ultra slim width, which helps save space in crowded DIN rail enclosures. This is a key advantage when a 120W, 24V supply is needed but panel space is limited.

Q: What operating temperature range does the XDR-120-24PI support?

The specified operating temperature range for this model is -40°C to 85°C. That wide range makes it suitable for harsh industrial environments where equipment may be exposed to very cold or high-temperature conditions.

Q: Can the XDR-120-24PI be used with high-voltage AC input systems?

Yes, the XDR-120-24PI supports an 85-305Vac input range, including 277Vac availability. This broad input range helps support use across different facility power standards without changing to a different model.

Q: What efficiency and standby characteristics does the XDR-120-24PI offer?

The XDR-120-24PI provides high efficiency up to 94%. Its no-load power dissipation is listed as 0.9W to 2W by R.C., supporting lower energy waste when the connected load is minimal.

Q: What protection features are included with the XDR-120-24PI?

This model includes protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit for controlled behavior under overload conditions.

Q: Does the XDR-120-24PI support peak power demands?

Yes, the XDR-120-24PI is specified with 200% peak power capability and 600% transient peak current capability. These features can help support industrial loads that briefly draw higher current than their steady-state requirement.

Q: What warranty and weight are listed for the XDR-120-24PI?

The XDR-120-24PI carries a 5-year warranty. Its listed weight is 0.595 kg, which is useful for planning enclosure layout and shipping weight estimates.

30mm ultra slimhigh efficiency up to 94%200% peak power capability600% transient peak current capabilityultra low inrush current

SKU XDR-120-24PI

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-120-24PI is a 120W ultra-slim DIN-rail power supply delivering 24V DC at up to 5A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-120-24PI carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓30mm ultra slim width
✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What are the main output specifications of the Mean Well XDR-120-24PI?

The XDR-120-24PI is a 120W DIN rail power supply with a 24V output and 5A rated current. It is part of Mean Well's high-end ultra slim XDR series and is intended for industrial power applications.

What types of applications is the XDR-120-24PI suited for?

This model is suited for industrial control panels, automation equipment, and other systems that need a compact 24V DC power source. Its approvals for ITE, industrial, marine DNV, SEMI47, and CID2 hazardous locations make it a strong fit for demanding commercial and industrial environments.

How slim is the XDR-120-24PI compared with typical DIN rail power supplies?

The XDR-120-24PI has a 30mm ultra slim width, which helps save space in crowded DIN rail enclosures. This is a key advantage when a 120W, 24V supply is needed but panel space is limited.

What operating temperature range does the XDR-120-24PI support?

The specified operating temperature range for this model is -40°C to 85°C. That wide range makes it suitable for harsh industrial environments where equipment may be exposed to very cold or high-temperature conditions.

Can the XDR-120-24PI be used with high-voltage AC input systems?

Yes, the XDR-120-24PI supports an 85-305Vac input range, including 277Vac availability. This broad input range helps support use across different facility power standards without changing to a different model.

What efficiency and standby characteristics does the XDR-120-24PI offer?

The XDR-120-24PI provides high efficiency up to 94%. Its no-load power dissipation is listed as 0.9W to 2W by R.C., supporting lower energy waste when the connected load is minimal.

What protection features are included with the XDR-120-24PI?

This model includes protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit for controlled behavior under overload conditions.

Does the XDR-120-24PI support peak power demands?

Yes, the XDR-120-24PI is specified with 200% peak power capability and 600% transient peak current capability. These features can help support industrial loads that briefly draw higher current than their steady-state requirement.

What warranty and weight are listed for the XDR-120-24PI?

The XDR-120-24PI carries a 5-year warranty. Its listed weight is 0.595 kg, which is useful for planning enclosure layout and shipping weight estimates.
