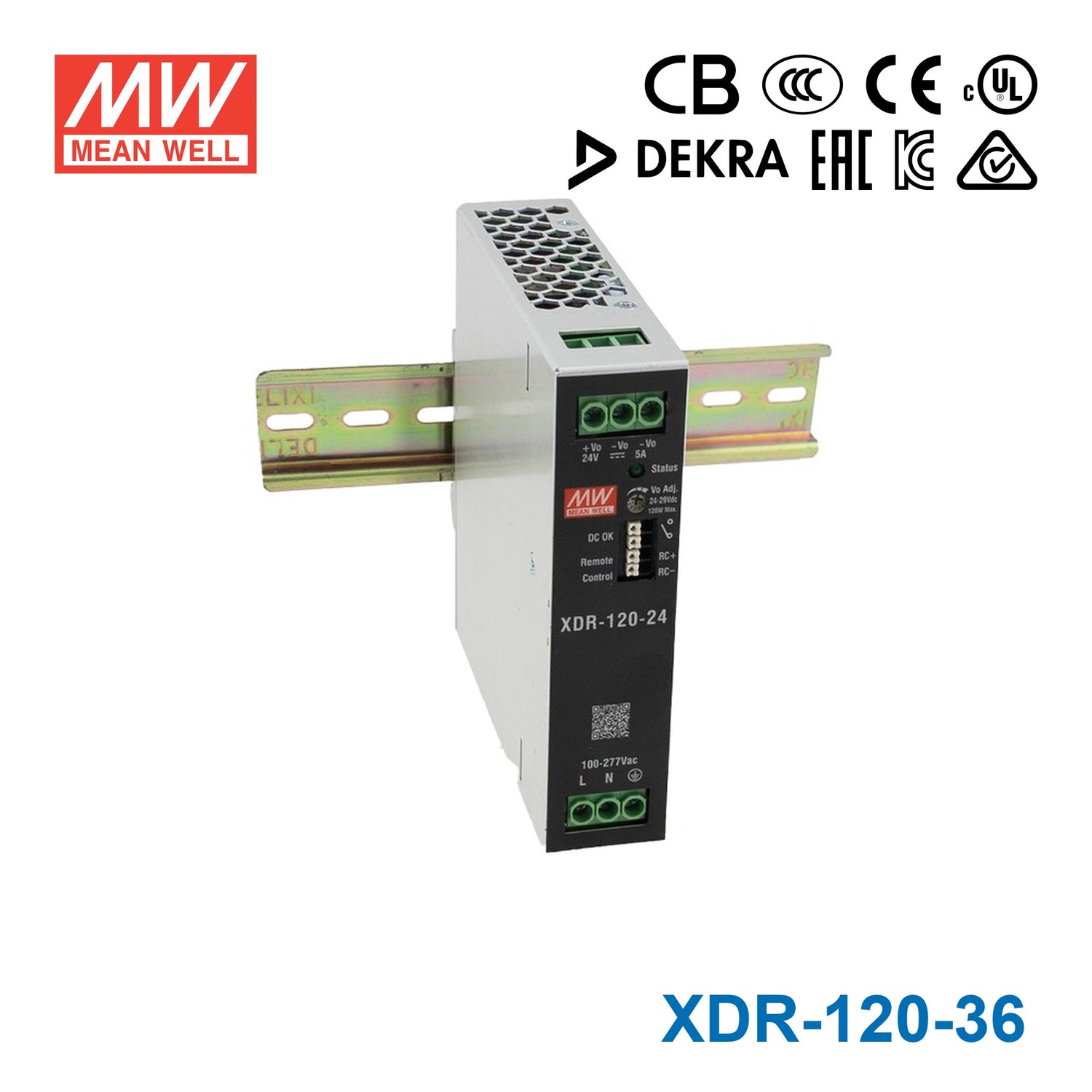

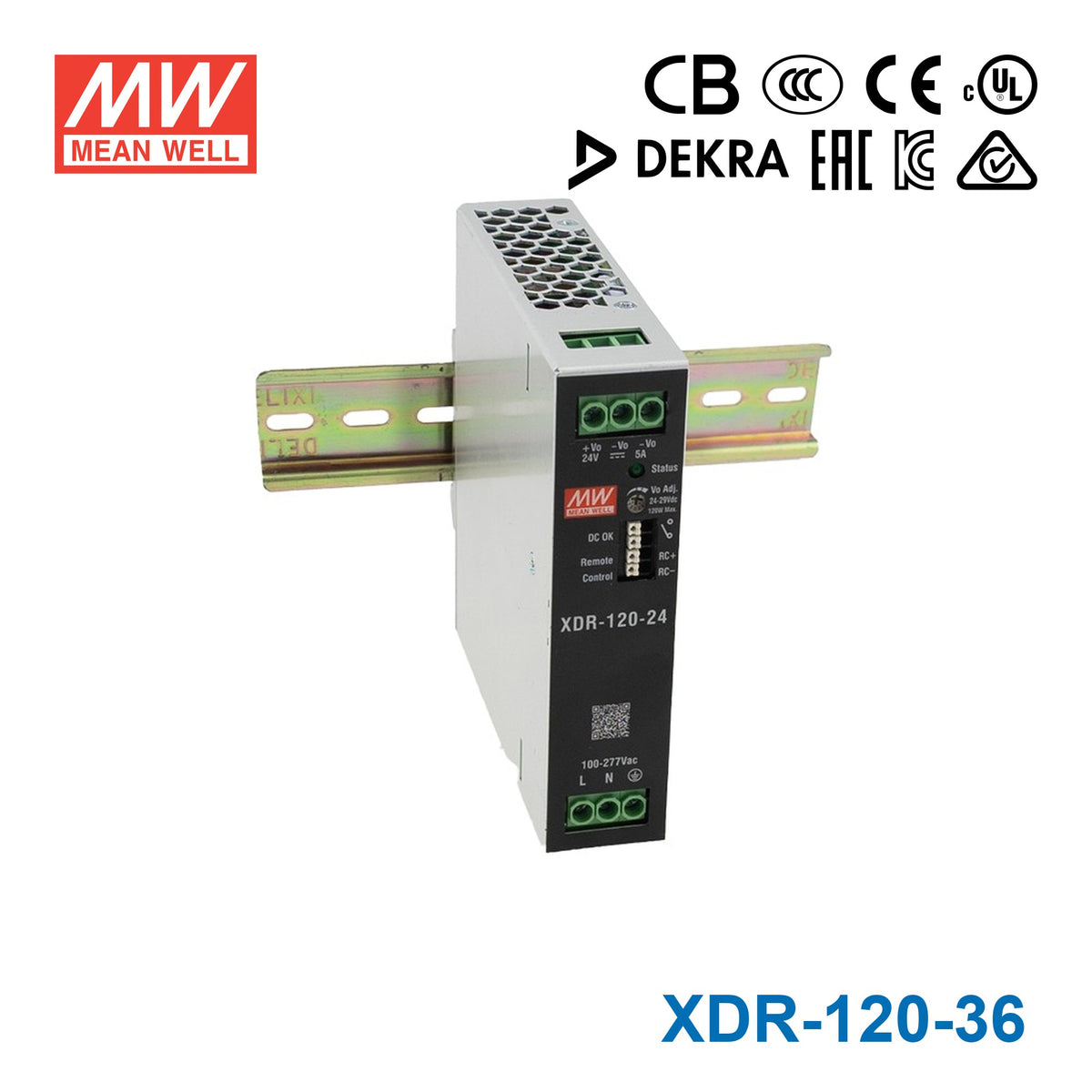

Mean Well XDR-120-36 High-End Ultra Slim Industrial Din Rail Power Supply 119.88W 36V 3.33A

Q: What is the output rating of the Mean Well XDR-120-36?

The XDR-120-36 is rated for 119.88W of output power. It provides a 36V output with a rated current of 3.33A.

Q: What type of applications is the XDR-120-36 designed for?

This model is an industrial DIN rail power supply suited for B2B power supply and DC-DC converter categories where a compact 36V supply is required. Its approvals across ITE, industrial, marine, SEMI47, and Class I Division 2 hazardous location use make it relevant for demanding industrial environments.

Q: How slim is the XDR-120-36 compared with typical DIN rail power supplies?

The XDR-120-36 has an ultra slim 30mm width. That makes it a space-saving option for DIN rail panels where enclosure space is limited.

Q: What input voltage range does the XDR-120-36 support?

This model supports an 85 to 305Vac input range. The listed features also note 277Vac availability, which is useful for industrial power environments that use higher AC distribution voltages.

Q: Can the XDR-120-36 operate in harsh temperature conditions?

The specified operating temperature range is -40°C to 85°C. This wide range makes the unit suitable for demanding industrial environments where ambient temperatures may vary significantly.

Q: What protection features are listed for the XDR-120-36?

The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.

Q: What efficiency and no-load performance does this model offer?

The XDR-120-36 is listed with high efficiency up to 94%. Its no-load power dissipation is specified as 0.9W to 2W by R.C.

Q: What warranty period applies to the XDR-120-36?

The XDR-120-36 has a listed warranty period of 5 years. This is a useful consideration for industrial buyers comparing lifecycle cost and replacement planning.

30mm ultra slimhigh efficiency up to 94%200% peak power capability600% transient peak current capabilityultra low inrush current

SKU XDR-120-36

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-120-36 is a 120W ultra-slim DIN-rail power supply delivering 36V DC at up to 3.33A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-120-36 carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓30mm ultra slim width
✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well XDR-120-36?

The XDR-120-36 is rated for 119.88W of output power. It provides a 36V output with a rated current of 3.33A.

What type of applications is the XDR-120-36 designed for?

This model is an industrial DIN rail power supply suited for B2B power supply and DC-DC converter categories where a compact 36V supply is required. Its approvals across ITE, industrial, marine, SEMI47, and Class I Division 2 hazardous location use make it relevant for demanding industrial environments.

How slim is the XDR-120-36 compared with typical DIN rail power supplies?

The XDR-120-36 has an ultra slim 30mm width. That makes it a space-saving option for DIN rail panels where enclosure space is limited.

What input voltage range does the XDR-120-36 support?

This model supports an 85 to 305Vac input range. The listed features also note 277Vac availability, which is useful for industrial power environments that use higher AC distribution voltages.

Can the XDR-120-36 operate in harsh temperature conditions?

The specified operating temperature range is -40°C to 85°C. This wide range makes the unit suitable for demanding industrial environments where ambient temperatures may vary significantly.

What protection features are listed for the XDR-120-36?

The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.

What efficiency and no-load performance does this model offer?

The XDR-120-36 is listed with high efficiency up to 94%. Its no-load power dissipation is specified as 0.9W to 2W by R.C.

What warranty period applies to the XDR-120-36?

The XDR-120-36 has a listed warranty period of 5 years. This is a useful consideration for industrial buyers comparing lifecycle cost and replacement planning.
