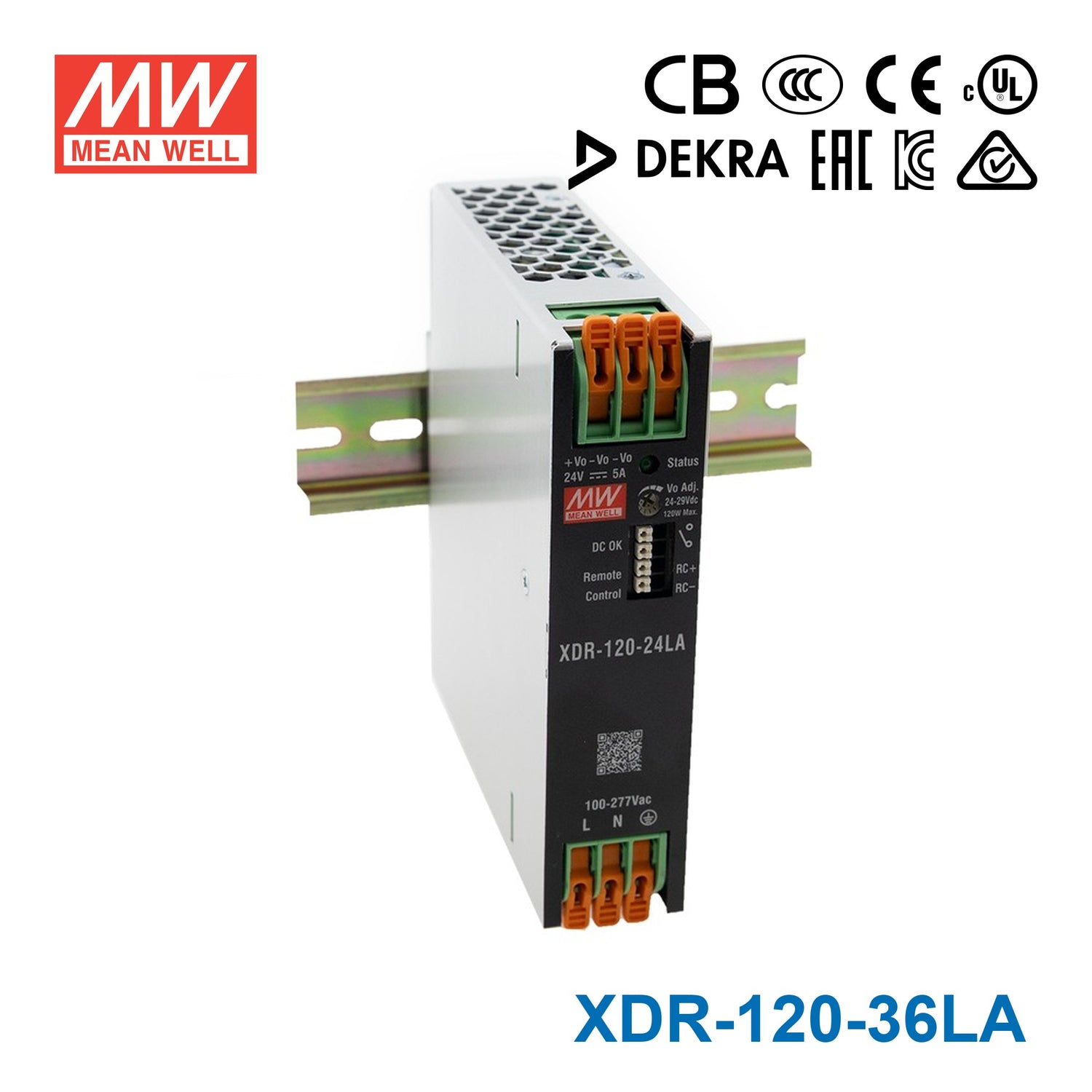

Mean Well XDR-120-36LA High-End Ultra Slim Industrial Din Rail Power Supply 119.88W 36V with Lever Actuated Connector 3.33A
Notify me when it's back in stock
Mean Well XDR-120-36LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XDR-120-36LA?
The XDR-120-36LA is rated for 119.88W of output power. It provides a 36V DC output at 3.33A, making it suitable for industrial DC power applications that require this voltage and current range.
What input voltage range does the XDR-120-36LA support?
This model supports an 85~305Vac input range. The listed features also note 277Vac availability, which can be useful for industrial power systems that operate above standard low-line AC ranges.
Is the XDR-120-36LA suitable for space-constrained DIN rail panels?
Yes. The XDR-120-36LA is described as an ultra slim DIN rail power supply with a 30mm width, which makes it a good fit where panel space is limited.
What certifications or approvals are listed for the XDR-120-36LA?
The product description lists global certifications across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists Marine DNV, SEMI47, and CID2 HazLoc approval.
What operating temperature range is specified for this power supply?
The XDR-120-36LA has a listed operating temperature range of -40°C to 85°C. This wide range supports use in demanding industrial environments where ambient conditions may vary significantly.
What protection features are included with the XDR-120-36LA?
The listed protections include short circuit, overload, over voltage, and over temperature protection. The product description also notes a built-in constant current limiting circuit.
How does the XDR-120-36LA compare with basic DIN rail power supplies?
The XDR-120-36LA is positioned as a high-end ultra slim industrial DIN rail power supply. Compared with basic models, its listed differentiators include up to 94% efficiency, 200% peak power capability, 600% transient peak current capability, and multiple industrial, marine, semiconductor, and HazLoc approvals.
What warranty period is listed for the XDR-120-36LA?
The listed warranty period for the XDR-120-36LA is 5 years. This is relevant for B2B buyers evaluating lifecycle cost and long-term support expectations.
