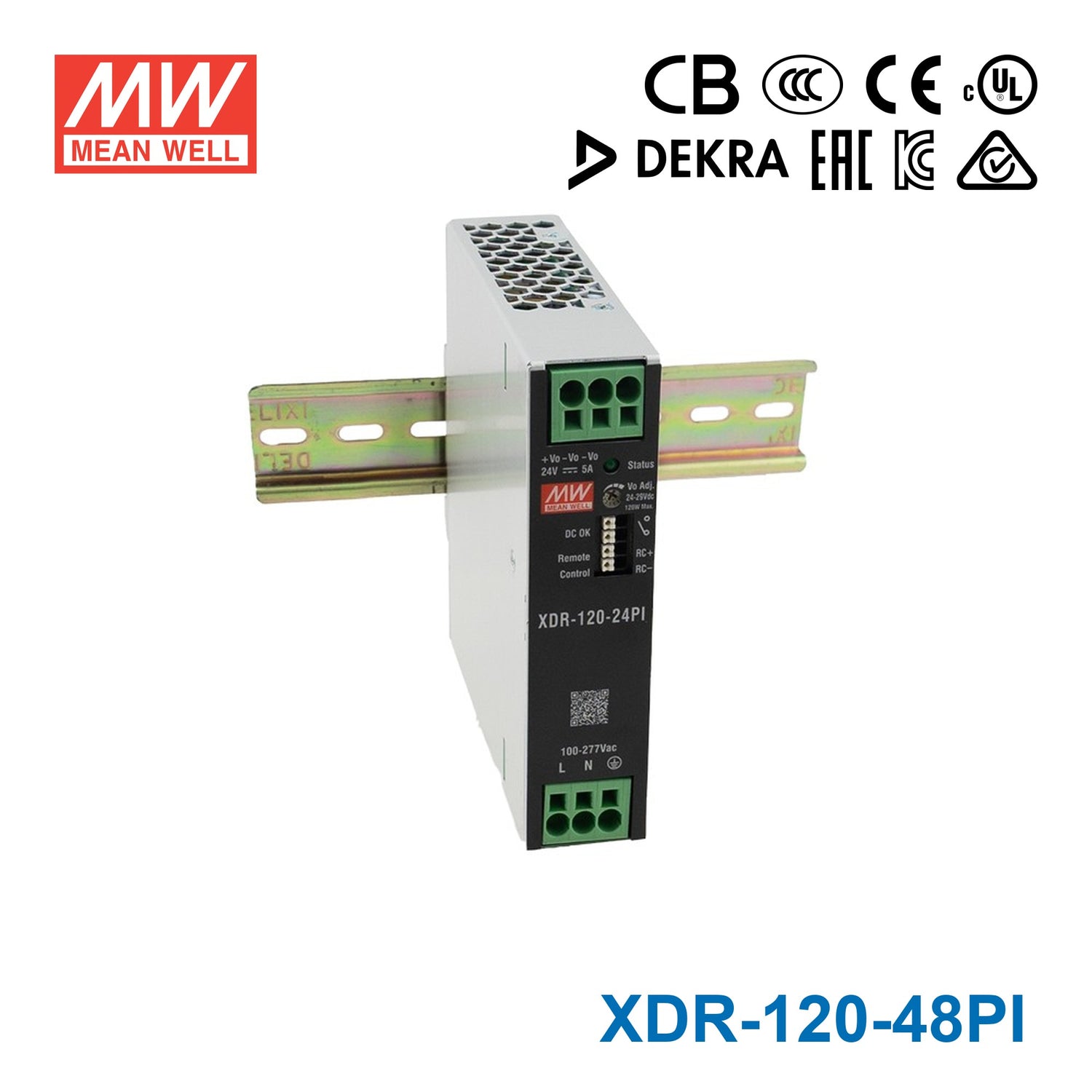

Mean Well XDR-120-48PI High-End Ultra Slim Industrial Din Rail Power Supply 120W 48V with Push In Connector 2.5A

30mm ultra slimhigh efficiency up to 94%200% peak power capability600% transient peak current capabilityultra low inrush current

SKU XDR-120-48PI

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-120-48PI is a 120W ultra-slim DIN-rail power supply delivering 48V DC at up to 2.5A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-120-48PI carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓30mm ultra slim width
✓High efficiency up to 94% and no-load power dissipation 0.9W~2W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty
