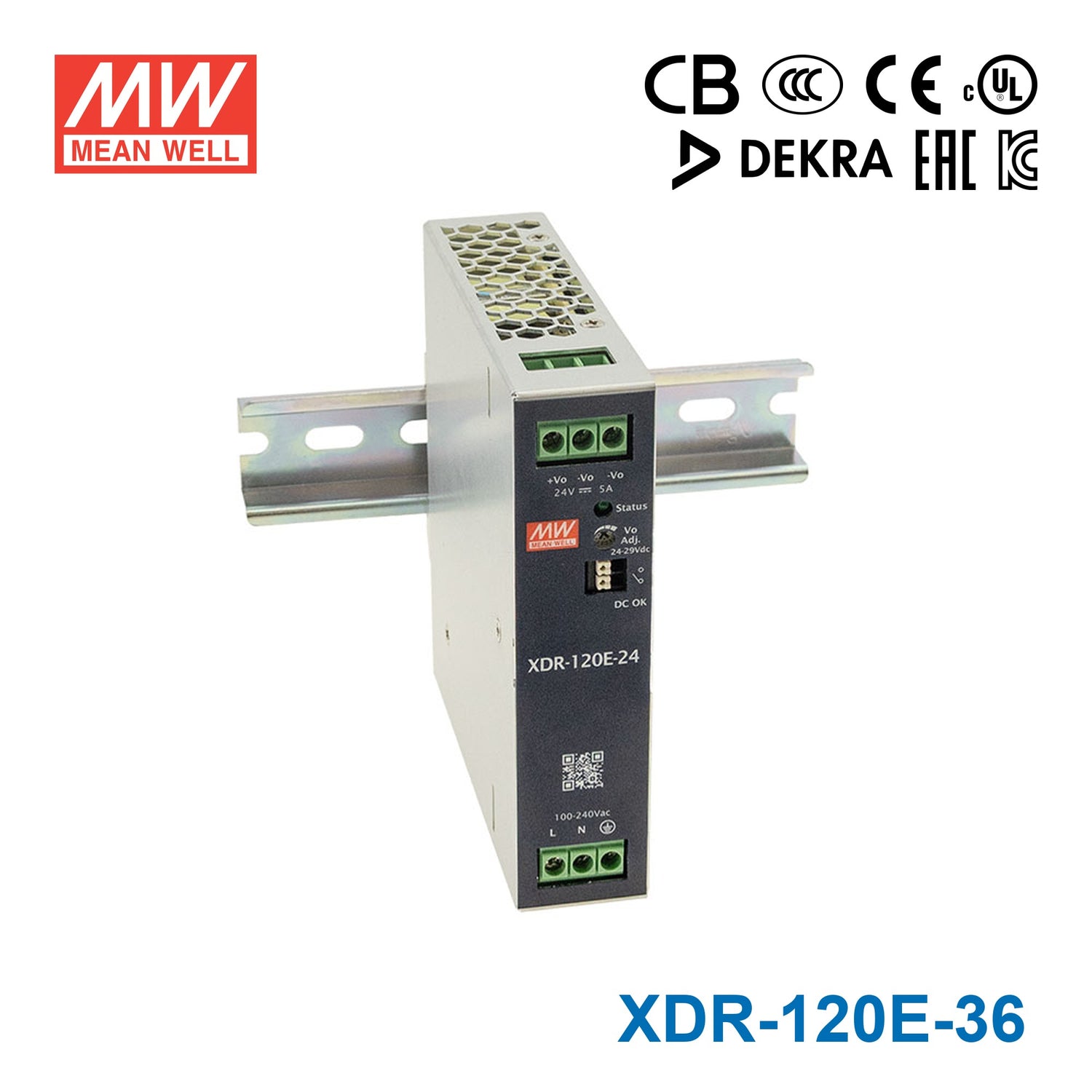

Mean Well XDR-120E-36 Economical Ultra Slim Din Rail Power Supply 119.88W 36V 3.33A

30mm widthhigh efficiencyeconomical model

SKU XDR-120E-36

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XDR-120E-36 is the 36V output model of this series: rated current 3.33A, rated power 119.88W, typical efficiency 91%.

The XDR-120E series is a 120W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 91% and a low standby power consumption 0.6W~1W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70℃ (up to +50℃ at full load); OVCⅢ compliance; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3-years warranty, the XDR-120E series is a compact, high-performance, and highly reliable DIN rail power supply.

Features

85~ 264Vac input range
Global certificates in multi-fields (ITE 62368-1,Industrial 61558-1/-2-16,61010)
30mm slim width
High efficiency up to 91% and no load power dissipation 0.6W~1W
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Over voltage category Ⅲ (OVC Ⅲ)
-40~ +70℃ wide range operation temperature (>+50℃ derating)
Operating altitude up to 5000 meters
Built-in DC OK relay contact
Can be installed on DIN rail TS-35/7.5 or 15
3 years warranty

Specifications

XDR-120E-36Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 3.33A
CURRENT RANGE: 0 ~ 3.33A
RATED POWER: 119.88W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 36 ~ 42V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230Vac 2500ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.): 16ms/230Vac 8ms/115Vac at full load

INPUT

AC VOLTAGE RANGE: 85 ~ 264Vac
DC VOLTAGE RANGE: 120 ~ 370Vdc
NO LOAD POWER CONSUMPTION (Typ.): 0.8W @115Vac 1W @ 230Vac
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 2.3A/115Vac 1.3A/230Vac
INRUSH CURRENT (Typ.): COLD START 20A/115Vac 40A/230Vac
LEAKAGE CURRENT: <1mA / 240Vac

PROTECTION

OVERLOAD: 105-130% rated output power, constant current limiting without shutdown, recovers automatically after fault condition is removed
OVER VOLTAGE: 43 ~ 50V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage,recovers automatically after fault condition is removed

FUNCTION

DC OK RELAY CONTACT: Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.^Note.4: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85 ℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% /℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS^Note.7&8&9: Parameter Standard Test Level

CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201
TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201
UL UL/CUL 61010-1/-2-201
CCC GB4943.1
BSMI CNS15598-1
EAC TPTC004 approved
KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
OVER VOLTAGE CATEGORY^Note.5: IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV ) ; IEC/EN 62368-1 (SELV / ES1 )
WITHSTAND VOLTAGE: I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25 ℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2), KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
CB	IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201
TUV	BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201
UL	UL/CUL 61010-1/-2-201
CCC	GB4943.1
BSMI	CNS15598-1
EAC	TPTC004 approved
KC/BIS	KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 2223.1K hrs min. Telcordia SR-332 (Bellcore) ; 440.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 30*125.2*116mm (W*H*D)
PACKING: 510g; 24pcs/13.25Kg/1.16CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. When the temperature is between -40 ° C and -20 ° C and the input voltage is between 85V and 90V, the temperature derating curve drops to 40% .
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
8. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
9. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

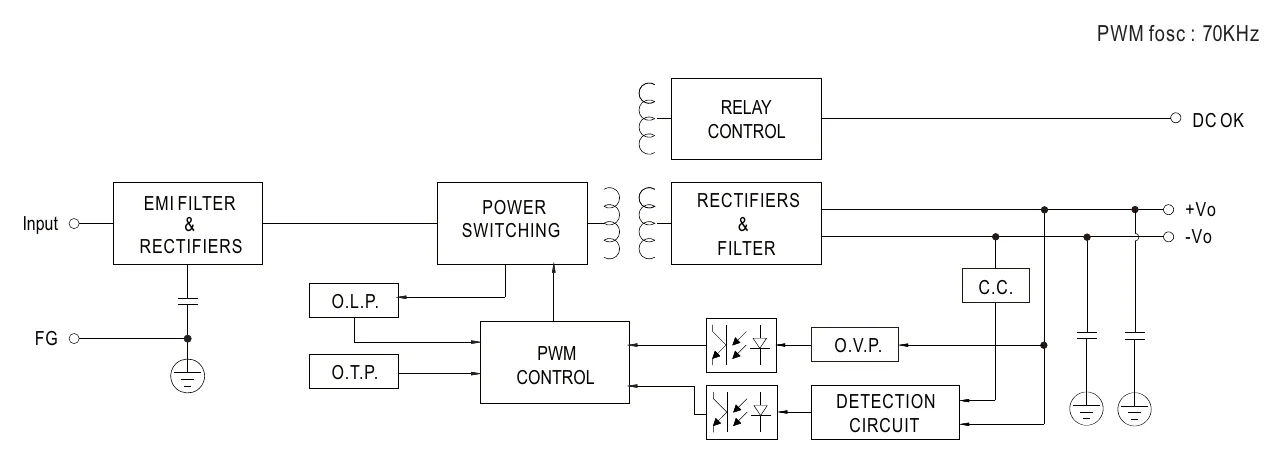

XDR-120E-36 Block Diagram — Block Diagram

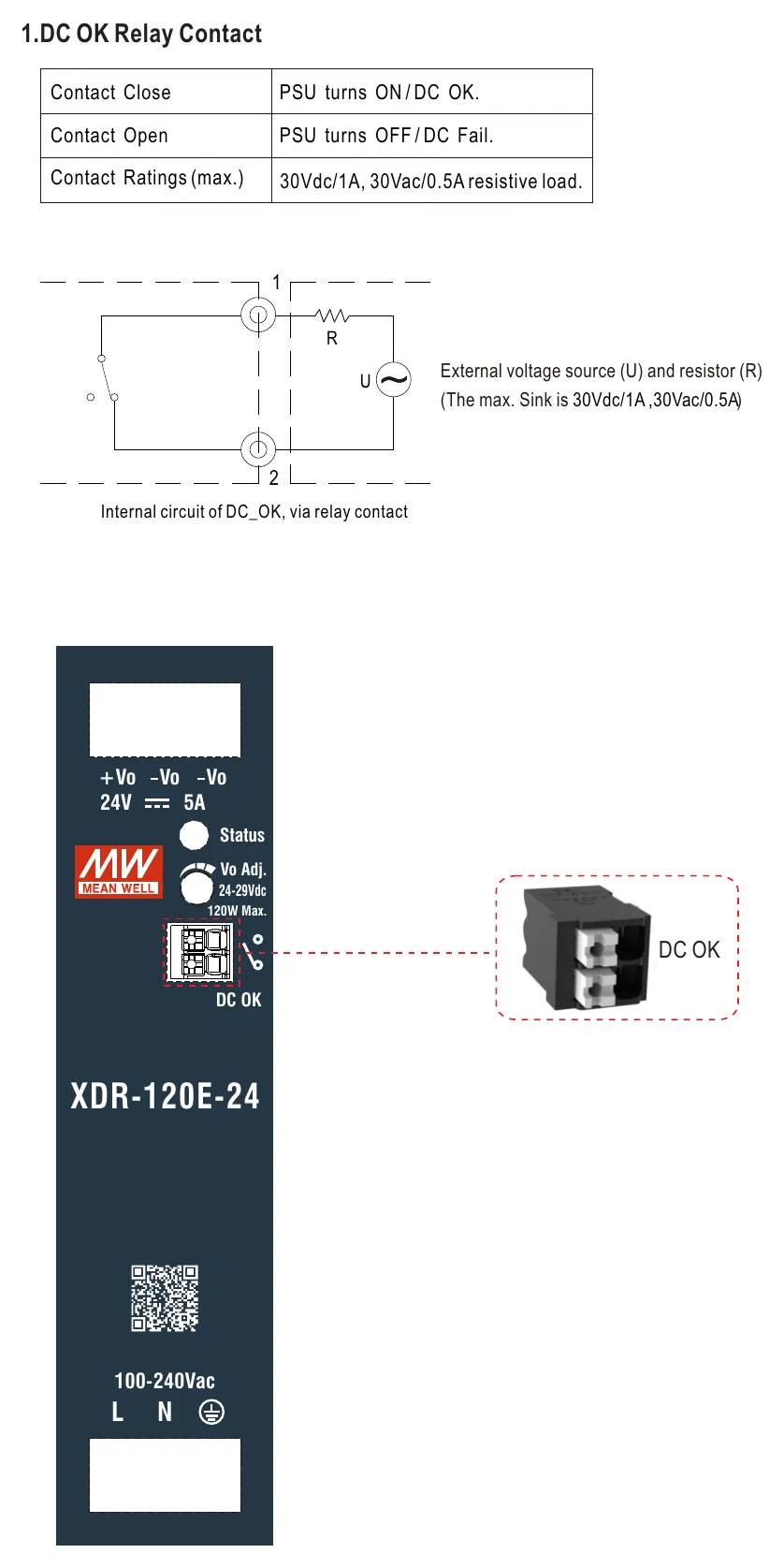

XDR-120E-36 Function Manual — Function Manual

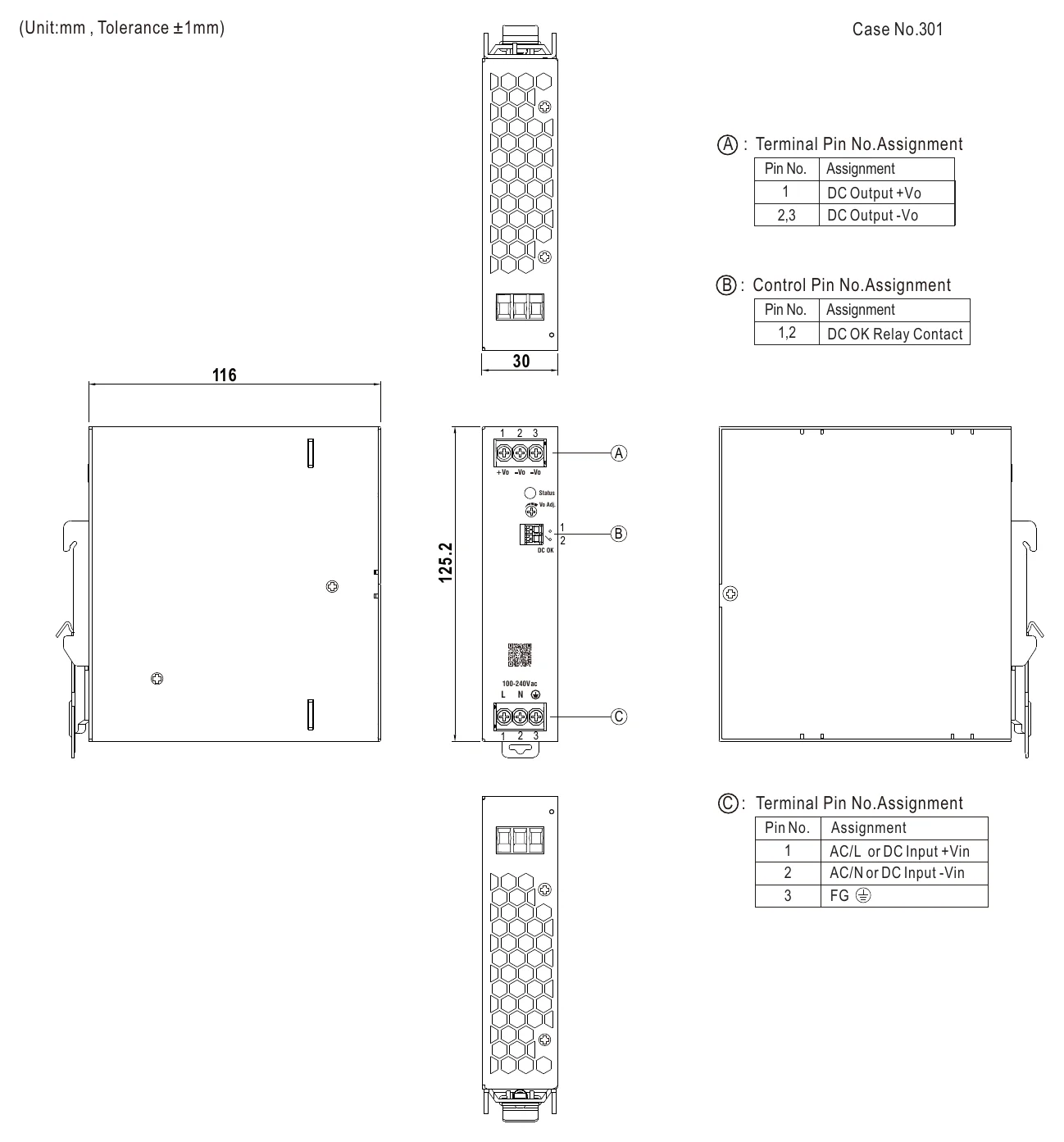

XDR-120E-36 Mechanical Specification — Mechanical Specification

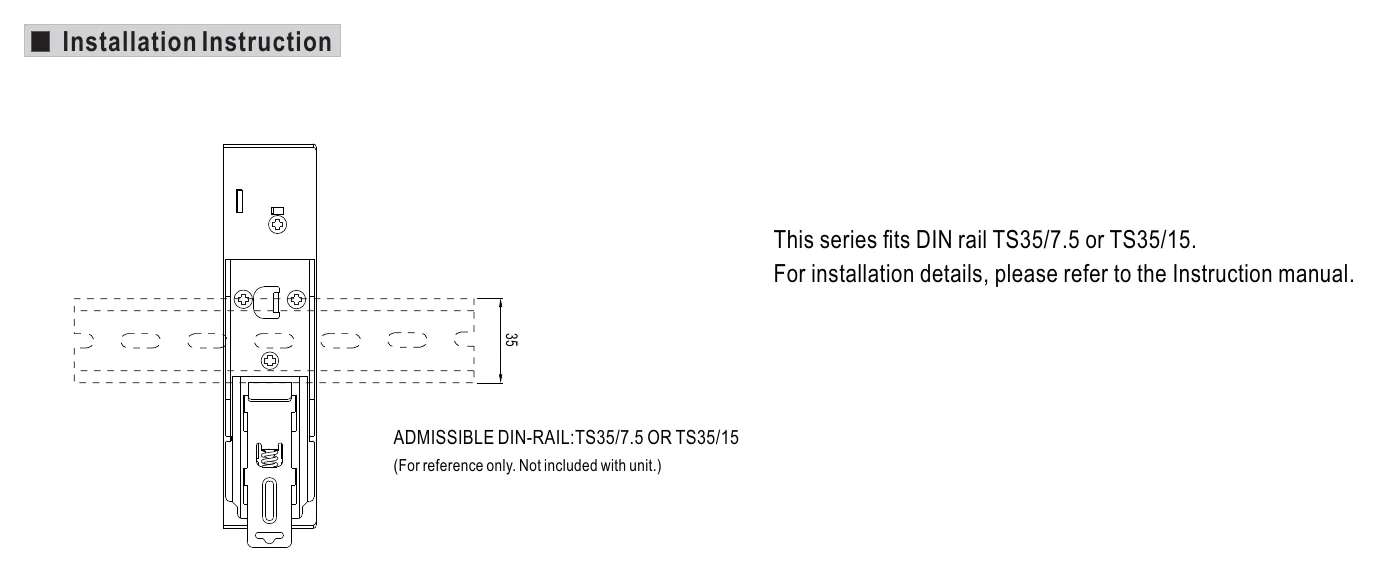

XDR-120E-36 Installation Instruction — Installation Instruction

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus
Battery charger

Downloads

::specification::

FAQ

What is the output rating of the Mean Well XDR-120E-36?

The XDR-120E-36 is rated for 119.88W of output power. It provides a 36V output with a rated current of 3.33A.

Is the XDR-120E-36 suitable for DIN rail power supply applications?

Yes, this model belongs to the DIN rail power supply family and is listed in DIN rail and slim DIN rail categories. Its 30mm slim width makes it suitable for applications where panel space is limited.

What input voltage range does the XDR-120E-36 support?

The XDR-120E-36 supports an 85 to 264Vac input range. This wide AC input range helps make it suitable for use across different mains environments where the product approvals and system requirements are appropriate.

What operating temperature range is specified for the XDR-120E-36?

This model is specified for operation from -40°C to +70°C. The product description notes derating above +50°C, so available output power may be reduced at higher ambient temperatures.

What protections are included with the XDR-120E-36?

The XDR-120E-36 includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.

How efficient is the XDR-120E-36?

The XDR-120E-36 is specified with efficiency up to 91%. It also has no-load power dissipation of 0.8W at 115Vac and 1W at 230Vac.

What warranty period applies to the XDR-120E-36?

The XDR-120E-36 has a listed warranty period of 3 years. This applies to this specific 120W, 36V model as provided in the product data.
