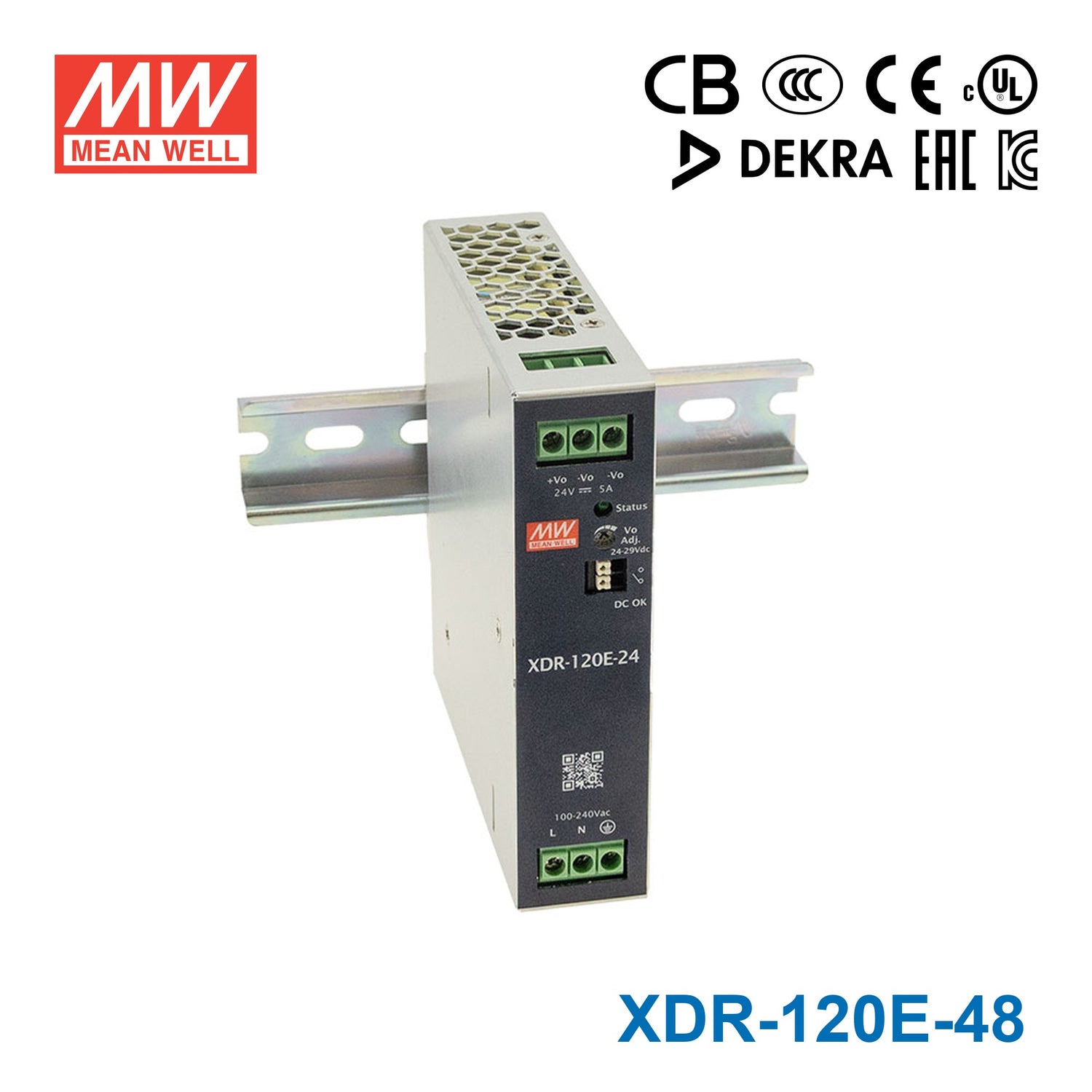

Mean Well XDR-120E-48 Economical Ultra Slim Din Rail Power Supply 1...
Please Login for Pricing
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.42 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XDR-120E-48?
The XDR-120E-48 is rated for 120 W output power. It provides a 48 V DC output with a rated current of 2.5 A.
Is the XDR-120E-48 suitable for compact DIN rail panels?
Yes. This model is described as an ultra slim DIN rail power supply with a 30 mm slim width, making it a good fit where panel space is limited.
What operating temperature range does the XDR-120E-48 support?
The XDR-120E-48 supports operation from -40°C to +70°C. The product data notes derating above +50°C.
What protections are included with the XDR-120E-48?
This model includes protection against short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
Does the XDR-120E-48 use a fan?
No. The XDR-120E-48 has a fanless design and is cooled by free air convection, which can be useful in industrial control cabinets where reduced moving parts are preferred.
What input voltage range does the XDR-120E-48 accept?
The XDR-120E-48 supports an 85 to 264 Vac input range. This wide AC input range makes it suitable for use across many regions and industrial power environments.
What certifications are listed for the XDR-120E-48?
The product data lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists overvoltage category III, or OVC III.
How efficient is the Mean Well XDR-120E-48?
The XDR-120E-48 is specified with efficiency up to 91%. Its no-load power dissipation is listed as less than 1 W.
