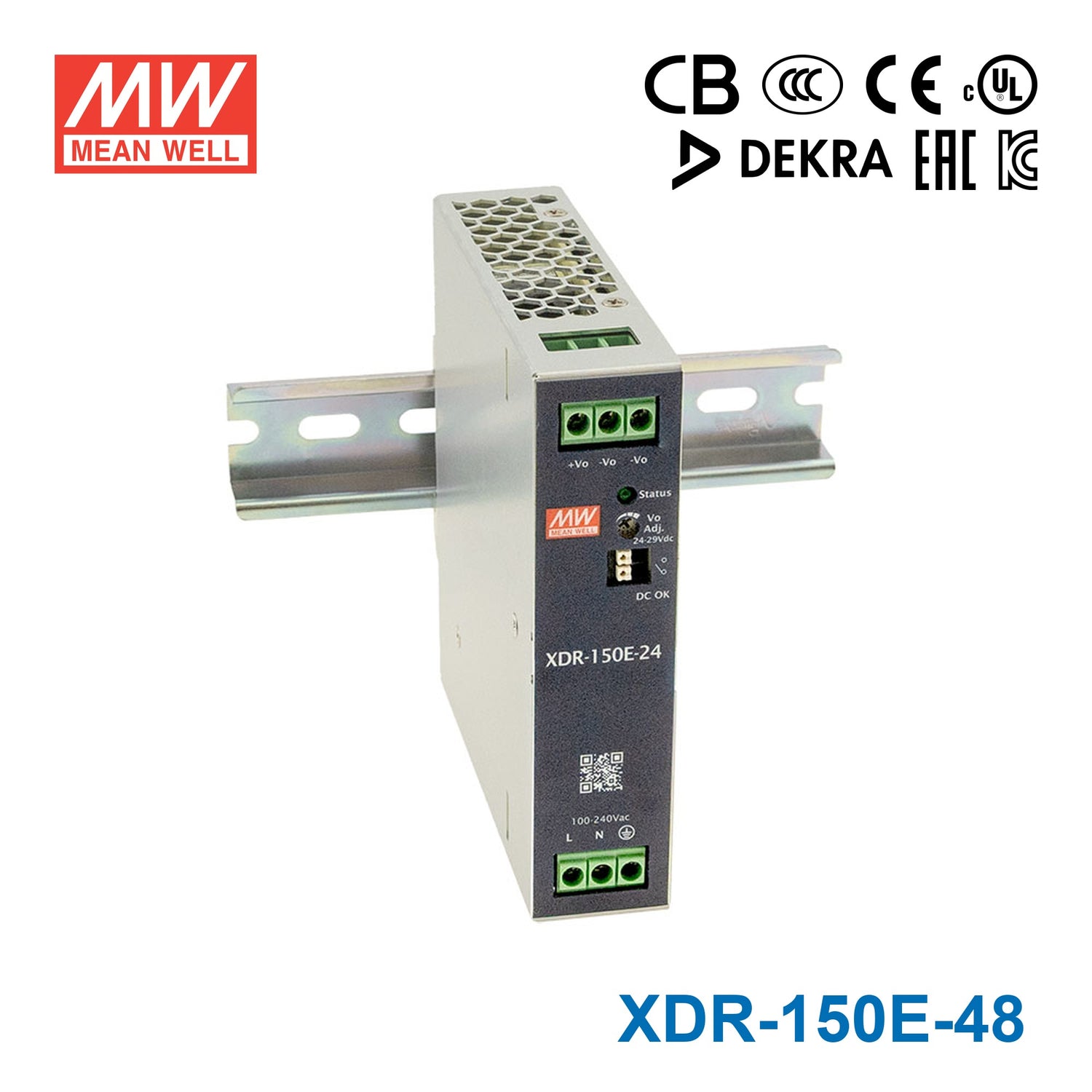

Mean Well XDR-150E-48 Economical Ultra Slim Din Rail Power Supply 1...
Please Login for Pricing
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating125 Watt
-
Output Voltage48 Volt
-
Rated Current2.6 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.43 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XDR-150E-48 provide?
The XDR-150E-48 provides a 48V DC output with a rated current of 2.6A. Based on the provided product data, its listed power rating is 125W.
What types of applications is the XDR-150E-48 suited for?
This model is a DIN rail DC power supply intended for industrial and B2B power applications where a 48V DC output is required. Its slim 30mm width makes it useful in control cabinets or equipment layouts where panel space is limited.
What temperature range can the XDR-150E-48 operate in?
The XDR-150E-48 is rated for operation from -40°C to +70°C. The product data notes derating above +50°C, so available output capacity may be reduced at higher ambient temperatures.
Why choose the XDR-150E-48 over a wider DIN rail power supply?
The XDR-150E-48 has an ultra slim 30mm width, which can help conserve DIN rail space. It also provides up to 91% efficiency and no-load power dissipation under 1W, making it a practical choice where compact size and efficient standby operation matter.
Does the XDR-150E-48 support global input voltage?
Yes. The XDR-150E-48 supports an 85 to 264Vac input range, which is suitable for many global AC mains environments when used within the product's specified ratings.
Is the XDR-150E-48 fanless?
Yes. The XDR-150E-48 uses a fanless design with cooling by free air convection, which helps reduce moving parts and fan noise in suitable operating conditions.
What protections are included with the XDR-150E-48?
The product data lists protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit.
What certifications are listed for the XDR-150E-48?
The XDR-150E-48 is listed with global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It is also described as Overvoltage Category III, or OVC III.
Other XDR-150E Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XDR-150E-24 Economical Ultra Slim Din Rail Power Supply 156W 24V 5.2A | 125W | 24V | 5.2A | Indoor | View |
