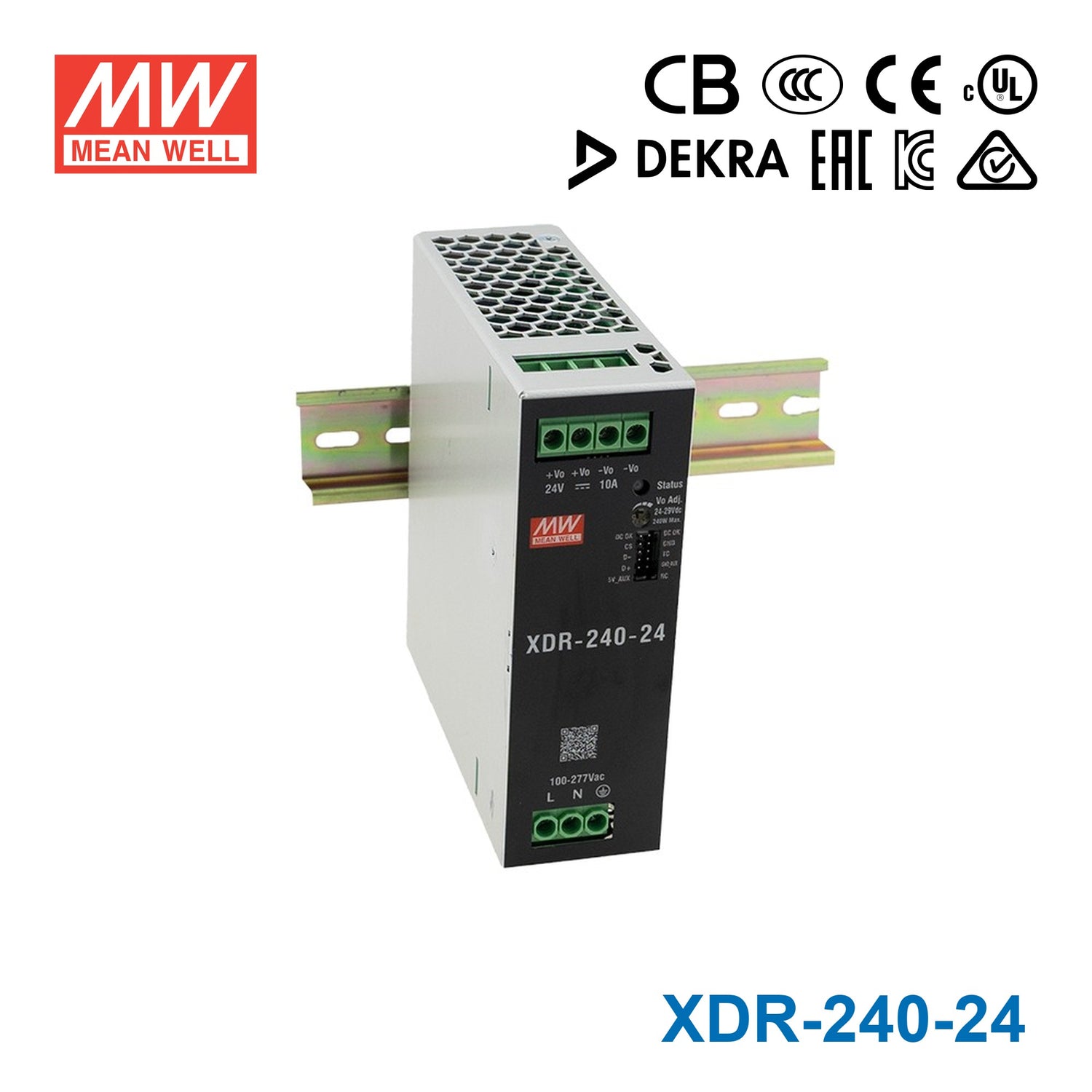

Mean Well XDR-240-24 High-End Ultra Slim Industrial Din Rail Power Supply 240W 24V 10A
40mm ultra slim, high efficiency up to 95.5%, 200% peak power capability, 600% transient peak current capability, parallel operation up to 960W, MODBus communication, ultra low inrush current
SKU:
XDR-240-24
|
Notify me when it's back in stock
Mean Well XDR-240-24 High-End Ultra Slim Industrial Din Rail Power ...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓40mm ultra slim width
- ✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 960W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width4 cm
-
Height12.52 cm
-
Weight0.79 kg
