Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

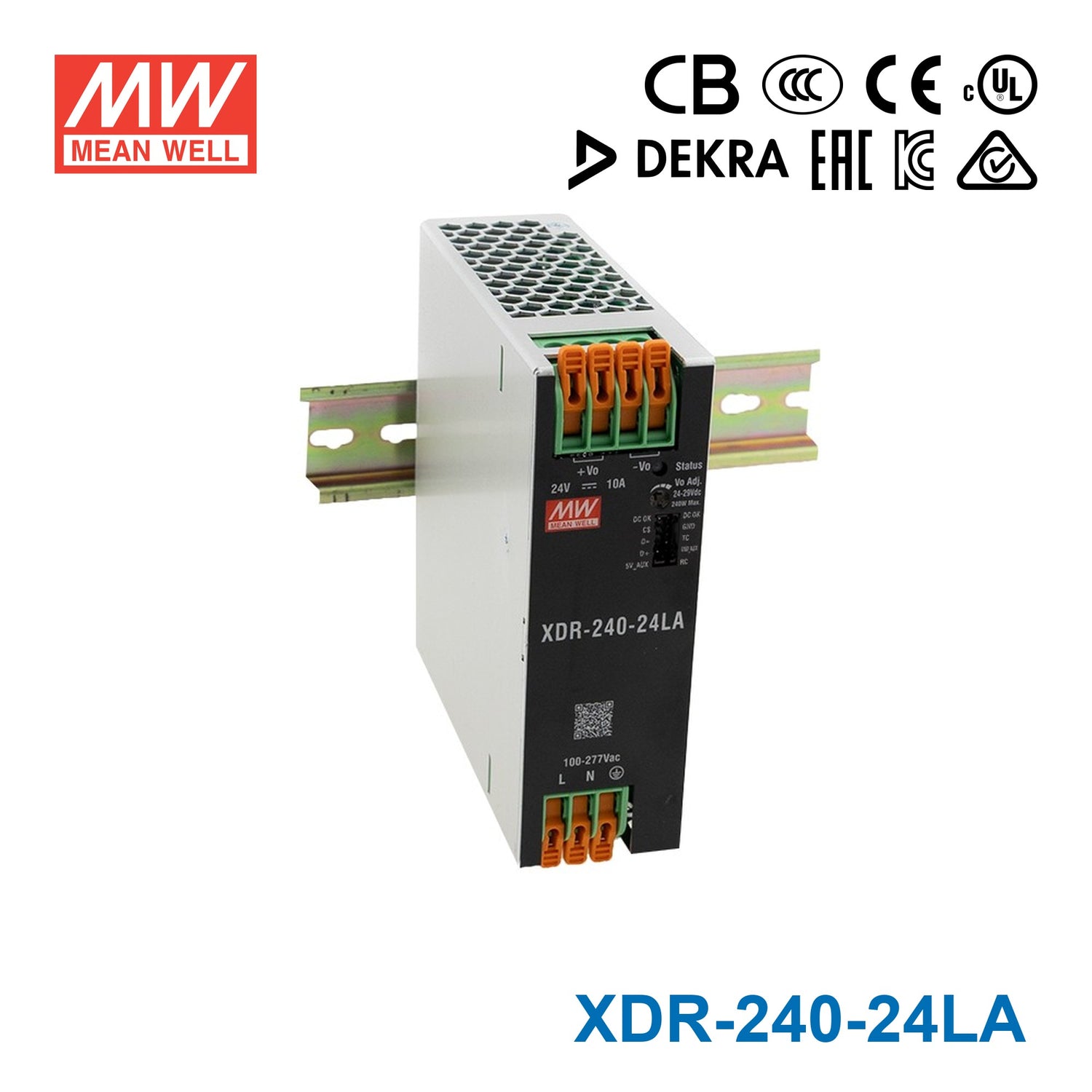

Mean Well XDR-240-24LA High-End Ultra Slim Industrial Din Rail Power Supply 240W 24V with Lever Actuated Connector 10A

Q: What is the output rating of the Mean Well XDR-240-24LA?

The XDR-240-24LA is rated for 240 W of output power. It provides 24 V output at a rated current of 10 A.

Q: What input voltage range does the XDR-240-24LA support?

This model supports an 85 to 305 Vac input range. The listed features also note 277 Vac availability, making it suitable for a broad range of industrial AC power environments.

Q: Is the XDR-240-24LA suitable for space-constrained DIN rail panels?

Yes. The XDR-240-24LA is described as an ultra slim DIN rail power supply with a 40 mm width, which makes it a strong fit where panel space is limited.

Q: What certifications or approvals are listed for this power supply?

The listed approvals include global certificates across ITE 62368-1, Industrial 61558-1/-2-16, and 61010. The product description also lists Marine DNV, SEMI47, and CID2 HazLoc approvals.

Q: Can the XDR-240-24LA handle temporary high power demand?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can be useful for demanding industrial loads with short startup or surge requirements.

Q: Does the XDR-240-24LA support parallel operation?

Yes. The product description lists built-in active current sharing for parallel operation up to 960 W using a 3+1 configuration.

Q: What operating temperature range is specified for this model?

The XDR-240-24LA is specified for operation from -40 °C to 85 °C. That wide range supports use in demanding industrial environments, subject to the product’s rated operating conditions.

Q: How efficient is the XDR-240-24LA?

The listed efficiency is up to 95.5%. The description also notes no-load power dissipation in the 1 W to 2.5 W range by R.C.

Q: What warranty period is listed for the XDR-240-24LA?

This model has a listed warranty period of 5 years. The listed product weight is 0.79 kg.

40mm ultra slimhigh efficiency up to 95.5%200% peak power capability600% transient peak current capabilityparallel operation up to 960WMODBus communicationultra low inrush current

SKU XDR-240-24LA

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-240-24LA is a 240W ultra-slim DIN-rail power supply delivering 24V DC at up to 10A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-240-24LA carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓40mm ultra slim width
✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 960W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well XDR-240-24LA?

The XDR-240-24LA is rated for 240 W of output power. It provides 24 V output at a rated current of 10 A.

What input voltage range does the XDR-240-24LA support?

This model supports an 85 to 305 Vac input range. The listed features also note 277 Vac availability, making it suitable for a broad range of industrial AC power environments.

Is the XDR-240-24LA suitable for space-constrained DIN rail panels?

Yes. The XDR-240-24LA is described as an ultra slim DIN rail power supply with a 40 mm width, which makes it a strong fit where panel space is limited.

What certifications or approvals are listed for this power supply?

The listed approvals include global certificates across ITE 62368-1, Industrial 61558-1/-2-16, and 61010. The product description also lists Marine DNV, SEMI47, and CID2 HazLoc approvals.

Can the XDR-240-24LA handle temporary high power demand?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can be useful for demanding industrial loads with short startup or surge requirements.

Does the XDR-240-24LA support parallel operation?

Yes. The product description lists built-in active current sharing for parallel operation up to 960 W using a 3+1 configuration.

What operating temperature range is specified for this model?

The XDR-240-24LA is specified for operation from -40 °C to 85 °C. That wide range supports use in demanding industrial environments, subject to the product’s rated operating conditions.

How efficient is the XDR-240-24LA?

The listed efficiency is up to 95.5%. The description also notes no-load power dissipation in the 1 W to 2.5 W range by R.C.

What warranty period is listed for the XDR-240-24LA?

This model has a listed warranty period of 5 years. The listed product weight is 0.79 kg.
