Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

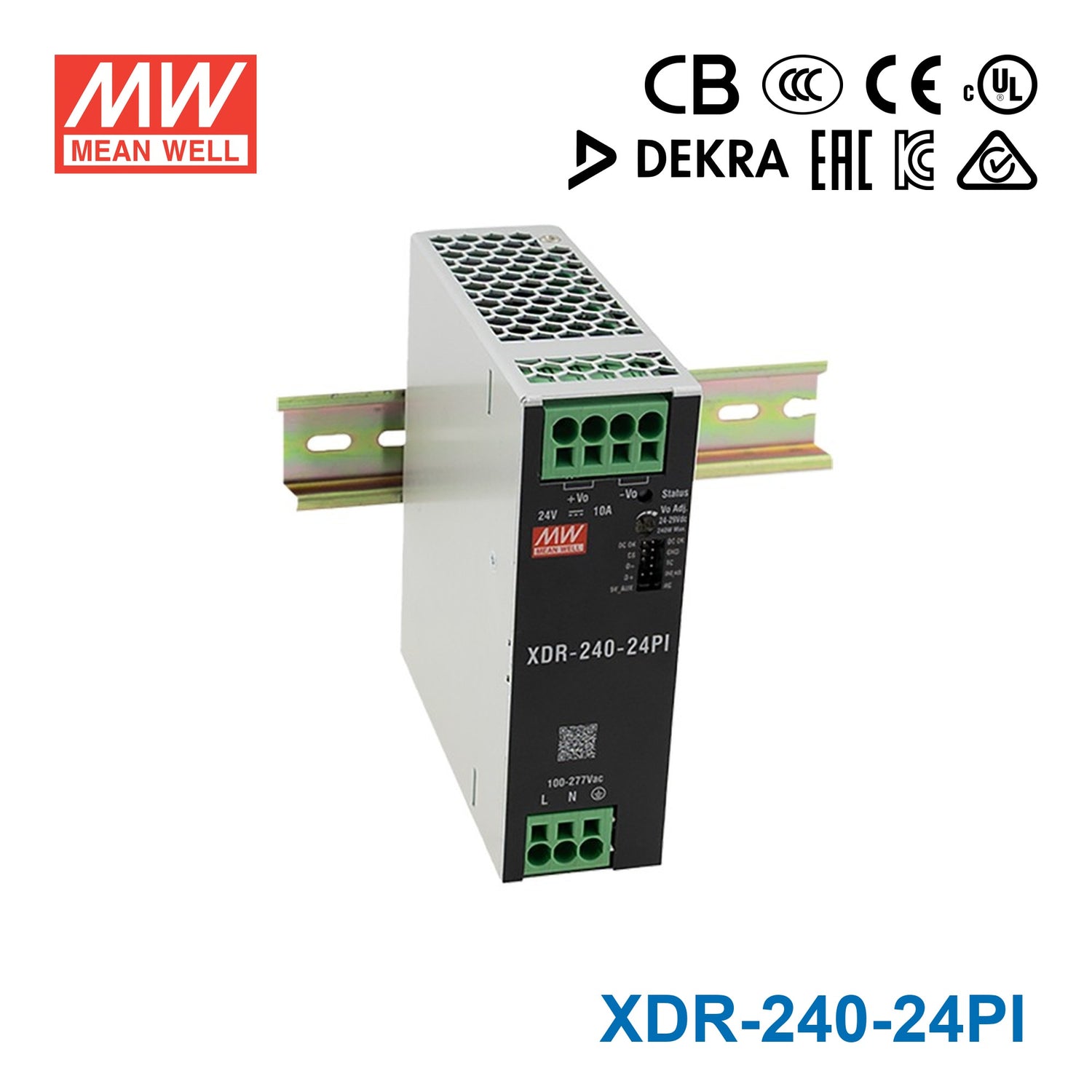

Mean Well XDR-240-24PI High-End Ultra Slim Industrial Din Rail Power Supply 240W 24V with Push In Connector 10A

Q: What is the Mean Well XDR-240-24PI used for?

The XDR-240-24PI is a 240W DIN rail power supply for industrial and B2B control systems that need a regulated 24V DC output. Its ultra slim 40mm width makes it suitable for space-constrained control panels and industrial enclosures.

Q: What output does the XDR-240-24PI provide?

This model provides a 24V DC output with a rated current of 10A. Its total rated output power is 240W.

Q: How slim is the XDR-240-24PI compared with typical DIN rail power supplies?

The XDR-240-24PI is described as an ultra slim DIN rail power supply with a 40mm width. That narrow profile can help when panel space is limited or multiple devices need to fit on the same DIN rail.

Q: What input voltage range does the XDR-240-24PI support?

The XDR-240-24PI supports an 85 to 305Vac input range. The product data also notes 277Vac availability, which can be important for industrial power systems.

Q: Can the XDR-240-24PI be used in harsh industrial environments?

This model is rated for operation from -40°C to 85°C. It also lists approvals and certifications across industrial, ITE, marine DNV, SEMI47, and CID2 hazardous location categories.

Q: Does the XDR-240-24PI support peak load demands?

Yes. The XDR-240-24PI lists 200% peak power capability and 600% transient peak current capability, which can help support demanding industrial loads within the product's intended operating limits.

Q: Can multiple XDR-240-24PI units be used for higher power systems?

The product data lists built-in active current sharing for parallel operation up to 960W in a 3+1 configuration. This makes the model suitable for systems that need scalable power capacity using compatible units.

Q: Does the XDR-240-24PI include monitoring or communication features?

Yes. The XDR-240-24PI includes a MODBus communication interface for control, setting, and monitoring functions.

Q: What warranty and physical weight does the XDR-240-24PI have?

This model has a listed warranty period of 5 years. Its listed weight is 0.79 kg.

40mm ultra slimhigh efficiency up to 95.5%200% peak power capability600% transient peak current capabilityparallel operation up to 960WMODBus communicationultra low inrush current

SKU XDR-240-24PI

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-240-24PI is a 240W ultra-slim DIN-rail power supply delivering 24V DC at up to 10A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-240-24PI carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓40mm ultra slim width
✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 960W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What is the Mean Well XDR-240-24PI used for?

The XDR-240-24PI is a 240W DIN rail power supply for industrial and B2B control systems that need a regulated 24V DC output. Its ultra slim 40mm width makes it suitable for space-constrained control panels and industrial enclosures.

What output does the XDR-240-24PI provide?

This model provides a 24V DC output with a rated current of 10A. Its total rated output power is 240W.

How slim is the XDR-240-24PI compared with typical DIN rail power supplies?

The XDR-240-24PI is described as an ultra slim DIN rail power supply with a 40mm width. That narrow profile can help when panel space is limited or multiple devices need to fit on the same DIN rail.

What input voltage range does the XDR-240-24PI support?

The XDR-240-24PI supports an 85 to 305Vac input range. The product data also notes 277Vac availability, which can be important for industrial power systems.

Can the XDR-240-24PI be used in harsh industrial environments?

This model is rated for operation from -40°C to 85°C. It also lists approvals and certifications across industrial, ITE, marine DNV, SEMI47, and CID2 hazardous location categories.

Does the XDR-240-24PI support peak load demands?

Yes. The XDR-240-24PI lists 200% peak power capability and 600% transient peak current capability, which can help support demanding industrial loads within the product's intended operating limits.

Can multiple XDR-240-24PI units be used for higher power systems?

The product data lists built-in active current sharing for parallel operation up to 960W in a 3+1 configuration. This makes the model suitable for systems that need scalable power capacity using compatible units.

Does the XDR-240-24PI include monitoring or communication features?

Yes. The XDR-240-24PI includes a MODBus communication interface for control, setting, and monitoring functions.

What warranty and physical weight does the XDR-240-24PI have?

This model has a listed warranty period of 5 years. Its listed weight is 0.79 kg.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":14987756536174, "variants" :[{ "context":"default", "variant_id": 53409308639598, "sku":"XDR-240-24PI", "inventory_qty" : 2, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓85~305Vac input range (277Vac available)

✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved

✓40mm ultra slim width

✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.

✓200% peak power capability

✓600% transient peak current capability

✓Built-in active current sharing for parallel operation up to 960W (3+1)

✓MODBus communication interface for control, setting, and monitoring

✓Built-in constant current limiting circuit

✓Protections: Short circuit / Overload / Over voltage / Over temperature

✓Fanless design, cooling by free air convection

✓Over voltage category III (OVC III)

✓-40°~+85°C wide range operation temperature (>+60°C derating)

✓Operating altitude up to 5000 meters

✓Built-in remote ON/OFF control and DC OK relay contact

✓Ultra low inrush current <6~15A

✓Tool free terminal block (LA Type)

✓Conformal coating

✓Can be installed on DIN rail TS-35/7.5 or 15

✓5 years warranty
