Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

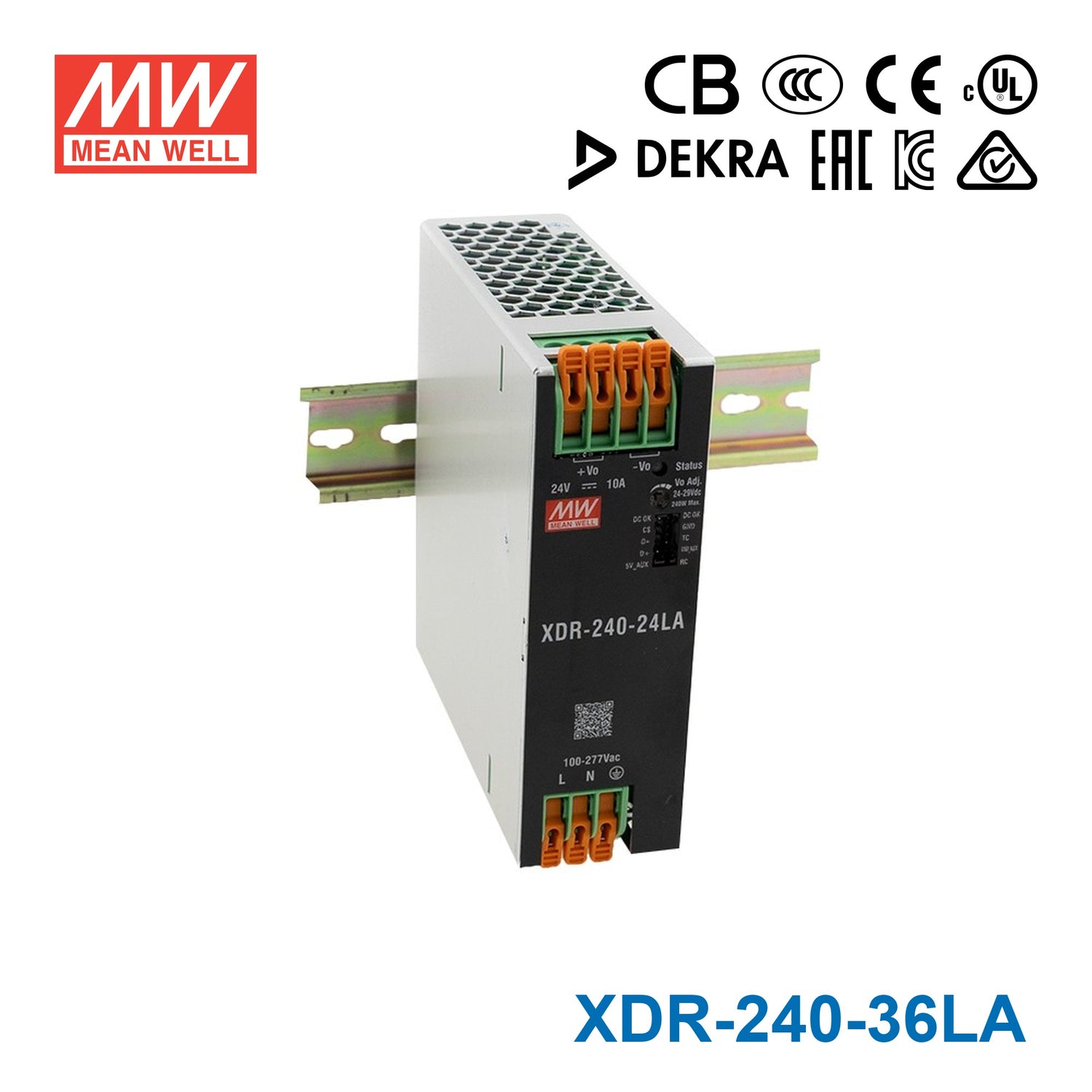

Mean Well XDR-240-36LA High-End Ultra Slim Industrial Din Rail Power Supply 239.76W 36V with Lever Actuated Connector 6.66A

Q: What is the output rating of the Mean Well XDR-240-36LA?

The XDR-240-36LA is rated for 239.76W of output power with a 36V output. Its rated output current is 6.66A.

Q: Is the XDR-240-36LA suitable for compact DIN rail panels?

Yes. This model is described as an ultra slim DIN rail power supply with a 40mm width, making it suitable where panel space is limited.

Q: What input voltage range does the XDR-240-36LA support?

The XDR-240-36LA supports an 85~305Vac input range. The provided specifications also note 277Vac availability.

Q: What operating temperature range is listed for the XDR-240-36LA?

This model is listed for operation from -40°C to 85°C. That wide range makes it relevant for demanding industrial environments where temperature tolerance is important.

Q: What certifications or approvals are listed for this power supply?

The XDR-240-36LA description lists certifications for ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists Marine DNV, SEMI47, and CID2 HazLoc approvals.

Q: Does the XDR-240-36LA support high peak power demands?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can help in applications with short-duration startup or surge demands.

Q: Can the XDR-240-36LA be used in higher-power parallel systems?

The product description states that it has built-in active current sharing for parallel operation up to 960W using a 3+1 configuration. This makes it a stronger fit for systems that may need scalable power capacity within the listed limits.

Q: How efficient is the Mean Well XDR-240-36LA?

The XDR-240-36LA is listed with efficiency up to 95.5%. The description also notes no-load power dissipation of 1W~2.5W by R.C.

Q: Does the XDR-240-36LA include monitoring or control features?

Yes. The listed features include a MODBus communication interface for control, setting, and monitoring.

Q: What warranty and weight are listed for the XDR-240-36LA?

The XDR-240-36LA is listed with a 5-year warranty period. Its listed weight is 0.79 kg.

40mm ultra slimhigh efficiency up to 95.5%200% peak power capability600% transient peak current capabilityparallel operation up to 960WMODBus communicationultra low inrush current

SKU XDR-240-36LA

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-240-36LA is a 240W ultra-slim DIN-rail power supply delivering 36V DC at up to 6.66A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-240-36LA carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓40mm ultra slim width
✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 960W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What is the output rating of the Mean Well XDR-240-36LA?

The XDR-240-36LA is rated for 239.76W of output power with a 36V output. Its rated output current is 6.66A.

Is the XDR-240-36LA suitable for compact DIN rail panels?

Yes. This model is described as an ultra slim DIN rail power supply with a 40mm width, making it suitable where panel space is limited.

What input voltage range does the XDR-240-36LA support?

The XDR-240-36LA supports an 85~305Vac input range. The provided specifications also note 277Vac availability.

What operating temperature range is listed for the XDR-240-36LA?

This model is listed for operation from -40°C to 85°C. That wide range makes it relevant for demanding industrial environments where temperature tolerance is important.

What certifications or approvals are listed for this power supply?

The XDR-240-36LA description lists certifications for ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists Marine DNV, SEMI47, and CID2 HazLoc approvals.

Does the XDR-240-36LA support high peak power demands?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability, which can help in applications with short-duration startup or surge demands.

Can the XDR-240-36LA be used in higher-power parallel systems?

The product description states that it has built-in active current sharing for parallel operation up to 960W using a 3+1 configuration. This makes it a stronger fit for systems that may need scalable power capacity within the listed limits.

How efficient is the Mean Well XDR-240-36LA?

The XDR-240-36LA is listed with efficiency up to 95.5%. The description also notes no-load power dissipation of 1W~2.5W by R.C.

Does the XDR-240-36LA include monitoring or control features?

Yes. The listed features include a MODBus communication interface for control, setting, and monitoring.

What warranty and weight are listed for the XDR-240-36LA?

The XDR-240-36LA is listed with a 5-year warranty period. Its listed weight is 0.79 kg.
