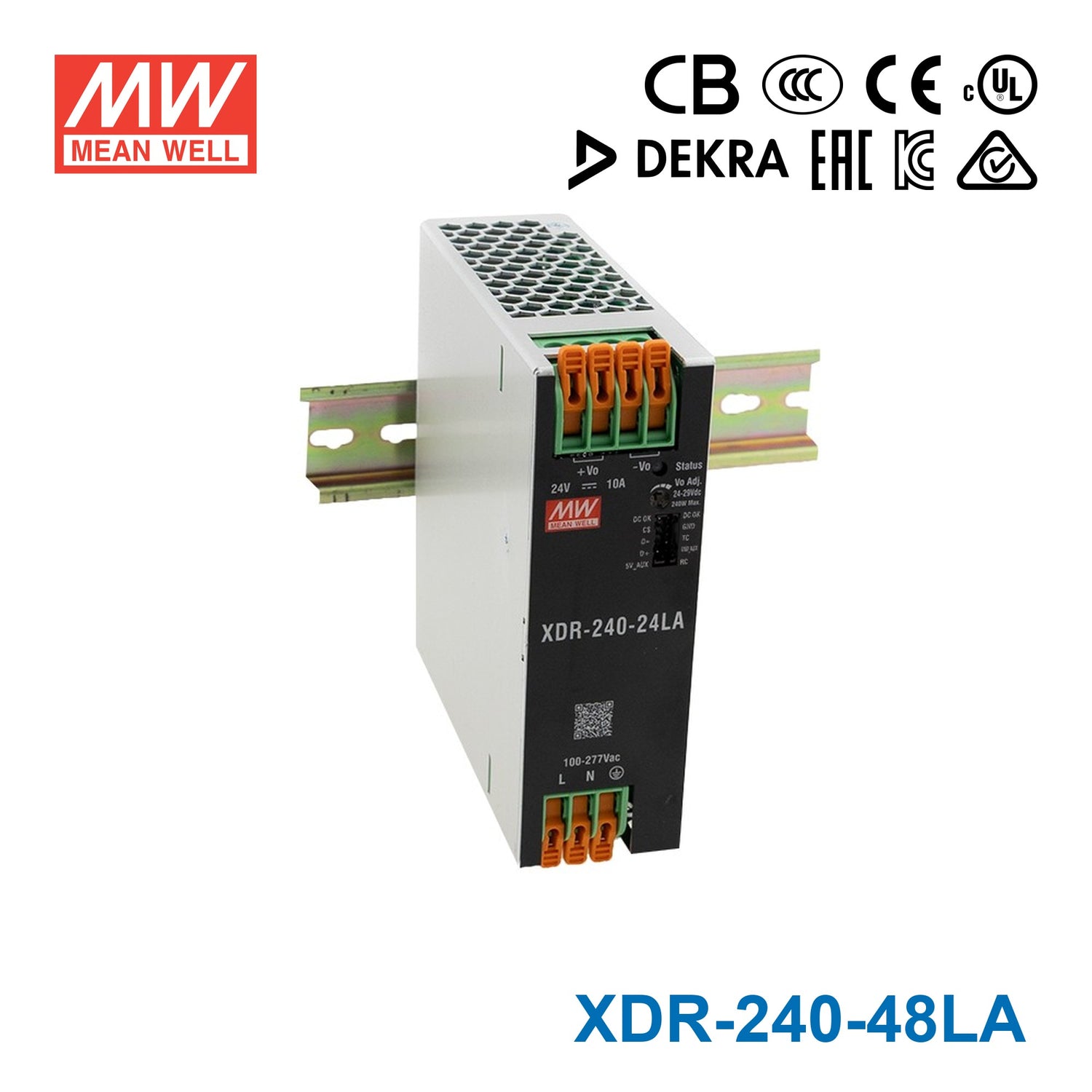

Mean Well XDR-240-48LA High-End Ultra Slim Industrial Din Rail Power Supply 240W 48V with Lever Actuated Connector 5A
Notify me when it's back in stock
Mean Well XDR-240-48LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓40mm ultra slim width
- ✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 960W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width4 cm
-
Height12.52 cm
-
Weight0.79 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-240-48LA?
The XDR-240-48LA is a 240 W DIN rail power supply with a 48 V output and 5 A rated current. It is part of Mean Well's XDR high-end ultra slim industrial DIN rail power supply family.
What types of applications is the XDR-240-48LA suited for?
This model is suited for industrial power systems that need a compact 48 V, 240 W DIN rail supply. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc, making it relevant for demanding industrial and commercial environments.
What makes the XDR-240-48LA different from a standard DIN rail power supply?
The XDR-240-48LA is described as a high-end ultra slim model with a 40 mm width and efficiency up to 95.5%. It also includes 200% peak power capability, 600% transient peak current capability, active current sharing for parallel operation up to 960 W, and a MODBus communication interface.
What operating temperature range is specified for the XDR-240-48LA?
The listed operating temperature range for the XDR-240-48LA is -40 °C to 85 °C. That wide range supports use in industrial environments where ambient temperatures can vary significantly.
Can the XDR-240-48LA be used in systems with higher power requirements?
Yes, the product data lists built-in active current sharing for parallel operation up to 960 W using a 3+1 configuration. This makes the model relevant for systems where scalable 48 V power capacity is required.
What input voltage range does the XDR-240-48LA support?
The XDR-240-48LA supports an 85 to 305 Vac input range, with 277 Vac availability noted in the product description. This broad input range is useful for global industrial power applications.
Does the XDR-240-48LA support communication or monitoring features?
Yes, the description lists a MODBus communication interface for control, setting, and monitoring. That feature can be useful in industrial systems where power supply status and configuration need to be visible to higher-level controls.
What warranty and weight are listed for the XDR-240-48LA?
The XDR-240-48LA has a listed warranty period of 5 years. Its listed weight is 0.7900 kg.
