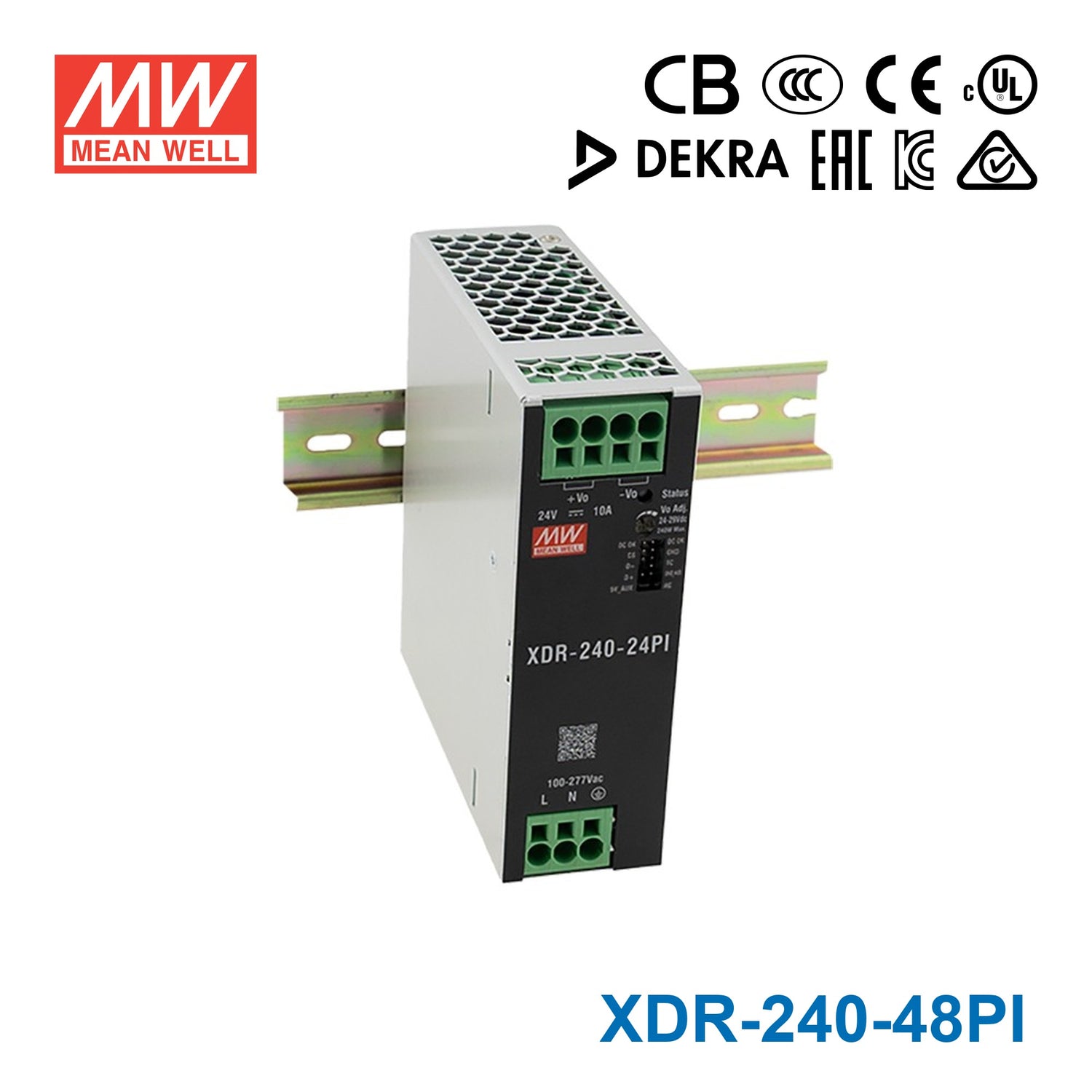

Mean Well XDR-240-48PI High-End Ultra Slim Industrial Din Rail Power Supply 240W 48V with Push In Connector 5A
Notify me when it's back in stock
Mean Well XDR-240-48PI High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓40mm ultra slim width
- ✓High efficiency up to 95.5% and no-load power dissipation 1W~2.5W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 960W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width4 cm
-
Height12.52 cm
-
Weight0.79 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-240-48PI?
The XDR-240-48PI is a 240W industrial DIN rail power supply with a 48V DC output. It is rated for 5A output current and is part of Mean Well's high-end ultra slim XDR series.
What types of applications is the XDR-240-48PI suited for?
This model is suited for industrial control panels, automation equipment, and other DIN rail power systems that need a 48V DC supply. Its listed approvals include industrial, ITE, marine DNV, SEMI47, and Class I Division 2 hazardous location coverage, making it relevant for demanding B2B environments.
Can the XDR-240-48PI operate in harsh temperature conditions?
Yes. The XDR-240-48PI is specified for operation from -40°C to 85°C, which makes it suitable for many industrial environments with wide temperature swings.
Why choose the XDR-240-48PI instead of a standard 48V DIN rail power supply?
The XDR-240-48PI offers several higher-end features compared with basic DIN rail supplies, including up to 95.5% efficiency, 200% peak power capability, and 600% transient peak current capability. It also has a 40mm ultra slim width, which can be useful where panel space is limited.
What input voltage range does the XDR-240-48PI support?
The XDR-240-48PI supports an 85-305Vac input range. The product data also notes 277Vac availability, which can be important for industrial and commercial power systems.
Does the XDR-240-48PI support parallel operation?
Yes. The product data lists built-in active current sharing for parallel operation up to 960W in a 3+1 configuration. This makes the model relevant for systems that require higher total power capacity or redundancy planning.
Does the XDR-240-48PI include communication features?
Yes. The XDR-240-48PI includes a MODBus communication interface for control, setting, and monitoring. This can be useful in industrial systems where power supply status and configuration need to be integrated into broader equipment monitoring.
What warranty and physical weight does the XDR-240-48PI have?
The XDR-240-48PI has a 5-year warranty period. Its listed weight is 0.79 kg, and it is designed as an ultra slim DIN rail power supply with a 40mm width.
