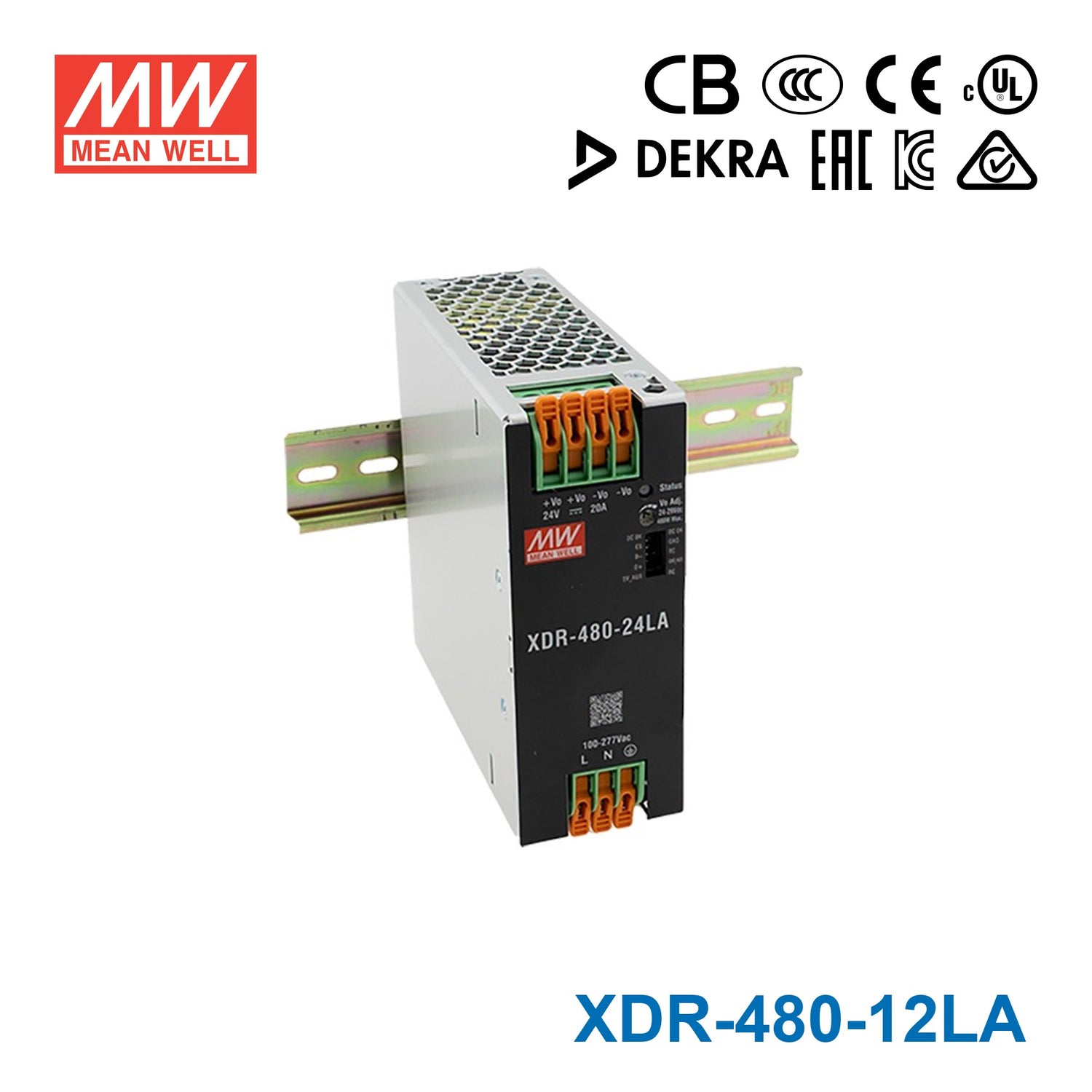

Mean Well XDR-480-12LA High-End Ultra Slim Industrial Din Rail Power Supply 360W 12V with Lever Actuated Connector 30A
Notify me when it's back in stock
Mean Well XDR-480-12LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓48mm ultra slim width
- ✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 1920W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output specifications of the Mean Well XDR-480-12LA?
The XDR-480-12LA is rated for 360W output at 12V DC with a rated current of 30A. It is part of Mean Well's high-end ultra slim industrial DIN rail power supply family.
What types of applications is the XDR-480-12LA suited for?
This model is suited for industrial DIN rail power systems where a compact 12V DC supply is needed. Its listed approvals include industrial, ITE, marine DNV, SEMI47, and CID2 HazLoc, making it relevant for demanding commercial and industrial environments.
What makes the XDR-480-12LA different from a standard DIN rail power supply?
The XDR-480-12LA has a 48mm ultra slim width, high efficiency up to 96%, and support for 200% peak power capability. It also includes MODBus communication for control, setting, and monitoring, which is not typical on basic DIN rail power supplies.
What operating temperature range does the XDR-480-12LA support?
The XDR-480-12LA is specified for operation from -40°C to 85°C. This wide temperature range supports use in harsh industrial environments where ambient conditions may vary significantly.
Can the XDR-480-12LA be used with high-voltage AC input systems?
Yes, this model lists an 85 to 305Vac input range, with 277Vac available. That wide input range makes it suitable for many industrial AC supply environments, subject to the requirements of the complete system design.
Does the XDR-480-12LA support parallel operation?
Yes, the product description lists built-in active current sharing for parallel operation up to 1920W in a 3+1 configuration. This is useful when system designs require higher available power or redundancy within the product's stated capabilities.
What peak load capabilities are listed for the XDR-480-12LA?
The XDR-480-12LA lists 200% peak power capability and 600% transient peak current capability. These features can help support demanding load profiles where short-duration peaks are expected.
What warranty and physical weight are specified for this model?
The XDR-480-12LA has a listed warranty period of 5 years. Its specified weight is 1.1 kg.
