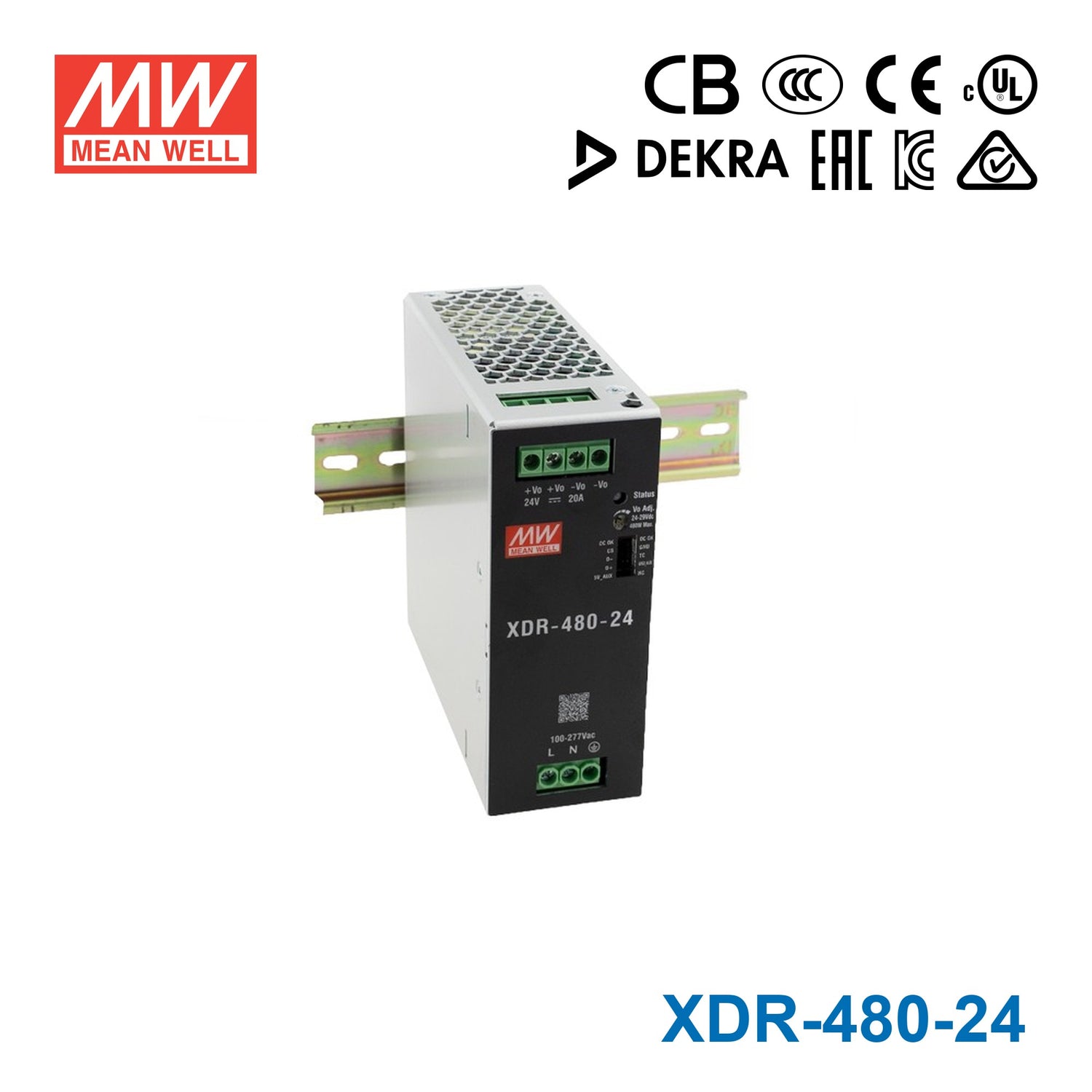

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-480-24 High-End Ultra Slim Industrial Din Rail Power Supply 480W 24V 20A

Q: What applications is the Mean Well XDR-480-24 suited for?

The XDR-480-24 is designed for industrial DIN rail power supply use where a 24V DC output and 480W power rating are required. Its approvals across ITE, industrial, marine DNV, SEMI47, and CID2 hazardous location categories make it suitable for demanding commercial and industrial environments.

Q: How much power does the XDR-480-24 provide?

This model is rated for 480W of output power. It provides a 24V DC output with a rated current of 20A.

Q: What makes the XDR-480-24 different from a standard DIN rail power supply?

The XDR-480-24 is a high-end, ultra-slim DIN rail power supply with a 48mm width and efficiency up to 96%. It also includes features such as 200% peak power capability, 600% transient peak current capability, MODBus communication, and active current sharing for larger system designs.

Q: Can the XDR-480-24 be used in high-temperature or cold environments?

Yes, the listed operating temperature range for this model is -40°C to 85°C. That wide range makes it suitable for industrial environments that may experience very cold starts or elevated ambient temperatures.

Q: Does the XDR-480-24 support international input voltage requirements?

Yes, the product description lists an 85~305Vac input range, with 277Vac available. This wide input range supports use across many industrial power environments where compatible approvals and system requirements are met.

Q: Does this power supply support monitoring or communication features?

Yes, the XDR-480-24 includes a MODBus communication interface for control, setting, and monitoring. This is useful for industrial systems that need visibility into power supply status or configuration through compatible control equipment.

Q: Can the XDR-480-24 be used for higher power systems?

The product description lists built-in active current sharing for parallel operation up to 1920W using a 3+1 configuration. This makes the model relevant for systems that require more available power than a single 480W unit provides.

Q: What warranty does the Mean Well XDR-480-24 include?

The XDR-480-24 has a listed warranty period of 5 years. This warranty length matches its positioning as a high-end industrial DIN rail power supply.

48mm ultra slim, high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, parallel operation up to 1920W, MODBus communication, ultra low inrush current

SKU:

XDR-480-24

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓48mm ultra slim width
✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 1920W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Specifications

Brand

Mean Well
Input Voltage

85V~305V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
Operating Temperature

-40°C~85°C
Length

12.5 cm
Width

4.8 cm
Height

12.52 cm
Weight

1.1 kg
