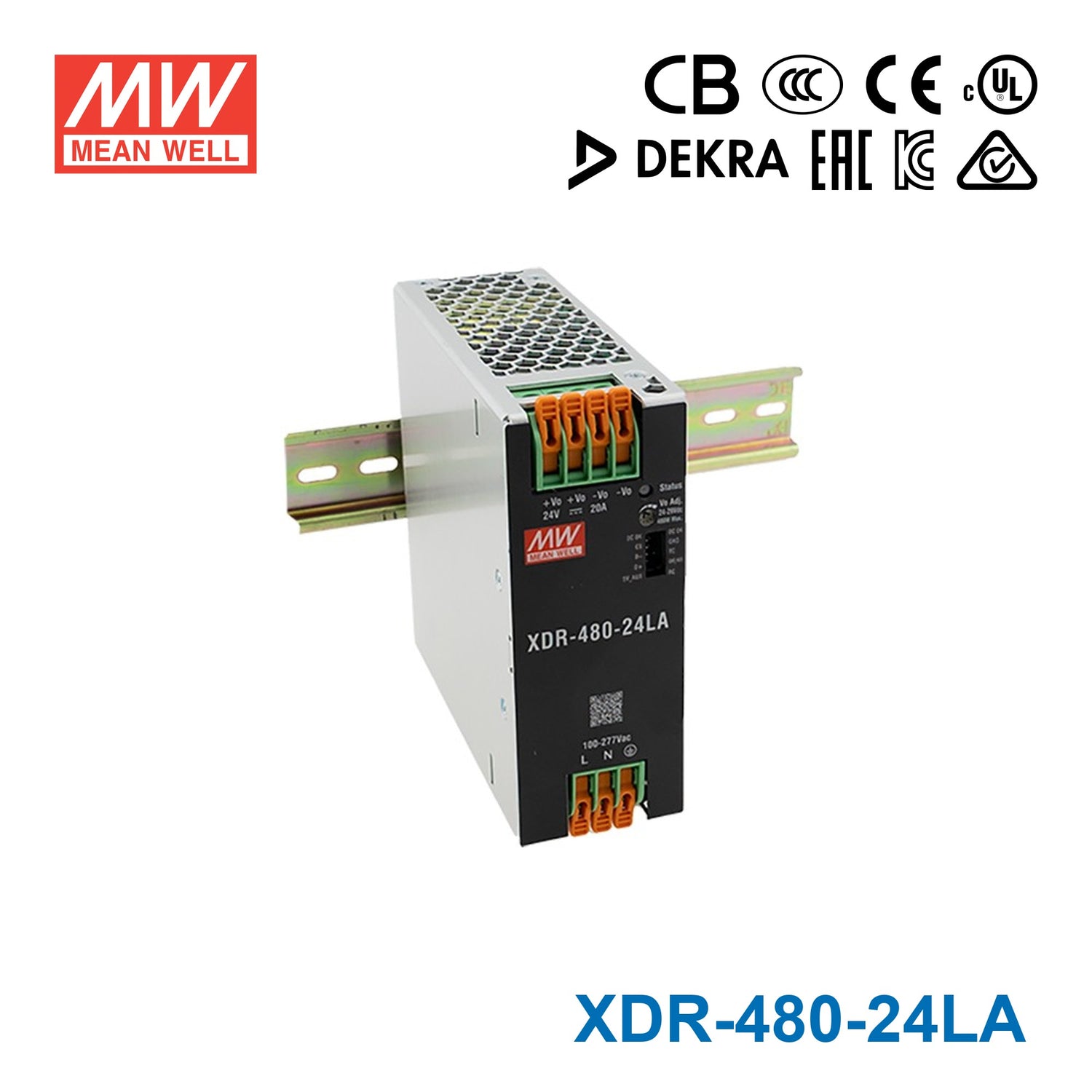

Mean Well XDR-480-24LA High-End Ultra Slim Industrial Din Rail Power Supply 480W 24V with Lever Actuated Connector 20A

48mm ultra slimhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 1920WMODBus communicationultra low inrush current <6~15Aconformal coating

SKU XDR-480-24LA

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XDR-480-24LA is the 24V output model of this series: rated power 480W, typical efficiency 95.5%.

The XDR-480 series is a 480W AC/DC high-end ultra slim industrial DIN rail power. Key features of this series include a narrow 48mm casing, optimizing system installation space, and an ultra-wide input range of 85~305Vac suitable for global use. It boasts a maximum efficiency of 96% and a low standby power consumption of 1W by R.C for energy savings and carbon reduction. It supports MODBus communication interface, provides constant current with up to 200% peak power, and can handle instantaneous peak current of 600%. It has a fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVCⅢ compliance; parallel function capability up to 1920W; ultra-low inrush current of <6~15A, and includes DC OK and remote ON/OFF functions. It also has a built-in ORing FET, the internal PCB has a coating for basic moisture and dust protection, and it has multiple terminal blocks for selection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XDR-480 series is a compact, high-performance, and highly reliable DIN rail power supply.

Features

85~305Vac input with PFC (277Vac available)
Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010) & Marine DNV,SEMI47,CI D2 HazLoc approved
48mm ultra slim width
High efficiency up to 96% and no load power dissipation<1W by R.C.
Built-in MODBus protocol
200% peak power capability
600% transient peak current capability
Built-in constant current limiting circuit
Current sharing up to 1920W (3+1) for parallel use
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Over voltage category Ⅲ (OVC Ⅲ)
-40~ +85℃ wide range operation temperature(>+60℃ derating)
Operating altitude up to 5000 meters
Built-in remote ON/OFF control and DC OK relay contact
Ultra low inrush current <6~15A
Built-in ORing FET
Tool free terminal block (LA Type)
Conformal coating
Can be installed on DIN rail TS-35/75 or15
5 years warranty

Specifications

XDR-480-24LASpecifications from the official datasheet (2026-06-01 edition)

OUTPUT

DC VOLTAGE: 24V
LOAD CURRENT RANGE: 0 ~ 20A
RATED POWER: 480W
PEAK CURRENT (5sec.): 40A
PEAK POWER (5sec.): 960W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 29V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1500ms, 150ms/277Vac 1500ms, 150ms/230Vac 1500ms, 150ms/115Vac at full load
HOLD UP TIME (Typ.): 15ms/277Vac 15ms/230Vac 15ms/115Vac at full load

INPUT

AC VOLTAGE RANGE: 85 ~ 305Vac
DC VOLTAGE RANGE: 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) Remote Power OFF: 1W@115Vac & 230Vac & 277Vac
NO LOAD CONSUMPTION(Typ.) Remote Power ON: 3W@115Vac & 230Vac & 277Vac
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115Vac PF>0.95/230Vac PF>90%/277Vac at full load
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 6A/115Vac 3A/230Vac 2.5A/277Vac
INRUSH CURRENT (Typ.) COLD START: 6A/115Vac 10A/230Vac 15A/277Vac
LEAKAGE CURRENT: <1mA / 240Vac <1.5mA / 277Vac

PROTECTION

OVERLOAD: 105%~200% rated output power for more than 5 sec then constant current limiting at rate current without shutdown when Vo=30%~100% Hiccup mode when Vo<30% rated voltage
OVER VOLTAGE: 30~ 34V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

PARALLEL: Up to 1920W (3+1) units; Please refer to Function Manual for more details.
DC OK RELAY CONTACT: Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
REMOTE CONTROL: Power ON :RC(Pin9) and 5V_AUX(Pin10) short . Power OFF:RC(Pin9) and 5V_AUX(Pin10) open. Please refer to Function Manual for more details.
MODBus INTERFACE: Communication provides functions such as control, setting, and monitoring.
TRANSIENT PEAK CURRENT CAPABLILTY: 600% rated current for 15ms

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS^Note.4&5&6: CB IEC62368-1, IEC61558-1/-2-16, IEC61010-1/-2-201 ; TUV BS EN/EN62368-1,BS EN/EN61558-1/-2-16,BS EN/EN61010-1/-2-201 ; UL UL121201/CSA C22.2 NO.213.17 Class I,DIV2 Group A,B,C,D Hazardous Locations T4;UL61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TPTC004 ; Marine DNV ; SEMI F47 approved ; KC/BIS KC62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
OVER VOLTAGE CATEGORY^Note.7: IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV) ; IEC/EN 62368-1 (SELV / ES1 )
WITHSTAND VOLTAGE: I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2) ,KS C 9835,SEMI F47 tested at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 4, 4KV; criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 4, 4KV; criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 1139.7K hrs min. Telcordia SR-332 (Bellcore); 154.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 48*125.2*125mm (W*H*D)
PACKING: 1.1Kg; 12pcs/ 14.2Kg / 1. 16CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
6. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.

Technical drawings

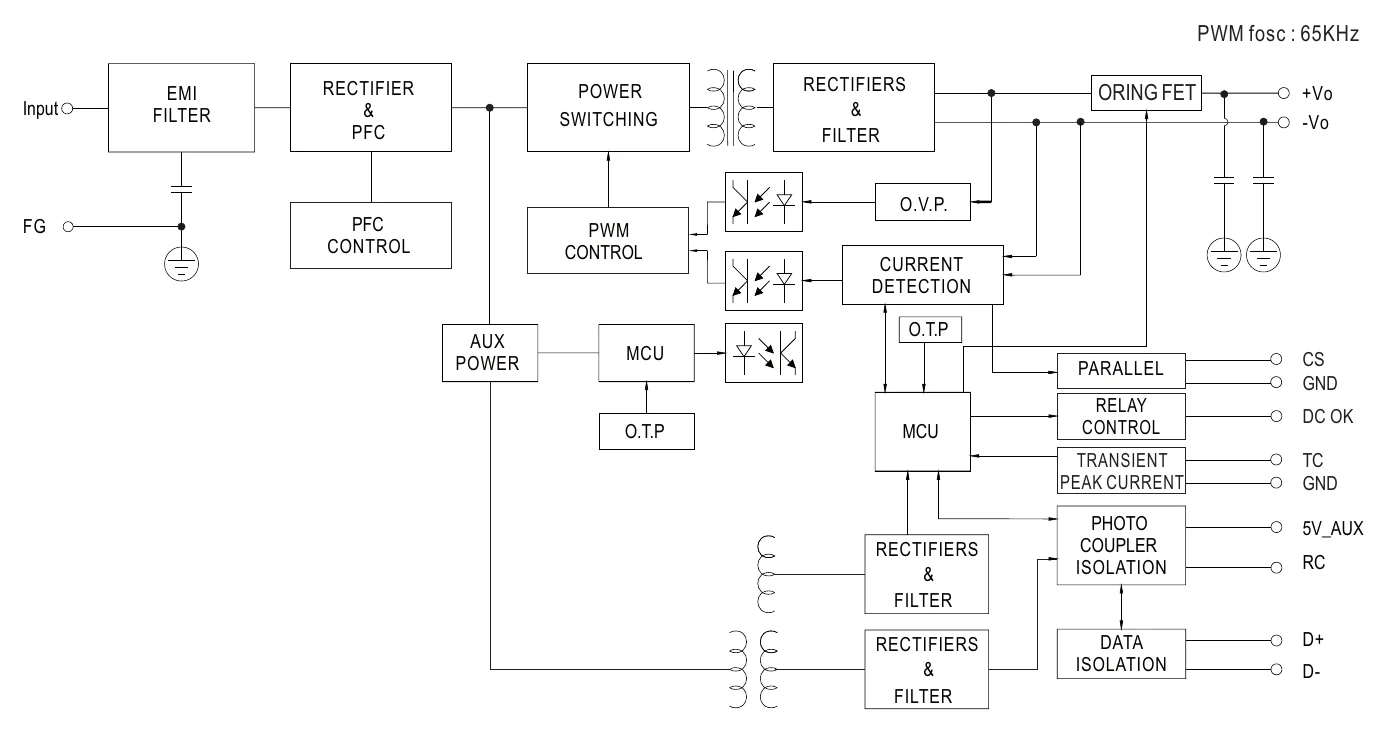

XDR-480-24LA Block Diagram — Block Diagram

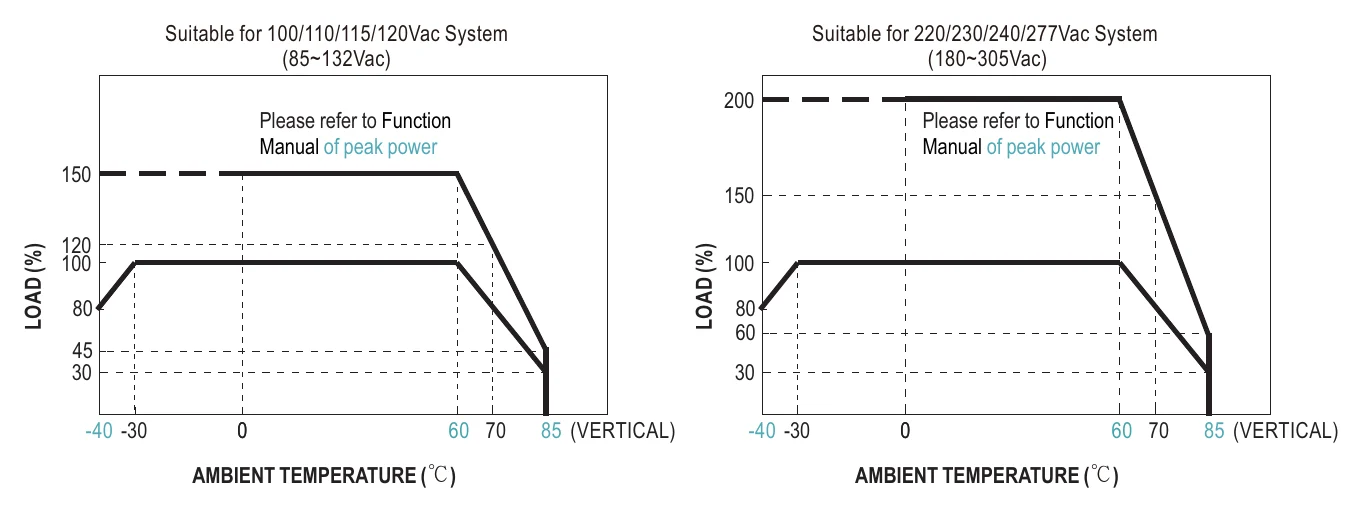

XDR-480-24LA Derating Curve — Derating Curve

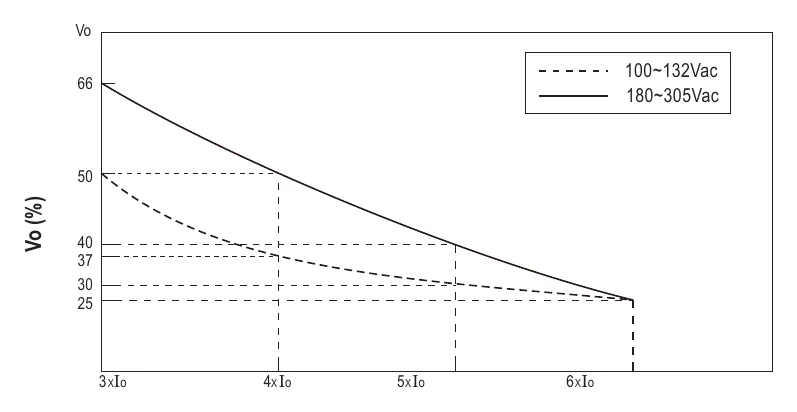

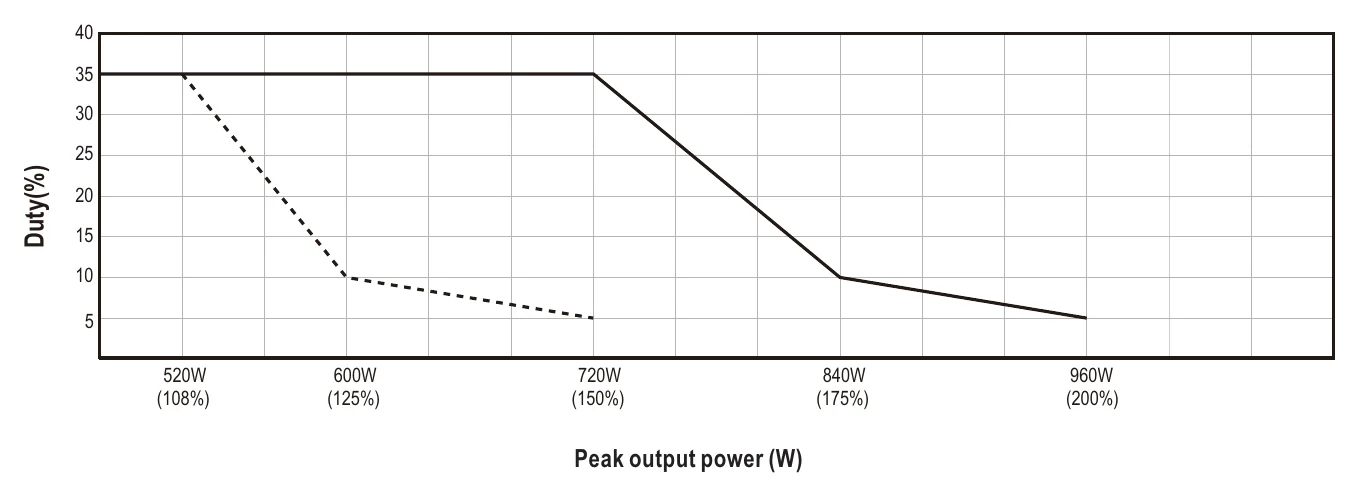

XDR-480-24LA Transient peak current Capability — Transient peak current Capability

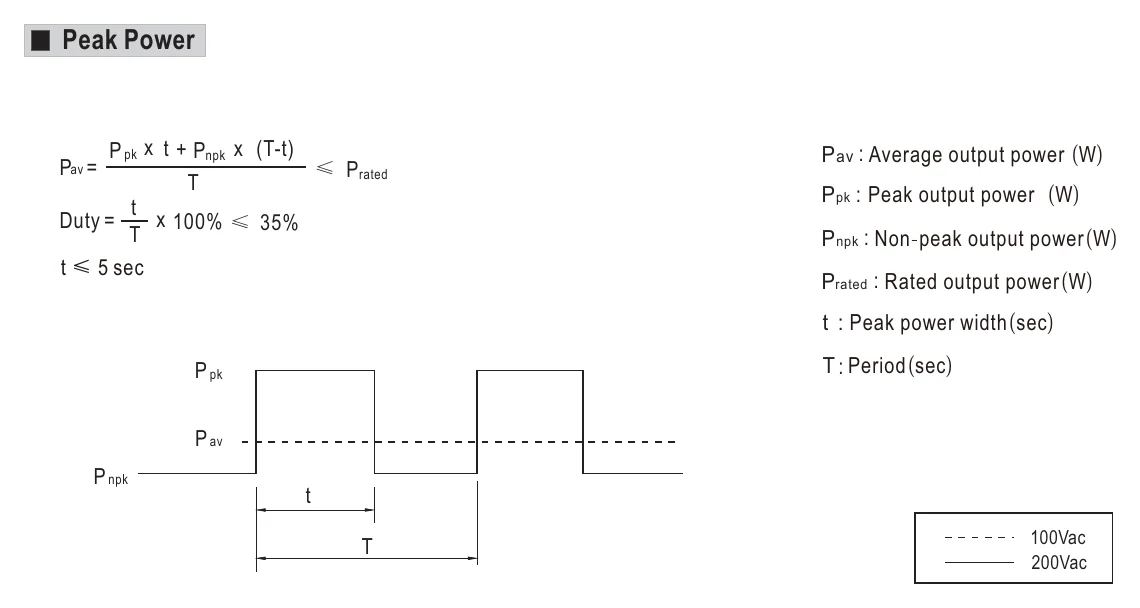

XDR-480-24LA Transient peak current Capability (2) — Transient peak current Capability (2)

XDR-480-24LA Function Manual — Function Manual

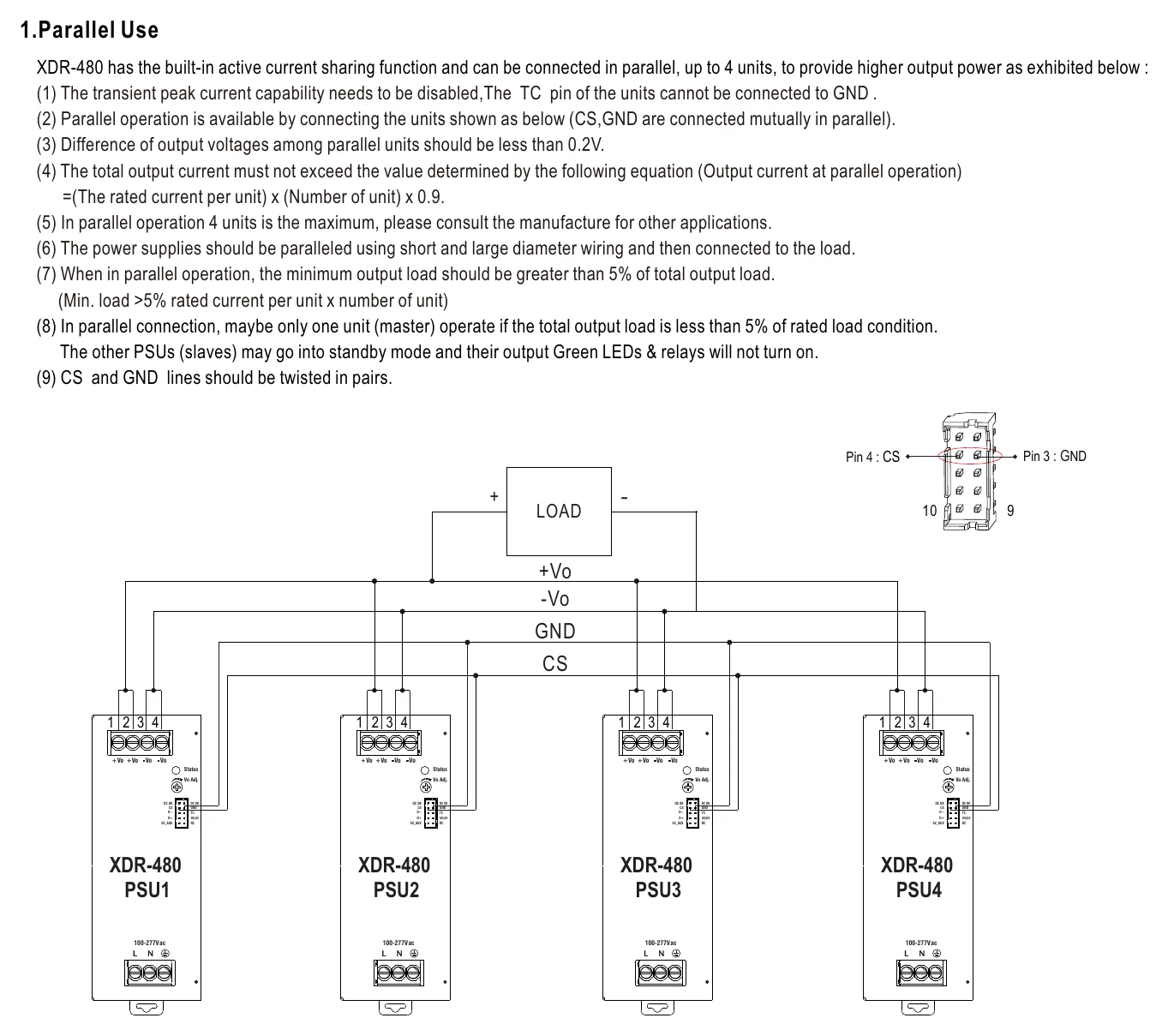

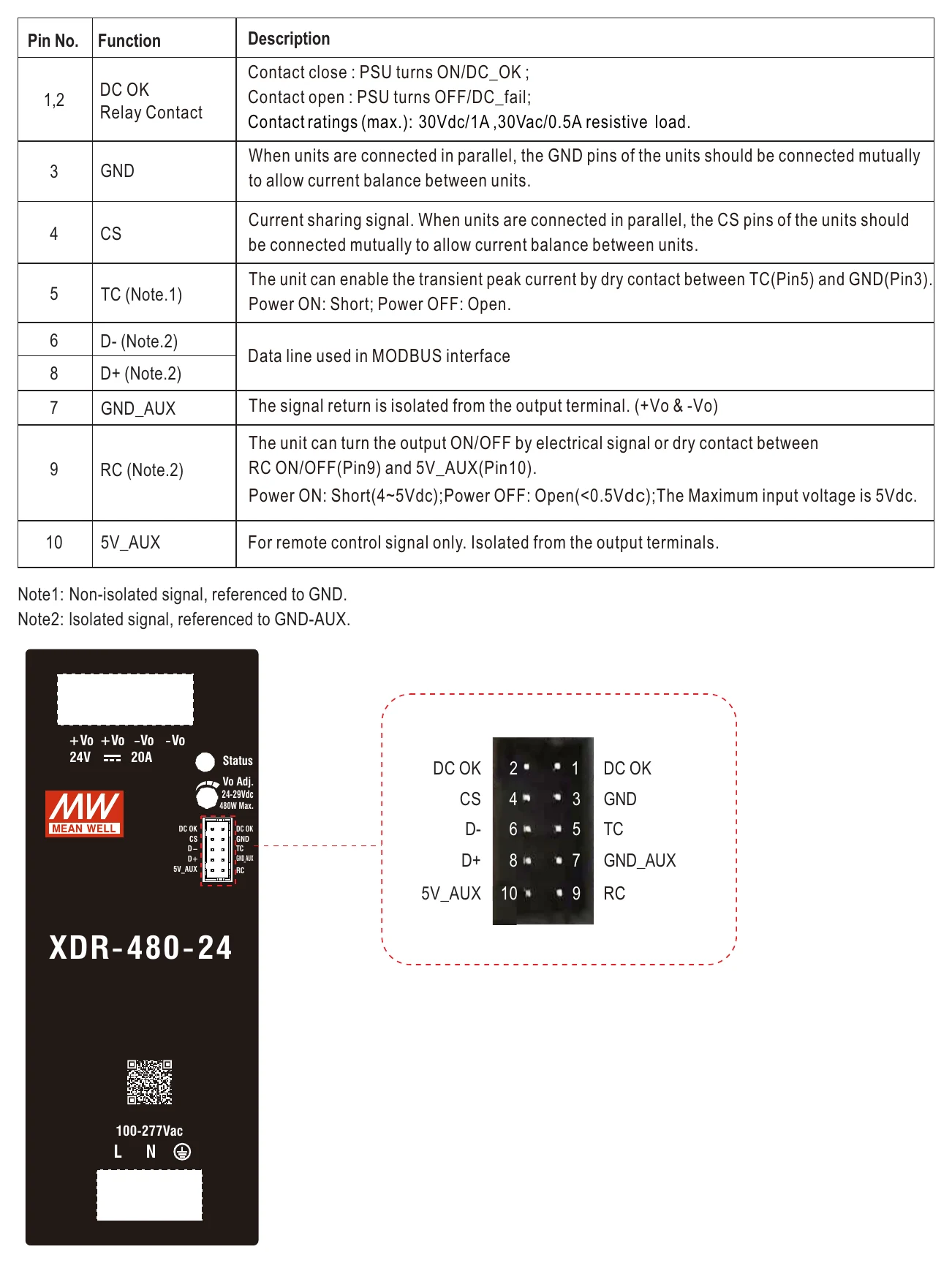

XDR-480-24LA 1.Parallel Use — 1.Parallel Use

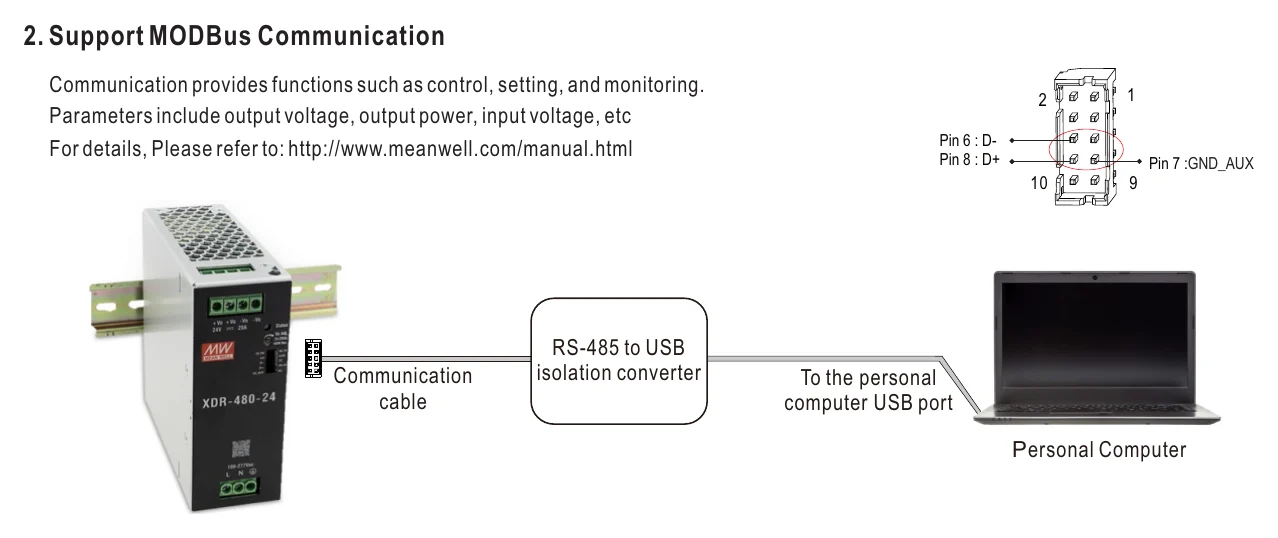

XDR-480-24LA 2. Support MODBus Communication — 2. Support MODBus Communication

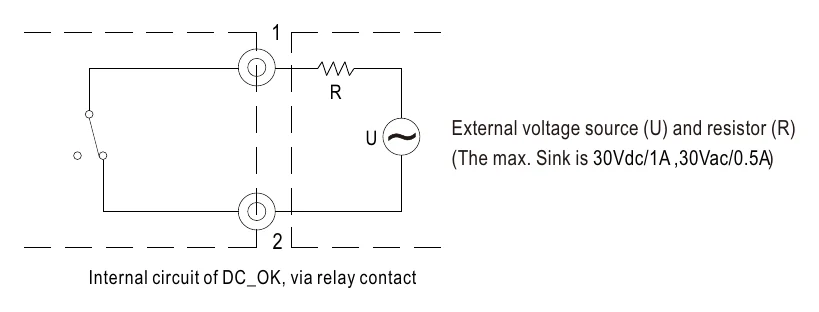

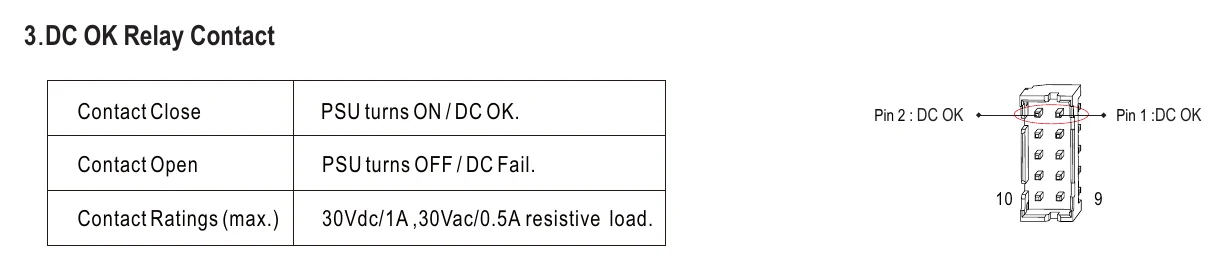

XDR-480-24LA 3.DC OK Relay Contact — 3.DC OK Relay Contact

XDR-480-24LA 3.DC OK Relay Contact (2) — 3.DC OK Relay Contact (2)

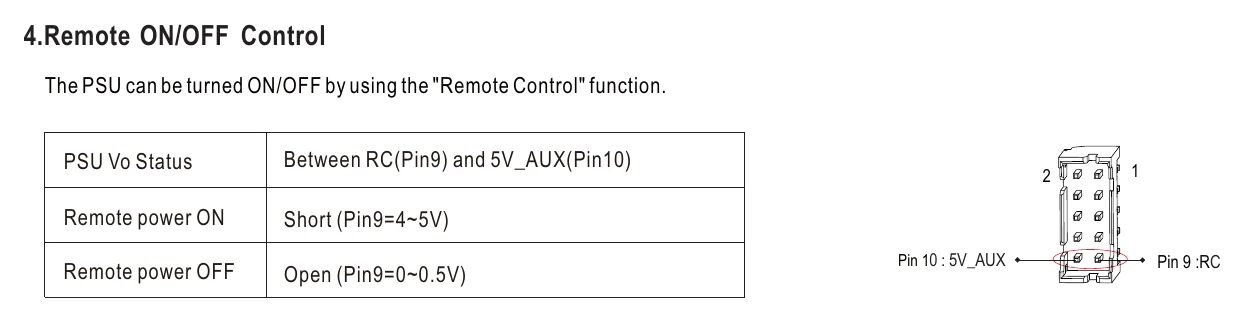

XDR-480-24LA 4.Remote ON/OFFControl — 4.Remote ON/OFFControl

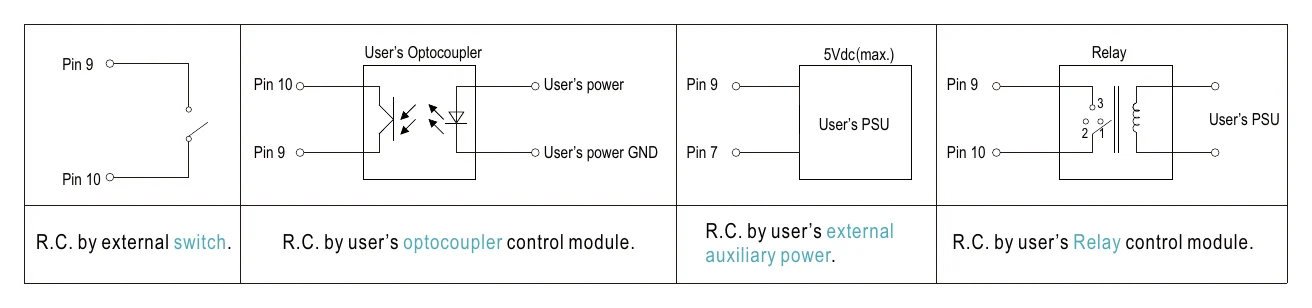

XDR-480-24LA 4.Remote ON/OFFControl (2) — 4.Remote ON/OFFControl (2)

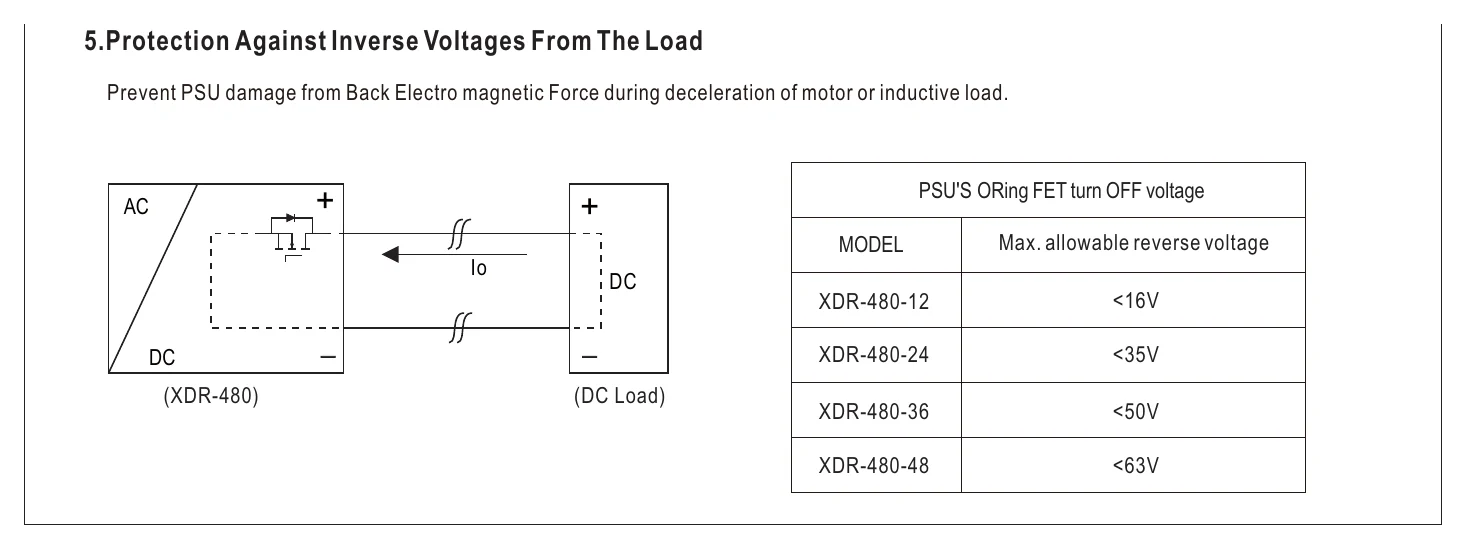

XDR-480-24LA 5.Protection Against Inverse Voltages From The Load — 5.Protection Against Inverse Voltages From The Load

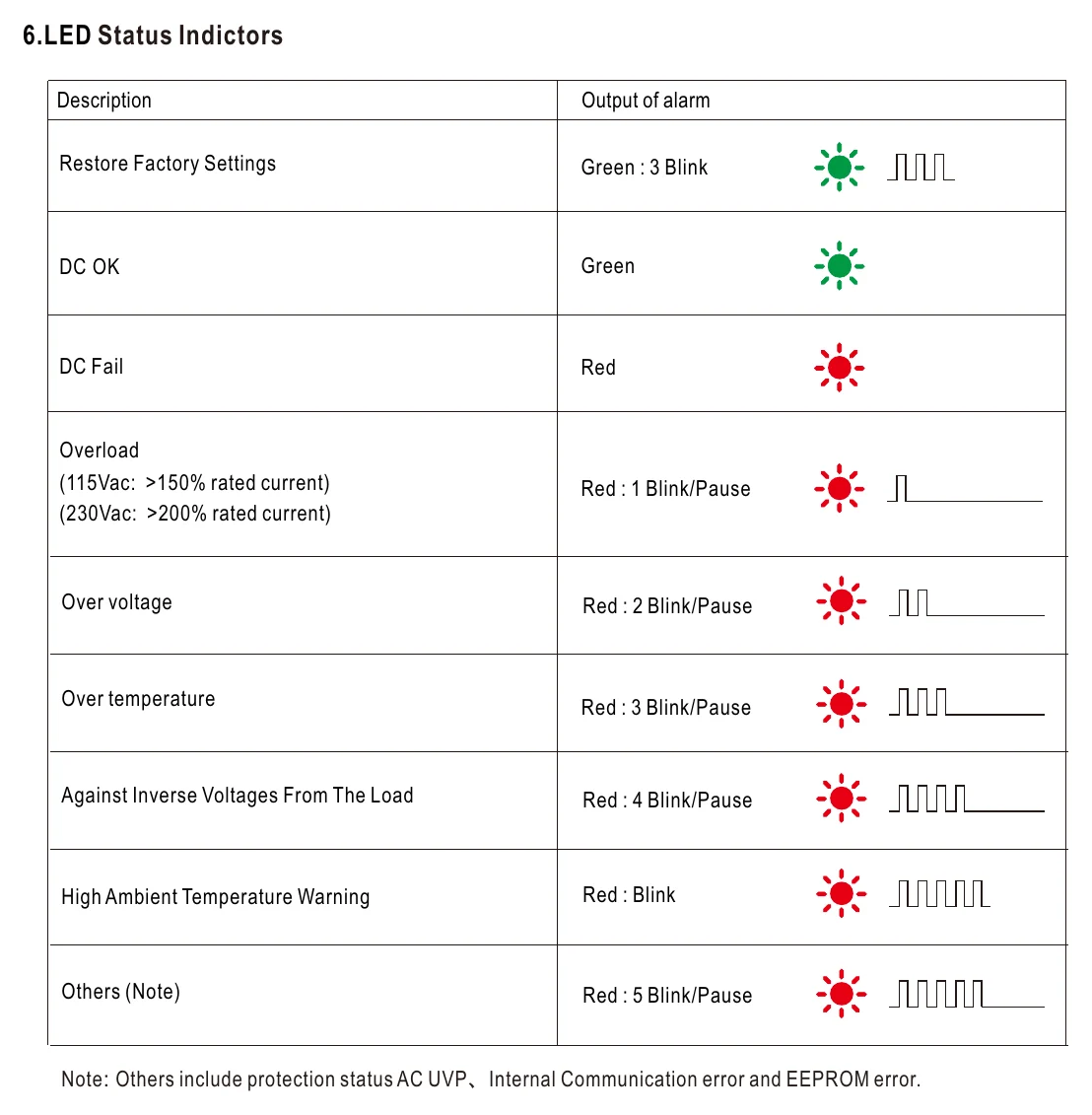

XDR-480-24LA 6.LED Status Indictors — 6.LED Status Indictors

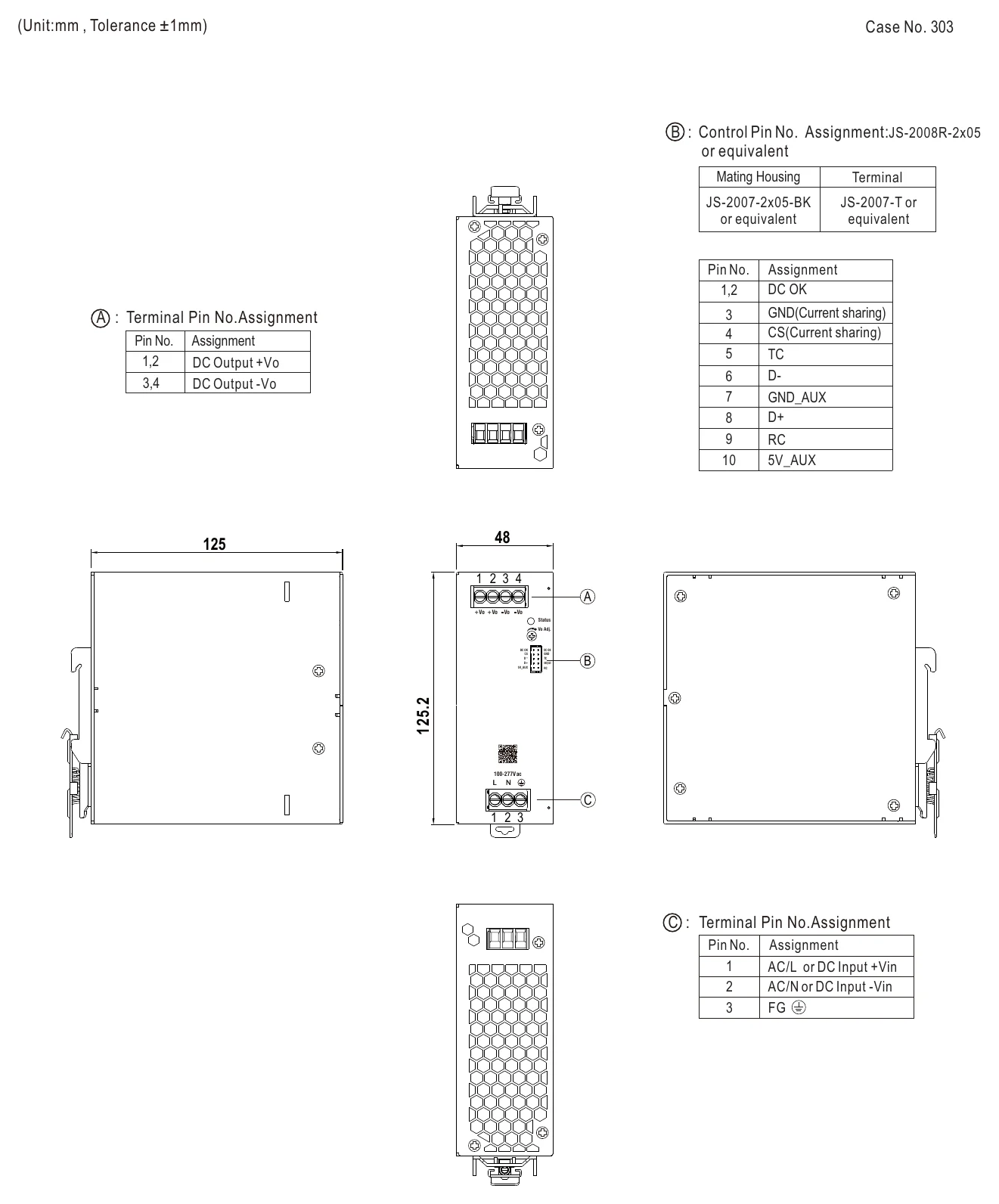

XDR-480-24LA Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Datasheet1

XDR-480-24LA datasheetXDR_480_spec.pdf · 2026-06-01 edition PDF Download

FAQ

What is the Mean Well XDR-480-24LA used for?

The XDR-480-24LA is a 480W industrial DIN rail power supply for systems that need a regulated 24V DC output. It is suited to B2B industrial control, automation, and DC power distribution applications where a slim DIN rail format and high efficiency are important.

How much power and current does the XDR-480-24LA provide?

This model is rated for 480W output power. It provides 24V DC at a rated current of 20A.

How slim is the XDR-480-24LA compared with typical DIN rail power supplies?

The XDR-480-24LA is described as an ultra-slim DIN rail power supply with a 48mm width. That narrow profile can help in control cabinets where rail space is limited.

What input voltage range does the XDR-480-24LA support?

The XDR-480-24LA supports an 85 to 305Vac input range. The product data also notes 277Vac availability, making it relevant for global industrial power environments.

Can the XDR-480-24LA support peak load demands?

Yes. The listed features include 200% peak power capability and 600% transient peak current capability. These features are useful for applications with short-duration surge or startup demands.

Can the XDR-480-24LA be used in parallel systems?

Yes. This model supports parallel operation up to 1920W in a 3+1 configuration. Please refer to the Function Manual for details on current sharing and system architecture requirements.

What operating temperature range does the XDR-480-24LA support?

The specified operating temperature range is -40°C to 85°C. This wide range supports demanding industrial environments where equipment may face low or elevated ambient temperatures.

What certifications or approvals are listed for the XDR-480-24LA?

The product data lists global approvals across ITE 62368-1, Industrial 61558-1/-2-16, and 61010 fields. It also notes Marine DNV, SEMI47, and CID2 HazLoc approval.

Does the XDR-480-24LA support monitoring or control features?

Yes. The listed features include a MODBus communication interface for control, setting, and monitoring. This can be useful in industrial systems that need visibility into power supply operation.

What warranty period applies to the XDR-480-24LA?

The XDR-480-24LA has a listed warranty period of 5 years. Its listed weight is 1.1 kg.
