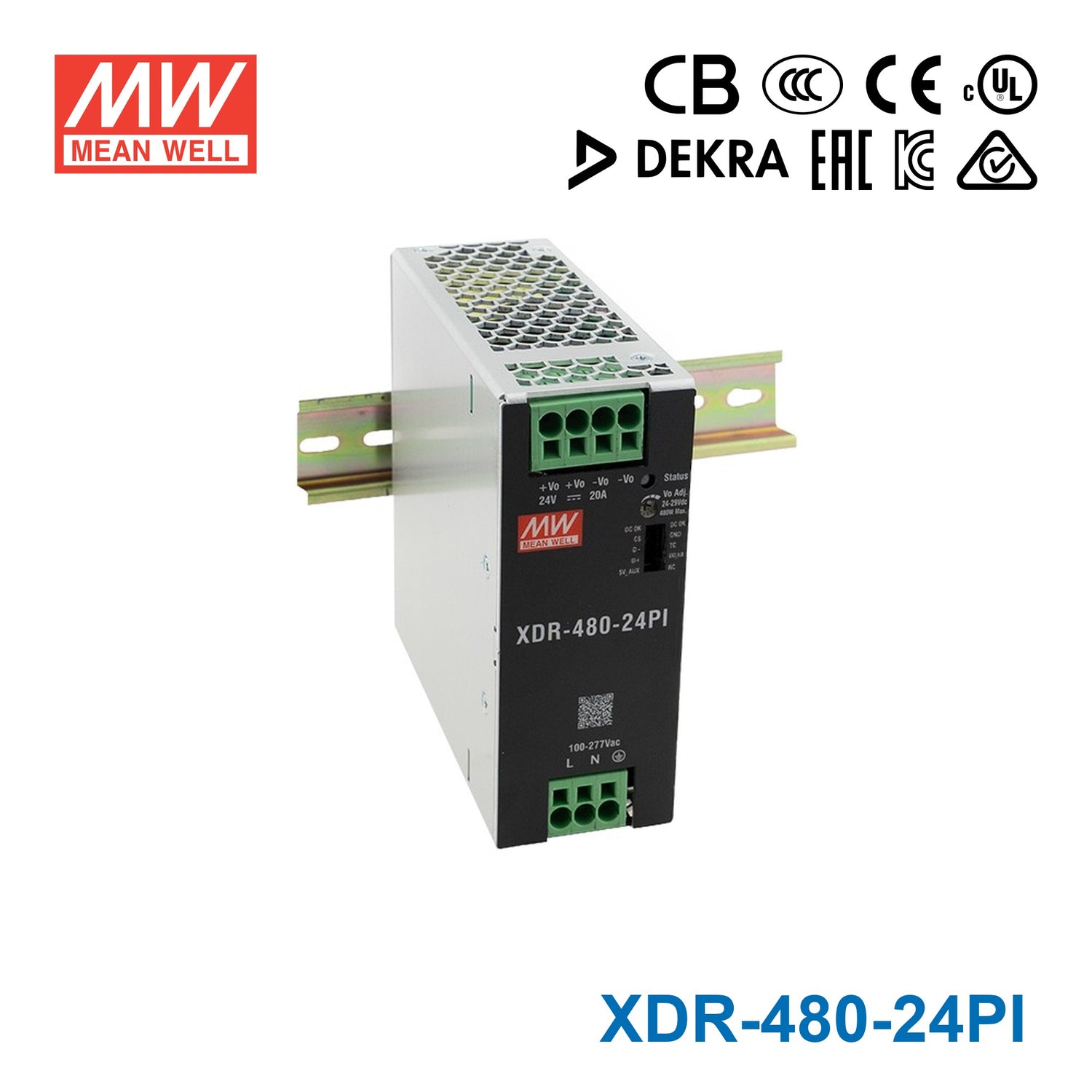

Mean Well XDR-480-24PI High-End Ultra Slim Industrial Din Rail Power Supply 480W 24V with Push In Connector 20A
Notify me when it's back in stock
Mean Well XDR-480-24PI High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓48mm ultra slim width
- ✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 1920W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-480-24PI?
The XDR-480-24PI is a 480 W DIN rail power supply with a 24 V output. It is rated for 20 A output current and is designed for industrial power supply applications.
What types of applications is the XDR-480-24PI suitable for?
This model is suited for industrial DIN rail power systems where a compact 24 V, 480 W supply is required. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc, making it relevant for demanding industrial and controlled-environment applications.
What makes the XDR-480-24PI an ultra slim DIN rail power supply?
The XDR-480-24PI has a listed width of 48 mm, which is narrow for a 480 W industrial DIN rail power supply. This can help buyers fit higher power capacity into control cabinets where panel space is limited.
What input voltage range does the XDR-480-24PI support?
The product description lists an 85 to 305 Vac input range. It also notes that 277 Vac is available, supporting use in systems that require that input level.
What operating temperature range is listed for the XDR-480-24PI?
The listed temperature range for this model is -40 °C to 85 °C. That wide range makes it suitable for industrial environments where equipment may face low or elevated ambient temperatures.
How efficient is the XDR-480-24PI?
The XDR-480-24PI has a listed efficiency of up to 96%. The description also notes no-load power dissipation of 1 W to 3 W by R.C.
Can the XDR-480-24PI be used in parallel power systems?
Yes, the description lists built-in active current sharing for parallel operation up to 1920 W using a 3+1 configuration. This makes the model relevant for higher-power systems that are designed around multiple compatible units.
Does the XDR-480-24PI support communication or monitoring features?
Yes, the product description lists a MODBus communication interface. It is described as supporting control, setting, and monitoring functions for this power supply.
What warranty period and weight are listed for the XDR-480-24PI?
The XDR-480-24PI has a listed warranty period of 5 years. Its listed weight is 1.1 kg.
