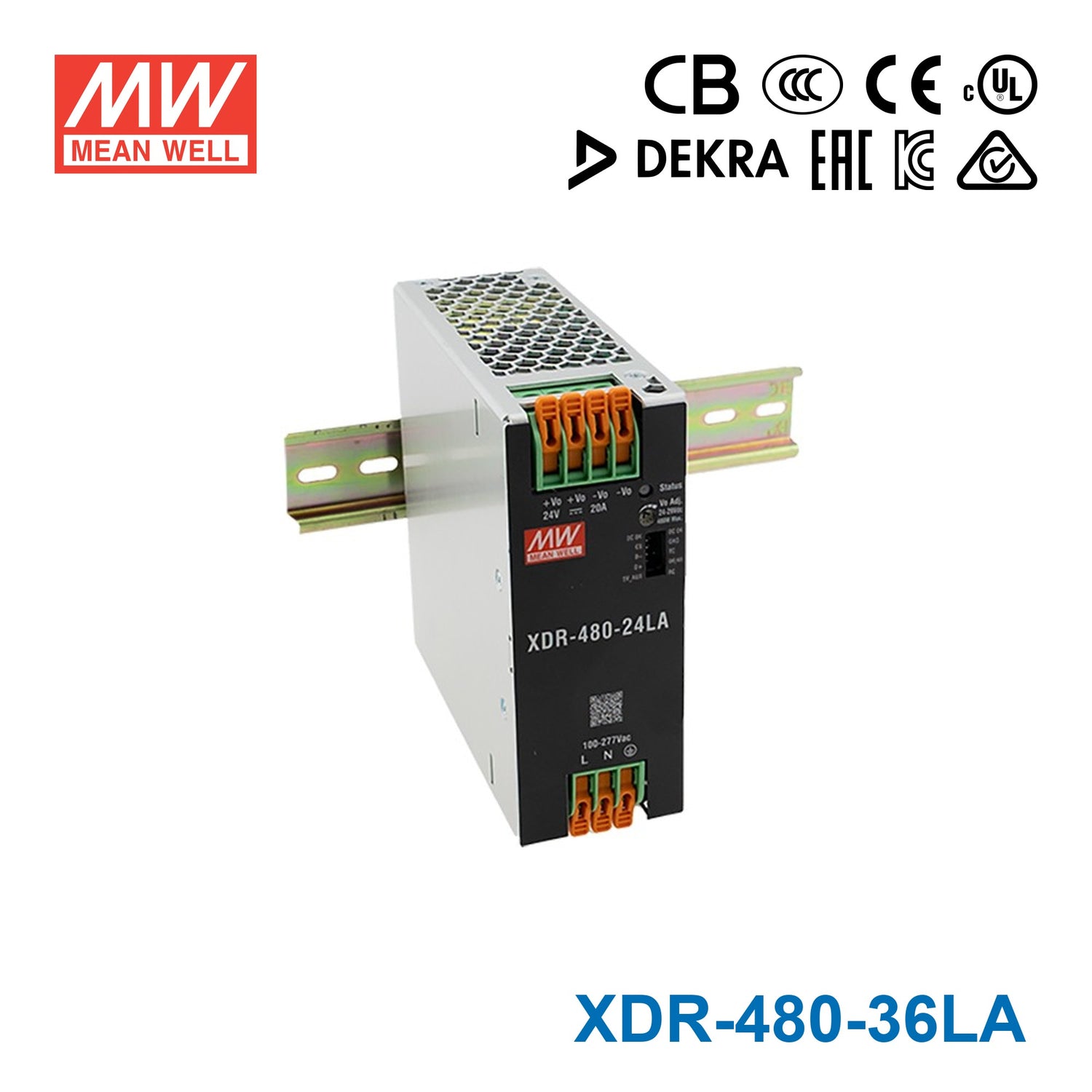

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-480-36LA High-End Ultra Slim Industrial Din Rail Power Supply 478.8W 36V with Lever Actuated Connector 13.3A

Q: What output power and voltage does the Mean Well XDR-480-36LA provide?

The XDR-480-36LA is rated for 478.8W of output power at 36V DC. Its rated output current is 13.3A, making it suitable for higher-power 36V industrial DC loads.

Q: What types of applications is the XDR-480-36LA typically used for?

This model is designed for industrial DIN rail power systems that need a compact 36V DC supply. Its certifications cover ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc use cases listed for the product.

Q: What makes the XDR-480-36LA different from a standard DIN rail power supply?

The XDR-480-36LA combines a 478.8W power rating with an ultra slim 48mm width. It also offers up to 96% efficiency, 200% peak power capability, 600% transient peak current capability, and MODBus communication for control, setting, and monitoring.

Q: What operating temperature range does the XDR-480-36LA support?

The XDR-480-36LA is specified for operation from -40°C to 85°C. This wide range supports demanding industrial environments where temperature conditions may vary significantly.

Q: Can the XDR-480-36LA be used in systems with wide AC input requirements?

Yes. This model supports an 85 to 305Vac input range, with 277Vac availability noted in the product data.

Q: Does the XDR-480-36LA support parallel operation?

Yes. The product data lists built-in active current sharing for parallel operation up to 1920W in a 3+1 configuration.

Q: How efficient is the XDR-480-36LA?

The XDR-480-36LA is listed with high efficiency up to 96%. Its no-load power dissipation is specified as 1W to 3W by R.C.

Q: What warranty period applies to the XDR-480-36LA?

The XDR-480-36LA has a 5-year warranty period. This warranty length is part of the product specifications provided for this model.

48mm ultra slimhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 1920WMODBus communicationultra low inrush current

SKU XDR-480-36LA

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-480-36LA is a 480W ultra-slim DIN-rail power supply delivering 36V DC at up to 13.3A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-480-36LA carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
✓48mm ultra slim width
✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 1920W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Ultra low inrush current <6~15A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓5 years warranty

Frequently Asked Questions

What output power and voltage does the Mean Well XDR-480-36LA provide?

The XDR-480-36LA is rated for 478.8W of output power at 36V DC. Its rated output current is 13.3A, making it suitable for higher-power 36V industrial DC loads.

What types of applications is the XDR-480-36LA typically used for?

This model is designed for industrial DIN rail power systems that need a compact 36V DC supply. Its certifications cover ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc use cases listed for the product.

What makes the XDR-480-36LA different from a standard DIN rail power supply?

The XDR-480-36LA combines a 478.8W power rating with an ultra slim 48mm width. It also offers up to 96% efficiency, 200% peak power capability, 600% transient peak current capability, and MODBus communication for control, setting, and monitoring.

What operating temperature range does the XDR-480-36LA support?

The XDR-480-36LA is specified for operation from -40°C to 85°C. This wide range supports demanding industrial environments where temperature conditions may vary significantly.

Can the XDR-480-36LA be used in systems with wide AC input requirements?

Yes. This model supports an 85 to 305Vac input range, with 277Vac availability noted in the product data.

Does the XDR-480-36LA support parallel operation?

Yes. The product data lists built-in active current sharing for parallel operation up to 1920W in a 3+1 configuration.

How efficient is the XDR-480-36LA?

The XDR-480-36LA is listed with high efficiency up to 96%. Its no-load power dissipation is specified as 1W to 3W by R.C.

What warranty period applies to the XDR-480-36LA?

The XDR-480-36LA has a 5-year warranty period. This warranty length is part of the product specifications provided for this model.
