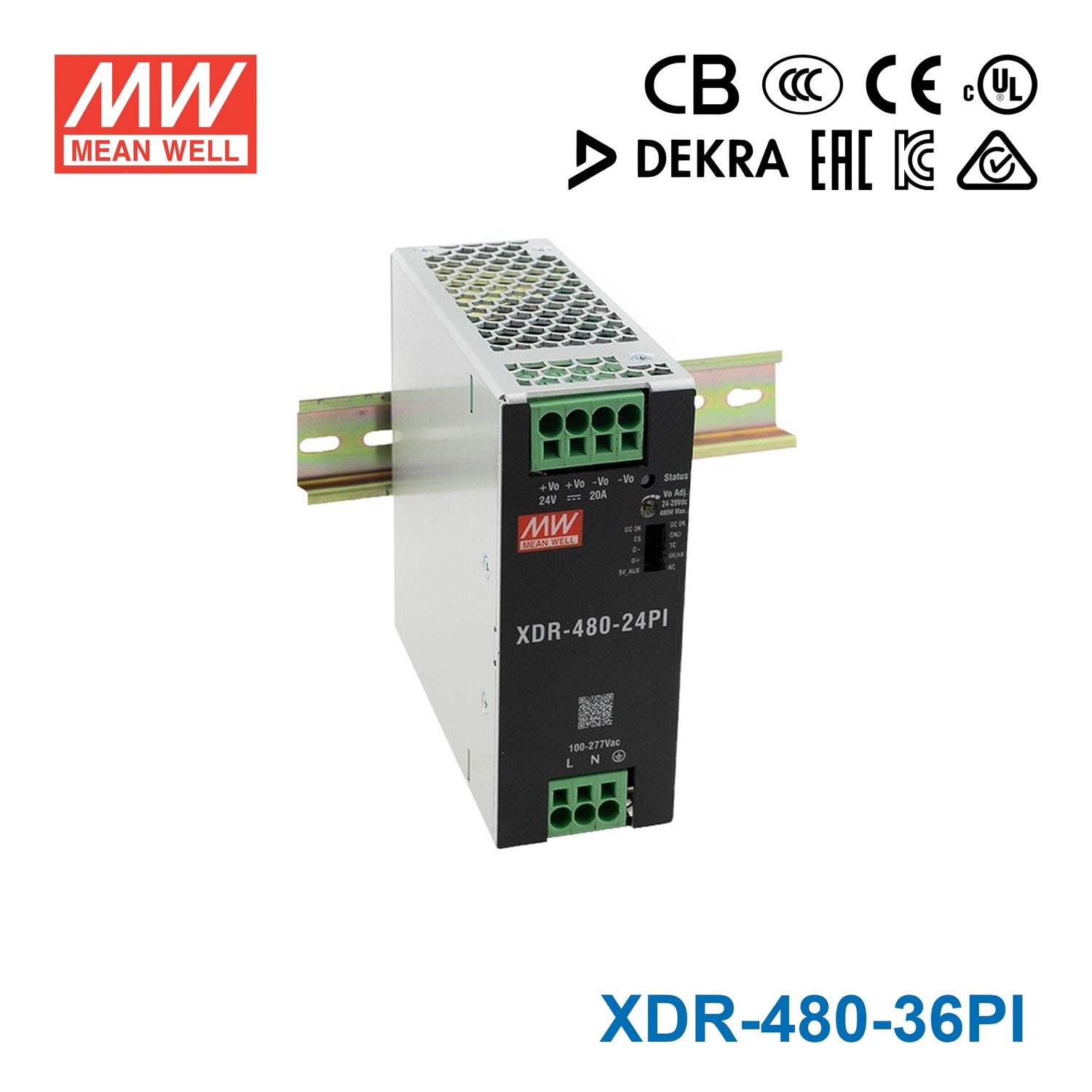

Mean Well XDR-480-36PI High-End Ultra Slim Industrial Din Rail Power Supply 478.8W 36V with Push In Connector 13.3A
Notify me when it's back in stock
Mean Well XDR-480-36PI High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓48mm ultra slim width
- ✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 1920W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output power does the Mean Well XDR-480-36PI provide?
The XDR-480-36PI is rated for 478.8W of output power, commonly listed as a 480W class model. It provides a 36V DC output with a rated current of 13.3A.
What types of applications is the XDR-480-36PI suited for?
This model is designed for industrial DIN rail power applications that need a high-power 36V DC supply in a compact form factor. Its listed approvals include industrial, ITE, marine DNV, SEMI47, and CID2 HazLoc, making it relevant for demanding commercial and industrial environments.
What makes the XDR-480-36PI different from a standard DIN rail power supply?
The XDR-480-36PI combines a 480W class output with an ultra slim 48mm width. It also includes high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, active current sharing, and MODBus communication.
What input voltage range does the XDR-480-36PI support?
The XDR-480-36PI supports an 85-305Vac input range. The product description also notes that 277Vac is available, which is useful for industrial power systems that require wider AC input support.
What operating temperature range is specified for the XDR-480-36PI?
This model is specified for operation from -40°C to 85°C. That wide temperature range makes it suitable for industrial environments where ambient conditions may vary significantly.
Can the XDR-480-36PI be used in parallel power systems?
Yes. The product description states that it has built-in active current sharing for parallel operation up to 1920W in a 3+1 configuration.
Does the XDR-480-36PI support monitoring or communication features?
Yes. This model includes a MODBus communication interface for control, setting, and monitoring functions.
What warranty and weight are listed for the XDR-480-36PI?
The XDR-480-36PI is listed with a 5-year warranty. Its listed weight is 1.1kg.
