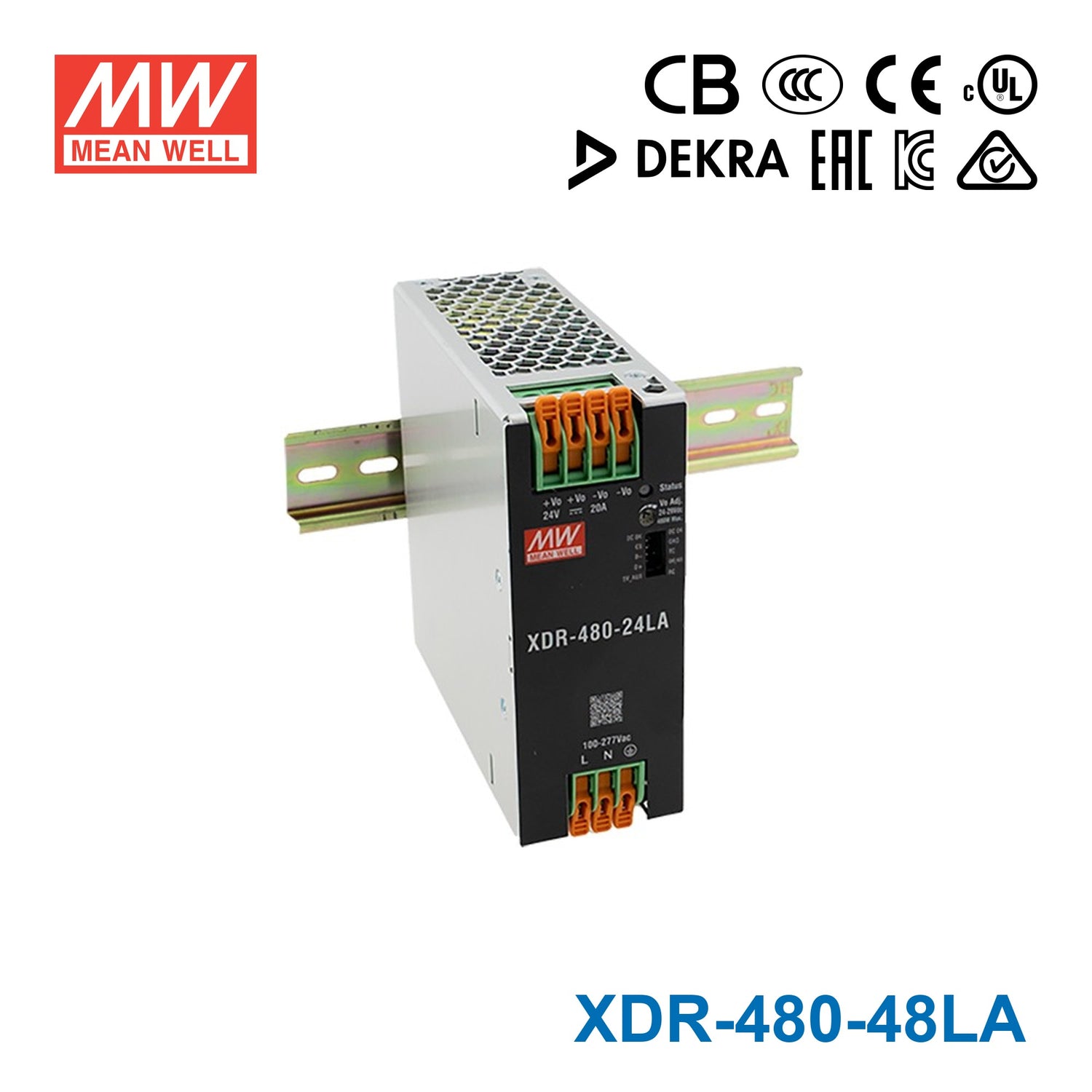

Mean Well XDR-480-48LA High-End Ultra Slim Industrial Din Rail Power Supply 480W 48V with Lever Actuated Connector 10A
Notify me when it's back in stock
Mean Well XDR-480-48LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓48mm ultra slim width
- ✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 1920W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well XDR-480-48LA used for?
The XDR-480-48LA is a 480W DIN rail power supply for industrial and B2B power systems that require a 48V DC output. Its ultra slim 48mm width makes it suitable for control cabinets or equipment panels where space is limited.
What output does the XDR-480-48LA provide?
This model provides a 48V DC output with a rated current of 10A. Its total rated power is 480W.
How wide is the XDR-480-48LA?
The XDR-480-48LA has an ultra slim 48mm width. That makes it a strong choice when a high-power 48V DIN rail supply is needed in a compact footprint.
Can the XDR-480-48LA be used in harsh environments?
Yes, this model is rated for operation from -40°C to 85°C. It also carries approvals listed for industrial, marine DNV, SEMI47, and CID2 hazardous location use.
Does the XDR-480-48LA support parallel operation?
Yes, the XDR-480-48LA includes built-in active current sharing for parallel operation up to 1920W in a 3+1 configuration. This is useful for higher-power systems that need multiple compatible units working together.
What makes the XDR-480-48LA different from a standard DIN rail power supply?
This model combines 480W output power, 48V DC output, and a 48mm ultra slim DIN rail form factor. It also includes features such as up to 96% efficiency, 200% peak power capability, 600% transient peak current capability, and MODBus communication support.
What input voltage range does the XDR-480-48LA support?
The XDR-480-48LA supports an 85-305Vac input range. The product data also notes that 277Vac is available.
Does the XDR-480-48LA include communication features?
Yes, this model includes a MODBus communication interface. The listed functions include control, setting, and monitoring support.
What warranty period applies to the XDR-480-48LA?
The XDR-480-48LA has a listed warranty period of 5 years. Its listed weight is 1.1 kg.
