Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

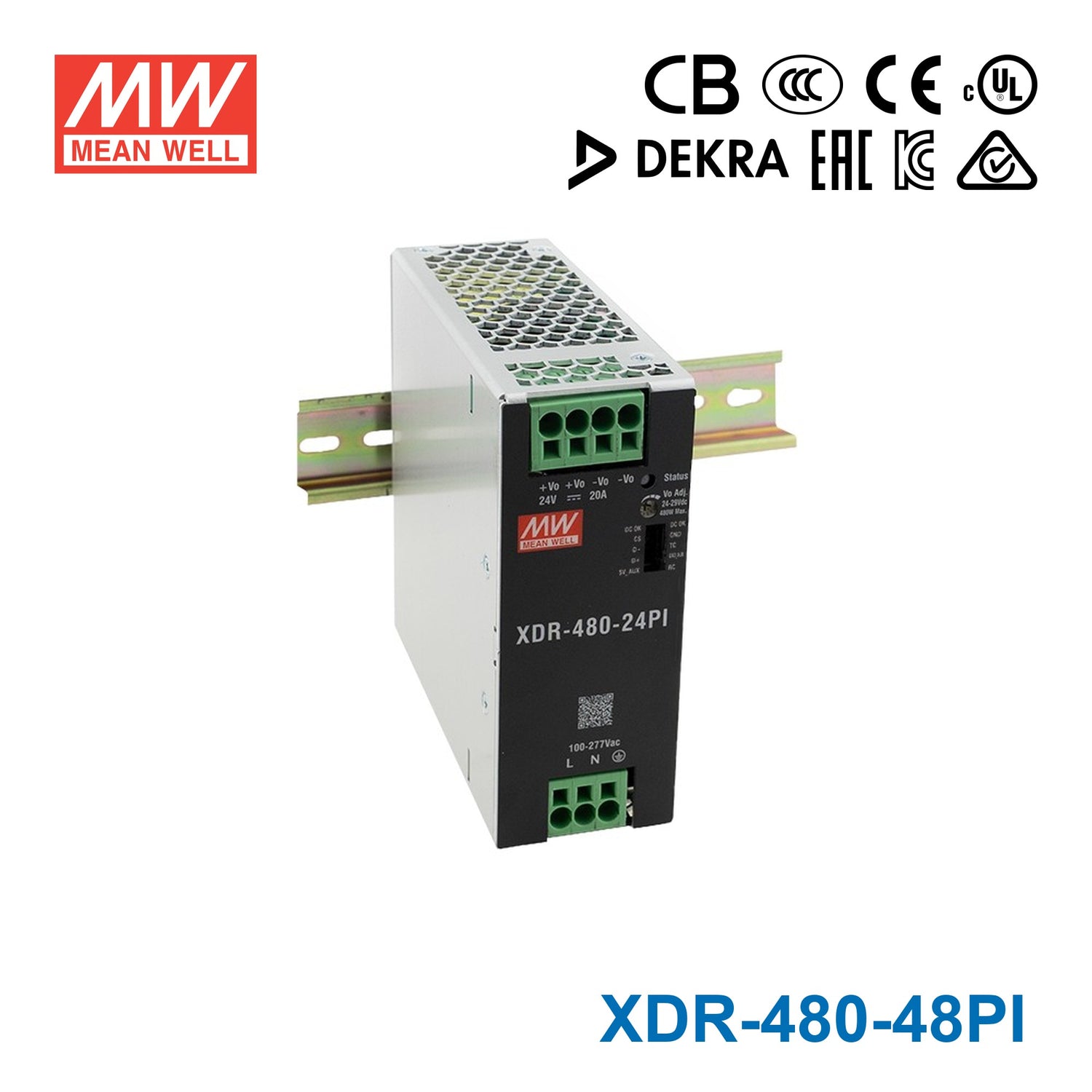

Mean Well XDR-480-48PI High-End Ultra Slim Industrial Din Rail Power Supply 480W 48V with Push In Connector 10A
Notify me when it's back in stock
Mean Well XDR-480-48PI High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓48mm ultra slim width
- ✓High efficiency up to 96% and no-load power dissipation 1W~3W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 1920W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-480-48PI?
The XDR-480-48PI is rated for 480 W of output power. It provides a 48 V output with a rated current of 10 A.
What type of applications is the XDR-480-48PI designed for?
This model is designed for industrial DIN rail power applications where a high-power 48 V supply is required. Its approvals for ITE, industrial, marine DNV, SEMI47, and Class I Division 2 hazardous locations make it suitable for demanding commercial and industrial environments.
What makes the XDR-480-48PI different from a standard DIN rail power supply?
The XDR-480-48PI combines 480 W output capacity with a 48 mm ultra-slim body. It also offers up to 96% efficiency, 200% peak power capability, 600% transient peak current capability, and MODBus communication for control, setting, and monitoring.
What operating temperature range does the XDR-480-48PI support?
The XDR-480-48PI is specified for operation from -40 °C to 85 °C. This wide temperature range supports use in harsh industrial environments where ambient conditions can vary significantly.
Can the XDR-480-48PI be used in higher-power systems?
Yes, this model includes built-in active current sharing for parallel operation up to 1920 W in a 3+1 configuration. That makes it suitable for systems that need scalable 48 V power capacity using compatible units.
What input voltage range does the XDR-480-48PI accept?
The XDR-480-48PI supports an 85 to 305 Vac input range. The description also notes that 277 Vac is available, which is useful for many industrial power environments.
How efficient is the Mean Well XDR-480-48PI?
This model is specified with high efficiency up to 96%. It also has no-load power dissipation listed at 1 W to 3 W by remote control.
What warranty and weight are listed for the XDR-480-48PI?
The XDR-480-48PI has a listed warranty period of 5 years. Its listed weight is 1.1 kg.
