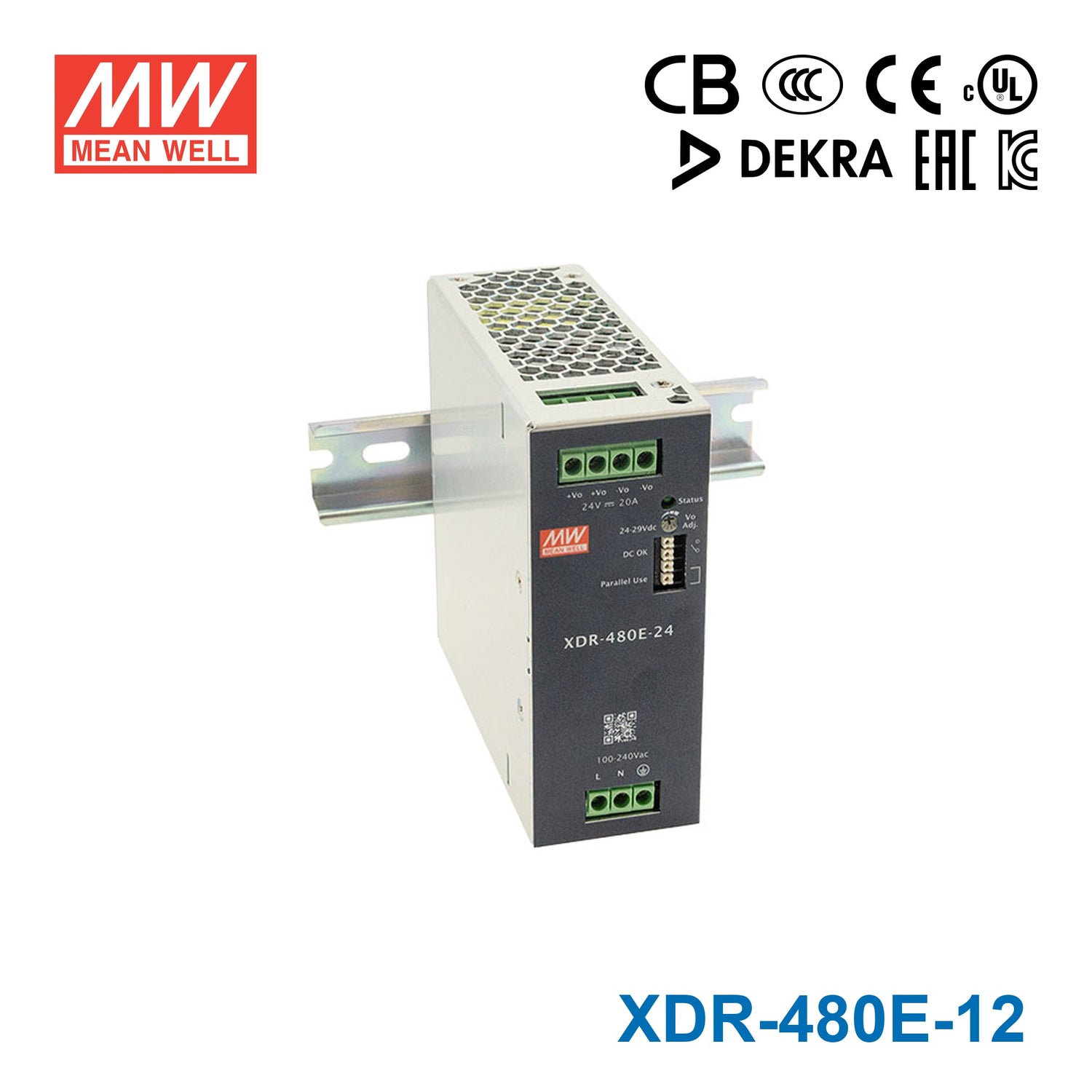

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-480E-12 Economical Ultra Slim Din Rail Power Supply 360W 12V

Q: What output does the Mean Well XDR-480E-12 provide?

The XDR-480E-12 is a 12V DC DIN rail power supply rated for 360W. Its rated output current is 30A, making it suitable for 12V systems within that power requirement.

Q: What types of applications is the XDR-480E-12 intended for?

This model is designed for DIN rail power supply applications where a compact 12V DC source is required. Its listed certifications cover ITE, industrial, and 61010-related use cases, which makes it relevant for many commercial and industrial equipment environments.

Q: Why choose the XDR-480E-12 over a wider DIN rail power supply?

The XDR-480E-12 has a slim 48mm width, which is useful when cabinet or rail space is limited. It also provides up to 96% efficiency and operates fanlessly by free air convection.

Q: Can the XDR-480E-12 operate in high or low temperatures?

Yes. The specified operating temperature range is -40°C to +70°C, with derating above +50°C. This makes it suitable for environments that require a wide temperature operating range.

Q: What protections are included with the XDR-480E-12?

The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.

Q: Is the XDR-480E-12 suitable for higher-altitude operation?

The XDR-480E-12 is specified for operation at altitudes up to 5000 meters. It also carries Overvoltage Category III, which is noted in the product specifications.

Q: What input voltage range does the XDR-480E-12 support?

The specified AC input range is 85 to 264Vac. This wide input range supports use across many mains power environments where the product's ratings and approvals are appropriate.

Q: What warranty and weight are listed for this model?

The XDR-480E-12 has a listed warranty period of 3 years. Its listed weight is 0.89 kg.

48mm width, high efficiency, economical model

SKU:

XDR-480E-12

Please for Pricing

Notify me when it's back in stock

Description

Features:

85~264Vac input range
Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
48mm slim width
High efficiency up to 96% and no-load power dissipation<1.2W
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Overvoltage category III (OVC III)
-40°~+70°C wide range operation temperature (>+50°C derating)
Operating altitude up to 5000 meters
Built-in DC OK relay contact
Can be installed on DIN rail TS-35/7.5 or 15
3 years warranty

General Specification

AC input voltage range

85 - 264Vac

AC inrush current (max.)

COLD START 15A/115V 30A/230V

Overload Protection

105~130% rated output power

Hiccup mode when output voltage <30%, recovers automatically after fault condition is removed

Constant current limiting without shutdown within 30%~100% rated output voltage, recovers automatically after fault condition is removed

Over Voltage Protection

(Max. 18V) (Max. 35V) (Max. 50V) (Max. 63V)

Protection type : Hiccup mode, recovers automatically after fault condition is removed

Over temperature Protection

Protection type : Shut down o/p voltage,recovers automatically after temperature goes down

Withstand voltage

I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac

Working temperature

-40 ~ +70℃ (Refer to "Derating Curve")

Safety standards

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61; RCM AS/NZS 61558-1/-2-16;BIS IS13252 (Part 1):2010; BSMI CNS1 -1; CCC GB4943.1; EAC TPTC004 approved; KC KC62368-1 certified no stock ,contact sale for inquires

Dimension (LxWxH)

48*125.2*1 mm (W*H*D)

Specifications

Brand

Mean Well
Series

Mean Well XDR Series
Power Rating

360 Watt
Output Voltage

12 Volt
Rated Current

30 Ampere
Input Voltage

85V~264V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,KC
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

12.5 cm
Width

4.8 cm
Height

12.52 cm
Weight

0.89 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What output does the Mean Well XDR-480E-12 provide?

The XDR-480E-12 is a 12V DC DIN rail power supply rated for 360W. Its rated output current is 30A, making it suitable for 12V systems within that power requirement.

What types of applications is the XDR-480E-12 intended for?

This model is designed for DIN rail power supply applications where a compact 12V DC source is required. Its listed certifications cover ITE, industrial, and 61010-related use cases, which makes it relevant for many commercial and industrial equipment environments.

Why choose the XDR-480E-12 over a wider DIN rail power supply?

The XDR-480E-12 has a slim 48mm width, which is useful when cabinet or rail space is limited. It also provides up to 96% efficiency and operates fanlessly by free air convection.

Can the XDR-480E-12 operate in high or low temperatures?

Yes. The specified operating temperature range is -40°C to +70°C, with derating above +50°C. This makes it suitable for environments that require a wide temperature operating range.

What protections are included with the XDR-480E-12?

The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.

Is the XDR-480E-12 suitable for higher-altitude operation?

The XDR-480E-12 is specified for operation at altitudes up to 5000 meters. It also carries Overvoltage Category III, which is noted in the product specifications.

What input voltage range does the XDR-480E-12 support?

The specified AC input range is 85 to 264Vac. This wide input range supports use across many mains power environments where the product's ratings and approvals are appropriate.

What warranty and weight are listed for this model?

The XDR-480E-12 has a listed warranty period of 3 years. Its listed weight is 0.89 kg.
