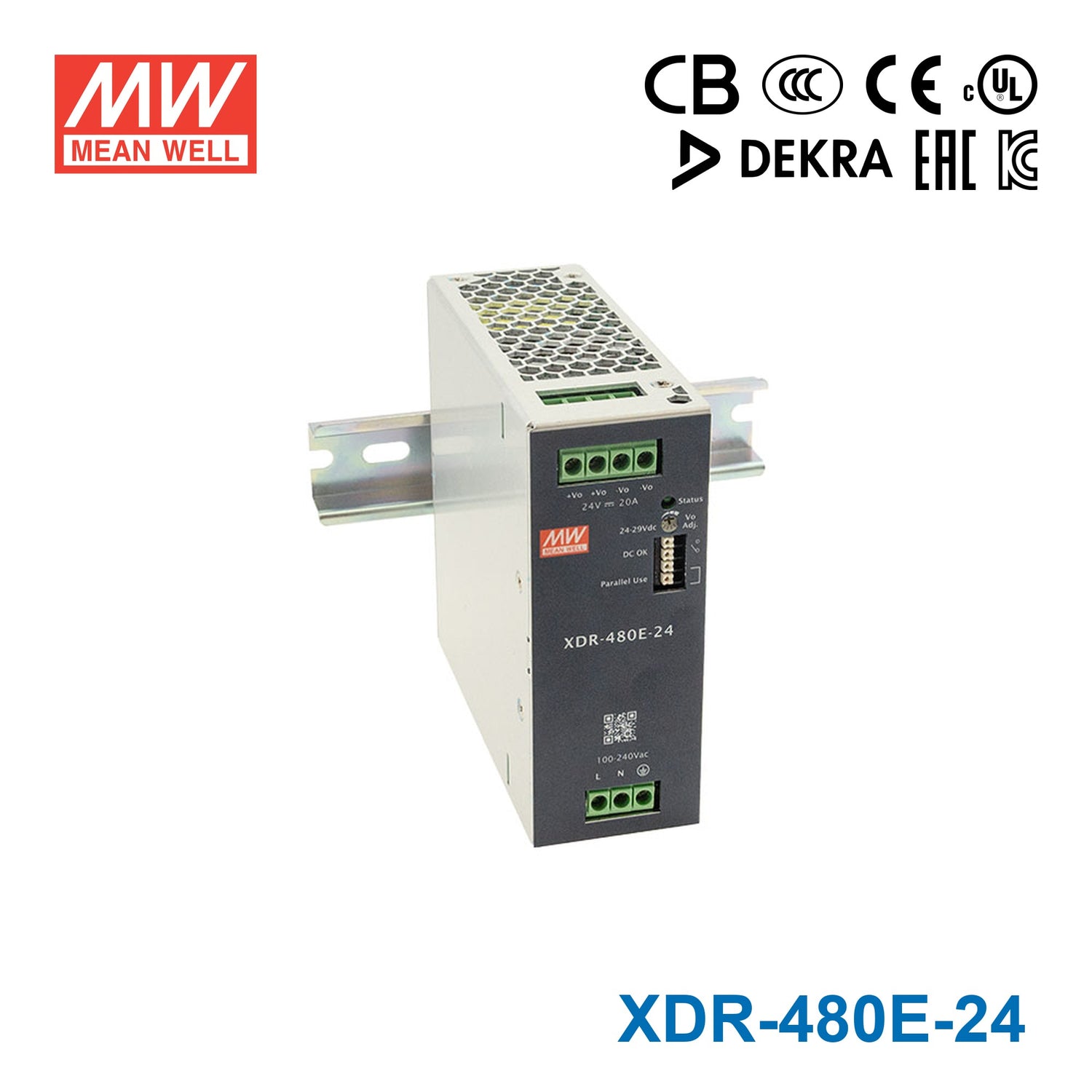

Mean Well XDR-480E-24 Economical Ultra Slim Din Rail Power Supply 4...
Please Login for Pricing
Description
Description
Features:
- 85~264Vac input range
- Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- 48mm slim width
- High efficiency up to 96% and no-load power dissipation<1.2W
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, cooling by free air convection
- Overvoltage category III (OVC III)
- -40°~+70°C wide range operation temperature (>+50°C derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
General Specification
AC input voltage range
85 - 264Vac
AC inrush current (max.)
COLD START 15A/115V 30A/230V
Overload Protection
105~130% rated output power
Hiccup mode when output voltage <30%, recovers automatically after fault condition is removed
Constant current limiting without shutdown within 30%~100% rated output voltage, recovers automatically after fault condition is removed
Over Voltage Protection
(Max. 18V) (Max. 35V) (Max. 50V) (Max. 63V)
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over temperature Protection
Protection type : Shut down o/p voltage,recovers automatically after temperature goes down
Withstand voltage
I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
Working temperature
-40 ~ +70℃ (Refer to "Derating Curve")
Safety standards
UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16, / ; CB IEC62368-1, IEC61558-1, ; TUV BS EN EN61010 IEC61; RCM AS/NZS 61558-1/-2-16;BIS IS13252 (Part 1):2010; BSMI CNS1 -1; CCC GB4943.1; EAC TPTC004 approved; KC KC62368-1 certified no stock ,contact sale for inquires
Dimension (LxWxH)
48*125.2*1 mm (W*H*D)
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width4.8 cm
-
Height12.52 cm
-
Weight0.89 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-480E-24?
The XDR-480E-24 is rated for 480W output power with a 24V DC output. Its rated current is 20A, making it suitable for higher-power 24V DC equipment within its listed power range.
What types of applications is the XDR-480E-24 commonly suited for?
This model is positioned for DIN rail power supply use in industrial, ITE, and control equipment environments. Its 24V output, 480W rating, slim 48mm width, and fanless convection-cooled design make it relevant for compact control panels and automation systems that require a high-power 24V DC supply.
What temperature range does the XDR-480E-24 support?
The XDR-480E-24 is specified for operation from -40°C to +70°C. The listed description notes derating above +50°C, so available output capacity may be reduced at higher operating temperatures.
What makes the XDR-480E-24 different from a standard-width DIN rail power supply?
A key differentiator is its ultra slim 48mm width while still providing 480W of output power. It is also specified with efficiency up to 96%, no-load power dissipation below 1.2W, and fanless cooling by free air convection.
Can the XDR-480E-24 be used with global AC input ranges?
Yes, the product description lists an 85-264Vac input range. It also references global certificates across ITE, industrial, and 61010-related fields, which may be useful for equipment intended for multiple markets.
Is the XDR-480E-24 suitable for high-altitude environments?
The listed operating altitude for the XDR-480E-24 is up to 5000 meters. This can be relevant for industrial systems deployed in elevated locations where altitude rating is part of the product selection criteria.
What protections are included with the XDR-480E-24?
The listed protections include short circuit, overload, over voltage, and over temperature protection. The description also notes a built-in constant current limiting circuit.
What warranty and weight are listed for the XDR-480E-24?
The XDR-480E-24 is listed with a 3-year warranty period. Its listed weight is 0.89 kg.
