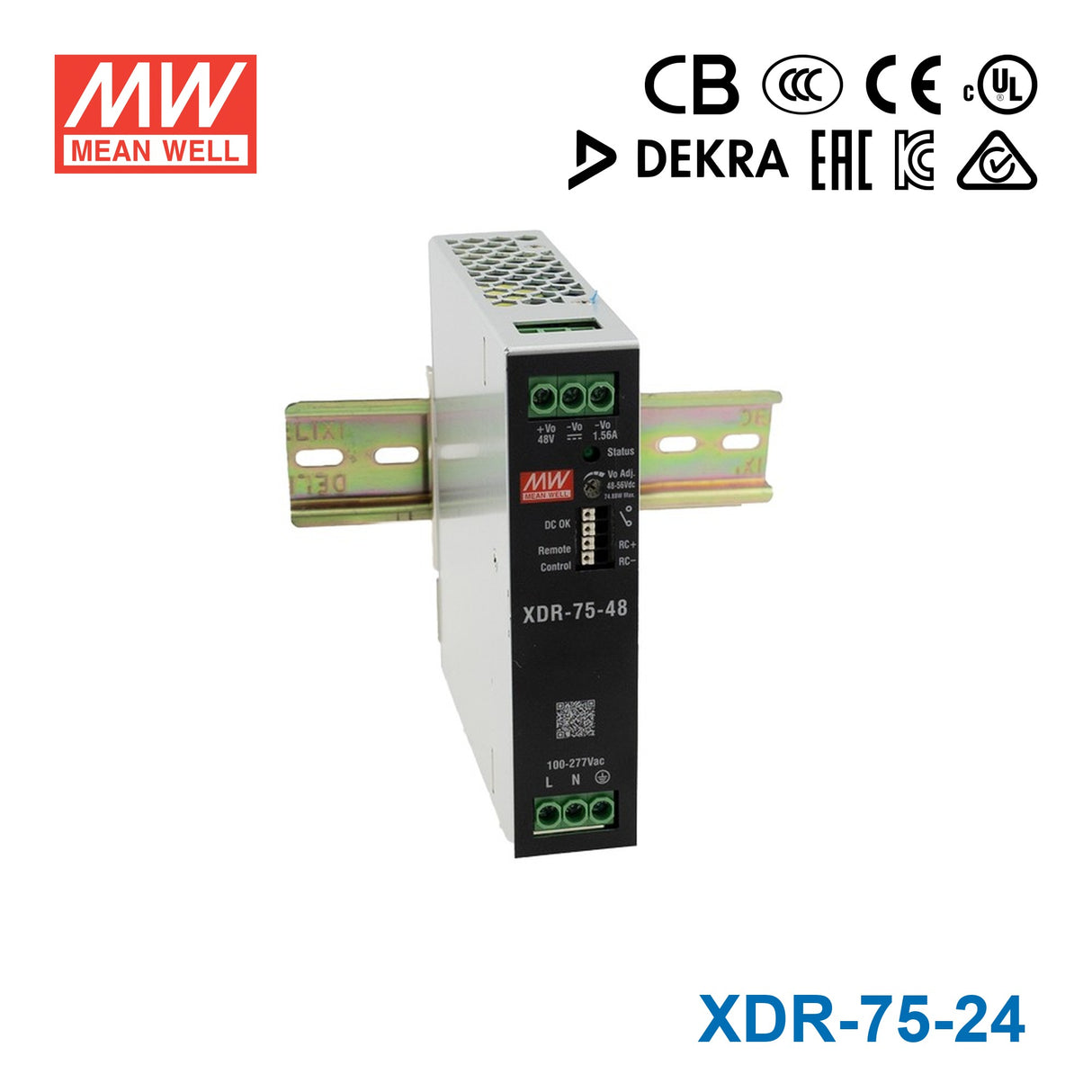

Mean Well XDR-75-24 High-End Ultra Slim Industrial Din Rail Power S...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 91% and no-load power dissipation 0.7W~1W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well XDR-75-24 provide?
The XDR-75-24 is rated for 74.88W output power with a 24V DC output. Its rated output current is 3.12A, making it suitable for 24V industrial control and automation loads within that power range.
What types of applications is the XDR-75-24 suited for?
This model is designed for industrial DIN rail power applications where a compact 24V supply is needed. Its approvals listed for ITE, industrial, marine DNV, SEMI47, and CID2 HazLoc use make it relevant for a broad range of professional equipment and control environments.
Why choose the XDR-75-24 instead of a standard DIN rail power supply?
The XDR-75-24 is a high-end ultra slim DIN rail model with a 30mm width, which helps when panel space is limited. It also offers up to 91% efficiency, low no-load power dissipation, and peak power capability that may be useful in demanding industrial systems.
What operating temperature range does the XDR-75-24 support?
The listed operating temperature range for this model is -40°C to 85°C. That wide range supports use in industrial environments where equipment may be exposed to low or elevated ambient temperatures.
Can the XDR-75-24 be used with wide AC input sources?
Yes. The product listing specifies an 85 to 305Vac input range, with 277Vac available, allowing it to fit a wide range of AC power systems where this input range is required.
What protection features are listed for the XDR-75-24?
The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.
What warranty and weight are listed for the XDR-75-24?
The XDR-75-24 is listed with a 5-year warranty period. Its listed weight is 0.496 kg.
