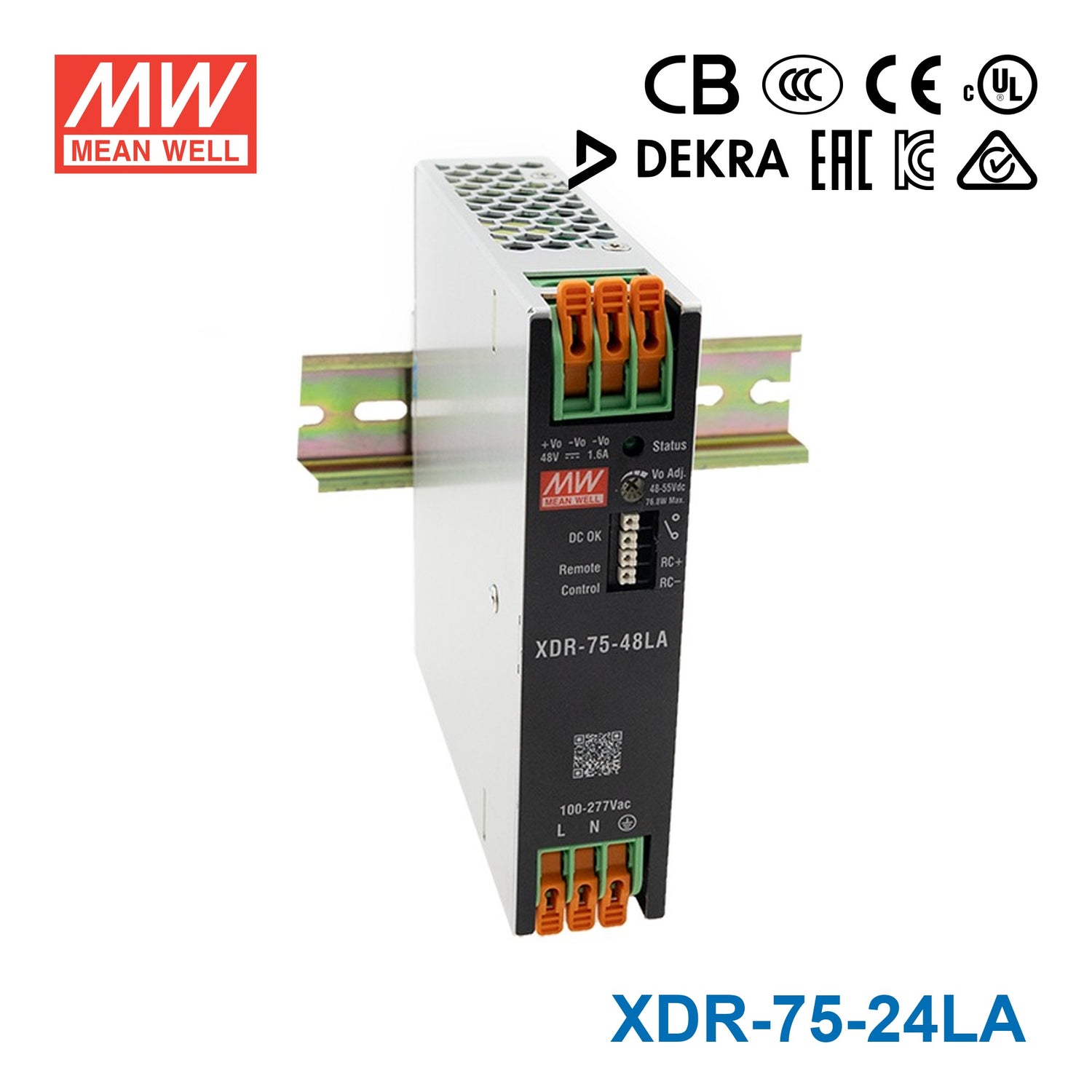

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well XDR-75-24LA High-End Ultra Slim Industrial Din Rail Power Supply 74.88W 24V with Lever Actuated Connector 3.12A
Notify me when it's back in stock
Mean Well XDR-75-24LA High-End Ultra Slim Industrial Din Rail Power...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV, SEMI47, CID2 HazLoc approved
- ✓30mm ultra slim width
- ✓High efficiency up to 91% and no-load power dissipation 0.7W~1W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Ultra low inrush current <6~15A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-75-24LA?
The XDR-75-24LA is a 74.88W DIN rail power supply with a 24V DC output. Its rated output current is 3.12A, making it suitable for industrial control and automation loads within that power range.
What types of applications is the XDR-75-24LA designed for?
This model is intended for industrial DIN rail power applications where a slim, high-efficiency 24V supply is needed. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and CID2 hazardous location certifications, which support use across demanding commercial and industrial environments.
What makes the XDR-75-24LA different from a standard DIN rail power supply?
The XDR-75-24LA is a high-end ultra slim model with a 30mm width, which helps conserve panel space. It also offers up to 91% efficiency, low no-load power dissipation, 200% peak power capability, and 600% transient peak current capability.
What operating temperature range does the XDR-75-24LA support?
The listed operating temperature range for the XDR-75-24LA is -40°C to 85°C. This wide range makes it appropriate for industrial environments where ambient temperatures may vary significantly.
Can the XDR-75-24LA be used with global AC input systems?
Yes. The XDR-75-24LA supports an 85 to 305Vac input range, with 277Vac availability noted in the product data. That broad input range is useful for buyers standardizing one 24V DIN rail supply across different facility power environments.
What protections are included with the XDR-75-24LA?
The XDR-75-24LA includes protection against short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
What warranty and weight should buyers expect for the XDR-75-24LA?
The XDR-75-24LA has a listed warranty period of 5 years. Its listed weight is 0.496 kg, which is useful for panel planning, shipping estimates, and replacement matching.
