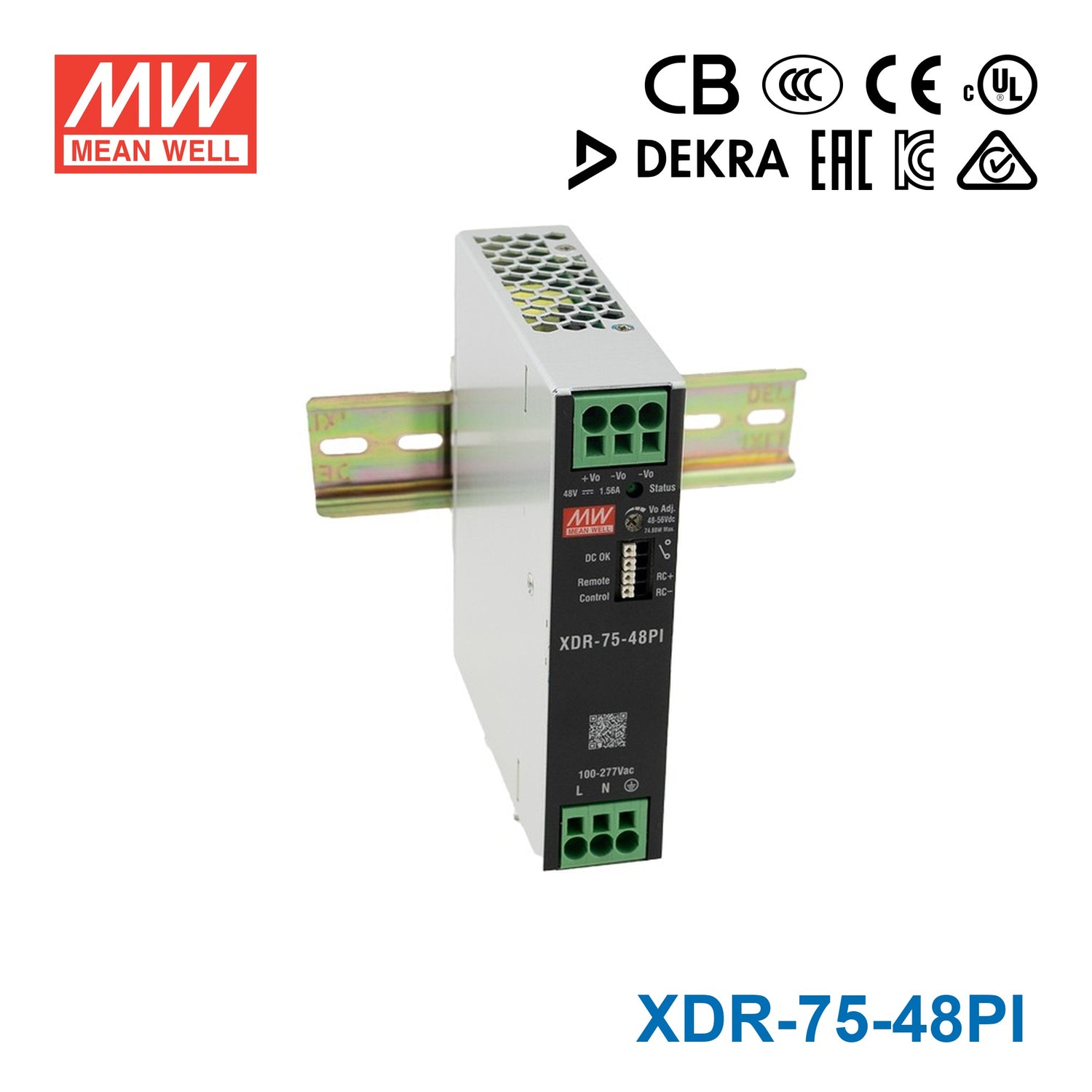

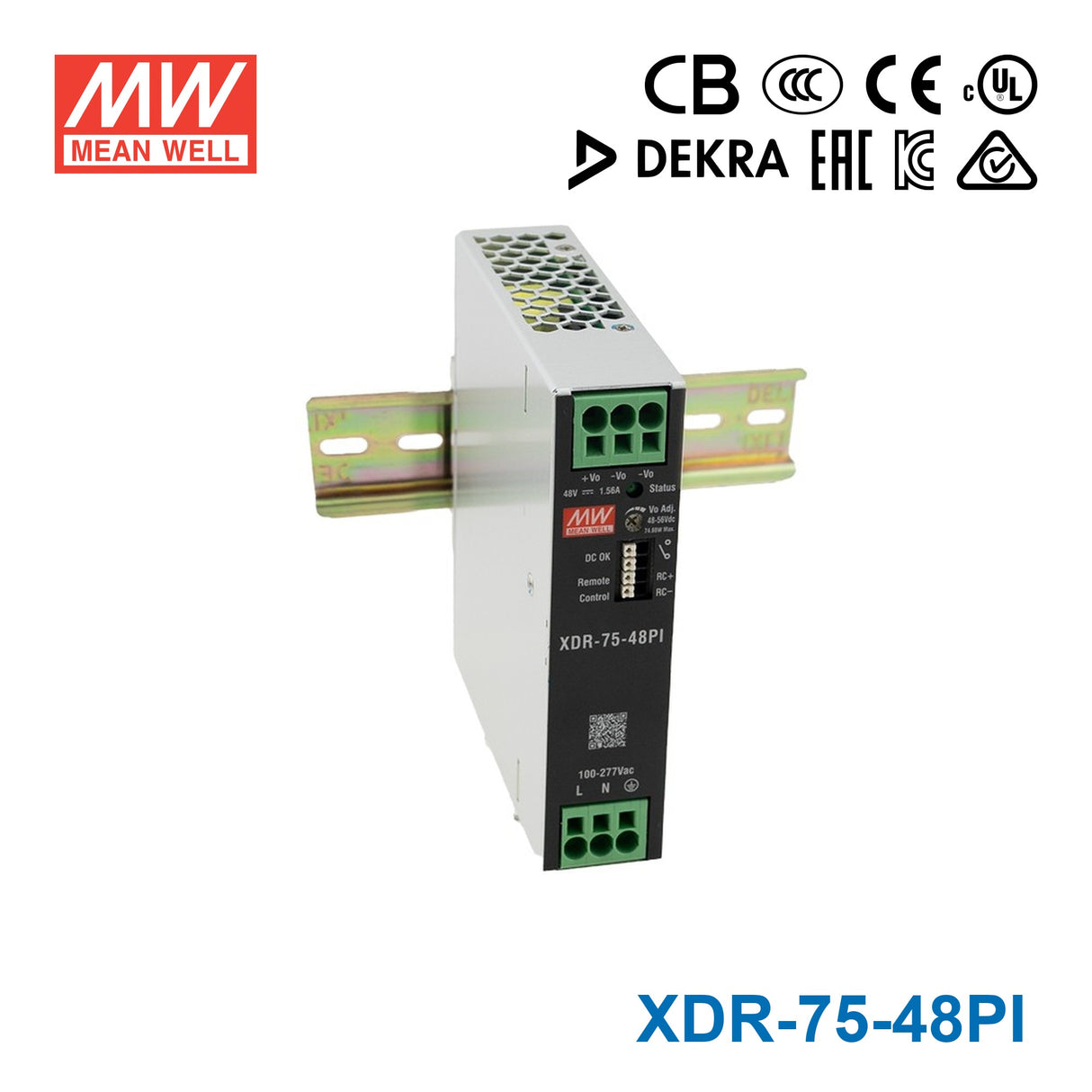

Mean Well XDR-75-48PI High-End Ultra Slim Industrial Din Rail Power Supply 74.88W 48V with Push In Connector 1.56A

30mm ultra slimhigh efficiency up to 91%200% peak power capability600% transient peak current capabilityultra low inrush current <6~15Aconformal coating

SKU XDR-75-48PI

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XDR-75-48PI is the 48V output model of this series: rated power 74.88W, typical efficiency 91%.

The XDR-75 series is a 75W AC/DC high-end ultra slim industrial DIN rail power. Key features of this series include a narrow 30mm casing, optimizing system installation space, and an ultra-wide input range of 85~305Vac suitable for global use. It boasts a maximum efficiency of 91% and a low standby power consumption 0.7W~1W for energy savings and carbon reduction. It provides constant current with up to 200% peak power, and can handle instantaneous peak current of 600%. It has a fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVCⅢ compliance; ultra-low inrush current of <6~15A, and includes DC OK and remote ON/OFF functions. The internal PCB has a coating for basic moisture and dust protection, and it has multiple terminal blocks for selection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XDR-75 series is a compact, high-performance, and highly reliable DIN rail power supply.

Features

85~305Vac input (277Vac available)
Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010) & Marine DNV,SEMI47,CID2 HazLoc approved
30mm ultra slim width
High efficiency up to 91% and no load power dissipation 0.7W~1W by R.C.
200% peak power capability
600% transient peak current capability
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
Fanless design, cooling by free air convection
Over voltage category Ⅲ (OVC Ⅲ)
-40~ +85℃ wide range operation temperature(>+60℃ derating)
Operating altitude up to 5000 meters
Built-in remote ON/OFF control and DC OK relay contact
Ultra low inrush current <6~15A
Tool free terminal block (LA Type)
Conformal coating
Can be installed on DIN rail TS-35/75 or15
5 years warranty

Specifications

XDR-75-48PISpecifications from the official datasheet (2026-06-01 edition)

OUTPUT

DC VOLTAGE: 48V
LOAD CURRENT RANGE: 0 ~ 1.56A
RATED POWER: 74.88W
PEAK CURRENT (5sec.): 3.13A
PEAK POWER (5sec.): 150W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 56V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230Vac 2500ms, 60ms/115Vac at full load
HOLD UP TIME (Typ.): 16ms/230Vac 10ms/115Vac at full load

INPUT

AC VOLTAGE RANGE: 85 ~ 305Vac
DC VOLTAGE RANGE: 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) Remote Power OFF: 1W @115Vac & 230Vac
NO LOAD CONSUMPTION(Typ.) Remote Power ON: 1.5W @115Vac & 230Vac
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1.5A/115Vac 0.9A/230Vac 0.8A/277Vac
INRUSH CURRENT (Typ.): COLD START 6A/115Vac 10A/230Vac 15A/277Vac
LEAKAGE CURRENT: <1mA / 240Vac < 1.5mA / 277Vac

PROTECTION

OVERLOAD: 105%~200% rated output power for more than 5 sec then constant current limiting at rate current without shutdown when Vo=10%~100%; Constant current limiting or Latch mode when Vo<10% rated voltage.
OVER VOLTAGE: 57 ~ 66V Protection type : Shut down o/p voltage , re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK RELAY CONTACT: Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
REMOTE CONTROL: Power ON :RC + ~ RC- keep<0.5Vdc or open Power OFF:RC + ~ RC- keep 4~5Vdc by external voltage
TRANSIENT PEAK CURRENT CAPABLILTY: 12V: 500% rated current for 4ms; 24V/36V/48V: 600% rated current for 4ms

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃) on Load output
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS^Note.4&5&6: CB IEC62368-1, IEC61558-1/-2-16, IEC61010-1/-2-201 ; TUV BS EN/EN62368-1,BS EN/EN61558-1/-2-16,BS EN/EN61010-1/-2-201 ; UL UL121201/CSA C22.2 NO.213.17 Class I,DIV2 Group A,B,C,D Hazardous Locations T4;UL61010-1/-2-201 ; CCC GB4943.1 ; BSMI CNS15598-1 ; EAC TPTC004 ; Marine DNV ; SEMI F47 approved ; KC/BIS KC62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
OVER VOLTAGE CATEGORY^Note.7: IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) ; IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) ; IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV) ; IEC/EN 62368-1 (SELV / ES1 )
WITHSTAND VOLTAGE: I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2) ,KS C 9835,SEMI F47 tested at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 4, 4KV; criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 4, 4KV; criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 1907.3K hrs min. Telcordia SR-332 (Bellcore); 333.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 30*125.2*116mm (W*H*D)
PACKING: 496g; 24pcs/12.9Kg/1.27CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
6. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.

Technical drawings

XDR-75-48PI Block Diagram — Block Diagram

XDR-75-48PI Derating Curve — Derating Curve

XDR-75-48PI Transient peak current Capability — Transient peak current Capability

XDR-75-48PI Function Manual — Function Manual

XDR-75-48PI 1.DC OK Relay Contact — 1.DC OK Relay Contact

XDR-75-48PI 1.DC OK Relay Contact (2) — 1.DC OK Relay Contact (2)

XDR-75-48PI The PSU can be turned ON/OFF by using the "Remote… — The PSU can be turned ON/OFF by using the "Remote…

XDR-75-48PI Mechanical Specification — Mechanical Specification

XDR-75-48PI Installation Instruction — Installation Instruction

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Datasheet1

XDR-75-48PI datasheetXDR_75_spec.pdf · 2026-06-01 edition PDF Download

FAQ

What is the output rating of the Mean Well XDR-75-48PI?

The XDR-75-48PI is rated for 74.88W of output power, commonly listed as 75W. It provides a 48V DC output with a rated current of 1.56A.

Is the XDR-75-48PI suitable for compact DIN rail panels?

Yes. This model is part of Mean Well's ultra slim DIN rail power supply range and has a 30mm width, making it suitable for space-constrained industrial control cabinets and equipment panels.

What input voltage range does the XDR-75-48PI support?

The XDR-75-48PI supports an 85-305Vac input range. The listed features also note 277Vac availability, which can be useful for industrial and commercial power environments.

What certifications or approvals are listed for this power supply?

The listed approvals include ITE 62368-1, Industrial 61558-1/-2-16, 61010, Marine DNV, SEMI47, and CID2 HazLoc. These approvals make the XDR-75-48PI relevant for industrial, marine, semiconductor, and hazardous location applications where those certifications are required.

What operating temperature range does the XDR-75-48PI support?

This model is specified for operation from -40°C to 85°C. That wide temperature range supports use in demanding industrial environments, subject to the product's applicable operating conditions.

How efficient is the XDR-75-48PI?

The XDR-75-48PI has efficiency up to 91%. Its listed no-load power dissipation is 0.7W to 1.5W depending on the remote control state, which can help reduce standby energy use in supported applications.

What protection features are included with the XDR-75-48PI?

The listed protections include short circuit, overload, over voltage, and over temperature protection. It also includes a built-in constant current limiting circuit.

How does the XDR-75-48PI differ from a basic DIN rail power supply?

Compared with a basic DIN rail power supply, the XDR-75-48PI has a high-end ultra slim 30mm design, broad 85-305Vac input range, and multiple listed industrial, marine, SEMI47, and CID2 HazLoc approvals. It also lists 200% peak power capability and 600% transient peak current capability.
