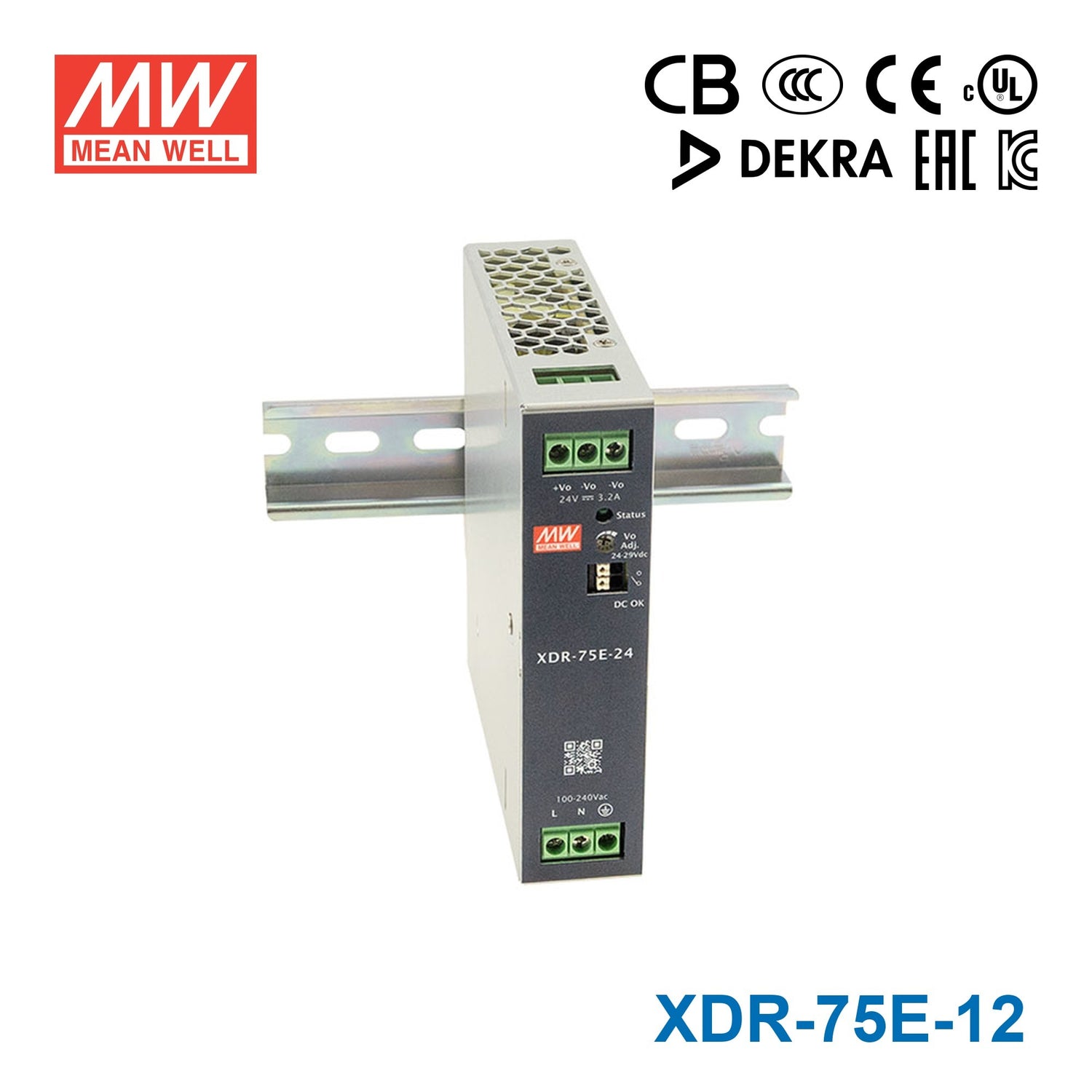

Mean Well XDR-75E-12 Economical Ultra Slim Din Rail Power Supply 75...
Please Login for Pricing
Description
Description
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in [constant current limiting circuit](constant current limiting circuit)
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length11.6 cm
-
Width3 cm
-
Height12.52 cm
-
Weight0.4 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output specifications of the Mean Well XDR-75E-12?
The XDR-75E-12 is rated for 75.6 W output power with a 12 V DC output. Its rated current is 6.3 A, making it suitable for 12 V industrial and control-system loads within that power range.
What types of applications is the XDR-75E-12 commonly used for?
This model is designed for DIN rail power supply applications where a compact 12 V DC source is needed. Its product family and category placement make it relevant for industrial control panels, automation equipment, and other B2B power supply uses that require a slim DIN rail form factor.
Why choose the XDR-75E-12 over a wider DIN rail power supply?
The XDR-75E-12 has a slim 30 mm width, which helps conserve panel space compared with wider DIN rail power supplies. It is a practical choice when the required output is 12 V DC at up to 75.6 W and space efficiency is a priority.
What operating temperature range does the XDR-75E-12 support?
The listed operating temperature range for this model is -40 °C to 70 °C. That range supports use in demanding environments where low-temperature startup or elevated ambient conditions may be a consideration.
What input voltage range does the XDR-75E-12 accept?
The XDR-75E-12 supports an 85 to 264 Vac input range. This wide AC input range helps make the model suitable for use across different regions and electrical systems, subject to the requirements of the overall equipment design.
What protections are included with the XDR-75E-12?
This model lists protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit, which is relevant for protecting the power supply during overload conditions.
How efficient is the Mean Well XDR-75E-12?
The XDR-75E-12 is specified with efficiency up to 91%. It also has no-load power dissipation of less than 1 W, which can be useful in systems where standby power consumption matters.
What warranty period applies to the XDR-75E-12?
The listed warranty period for the XDR-75E-12 is 3 years. This warranty period applies to this specific model as provided in the product data.
Other XDR-75E Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well XDR-75E-24 Economical Ultra Slim Din Rail Power Supply 76.8W 24V 3.2A | 76.8W | 24V | 3.2A | Indoor | View |
