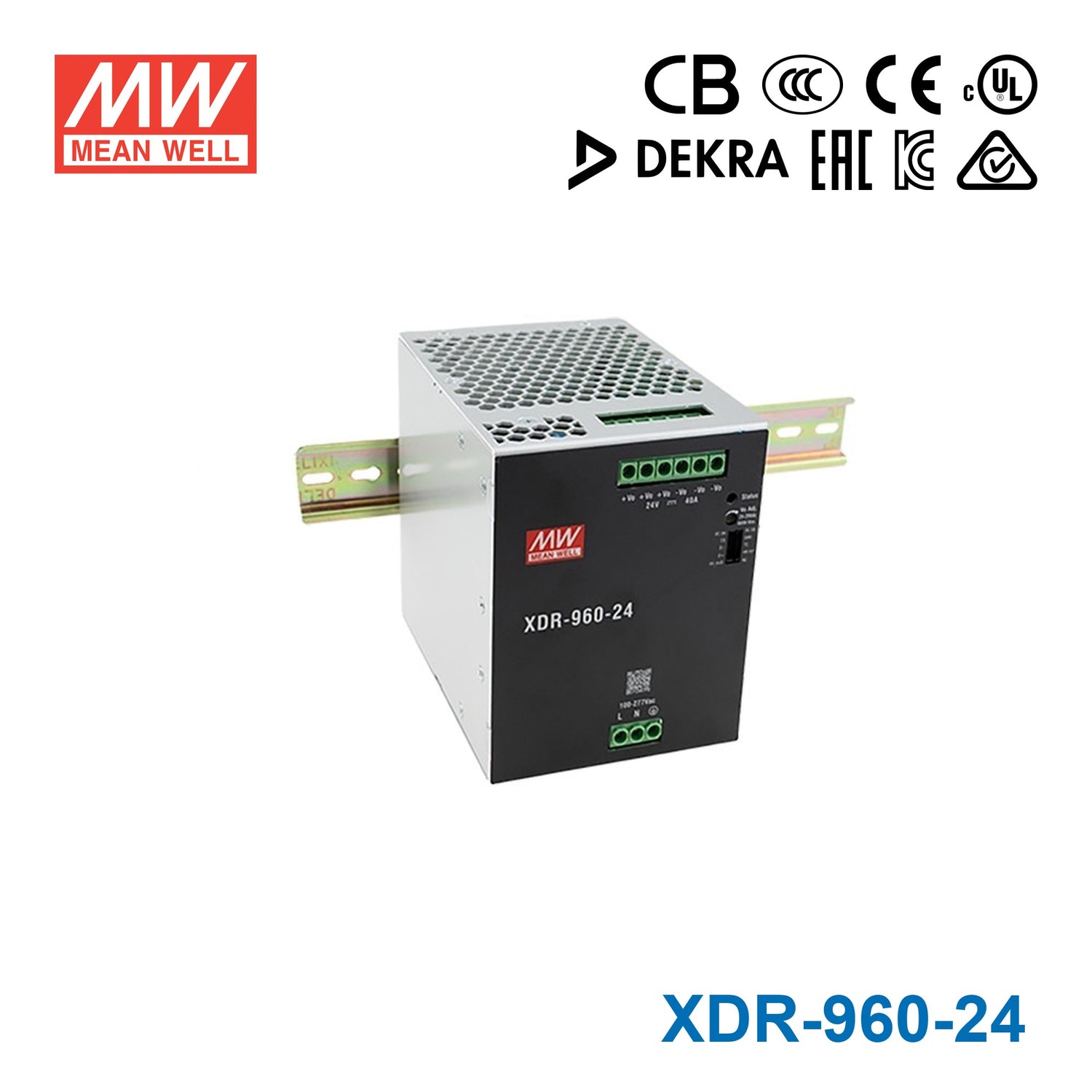

Mean Well XDR-960-24 High-End Ultra Slim Industrial Din Rail Power Supply 960W 24V 40A

Q: What is the output rating of the Mean Well XDR-960-24?

The XDR-960-24 is rated for 960W of output power. It provides a 24V DC output with a rated current of 40A.

Q: What types of applications is the XDR-960-24 suited for?

This model is suited for high-power industrial DIN rail power applications that require 24V DC output. Its listed approvals include industrial, ITE, marine DNV, SEMI47, and Class I Division 2 hazardous location coverage, making it relevant for demanding commercial and industrial environments.

Q: How wide is the XDR-960-24 DIN rail power supply?

The XDR-960-24 has a 96mm width. That ultra-slim form factor is a key differentiator for a 960W DIN rail power supply where enclosure space is limited.

Q: What input voltage range does the XDR-960-24 support?

The XDR-960-24 supports an 85 to 305Vac input range. The product data also notes 277Vac availability, which can be useful in industrial power systems where that input level is required.

Q: Can the XDR-960-24 support peak power demands?

Yes. This model lists 200% peak power capability and 600% transient peak current capability, which helps support equipment with short-duration surge demands within the product's stated capabilities.

Q: Does the XDR-960-24 support parallel operation?

Yes. The XDR-960-24 includes built-in active current sharing for parallel operation up to 3840W in a 3+1 configuration. This makes it suitable for higher-power systems that need scalable output capacity or redundancy planning.

Q: What monitoring or communication features are included with the XDR-960-24?

The XDR-960-24 includes a MODBus communication interface. The provided product data describes it as supporting control, setting, and monitoring functions.

Q: What operating temperature range is listed for the XDR-960-24?

The listed operating temperature range is -40°C to 85°C. That range supports use in demanding industrial environments where equipment may be exposed to wide temperature variation.

Q: How efficient is the XDR-960-24?

The XDR-960-24 is listed with high efficiency up to 96%. Its no-load power dissipation is listed as 1.5W to 6.7W by R.C.

Q: What warranty period and weight are listed for the XDR-960-24?

The XDR-960-24 has a listed warranty period of 5 years. Its listed weight is 2.06 kg.

96mm width, high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, parallel operation up to 3840W, MODBus communication, inrush current

SKU:

XDR-960-24

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
✓96mm width
✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 3840W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Inrush current <10~23A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Optional GL type bracket for wall/panel mounting
✓5 years warranty

Specifications

Brand

Mean Well
Input Voltage

85V~305V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
Operating Temperature

-40°C~85°C
Length

13.2 cm
Width

9.6 cm
Height

12.52 cm
Weight

2.06 kg
