Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

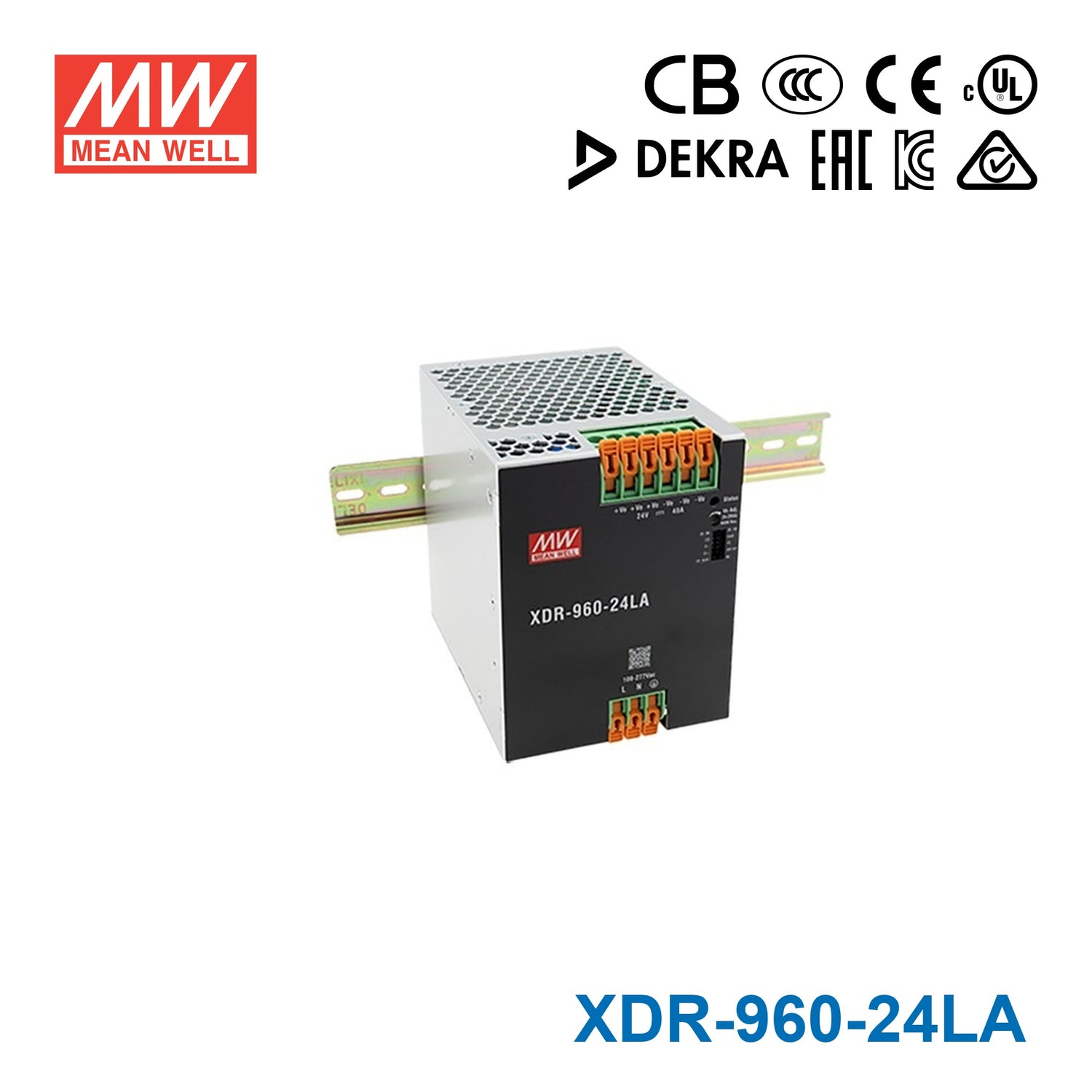

Mean Well XDR-960-24LA High-End Ultra Slim Industrial Din Rail Power Supply 960W 24V with Lever Actuated Connector 40A
Notify me when it's back in stock
Mean Well XDR-960-24LA High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
- ✓96mm width
- ✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 3840W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Inrush current <10~23A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓Optional GL type bracket for wall/panel mounting
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length13.2 cm
-
Width9.6 cm
-
Height12.52 cm
-
Weight2.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XDR-960-24LA?
The XDR-960-24LA is rated for 960 W of output power. It provides 24 V output at a rated current of 40 A.
What type of applications is the XDR-960-24LA suited for?
This model is designed for industrial DIN rail power supply applications where high power density and a slim form factor are important. Its listed categories include DIN rail, slim DIN rail, industrial power supply, and DC-DC converter groupings for B2B use.
How wide is the XDR-960-24LA?
The XDR-960-24LA has a 96 mm width. That makes it a high-power, ultra-slim DIN rail power supply option for panels where space efficiency matters.
What input voltage range does this power supply support?
The product description lists an 85 to 305 Vac input range. It also notes 277 Vac availability, which can be important for industrial power environments.
What certifications or approvals are listed for the XDR-960-24LA?
The description lists global certificates across ITE 62368-1, industrial 61558-1/-2-16, and 61010. It also lists Marine DNV GL type approval, SEMI47, and CID2 HazLoc approval.
Can the XDR-960-24LA support parallel operation?
Yes. The product description lists built-in active current sharing for parallel operation up to 3840 W in a 3+1 configuration.
What operating temperature range is listed for this model?
The XDR-960-24LA is listed with an operating temperature range from -40 °C to 85 °C. This range supports use in demanding industrial environments where temperature extremes may be a factor.
What efficiency and no-load power figures are listed for the XDR-960-24LA?
The product description lists high efficiency up to 96%. It also lists no-load power dissipation from 1.5 W to 6.7 W by R.C.
Does this model include a communication interface?
Yes. The description lists a MODBus communication interface for control, setting, and monitoring.
What warranty period is listed for the XDR-960-24LA?
The listed warranty period for this model is 5 years. The product weight is listed as 2.06 kg.
