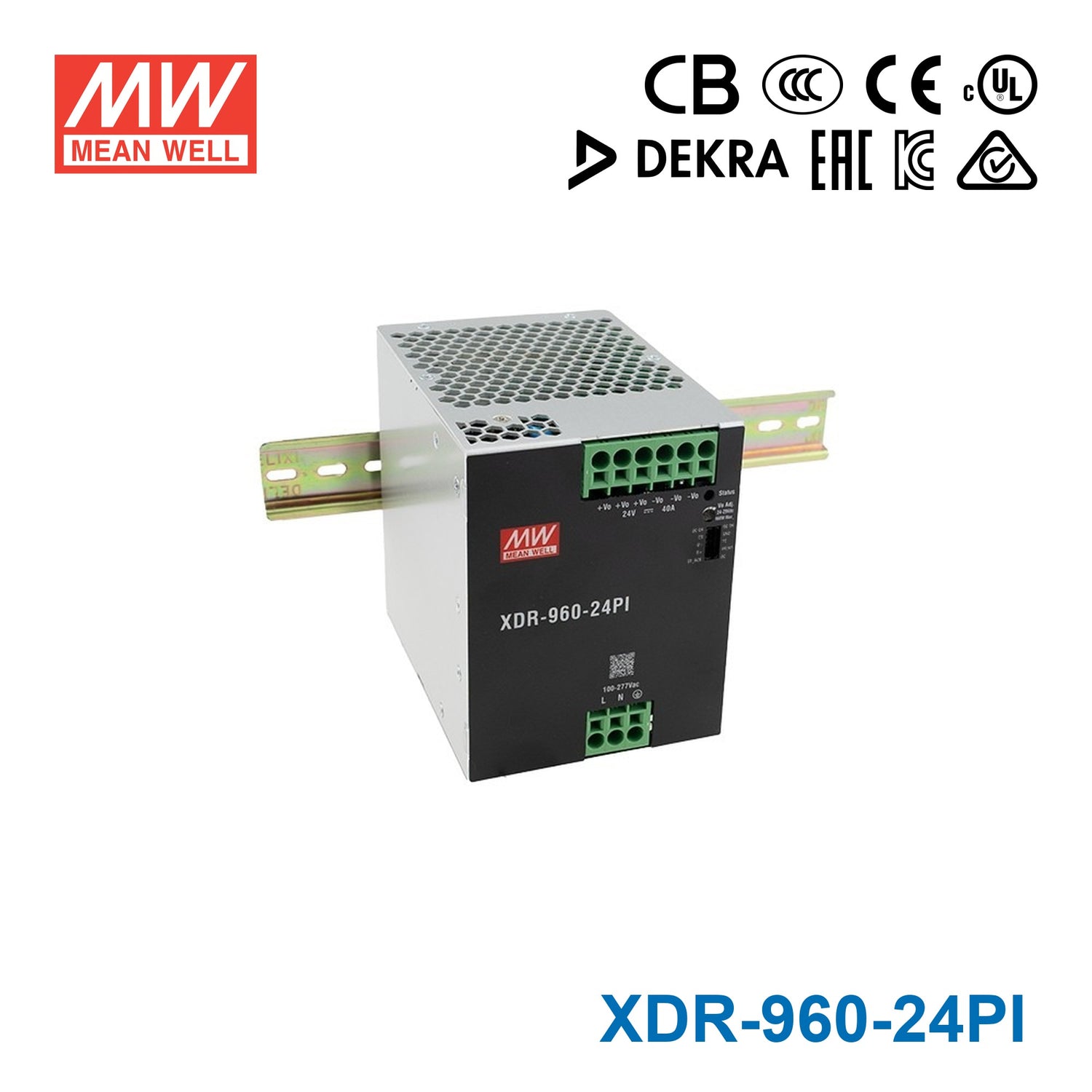

Mean Well XDR-960-24PI High-End Ultra Slim Industrial Din Rail Power Supply 960W 24V with Push In Connector 40A

96mm widthhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 3840WMODBus communicationinrush current <10~23Aconformal coating

SKU XDR-960-24PI

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XDR-960-24PI is the 24V output model of this series: rated power 960W, typical efficiency 95%.

The XDR-960 series is a 960W AC/DC high-end ultra slim industrial DIN rail power. Key features of this series include a narrow 96mm casing, optimizing system installation space, and an ultra-wide input range of 85~305Vac suitable for global use. It boasts a maximum efficiency of 96% and a low standby power consumption 1.5W for energy savings and carbon reduction. It supports MODBus communication interface, provides constant current with up to 200% peak power, and can handle transient peak current of 600%. It has a fanless design, ultra-wide operating temperature range of -40 to +85℃ (up to +60℃ at full load); OVCⅢ compliance; parallel function capability up to 3840W; ultra-low inrush current of <10~23A, and includes DC OK and remote ON/OFF functions. It also has a built-in ORing FET, the internal PCB has a coating for basic moisture and dust protection, and it has multiple terminal blocks for selection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XDR-960 series is a compact, high-performance, and highly reliable DIN rail power supply.

Features

85~ 305Vac input with PFC (277Vac available)
Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010) & Marine DNV,SEMI47,CID2 HazLoc approved
96mm ultra slim width
High efficiency up to 96% and no load power dissipation 1.5W by R.C.
Built-in MODBus RTU protocol
200% peak power capability
600% transient peak current capability
Built-in constant current limiting circuit
Current sharing up to 3840W (3+1) for parallel use
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design, cooling by free air convection
Over voltage category Ⅲ (OVC Ⅲ)
-40~ +85℃ wide range operation temperature(>+60℃ derating)
Operating altitude up to 5000 meters
Built-in remote ON/OFF control and DC OK relay contact
Ultra low inrush current <10~23A
Built-in ORing FET
Tool free terminal block (LA Type)
Conformal coating
Can be installed on DIN rail TS-35/75 or15
5 years warranty

Specifications

XDR-960-24PISpecifications from the official datasheet (2026-06-05 edition)

OUTPUT

DC VOLTAGE: 24V
LOAD CURRENT RANGE: 0 ~ 40A
RATED POWER: 960W
PEAK CURRENT (5sec.): 80A
PEAK POWER (5sec.): 1920W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 29V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1500ms, 100ms/277Vac 1500ms, 100ms/230Vac 1500ms, 100ms/115Vac at full load
HOLD UP TIME (Typ.): 20ms/277Vac 20ms/230Vac 20ms/115Vac at full load

INPUT

AC VOLTAGE RANGE: 85 ~ 305Vac
DC VOLTAGE RANGE: 80 ~ 431Vdc (Derating 50% Load @80Vdc)
NO LOAD CONSUMPTION(Typ.) Remote Power OFF: 1.5W@115Vac & 230Vac & 277Vac
NO LOAD CONSUMPTION(Typ.) Remote Power ON: 6.7W@115Vac 4.5W@230Vac & 277Vac
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115Vac PF>0.95/230Vac PF>0.9/277Vac at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 10A/115Vac 5A/230Vac 4.2A/277Vac
INRUSH CURRENT (Typ.): COLD START 23A/115Vac 10A/230Vac 15A/277Vac
LEAKAGE CURRENT: <3.5mA / 240Vac <4.5mA / 277Vac

PROTECTION

OVERLOAD: 105%~200% rated output power for more than 5 sec then constant current limiting at rate current without shutdown when Vo=30%~100% Hiccup mode when Vo<30% rated voltage
OVER VOLTAGE: 30 ~ 34V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

PARALLEL: Up to 3840W (3+1) units; Please refer to Function Manual for more details.
DC OK RELAY CONTACT: Relay Contact Ratings (max.):30Vdc/1A, 30Vac/0.5A resistive load
REMOTE CONTROL: Power ON :RC(Pin9) and 5V_AUX(Pin10) short . Power OFF:RC(Pin9) and 5V_AUX(Pin10) open. Please refer to Function Manual for more details.
MODBus INTERFACE: Communication provides functions such as control, setting, and monitoring.
TRANSIENT PEAK CURRENT CAPABLILTY: 600% rated current for 15ms

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS^Note.4&5&6: CB IEC62368-1, IEC61558-1/-2-16, IEC61010-1/-2-201 TUV BS EN/EN62368-1,BS EN/EN61558-1/-2-16,BS EN/EN61010-1/-2-201 UL UL121201/CSA C22.2 NO.213.17 Class I,DIV2 Group A,B,C,D Hazardous Locations T4;UL61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TPTC004 Marine DNV (for GL type only) SEMI F47 approved KC/BIS KC62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request
OVER VOLTAGE CATEGORY^Note.7: IEC/EN 61558-1/-2-16 (OVC Ⅲ, altitude up to 2000m ) IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000m ) IEC/EN 62368-1 (OVC Ⅱ, altitude up to 5000m )
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV) IEC/EN 62368-1 (SELV / ES1 )
WITHSTAND VOLTAGE: I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Radiated BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2) ,KS C 9835,SEMI F47 tested at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 4, 4KV; criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Radiated	BS EN/EN55032 (CISPR32) / BS EN/EN61204-3 / CNS15936 / KS C 9832	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 4, 4KV; criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line ;Level 4, 4KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 819.6K hrs min. Telcordia SR-332 (Bellcore); 113.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 96*125.2*132mm (W*H*D)
PACKING: 2.06Kg; 6pcs/ 13.4Kg /1.49CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
6. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.

Technical drawings

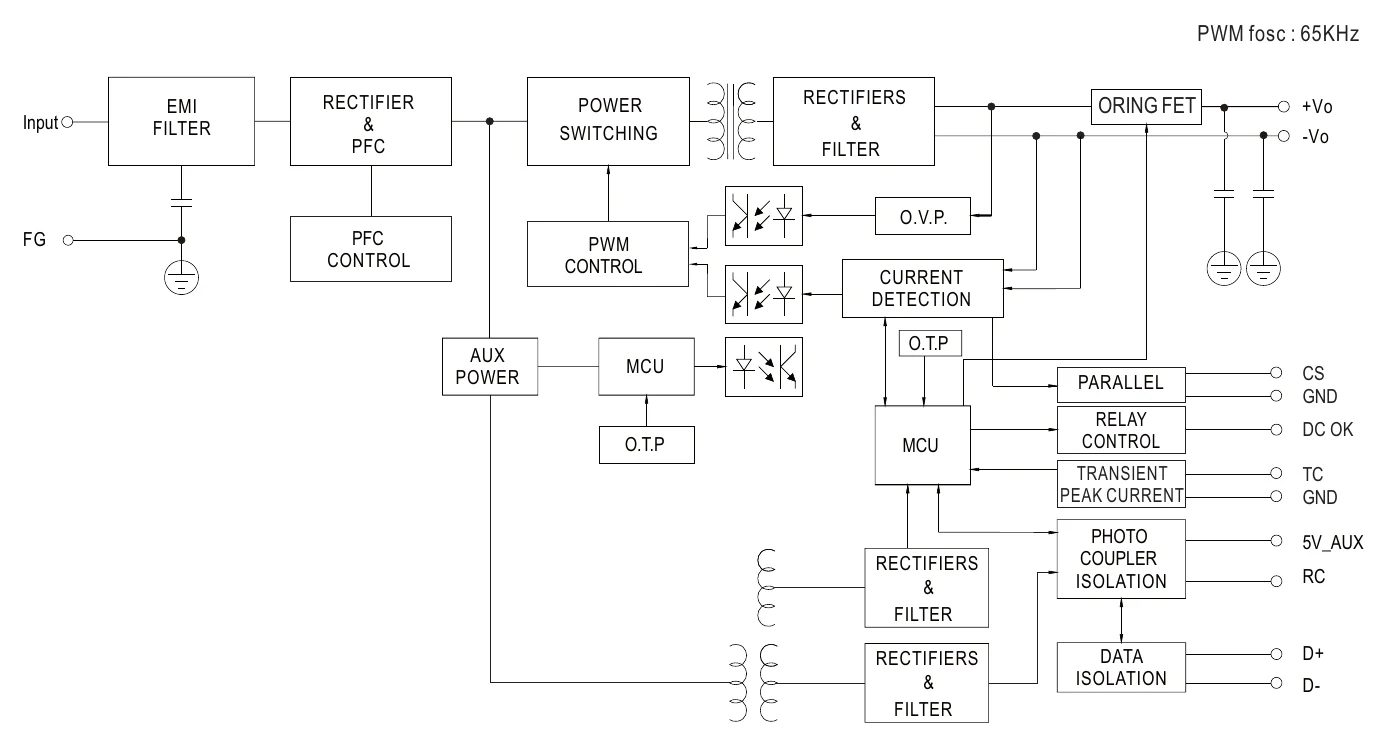

XDR-960-24PI Block Diagram — Block Diagram

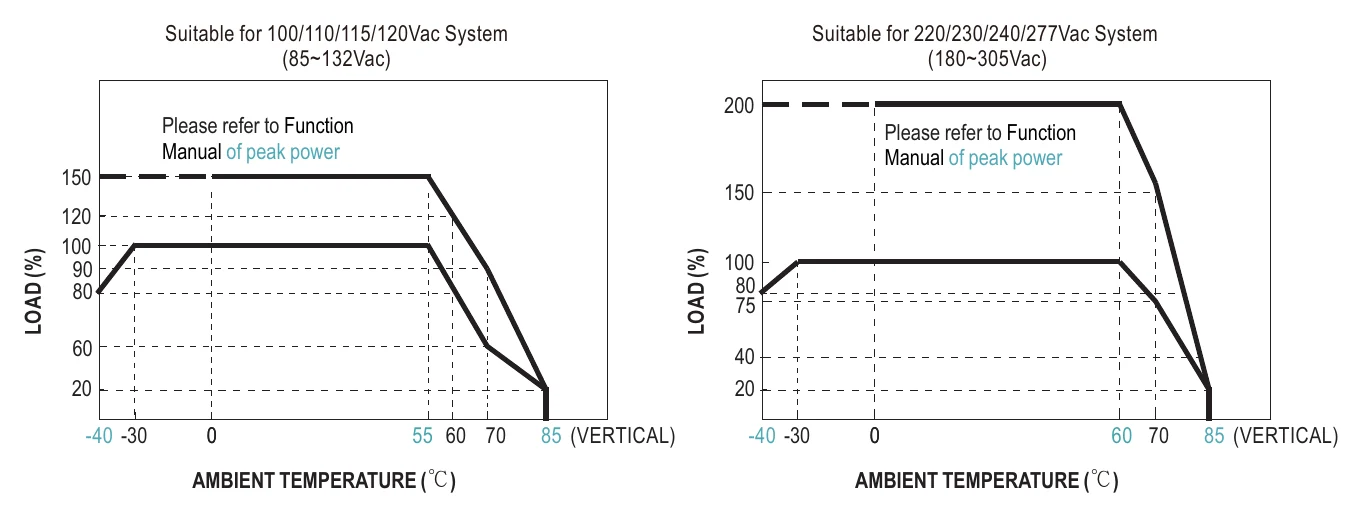

XDR-960-24PI Derating Curve — Derating Curve

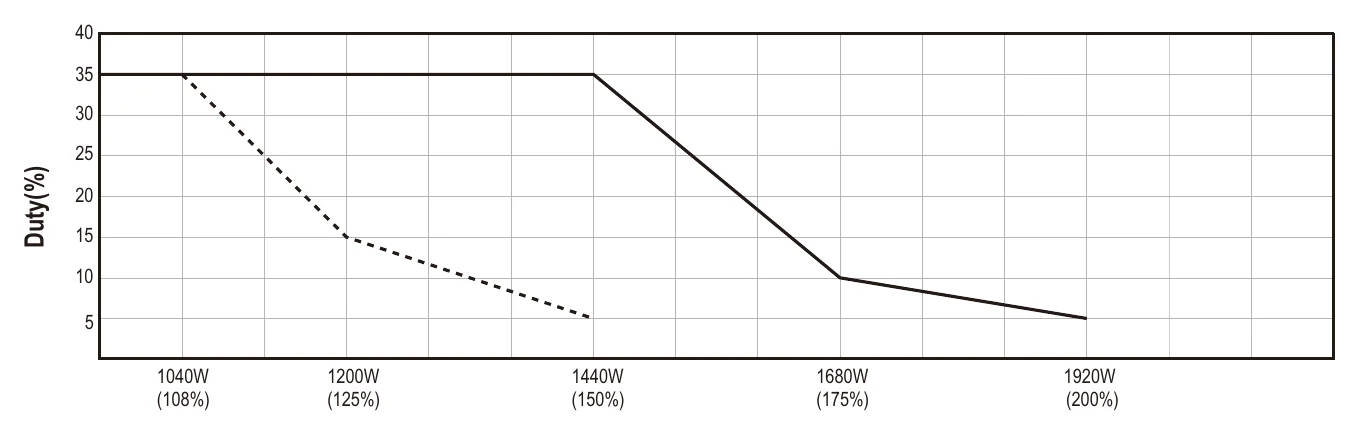

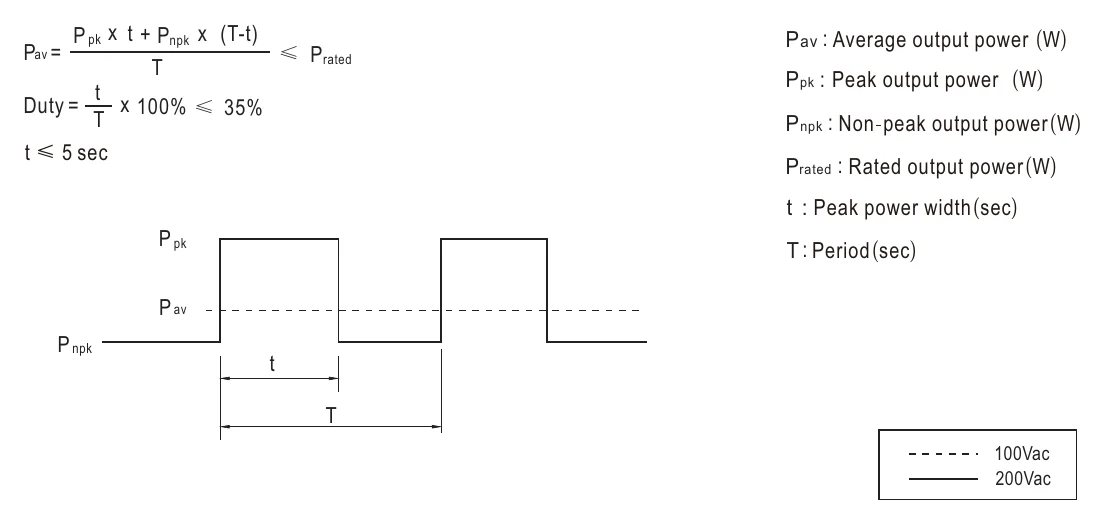

XDR-960-24PI P pk x t + Pnpk x (T-t) — P pk x t + Pnpk x (T-t)

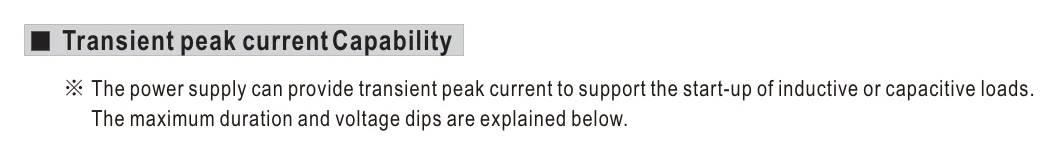

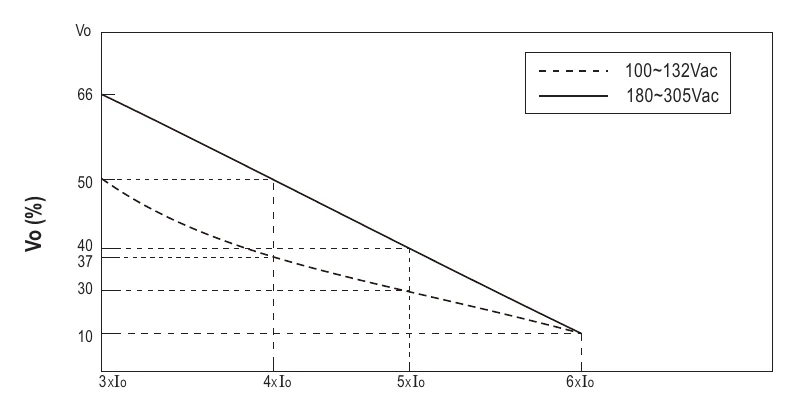

XDR-960-24PI Transient peak current Capability — Transient peak current Capability

XDR-960-24PI Transient peak current Capability (2) — Transient peak current Capability (2)

XDR-960-24PI Function Manual — Function Manual

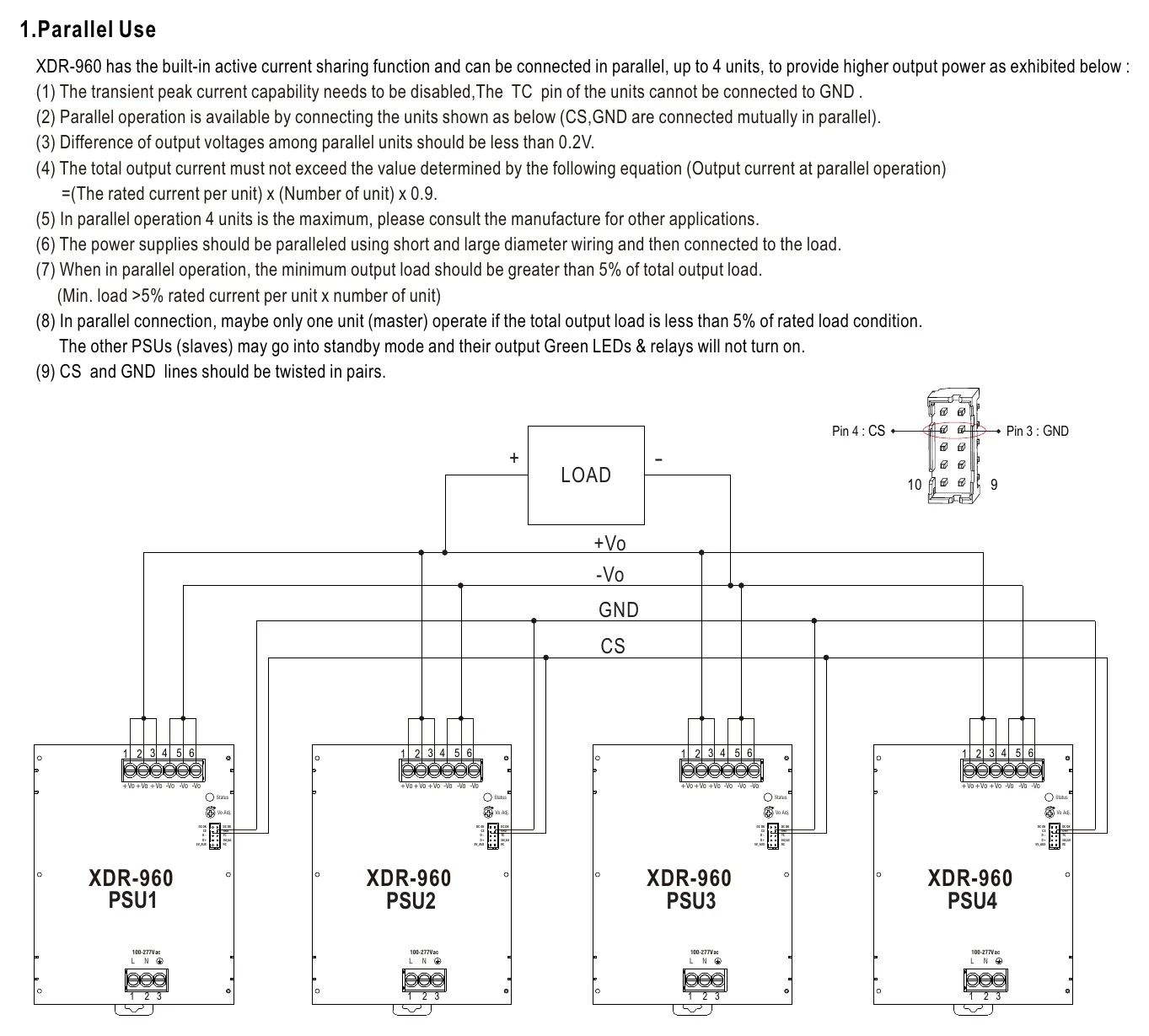

XDR-960-24PI 1.Parallel Use — 1.Parallel Use

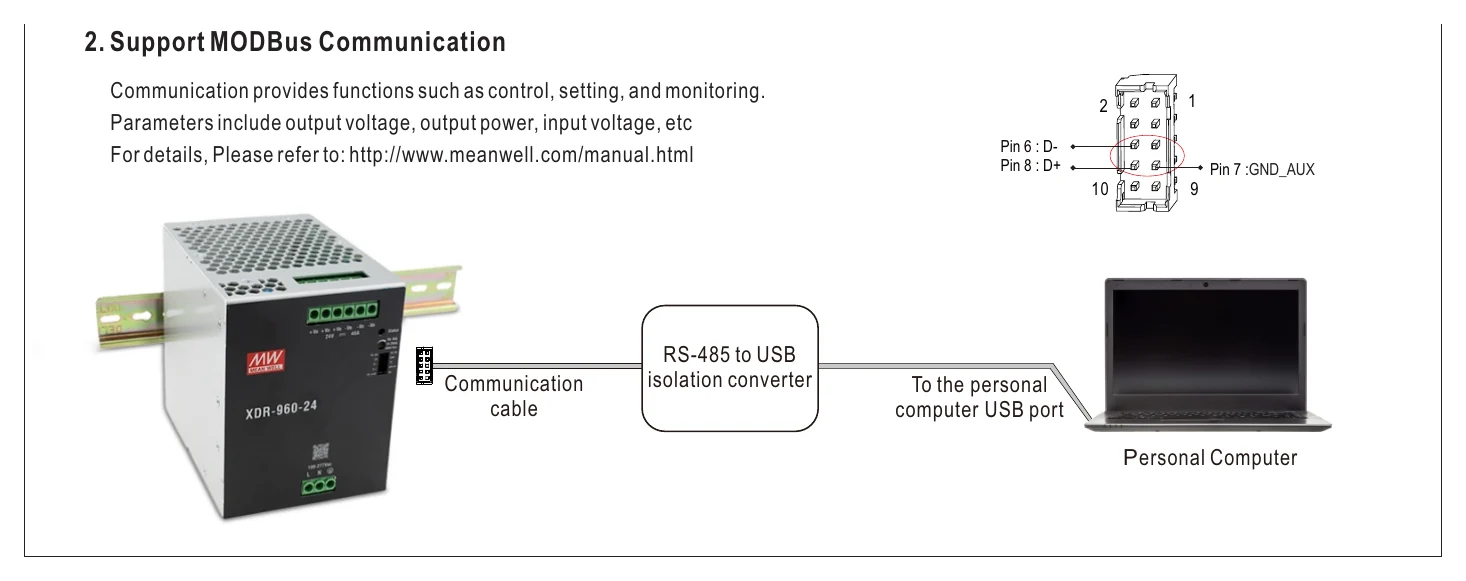

XDR-960-24PI 2. Support MODBus Communication — 2. Support MODBus Communication

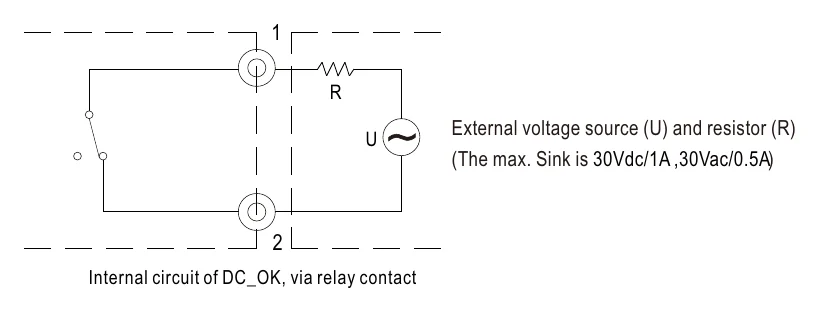

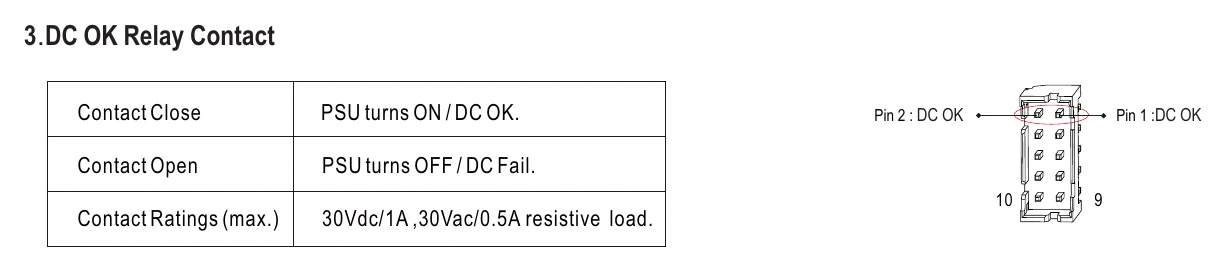

XDR-960-24PI 3.DC OK Relay Contact — 3.DC OK Relay Contact

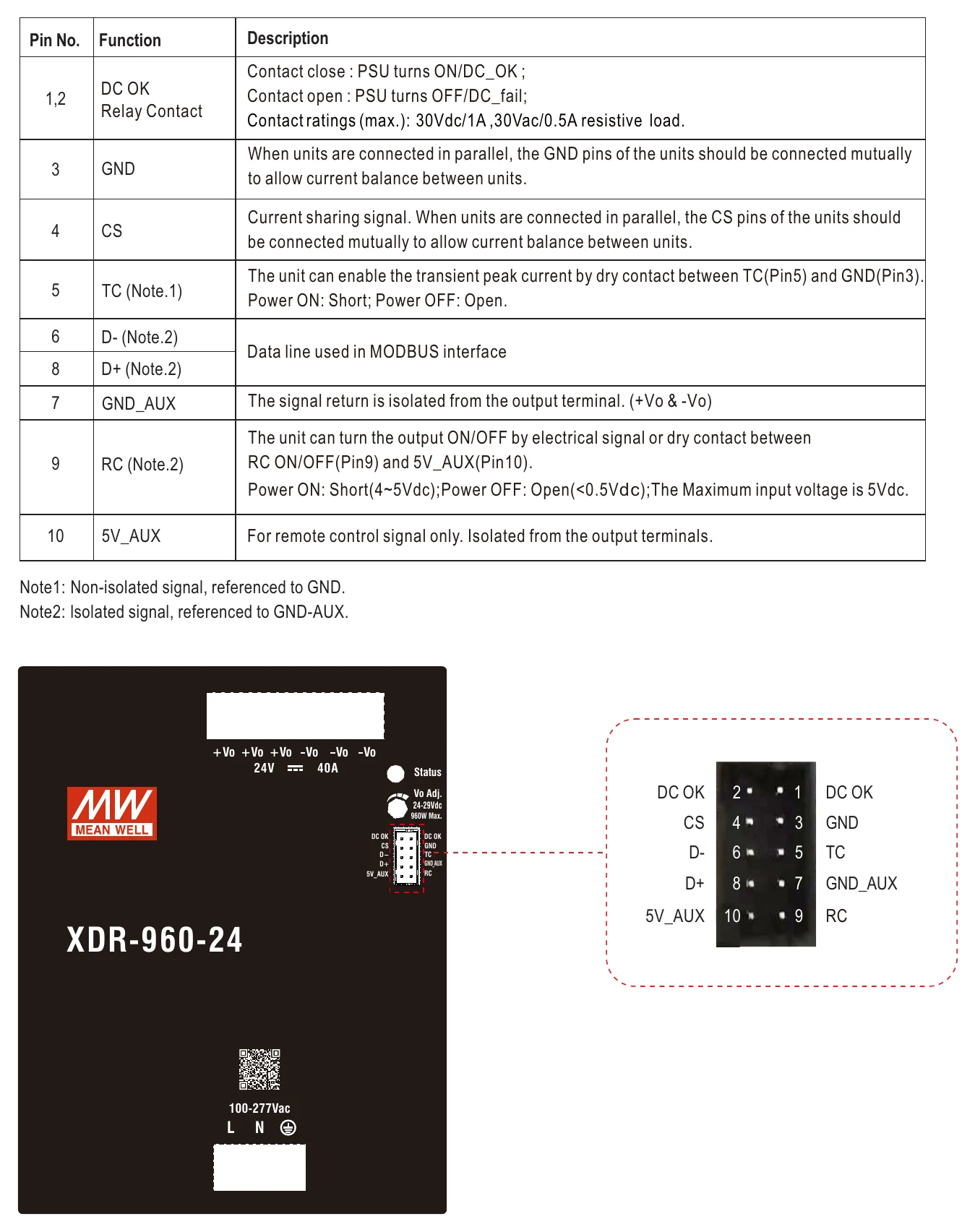

XDR-960-24PI 3.DC OK Relay Contact (2) — 3.DC OK Relay Contact (2)

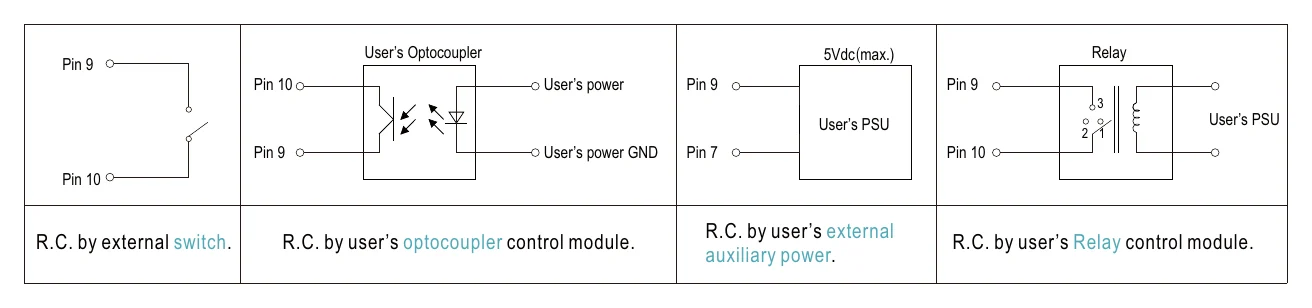

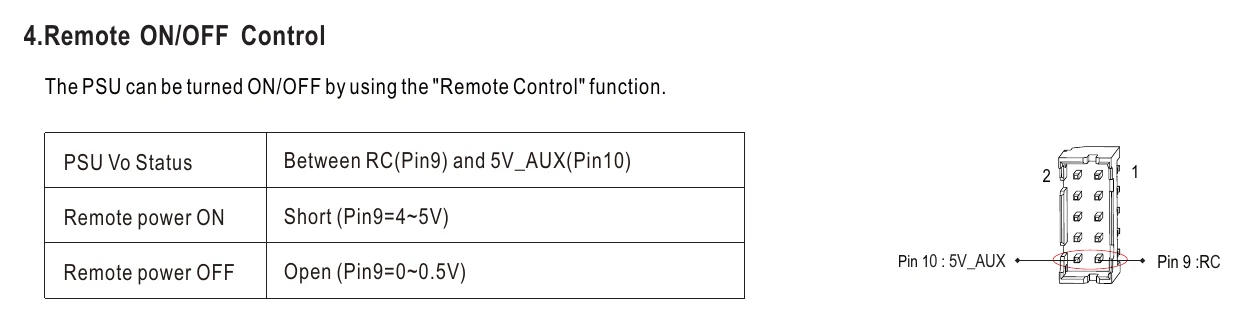

XDR-960-24PI 4.Remote ON/OFFControl — 4.Remote ON/OFFControl

XDR-960-24PI 4.Remote ON/OFFControl (2) — 4.Remote ON/OFFControl (2)

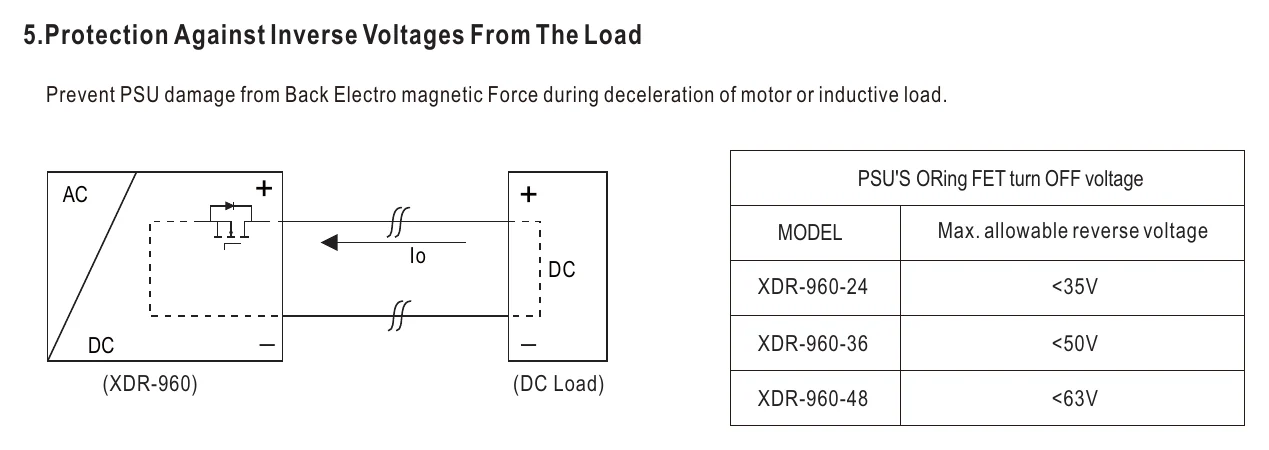

XDR-960-24PI 5.Protection Against Inverse Voltages From The Load — 5.Protection Against Inverse Voltages From The Load

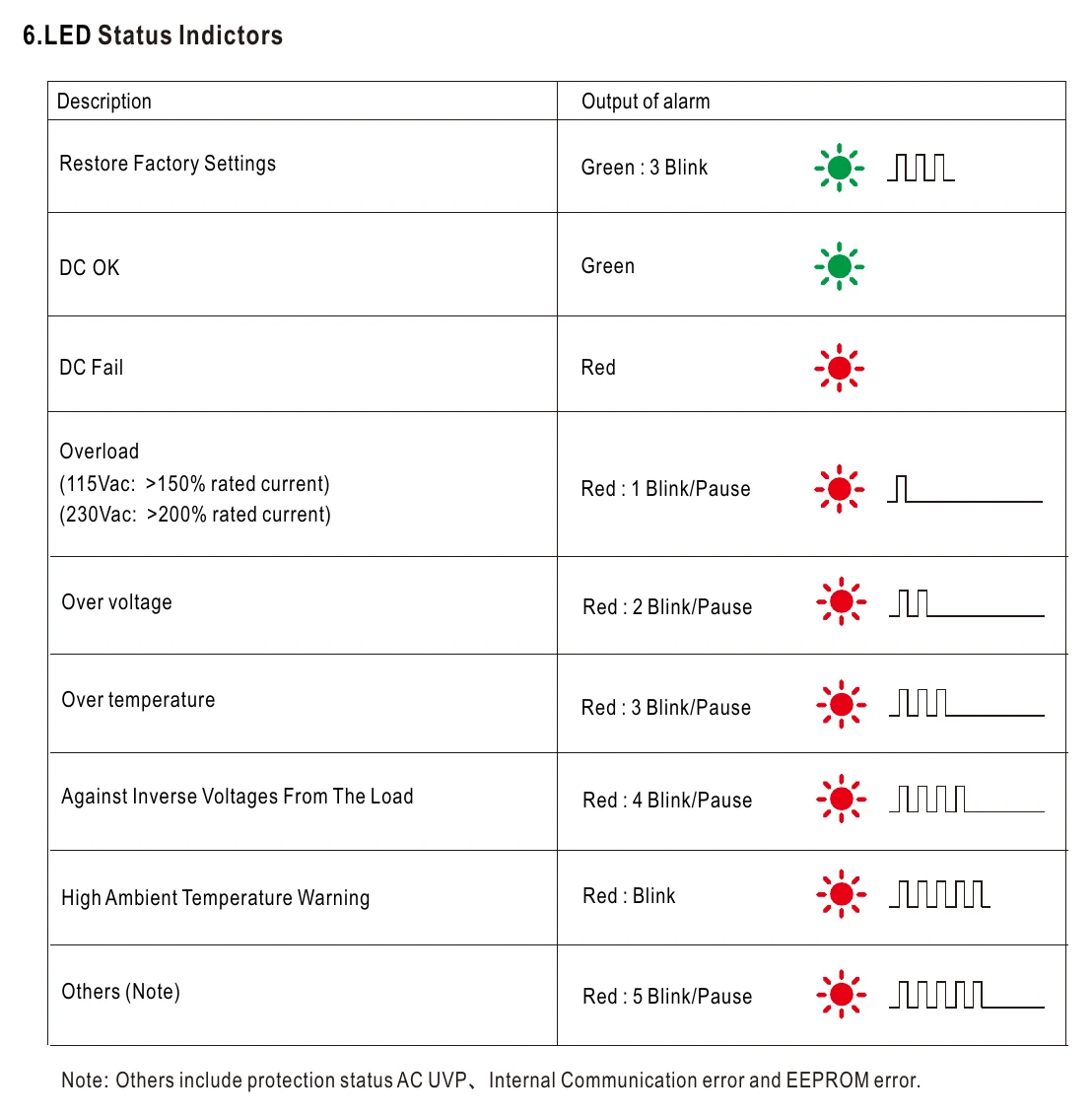

XDR-960-24PI 6.LED Status Indictors — 6.LED Status Indictors

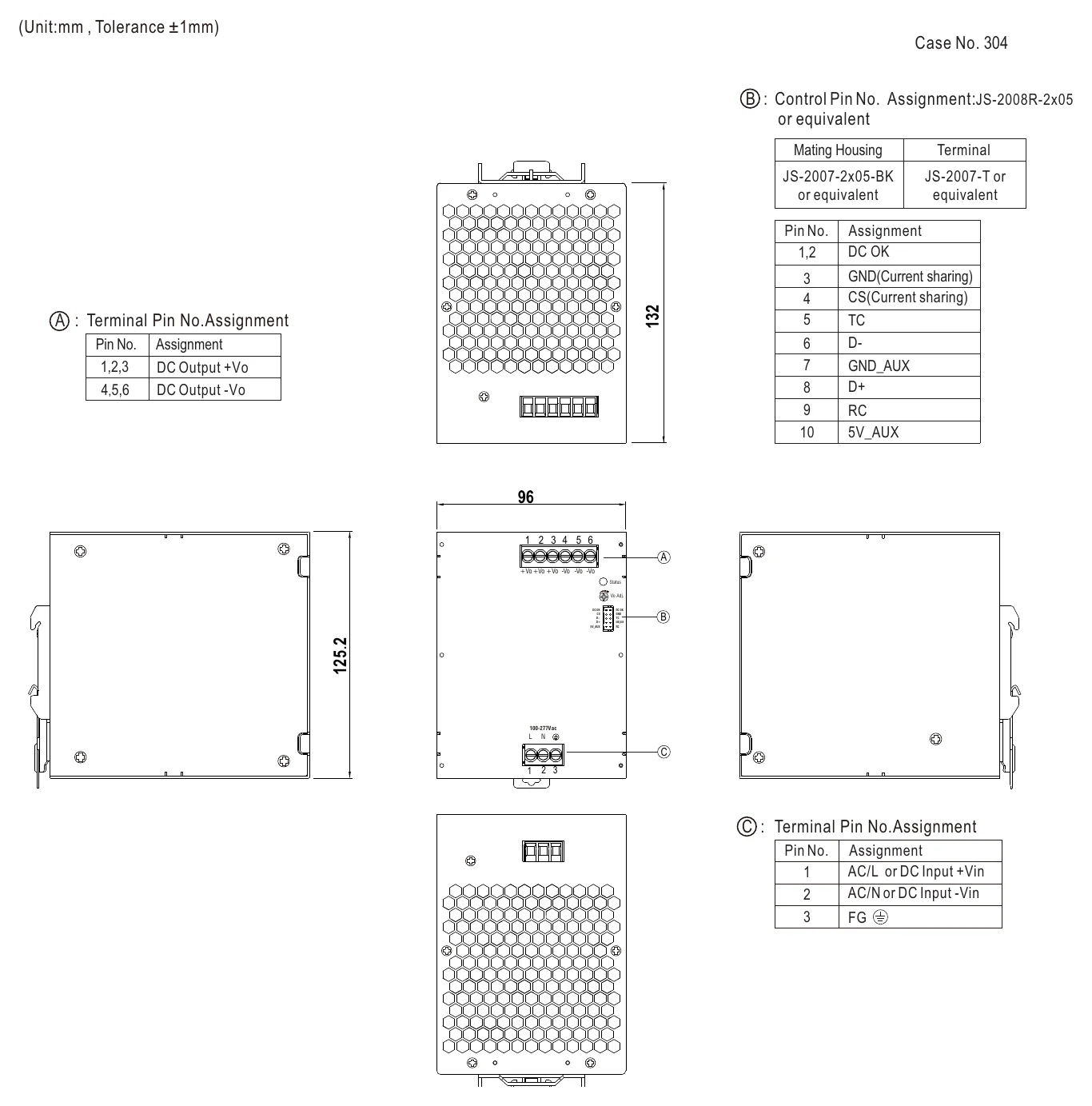

XDR-960-24PI Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

::specification::

FAQ

What is the Mean Well XDR-960-24PI used for?

The XDR-960-24PI is a 960W DIN rail power supply for industrial power systems that need 24V DC output at up to 40A. Its high power rating, slim 96mm width, wide AC input range, and industrial approvals make it suitable for demanding automation, control, and equipment power applications.

What output does the XDR-960-24PI provide?

This model provides 24V DC output with a rated current of 40A. Its total rated output power is 960W, making it a high-capacity option within the XDR DIN rail power supply range.

Can the XDR-960-24PI handle wide AC input conditions?

Yes. The XDR-960-24PI supports an 85-305Vac input range, with 277Vac available according to the supplied product data. This wide input range is useful for industrial and commercial power environments where AC supply conditions can vary.

What makes the XDR-960-24PI different from a basic DIN rail power supply?

The XDR-960-24PI is a high-end ultra slim DIN rail model with 960W output, up to 95% efficiency, 200% peak power capability, and 600% transient peak current capability. It also includes MODBus communication for control, setting, and monitoring, which is not typical of simpler DIN rail supplies.

Can the XDR-960-24PI be used in harsh operating temperatures?

The listed operating temperature range is -40°C to 85°C. That range makes the XDR-960-24PI suitable for industrial environments where equipment may face low ambient temperatures or elevated enclosure temperatures.

Does the XDR-960-24PI support parallel operation?

Yes. The product data lists built-in active current sharing for parallel operation up to 3840W using a 3+1 configuration. This makes the model relevant for higher-power systems or applications that require additional power capacity.

What certifications or approvals are listed for the XDR-960-24PI?

The XDR-960-24PI lists global certificates across ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also lists Marine DNV (for GL type only), SEMI F47, and Class I, Div 2 HazLoc approvals, supporting use in regulated industrial and specialized environments.

What warranty is included with the XDR-960-24PI?

The XDR-960-24PI has a listed warranty period of 5 years. For B2B buyers, that warranty length is useful when specifying a power supply for long-service industrial equipment.
