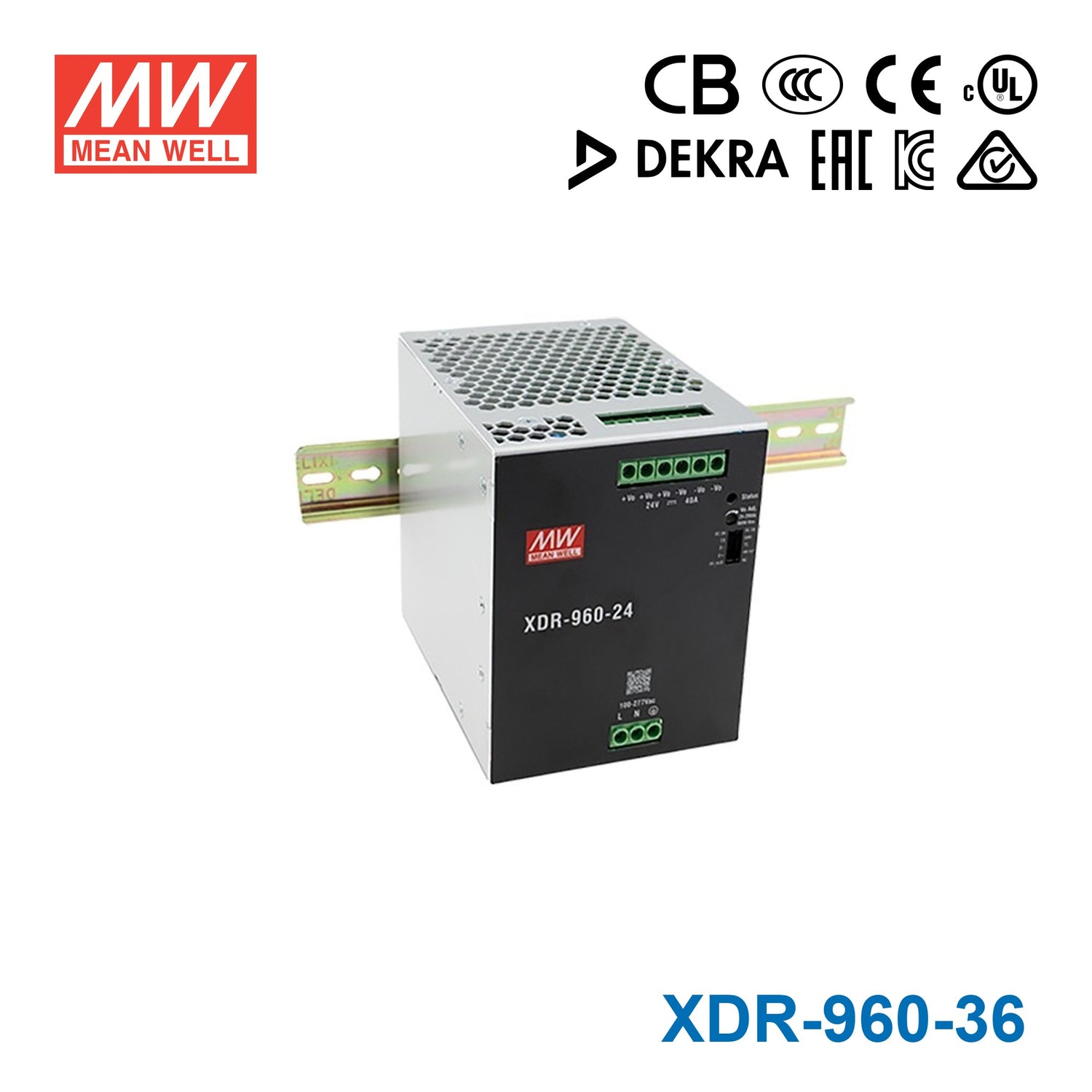

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-960-36 High-End Ultra Slim Industrial Din Rail Power Supply 957.6W 36V 26.6A

Q: What is the Mean Well XDR-960-36 used for?

The XDR-960-36 is a high-power industrial DIN rail power supply for systems that need a regulated 36V DC output. It is suited to B2B industrial power applications where 957.6W output capacity, a slim 96mm body, and broad certification coverage are important.

Q: What are the output ratings of the XDR-960-36?

This model is rated for 36V DC output with a 26.6A rated current. Its total output power rating is 960W, with the product name specifying 957.6W for this 36V configuration.

Q: Is the XDR-960-36 suitable for high-efficiency industrial systems?

Yes. The XDR-960-36 is specified with efficiency up to 96%, which helps reduce power loss in high-power industrial equipment. It also has no-load power dissipation listed as 1.5W to 6.7W by R.C.

Q: What input voltage range does the XDR-960-36 support?

The XDR-960-36 supports an 85 to 305Vac input range. The description also notes 277Vac availability, making it relevant for industrial environments that require broad AC input compatibility.

Q: Can the XDR-960-36 be used in harsh environments?

This model is rated for an operating temperature range from -40°C to 85°C. It also lists industrial, marine DNV, SEMI47, and CID2 HazLoc approvals in the provided product data, which are relevant for demanding commercial and industrial settings.

Q: How does the XDR-960-36 compare with lower-power DIN rail power supplies?

The XDR-960-36 is a higher-output option with a 960W power rating and 36V DC output. It also includes features such as 200% peak power capability, 600% transient peak current capability, and active current sharing for larger systems.

Q: Does the XDR-960-36 support monitoring or control features?

Yes. The product description lists a MODBus communication interface for control, setting, and monitoring. This can be useful in industrial systems where visibility into power supply status is required.

Q: What warranty is provided for the XDR-960-36?

The XDR-960-36 has a listed warranty period of 5 years. This warranty length is a useful consideration for buyers evaluating industrial power supplies for long service life.

96mm widthhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 3840WMODBus communicationinrush current

SKU XDR-960-36

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-960-36 is a 960W ultra-slim DIN-rail power supply delivering 36V DC at up to 26.6A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-960-36 carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
✓96mm width
✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 3840W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Inrush current <10~23A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Optional GL type bracket for wall/panel mounting
✓5 years warranty

Frequently Asked Questions

What is the Mean Well XDR-960-36 used for?

The XDR-960-36 is a high-power industrial DIN rail power supply for systems that need a regulated 36V DC output. It is suited to B2B industrial power applications where 957.6W output capacity, a slim 96mm body, and broad certification coverage are important.

What are the output ratings of the XDR-960-36?

This model is rated for 36V DC output with a 26.6A rated current. Its total output power rating is 960W, with the product name specifying 957.6W for this 36V configuration.

Is the XDR-960-36 suitable for high-efficiency industrial systems?

Yes. The XDR-960-36 is specified with efficiency up to 96%, which helps reduce power loss in high-power industrial equipment. It also has no-load power dissipation listed as 1.5W to 6.7W by R.C.

What input voltage range does the XDR-960-36 support?

The XDR-960-36 supports an 85 to 305Vac input range. The description also notes 277Vac availability, making it relevant for industrial environments that require broad AC input compatibility.

Can the XDR-960-36 be used in harsh environments?

This model is rated for an operating temperature range from -40°C to 85°C. It also lists industrial, marine DNV, SEMI47, and CID2 HazLoc approvals in the provided product data, which are relevant for demanding commercial and industrial settings.

How does the XDR-960-36 compare with lower-power DIN rail power supplies?

The XDR-960-36 is a higher-output option with a 960W power rating and 36V DC output. It also includes features such as 200% peak power capability, 600% transient peak current capability, and active current sharing for larger systems.

Does the XDR-960-36 support monitoring or control features?

Yes. The product description lists a MODBus communication interface for control, setting, and monitoring. This can be useful in industrial systems where visibility into power supply status is required.

What warranty is provided for the XDR-960-36?

The XDR-960-36 has a listed warranty period of 5 years. This warranty length is a useful consideration for buyers evaluating industrial power supplies for long service life.
