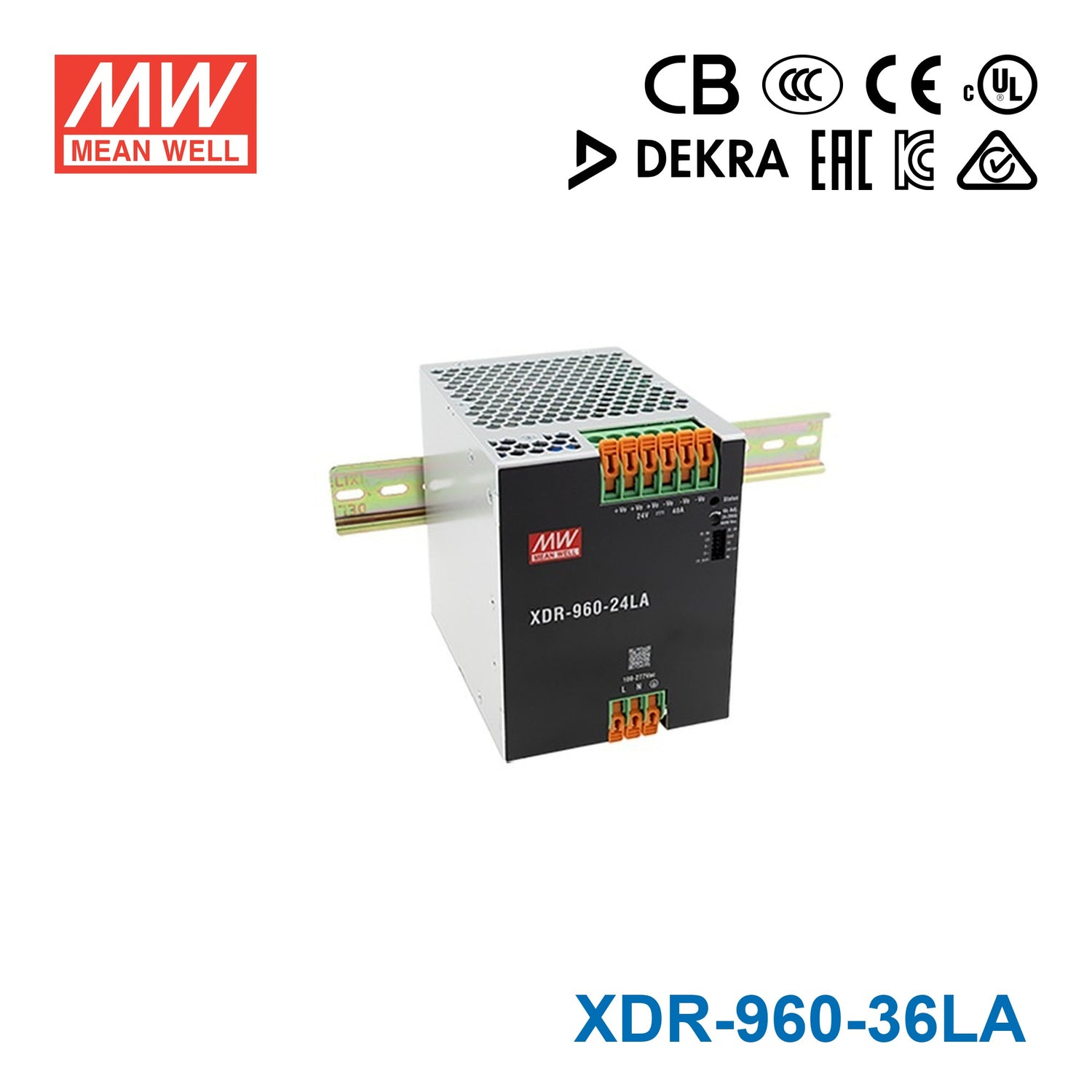

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-960-36LA High-End Ultra Slim Industrial Din Rail Power Supply 957.6W 36V with Lever Actuated Connector 26.6A

Q: What are the main output specifications of the Mean Well XDR-960-36LA?

The Mean Well XDR-960-36LA is rated for 957.6W of output power with a 36V DC output. Its rated output current is 26.6A, making it suitable for high-power industrial DC loads that require a 36V supply.

Q: What types of applications is the XDR-960-36LA intended for?

This model is an industrial DIN rail power supply designed for demanding automation, control, and power distribution environments. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and Class I Division 2 hazardous location support, which makes it relevant for a wide range of professional industrial systems.

Q: What makes the XDR-960-36LA different from a standard DIN rail power supply?

The XDR-960-36LA is described as a high-end ultra slim industrial DIN rail power supply with a 96mm width. It also supports high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, active current sharing for parallel operation, and MODBus communication for control, setting, and monitoring.

Q: What operating temperature range does the XDR-960-36LA support?

The specified operating temperature range for this model is -40°C to 85°C. That wide range supports use in harsh industrial environments where equipment may be exposed to cold starts or elevated ambient temperatures.

Q: Can the XDR-960-36LA be used with global AC input power?

Yes. The product description lists an 85-305Vac input range, with 277Vac available, which supports use across many industrial AC power environments.

Q: Does the XDR-960-36LA support parallel operation?

Yes. The XDR-960-36LA includes built-in active current sharing for parallel operation up to 3840W in a 3+1 configuration. This is useful for systems that need higher available power or redundancy planning within the stated product capability.

Q: What communication feature is included with the XDR-960-36LA?

This model includes a MODBus communication interface. The listed purpose is control, setting, and monitoring, which can be valuable in industrial systems that need visibility into power supply operation.

Q: What is the warranty period and weight of the XDR-960-36LA?

The XDR-960-36LA has a listed warranty period of 5 years. Its specified weight is 2.06 kg.

96mm width, high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, parallel operation up to 3840W, MODBus communication, inrush current

SKU:

XDR-960-36LA

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
✓96mm width
✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 3840W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Inrush current <10~23A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Optional GL type bracket for wall/panel mounting
✓5 years warranty

Specifications

Brand

Mean Well
Input Voltage

85V~305V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
Operating Temperature

-40°C~85°C
Length

13.2 cm
Width

9.6 cm
Height

12.52 cm
Weight

2.06 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main output specifications of the Mean Well XDR-960-36LA?

The Mean Well XDR-960-36LA is rated for 957.6W of output power with a 36V DC output. Its rated output current is 26.6A, making it suitable for high-power industrial DC loads that require a 36V supply.

What types of applications is the XDR-960-36LA intended for?

This model is an industrial DIN rail power supply designed for demanding automation, control, and power distribution environments. Its listed approvals include ITE, industrial, marine DNV, SEMI47, and Class I Division 2 hazardous location support, which makes it relevant for a wide range of professional industrial systems.

What makes the XDR-960-36LA different from a standard DIN rail power supply?

The XDR-960-36LA is described as a high-end ultra slim industrial DIN rail power supply with a 96mm width. It also supports high efficiency up to 96%, 200% peak power capability, 600% transient peak current capability, active current sharing for parallel operation, and MODBus communication for control, setting, and monitoring.

What operating temperature range does the XDR-960-36LA support?

The specified operating temperature range for this model is -40°C to 85°C. That wide range supports use in harsh industrial environments where equipment may be exposed to cold starts or elevated ambient temperatures.

Can the XDR-960-36LA be used with global AC input power?

Yes. The product description lists an 85-305Vac input range, with 277Vac available, which supports use across many industrial AC power environments.

Does the XDR-960-36LA support parallel operation?

Yes. The XDR-960-36LA includes built-in active current sharing for parallel operation up to 3840W in a 3+1 configuration. This is useful for systems that need higher available power or redundancy planning within the stated product capability.

What communication feature is included with the XDR-960-36LA?

This model includes a MODBus communication interface. The listed purpose is control, setting, and monitoring, which can be valuable in industrial systems that need visibility into power supply operation.

What is the warranty period and weight of the XDR-960-36LA?

The XDR-960-36LA has a listed warranty period of 5 years. Its specified weight is 2.06 kg.
