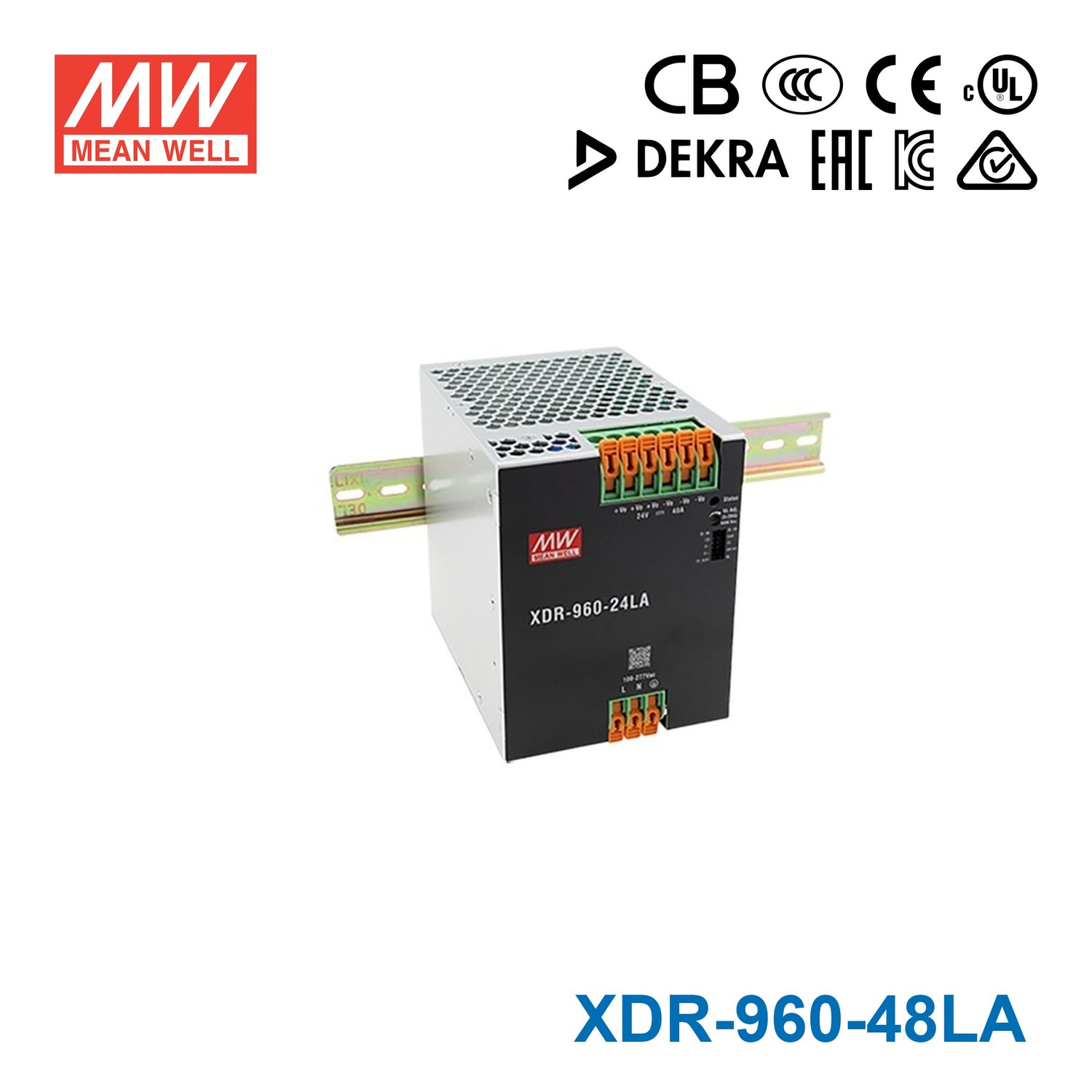

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XDR-960-48LA High-End Ultra Slim Industrial Din Rail Power Supply 960W 48V with Lever Actuated Connector 20A

Q: What is the Mean Well XDR-960-48LA used for?

The XDR-960-48LA is a 960 W industrial DIN rail power supply for systems that need a 48 V DC output. It is suited to high-power industrial control, automation, DC power distribution, and other B2B equipment applications where a slim DIN rail form factor is required.

Q: What are the main electrical ratings of the XDR-960-48LA?

This model is rated for 960 W output power at 48 V DC. Its rated output current is 20 A, making it a high-capacity option within DIN rail power supply applications.

Q: How slim is the XDR-960-48LA?

The XDR-960-48LA has a 96 mm width. That slim profile helps conserve DIN rail cabinet space compared with wider power supplies in similar power classes.

Q: What input voltage range does the XDR-960-48LA support?

The XDR-960-48LA supports an 85 to 305 Vac input range. The product data also notes 277 Vac availability, which can be useful in industrial power environments where that input level is required.

Q: Can the XDR-960-48LA be used in harsh industrial environments?

Yes, the listed operating temperature range is -40 °C to 85 °C. It also carries multiple approvals noted in the product data, including industrial, marine DNV, SEMI47, and CID2 HazLoc approvals.

Q: Does the XDR-960-48LA support parallel operation?

Yes, this model includes built-in active current sharing for parallel operation. The product data specifies parallel operation up to 3840 W in a 3+1 configuration.

Q: What communication features are included with the XDR-960-48LA?

The XDR-960-48LA includes a MODBus communication interface. The listed functions include control, setting, and monitoring for supported systems.

Q: What is the warranty period for the XDR-960-48LA?

The XDR-960-48LA has a listed warranty period of 5 years. Its listed weight is 2.06 kg, which may be relevant for cabinet planning and shipping considerations.

96mm widthhigh efficiency up to 96%200% peak power capability600% transient peak current capabilityparallel operation up to 3840WMODBus communicationinrush current

SKU XDR-960-48LA

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Mean Well XDR-960-48LA is a 960W ultra-slim DIN-rail power supply delivering 48V DC at up to 20A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~305VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 85°C, the XDR-960-48LA carries CB, CCC, CE, cUL, DEKRA, EAC, KC and RCM approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 5-year warranty.

Key Features

✓85~305Vac input range (277Vac available)
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
✓96mm width
✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
✓200% peak power capability
✓600% transient peak current capability
✓Built-in active current sharing for parallel operation up to 3840W (3+1)
✓MODBus communication interface for control, setting, and monitoring
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Over voltage category III (OVC III)
✓-40°~+85°C wide range operation temperature (>+60°C derating)
✓Operating altitude up to 5000 meters
✓Built-in remote ON/OFF control and DC OK relay contact
✓Inrush current <10~23A
✓Tool free terminal block (LA Type)
✓Conformal coating
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Optional GL type bracket for wall/panel mounting
✓5 years warranty

Frequently Asked Questions

What is the Mean Well XDR-960-48LA used for?

The XDR-960-48LA is a 960 W industrial DIN rail power supply for systems that need a 48 V DC output. It is suited to high-power industrial control, automation, DC power distribution, and other B2B equipment applications where a slim DIN rail form factor is required.

What are the main electrical ratings of the XDR-960-48LA?

This model is rated for 960 W output power at 48 V DC. Its rated output current is 20 A, making it a high-capacity option within DIN rail power supply applications.

How slim is the XDR-960-48LA?

The XDR-960-48LA has a 96 mm width. That slim profile helps conserve DIN rail cabinet space compared with wider power supplies in similar power classes.

What input voltage range does the XDR-960-48LA support?

The XDR-960-48LA supports an 85 to 305 Vac input range. The product data also notes 277 Vac availability, which can be useful in industrial power environments where that input level is required.

Can the XDR-960-48LA be used in harsh industrial environments?

Yes, the listed operating temperature range is -40 °C to 85 °C. It also carries multiple approvals noted in the product data, including industrial, marine DNV, SEMI47, and CID2 HazLoc approvals.

Does the XDR-960-48LA support parallel operation?

Yes, this model includes built-in active current sharing for parallel operation. The product data specifies parallel operation up to 3840 W in a 3+1 configuration.

What communication features are included with the XDR-960-48LA?

The XDR-960-48LA includes a MODBus communication interface. The listed functions include control, setting, and monitoring for supported systems.

What is the warranty period for the XDR-960-48LA?

The XDR-960-48LA has a listed warranty period of 5 years. Its listed weight is 2.06 kg, which may be relevant for cabinet planning and shipping considerations.
