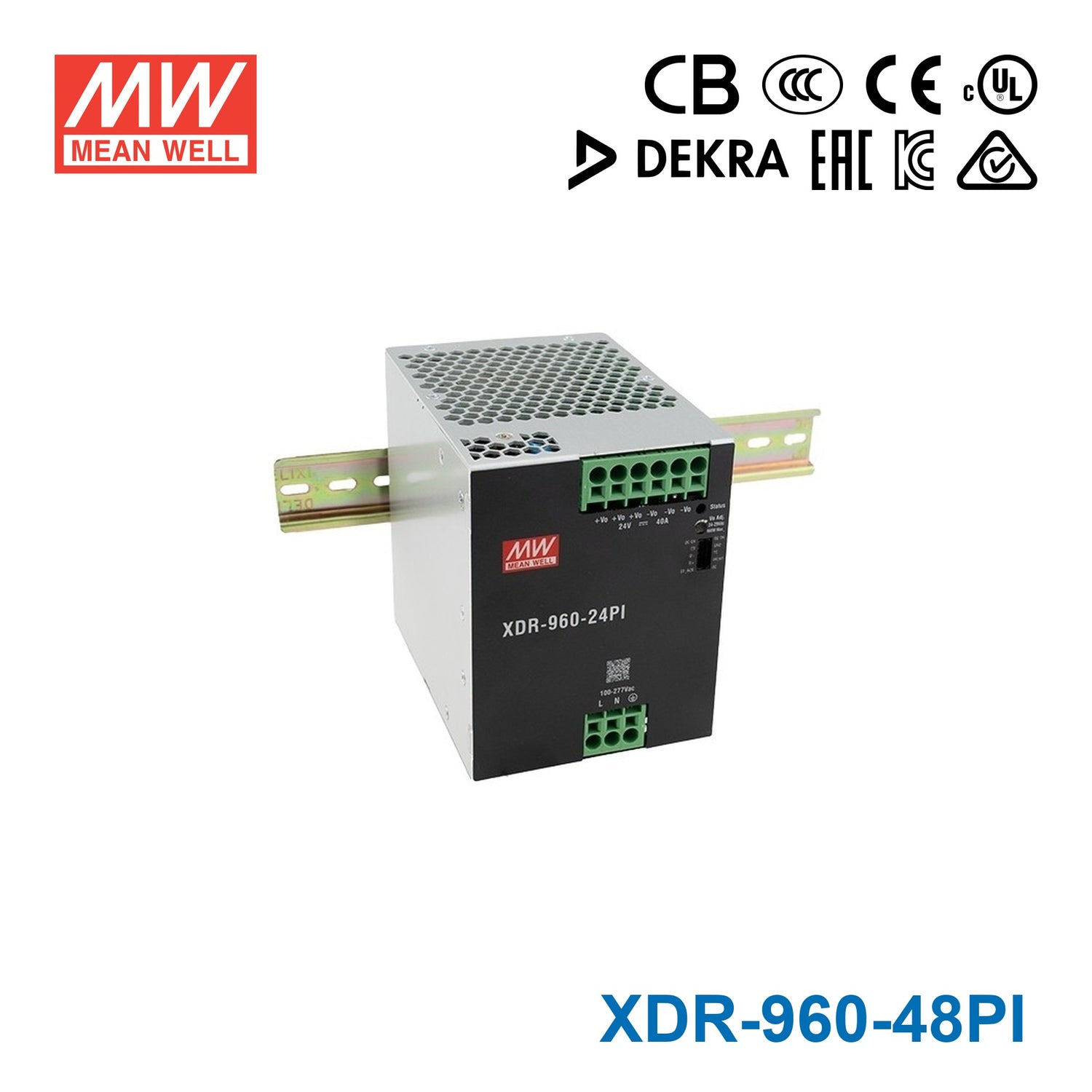

Mean Well XDR-960-48PI High-End Ultra Slim Industrial Din Rail Power Supply 960W 48V with Push In Connector 20A
Notify me when it's back in stock
Mean Well XDR-960-48PI High-End Ultra Slim Industrial Din Rail Powe...
Please Login for Pricing
Description
Description
Key Features
- ✓85~305Vac input range (277Vac available)
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010) & Marine DNV (GL type), SEMI47, CID2 HazLoc approved
- ✓96mm width
- ✓High efficiency up to 96% and no-load power dissipation 1.5W~6.7W by R.C.
- ✓200% peak power capability
- ✓600% transient peak current capability
- ✓Built-in active current sharing for parallel operation up to 3840W (3+1)
- ✓MODBus communication interface for control, setting, and monitoring
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Over voltage category III (OVC III)
- ✓-40°~+85°C wide range operation temperature (>+60°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in remote ON/OFF control and DC OK relay contact
- ✓Inrush current <10~23A
- ✓Tool free terminal block (LA Type)
- ✓Conformal coating
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓Optional GL type bracket for wall/panel mounting
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage85V~305V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC,RCM
-
Operating Temperature-40°C~85°C
-
Length13.2 cm
-
Width9.6 cm
-
Height12.52 cm
-
Weight2.06 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main electrical ratings of the Mean Well XDR-960-48PI?
The XDR-960-48PI is a 960 W DIN rail power supply with a 48 V DC output. Its rated output current is 20 A, making it suitable for higher-power industrial DC loads that require a 48 V supply.
What types of applications is the XDR-960-48PI intended for?
This model is part of Mean Well's high-end industrial DIN rail power supply range. Its approvals for ITE, industrial, marine DNV, SEMI47, and Class I Division 2 hazardous location use make it relevant for industrial automation, control cabinets, marine equipment, semiconductor-related systems, and other demanding 48 V DC applications.
Why choose the XDR-960-48PI instead of a lower-power 48 V DIN rail supply?
The XDR-960-48PI provides 960 W of output power and 20 A at 48 V, which is substantially more capacity than many smaller DIN rail supplies. It is also designed with high-end features such as up to 96% efficiency, 200% peak power capability, transient peak current capability, and active current sharing for larger systems.
What operating temperature range does the XDR-960-48PI support?
The listed operating temperature range for this model is -40 °C to 85 °C. That wide range supports use in demanding industrial environments where equipment may be exposed to very low or elevated ambient temperatures.
Can the XDR-960-48PI be used in systems that require monitoring or control communication?
Yes, the XDR-960-48PI includes a MODBus communication interface for control, setting, and monitoring. This makes it a better fit for industrial systems where power supply status and configuration need to be integrated into a broader control or supervision platform.
How wide is the XDR-960-48PI for DIN rail panel layouts?
The XDR-960-48PI has a 96 mm width. Its ultra slim DIN rail format helps conserve panel space while still providing 960 W of 48 V DC output power.
Does the XDR-960-48PI support parallel operation?
Yes, this model has built-in active current sharing for parallel operation. The listed capability supports systems up to 3840 W in a 3+1 configuration.
What warranty and physical weight are listed for the XDR-960-48PI?
The XDR-960-48PI has a listed warranty period of 5 years. Its listed weight is 2.06 kg, which is useful for cabinet planning, shipping estimates, and replacement comparisons.
