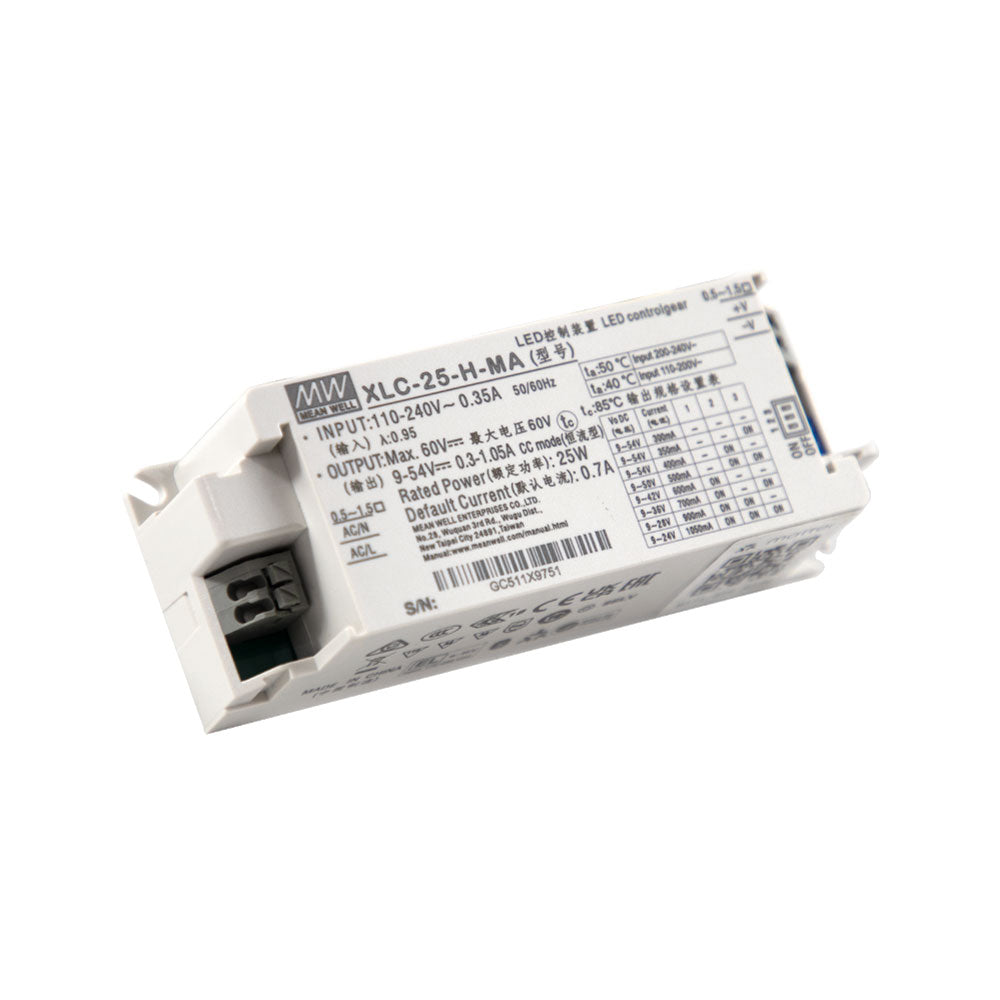

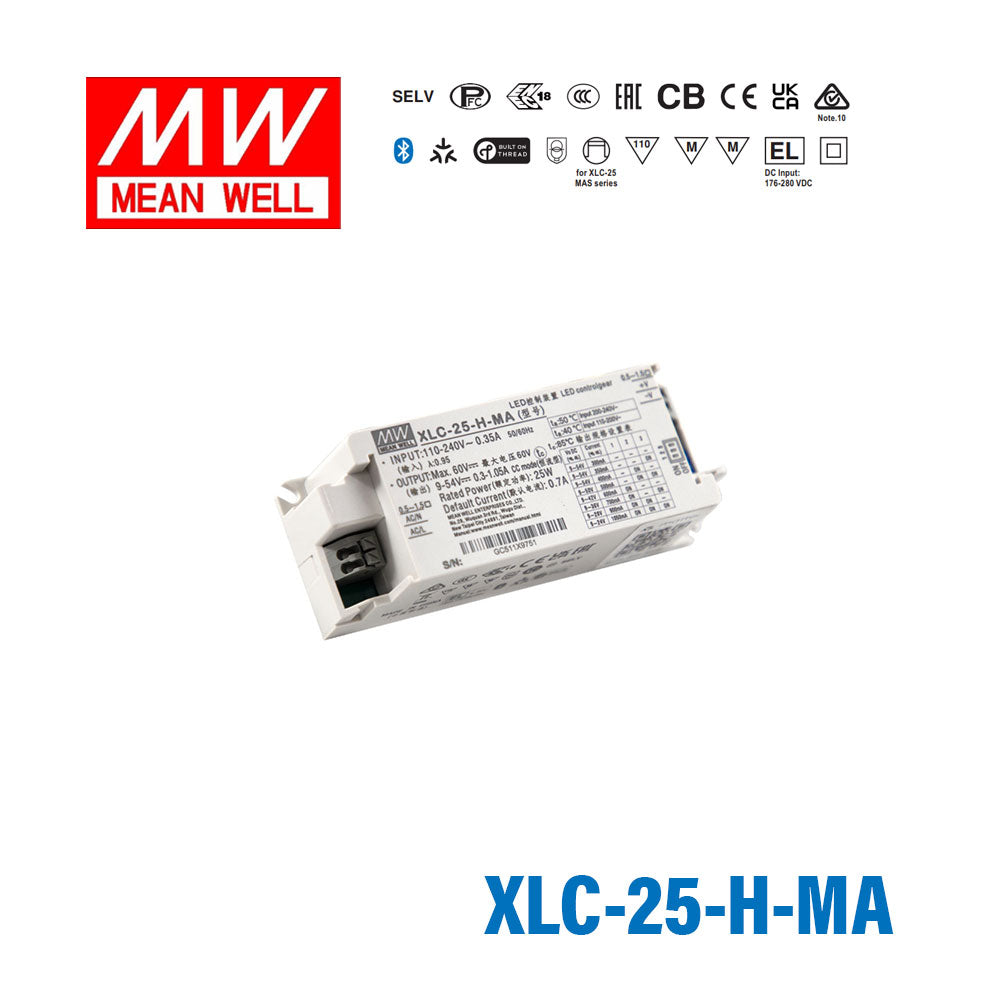

Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming

current adjustment range 0.3~1.05Aclass II and PFCflicker-freebuilt-in useMatter 1.3 specification

SKU XLC-25-H-MA

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLC-25-H-MA is the model of this series: rated power 25W, typical efficiency 88%.

XLC-25-MA series is a 25W with constant power output LED driver . It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by DIP switch .Thanks to high efficiency up to 88%, it is able to operate for -25 ℃ ~85 ℃ case temperature under free air convection. XLC-25-MA series is designed based on latest safety regulations with Matter wireless dimming . It provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.5%
Matter over thread, Matter 1.3 specification
5 years warranty

Specifications

XLC-25-H-MASpecifications from the official datasheet (2025-02-19 edition)Download datasheet PDF

OUTPUT

OPEN CIRCUIT VOLTAGE^Note.2: 60V
DEFAULT CURRENT: 700mA
CURRENT ADJ.RANGE (BY DIP SWITCH): 0.3~1.05A
CONSTANT CURRENT REGION^Note.3: 9~54V
RATED POWER^Note.4: 25W
CURRENT RIPPLE: <4%(@full load)
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP, RISE TIME^Note.5: 2500ms, 100ms/230VAC, 2500ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.6: 88%
AC CURRENT: 0.35A / 115VAC 0.18A / 230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 71 units (circuit breaker of type B) / 71 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note.7: Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T 19510.1, GB/T 19510.213; EAC TP TC 004 ; CSA C22.2 No. 250.13-12 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13 ;
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
Standard BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3
Standard	BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

MATTER STANDARD: Matter 1.3 Specification
FLICKER^Note.8: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3949.8 K hrs min. Telcordia SR-332 (Bellcore) ; 338.5 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 147*40*32mm,107*40*32mm (L*W*H)
PACKING: 141.6g; 60pcs/8.4Kg/0.58CUFT(for blank type); 160g; 50pcs/8.1Kg/0.57CUFT(for S-type)

Certifications & ratings

SELV: DC Input: 176-280 VDC

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. Efficiency is measured at 500mA/50V output set by dip-switch.
7. Standby power consumption is measured at 230VAC.
8. Flicker is measured at full load with LED modules.
9. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
12. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For more information, please contact with MEAN WELL sales.

Technical drawings

XLC-25-H-MA BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-25-H-MA DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-25-H-MA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-25-H-MA TOTAL HARMONIC DISTORTION (THD) — TOTAL HARMONIC DISTORTION (THD)

XLC-25-H-MA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-25-H-MA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-25-H-MA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLC-25-H-MA ※ By RESET BUTTON — ※ By RESET BUTTON

XLC-25-H-MA FACTORY RESET — FACTORY RESET

XLC-25-H-MA Antenna location — Antenna location

Typical applications

Downloads

Datasheet1

XLC-25-H-MA datasheetXLC_25_MA_MAS_spec_sheet.pdf · 2025-02-19 edition PDF Download

FAQ

Can I use the XLC-25-H-MA to control LED downlights wirelessly through a Matter smart home ecosystem?

Yes. The XLC-25-H-MA supports Matter 1.3 wireless dimming, making it compatible with Matter-enabled smart home hubs and apps. It drives LED downlights with a constant current over a 9–54V range at 700mA, and the current can be adjusted between 0.3A and 1.05A via dip switch.

Is the XLC-25-H-MA suitable for LED downlights in a residential Matter lighting system?

Yes. The built-in Matter 1.3 specification enables integration with common residential smart home platforms. The driver is rated for 25W at 700mA with flicker-free operation (PstLM ≤ 1, SVM ≤ 0.4), which is appropriate for living spaces and bedrooms where flicker sensitivity matters.

Can this driver power LED signage modules and be dimmed wirelessly via Matter?

Yes. The XLC-25-H-MA can drive LED signage modules or small LED arrays where the forward voltage string falls within 9–54V, and the built-in Matter wireless dimming allows remote brightness control without additional hardware. The number of LED modules depends on individual LED forward voltages.

What is the operating temperature range for the XLC-25-H-MA, and can it be used inside enclosed luminaires?

The XLC-25-H-MA operates from -25°C to +85°C case temperature and is rated for built-in (enclosed) use. It is a Class II driver, making it appropriate for installation inside luminaire housings.

How does the XLC-25-H-MA differ from the XLC-25-H-MAS?

Both are 25W, 700mA Matter wireless dimming drivers with identical electrical specifications and a current range of 0.3–1.05A. The XLC-25-H-MAS adds a strain-relief fitting and is slightly larger at 147.0 × 40.0 × 32.0 mm, whereas the XLC-25-H-MA measures 107.0 × 40.0 × 32.0 mm and does not include strain relief.

How many LEDs can the XLC-25-H-MA drive, and what voltage does it require?

The driver provides constant current across a CC voltage range of 9–54V at 700mA. The number of LEDs in the string depends on each LED's forward voltage — there is no universal count. The combined forward voltage of the LED string must fall within 9–54V.
