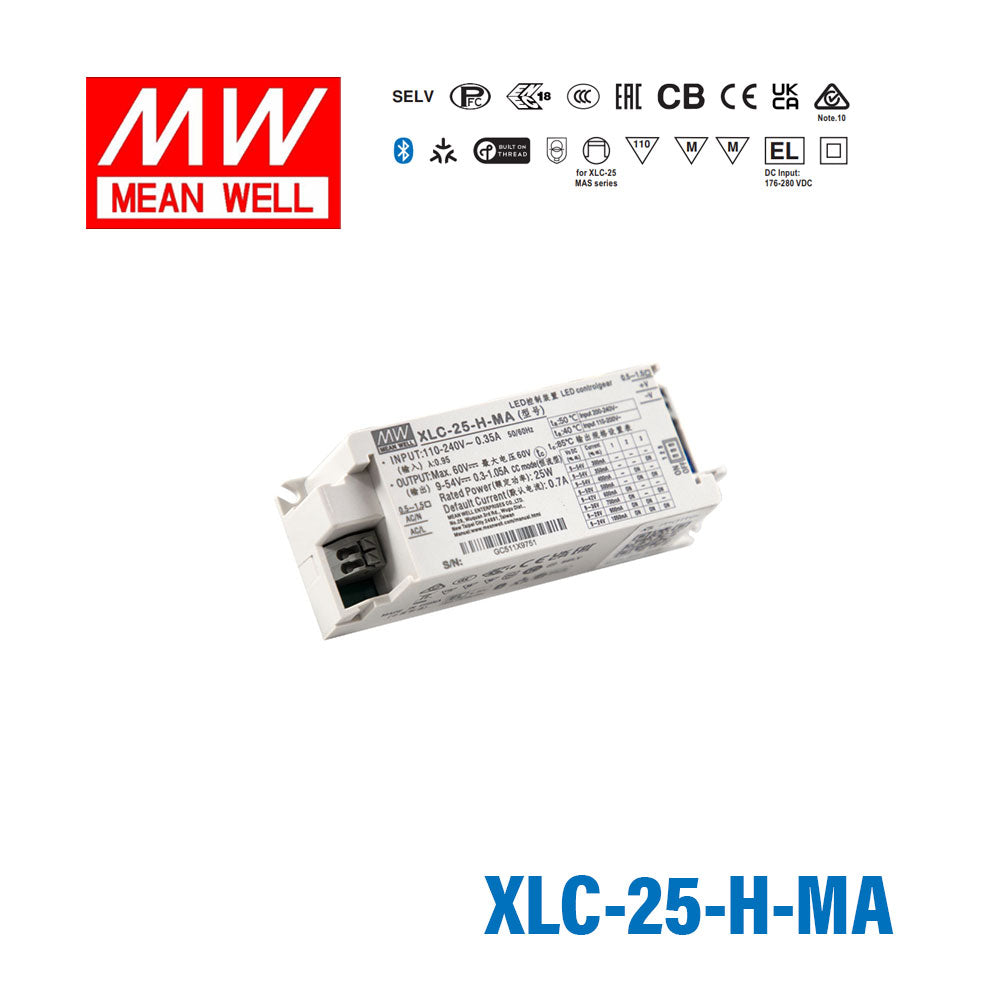

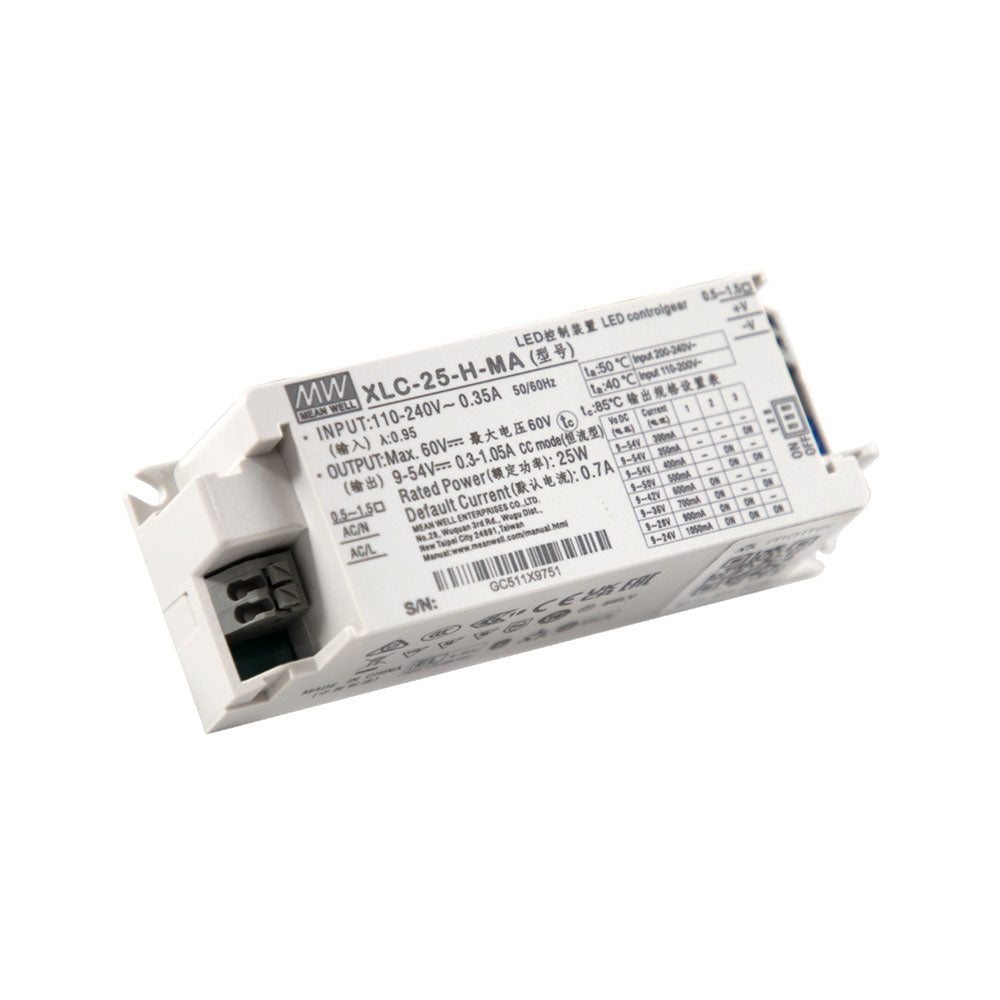

Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming

Q: Can I use the XLC-25-H-MA to control LED downlights wirelessly through a Matter smart home ecosystem?

Yes. The XLC-25-H-MA supports Matter 1.3 wireless dimming, making it compatible with Matter-enabled smart home hubs and apps. It drives LED downlights with a constant current over a 9–54V range at 700mA, and the current can be adjusted between 0.3A and 1.05A via dip switch.

Q: Is the XLC-25-H-MA suitable for LED downlights in a residential Matter lighting system?

Yes. The built-in Matter 1.3 specification enables integration with common residential smart home platforms. The driver is rated for 25W at 700mA with flicker-free operation, which is appropriate for living spaces and bedrooms where flicker sensitivity matters.

Q: Can this driver power LED signage modules and be dimmed wirelessly via Matter?

Yes. The XLC-25-H-MA can drive LED signage modules or small LED arrays where the forward voltage string falls within 9–54V, and the built-in Matter wireless dimming allows remote brightness control without additional hardware. The number of LED modules depends on individual LED forward voltages.

Q: What is the operating temperature range for the XLC-25-H-MA, and can it be used inside enclosed luminaires?

The XLC-25-H-MA operates from -25°C to +85°C and is rated for built-in (enclosed) use. It is a Class II driver, making it appropriate for installation inside luminaire housings.

Q: How does the XLC-25-H-MA differ from the XLC-25-H-MAS?

Both are 25W, 700mA Matter wireless dimming drivers with identical electrical specifications and a current range of 0.3–1.05A. The XLC-25-H-MAS adds a strain-relief fitting and is slightly larger at 147.0 × 32.0 × 40.0 mm, whereas the XLC-25-H-MA measures 107.0 × 32.0 × 40.0 mm and does not include strain relief.

Q: How many LEDs can the XLC-25-H-MA drive, and what voltage does it require?

The driver provides constant current across a CC voltage range of 9–54V at 700mA. The number of LEDs in the string depends on each LED's forward voltage — there is no universal count. The combined forward voltage of the LED string must fall within 9–54V.

current adjustment range 0.3~1.05A, class II and PFC, flicker-free, built-in use, Matter 1.3 specification

SKU:

XLC-25-H-MA

Please for Pricing

Notify me when it's back in stock

Description

Key Features

✓Constant power mode output with multiple stage selectable by DIP switch
✓Plastic housing with class II and PFC design
✓Flicker free, complying with CE ErP directive
✓Standby power consumption <0.5W
✓Meet emergency lighting (EL) application
✓Minimum dimming level 0.5%
✓Matter over thread, Matter 1.3 specification
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLC Series
Power Rating

25 Watt
Output Voltage

60 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-25°C~85°C
Warranty

5 Year
Length

10.7 cm
Width

3.2 cm
Height

4 cm
Weight

0.16 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the XLC-25-H-MA to control LED downlights wirelessly through a Matter smart home ecosystem?

Yes. The XLC-25-H-MA supports Matter 1.3 wireless dimming, making it compatible with Matter-enabled smart home hubs and apps. It drives LED downlights with a constant current over a 9–54V range at 700mA, and the current can be adjusted between 0.3A and 1.05A via dip switch.

Is the XLC-25-H-MA suitable for LED downlights in a residential Matter lighting system?

Yes. The built-in Matter 1.3 specification enables integration with common residential smart home platforms. The driver is rated for 25W at 700mA with flicker-free operation, which is appropriate for living spaces and bedrooms where flicker sensitivity matters.

Can this driver power LED signage modules and be dimmed wirelessly via Matter?

Yes. The XLC-25-H-MA can drive LED signage modules or small LED arrays where the forward voltage string falls within 9–54V, and the built-in Matter wireless dimming allows remote brightness control without additional hardware. The number of LED modules depends on individual LED forward voltages.

What is the operating temperature range for the XLC-25-H-MA, and can it be used inside enclosed luminaires?

The XLC-25-H-MA operates from -25°C to +85°C and is rated for built-in (enclosed) use. It is a Class II driver, making it appropriate for installation inside luminaire housings.

How does the XLC-25-H-MA differ from the XLC-25-H-MAS?

Both are 25W, 700mA Matter wireless dimming drivers with identical electrical specifications and a current range of 0.3–1.05A. The XLC-25-H-MAS adds a strain-relief fitting and is slightly larger at 147.0 × 32.0 × 40.0 mm, whereas the XLC-25-H-MA measures 107.0 × 32.0 × 40.0 mm and does not include strain relief.

How many LEDs can the XLC-25-H-MA drive, and what voltage does it require?

The driver provides constant current across a CC voltage range of 9–54V at 700mA. The number of LEDs in the string depends on each LED's forward voltage — there is no universal count. The combined forward voltage of the LED string must fall within 9–54V.

Model	Power	Voltage	Current	IP Rating
Mean Well XLC-25-H-KNS LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System, With Strain-Relief	25W	60V	0.3A	Indoor	View
Mean Well XLC-25-H-KN LED Driver 25W 9~54V Constant Power, Current Setting by Dip Switch, For KNX System	25W	60V	0.3A	Indoor	View
Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief	25W	60V	0.7A	Indoor	View
